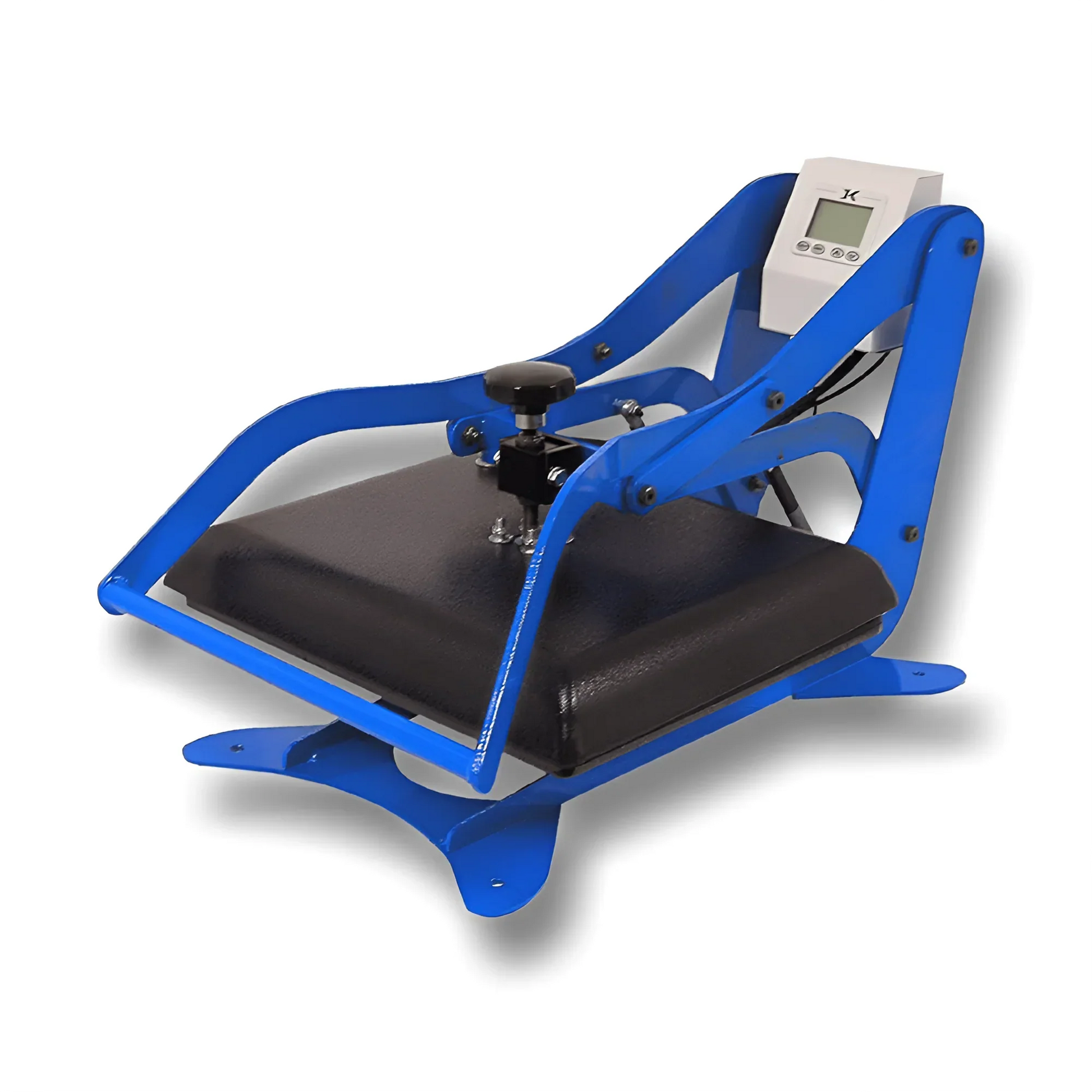

Geo Knight DK16A Digital Knight 14" x 16" Clam Auto-Open Heat Press - DK16A
The DK16A is the AUTO-RELEASE "Pop-Up" version of ourmid-sized manual clamshell. This amazing high-tech feature makes your Digital Knight clamshell act like a semi-automatic, air operated press, without the compressor! Simply close the press as you normally do, and at the end of the digital timing cycle the press releases automatically.
The Auto-Release upgrade also features the "HOVER" feature. This means when the handle is lowered without fully clamping the machine, the press will hover over the work, usually needed for curing purposes. At the end of the time cycle, the press releases automatically as usual.
The DK16A 14x16 clamshell press opens for full access to the lower bottom table. It is important to note that the back of the heat platen raises above and away from the bottom table, providing better access than other clamshell presses. The frame support allows operators to slide shirts over the table with complete drape space around and underneath the loading area. Interchangeable bottom tables for smaller pressing areas are available. This press is ideal for environments with space limitations, and for users who need more portability and mobility than the over-weight swing away presses.
Feature
Fully digital temperature control (32°-600°F range)
Automatic digital timer & dual pre-press timer
Digital pressure bar graph
Super-portable light machine weight--83 lbs!
Extreme high pressure capability
Hardened High-strength pivot points
Interchangeable tables
Solid steel framework
SuperCoil-Microwinding™ heater technology
Self lifting gas-spring & wide opening
Temperature readout accuracy of ±2°F -- Can show °C or °F
User selectable end-of-cycle alarms
Records number of pressing cycles done
Non-stick-coated 3/4" thick heat platen
Lifetime warranty on heat platen
3-year warranty on the control panel
1-year warranty on entire press
Specifications
Weight
83 Lbs
Electrical
1500W / 12A / 110V
Dimensions
32"L x 17"W x 16"H
Video
What Our Experts Think
The Geo Knight DK16A Digital Knight 14" x 16" Clam Auto-Open Heat Press (DK16A) is a compact and efficient solution for professional heat transfer projects. Here's why it stands out:
Auto-Open Feature: Automatically lifts at the end of the press cycle, preventing over-pressing and allowing multitasking.
Compact Design: The 14" x 16" platen size is perfect for smaller spaces and medium-scale projects.
Digital Accuracy: Features precise controls for time, temperature, and pressure, ensuring consistent, high-quality results.
Clamshell Efficiency: Space-saving clamshell design allows for easy material placement and streamlined operation.
Durability: Engineered with heavy-duty steel construction for longevity and reliability in frequent use.
Versatile Applications: Suitable for sublimation, HTV, and specialty transfers on textiles, small garments, and other substrates.
The DK16A combines portability, precision, and functionality, making it an excellent choice for businesses and creators working on diverse heat transfer projects.
Q&A
Q: What is the Geo Knight DK16A Digital Knight Clam Auto-Open Heat Press? A: The DK16A is a 14" x 16" clam-style heat press with an auto-open feature, designed for compact, professional-grade heat transfer applications.
Q: What are its key features? A: Key features include:
14" x 16" platen for smaller to medium-sized items.
Auto-open functionality to prevent over-pressing and improve efficiency.
Digital controls for precise time, temperature, and pressure adjustments.
Sturdy, industrial-grade construction for long-term reliability.
Q: What is it used for? A: Ideal for pressing garments, tote bags, small textiles, and flat substrates like coasters and mousepads.
Q: Is it user-friendly? A: Yes, the auto-open feature and intuitive digital controls make it easy to operate and ideal for consistent production.
Q: Who is this press best suited for? A: Perfect for small businesses, hobbyists, and professionals who need a compact, dependable, and efficient heat press.
Maintenance Tips
Clean the Heat Plate: Let the press cool completely, then wipe the surface with a soft, damp cloth. Use mild soap if needed, avoiding abrasive cleaners.
Inspect Auto-Open Mechanism: Regularly check the latch and springs for proper function. Apply a small amount of lubricant to moving parts if necessary.
Monitor Pressure Knob: Test the pressure adjustment knob to ensure it provides consistent and even pressure.
Check Electrical Components: Examine power cords, plugs, and control panels for any wear or damage, and replace as needed.
Avoid Overheating: Use within the recommended temperature range to maintain efficiency and protect internal components.
Store Securely: Keep the press in a dry, dust-free location when not in use to prevent damage from environmental factors.
Proper care ensures reliable performance and extends the lifespan of your heat press.
