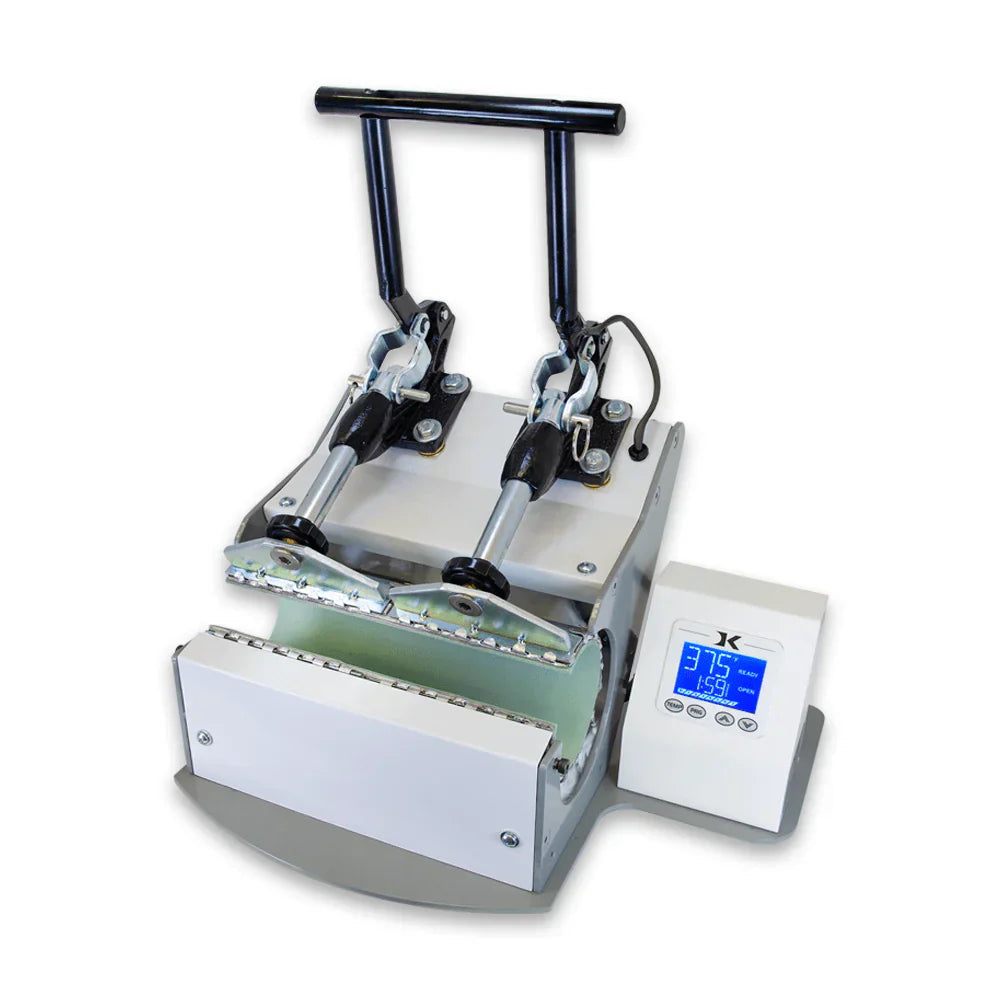

The DK3D Digital Double-Wide Mug Press has all the same features as the DK3, but with a 10" long heater.
This press is a full wrap-around, handle-to-handle, top-to-bottom printing mug press. It can press images up to 10" high, and as close as 1/2" from the handle, depending on the mug size. The DK3 can also print 2 normal-sized matching mugs simultaneously!
The DK3D is fully adjustable, accommodating all cylindrical mugs available on the market. This includes standard 11 oz, 15 oz, 16 oz mugs, steins, and stainless steel travel mugs. (...but not tapered latte mugs...) PLUS, EXTRA TALL water bottles, thermoses, travel mugs, and much more!
The ability of the press to open extra wide allows for easy and fast loading and unloading of mugs from the press. The thick solid steel framework and die-cast clamp assembly provide a heavy-duty framework for non-stop use. The clamp assembly can be adjusted for very heavy pressure, allowing for full bleed transfers on even the most demanding mugs. Finally - a mug press that compensates for less than perfectly straight mugs!
As with all Digital Knight presses, the DK3D utilizes a state-of-the-art digital control system with an unprecedented 3-year warranty on heat-control electronics. With digital temperature, time and programmable presets, cycle counter, and many other features, the consistency, and productivity of mug printing are maximized.
At the heart of the DK3D is the SuperCoil-Microwindingâ„¢ heater technology, a system of embedded heater windings that wind tightly and closely together throughout the entire platen for extremely even heating, fast recovery & fast heat-up times. The DK3D will start up in only a few minutes, and unlike other presses runs constantly at the set temperature, instead of a much lower idle temperature. Unlike other mug presses that use silicone blankets with short lifespans and even shorter warranties, the DK3D boasts an amazing 3-Year / 3,000 mug warranty. The patented stainless steel mug band heater technology Geo Knight is famous for has proven to be far more reliable in the field than traditional methods.
For the absolute best, at an amazing price, there is no better solution for pressing mugs than the DK3D Digital Knight Double-Wide Mug Press.
This mug press is compatible with sublimation inks.
Feature
Fully digital temperature control.
Automatic digital timer.
Programmable presets.
Solid steel welded framework.
SuperCoil-Microwindingâ„¢ heater technology.
Soft heater liner for accommodating inconsistent mugs.
Temperature readout accuracy +-2°F.
User selectable end-of-cycle alarms.
Records number of pressing cycles done.
 Specifications
Weight
40Â Lbs
Electrical
900W / 8A / 120V
Dimensions
20"W x 13"H x 15"L
Video
What Our Experts Think
The Geo Knight DK3D Double Wide Sublimation Mug Press (DK3D) is a game-changing tool for professionals looking to scale their sublimation business. Here's why it’s a top choice:
Double Capacity: Accommodates two mugs simultaneously, doubling your production efficiency without compromising quality.
Precision Heating: Provides even heat and pressure, ensuring flawless, vibrant transfers every time.
Versatile Compatibility: Perfect for sublimating standard mugs, water bottles, and other cylindrical items.
User-Friendly Operation: Features easy-to-use controls for temperature, pressure, and time, streamlining the sublimation process.
Durable Construction: Built with heavy-duty materials to withstand high-volume production demands.
Consistent Results: Ensures reliable performance, ideal for small businesses or professional studios.
For those ready to take their sublimation workflow to the next level, the DK3D combines efficiency, precision, and versatility in one powerhouse unit.
Q&A
Q: What is the Geo Knight DK3D Double Wide Sublimation Mug Press? A: It’s a high-performance sublimation mug press designed for double-wide applications, allowing users to press two standard mugs simultaneously or one oversized item.
Q: What are its key features? A: Key features include:
Double-wide heating element for versatile mug pressing.
Digital temperature and time controls for precision.
Durable construction for long-term use in high-volume settings.
Q: What can it press? A: It accommodates standard mugs, oversized mugs, and other cylindrical sublimation items up to 6 inches in diameter.
Q: Is it user-friendly? A: Yes, its intuitive controls and robust design make it easy to operate, even for beginners.
Q: Who is this mug press ideal for? A: Perfect for businesses and professionals looking to increase efficiency and output in sublimation mug production.
Maintenance Tips
Clean After Each Use: Allow the press to cool before wiping the heating elements with a soft, damp cloth. Avoid abrasive cleaners to protect the surface.
Inspect Heat Pads: Regularly check the heat pads for wear or residue that may affect sublimation quality.
Check Pressure Adjustment: Ensure the pressure settings remain consistent and aligned for even transfers.
Monitor Electrical Components: Periodically inspect cords and connections for signs of wear or damage.
Store Securely: When not in use, keep the press in a clean, dry area to protect it from dust and moisture.
Routine care ensures high-quality transfers and extends the life of your mug press.
