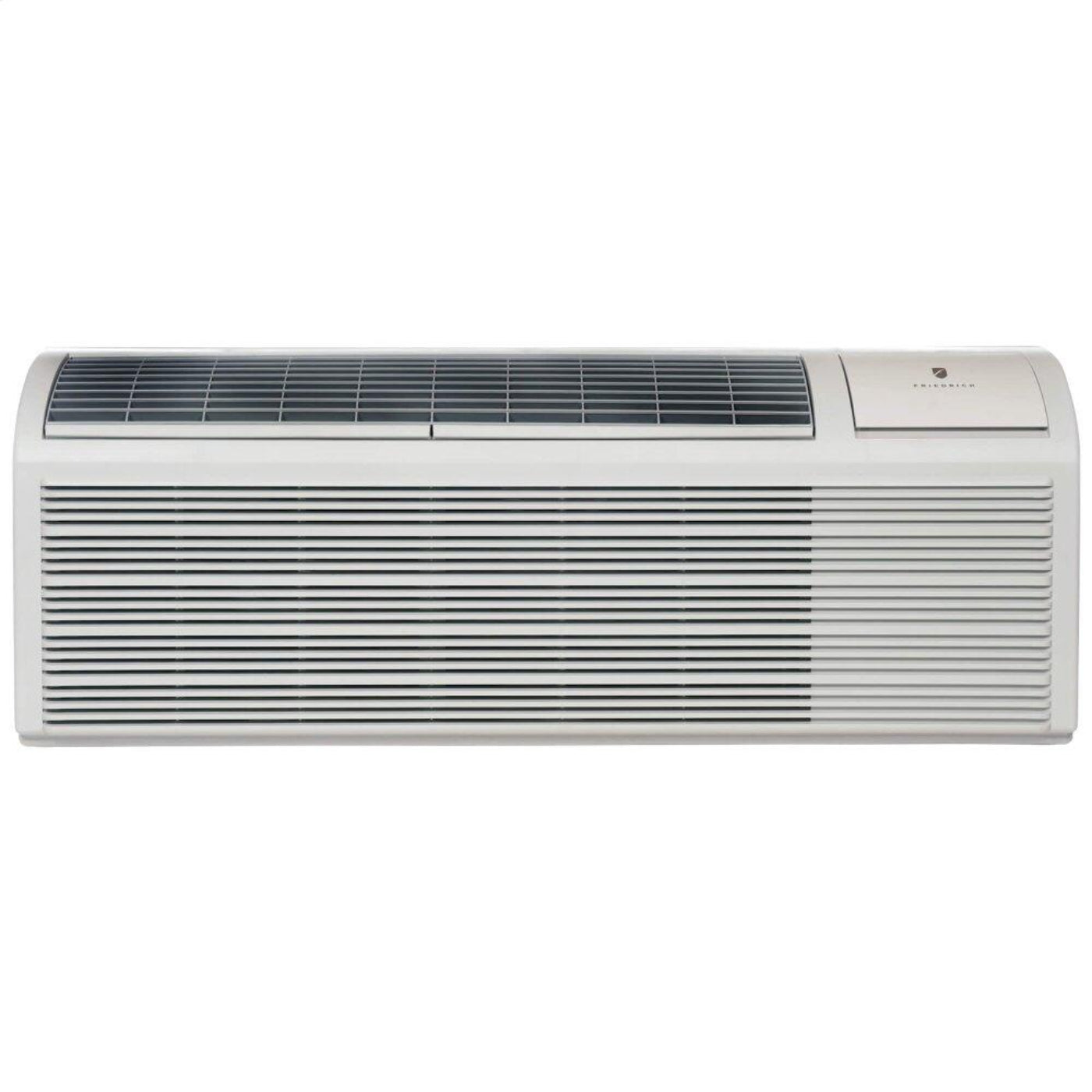

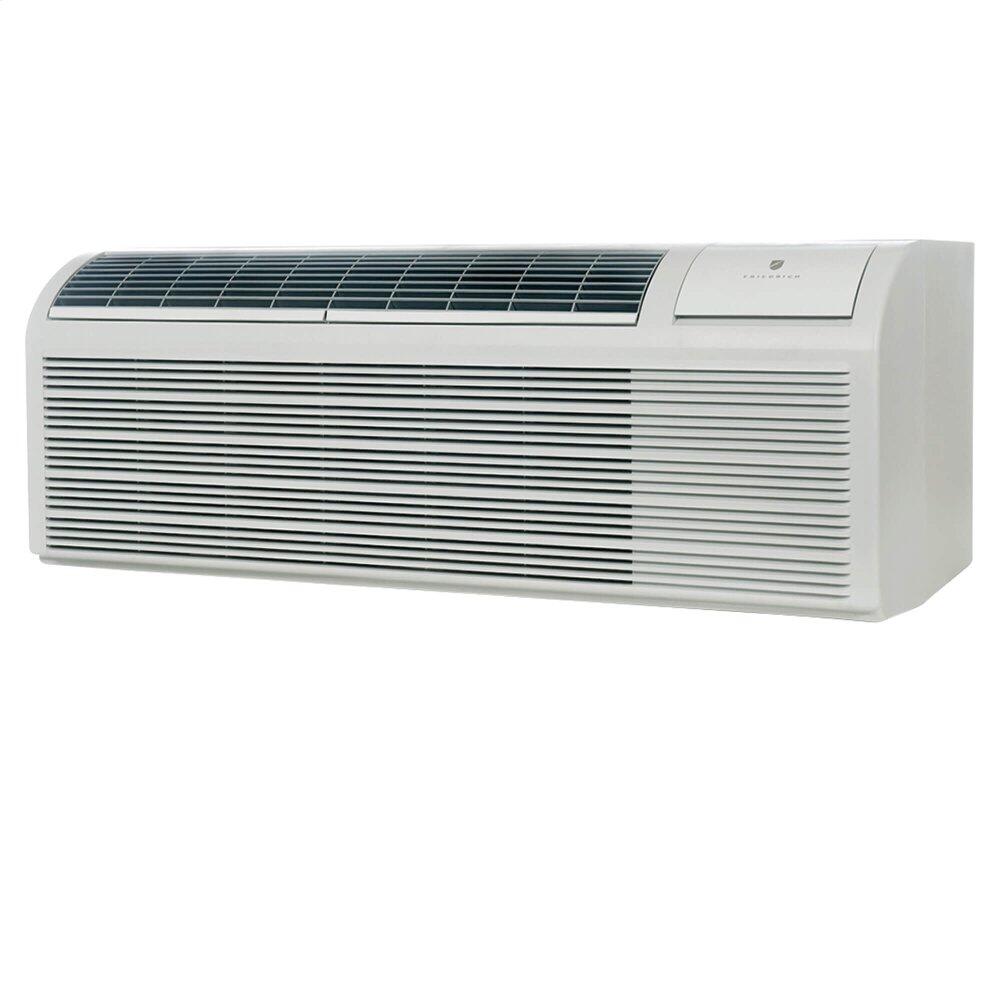

FRIEDRICH ZoneAire Premier - PDH07R3SG-KT
Our most efficient standard PTAC with exceptional performance and leading warranty for the lowest cost of operation. ZoneAire Premier PTAC is available in electric heat and heat pump options, ranging from 7,000 to 15,000 Btu.
Durable Construction
Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and are oven-cured at high temperature for exceptional durability. Stainless Steel endplates reduce corrosion of the outdoor coil.
Energy Efficiency
Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6. Energy efficient heat pump models are also available in our complete line.
Comfort & Convenience

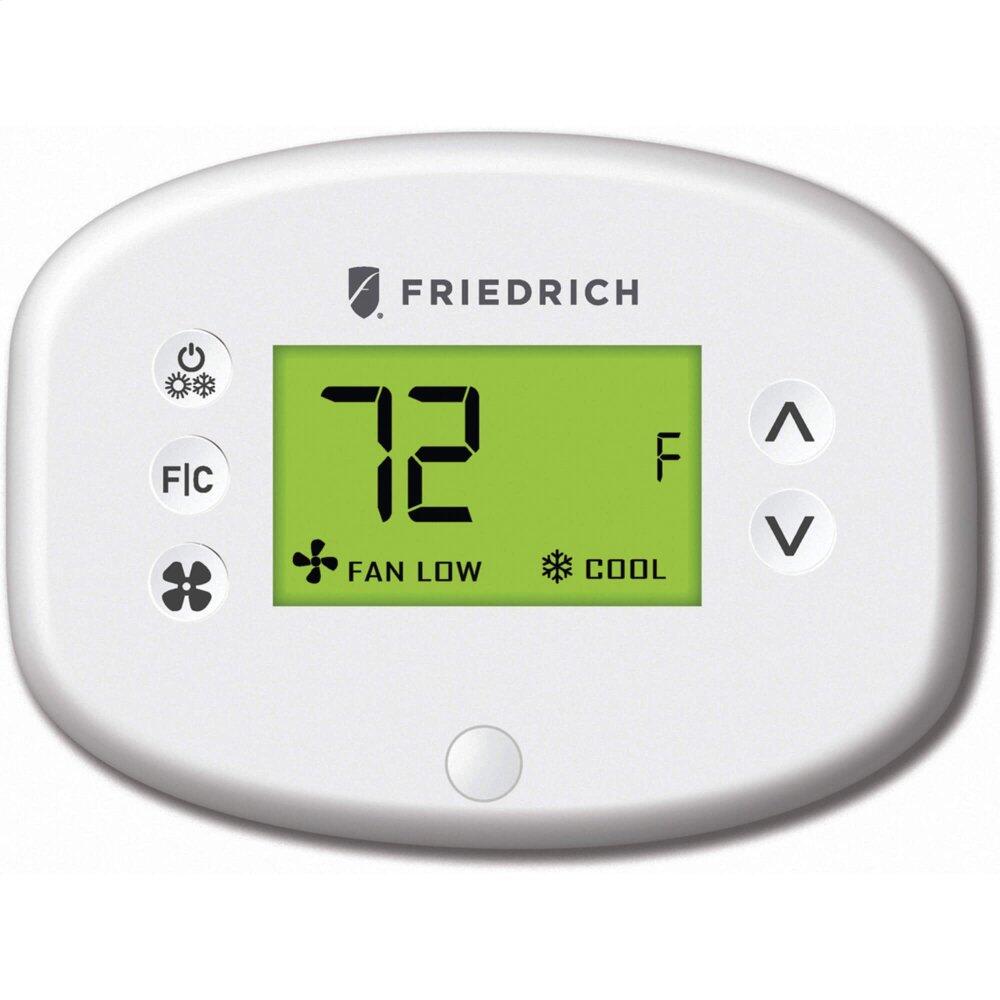

Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
Sound Reduction Technology
Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise.
Support
Friedrich's industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.
Maintenance and Installation
Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.
Specifications
| Model |
PDH07R3SG |
| Operation |
Cool/Heat Pump |
| Cooling BTU |
7,200 |
| Reverse Heating BTU |
6,000 |
| Voltage |
265V |
| EER (Energy Efficiency Ratio) |
13.0 |
| COP @ 47°F |
3.6 |
| Cooling Area (Sq Ft.) |
250-300 |
What our Expect Think
-
Cooling Capacity: 7,000 BTUs, effectively cooling areas up to 300 sq. ft., ideal for small rooms.
-
Heating Function: Heat pump operation provides 6,000 BTUs of heating, ensuring year-round comfort.
-
Energy Efficiency: Features an Energy Efficiency Ratio (EER) of up to 13.0, promoting cost-effective operation.
-
Durable Construction: Constructed with galvanized zinc-coated steel wall sleeves and base pans, powder-coated for exceptional durability. Stainless steel endplates help reduce corrosion of the outdoor coil.
-
Quiet Operation: Designed with sound-reducing features, including two permanently lubricated fan motors and a quiet, efficient rotary compressor mounted with vibration isolators, ensuring smooth and quiet operation. High-density insulation and steel inner wall block outdoor noise.
-
User-Friendly Controls: Equipped with intuitive controls and an easy-to-read LED display that can show either set point or actual room temperature, as selected by the user.
Q&A
Q: What is the cooling capacity of the FRIEDRICH ZoneAire Premier PDH07R3SG?
A: The FRIEDRICH ZoneAire Premier PDH07R3SG offers a cooling capacity of 7,000 BTUs, ideal for smaller to medium-sized rooms.
Q: Does the PDH07R3SG have heating capabilities?
A: Yes, this model features both cooling and heating functions, providing year-round comfort.
Q: Is the FRIEDRICH ZoneAire Premier PDH07R3SG portable?
A: Yes, it is portable and comes with caster wheels for easy mobility around the room.
Q: Can I control the FRIEDRICH ZoneAire Premier PDH07R3SG remotely?
A: Yes, it includes a remote control for convenient, hassle-free operation.
Q: Does the PDH07R3SG include a dehumidifier mode?
A: Yes, it has a dehumidifier mode to help reduce excess moisture in the air.
Q: Is the FRIEDRICH ZoneAire Premier PDH07R3SG energy-efficient?
A: Yes, it is designed with energy-efficient features to provide optimal comfort without high energy consumption.
Maintenance Tips
-
Clean or Replace Filters – Clean or replace filters every 1-2 months to ensure optimal airflow and cooling performance.
-
Clean the Coils – Inspect and clean the evaporator and condenser coils annually to maintain efficient cooling.
-
Empty the Water Tank – Regularly empty the water tank to prevent overflow and reduce the risk of mold or mildew.
-
Check the Drain Line – Ensure the drain line is clear to prevent water blockages and damage.
-
Inspect for Leaks – Check for refrigerant leaks to maintain the unit's efficiency.
-
Annual Professional Service – Schedule an annual professional inspection to ensure long-lasting performance.
