Formax Touchscreen Desktop Office Folder FD 346

Formax Touchscreen Desktop Office Folder FD 346

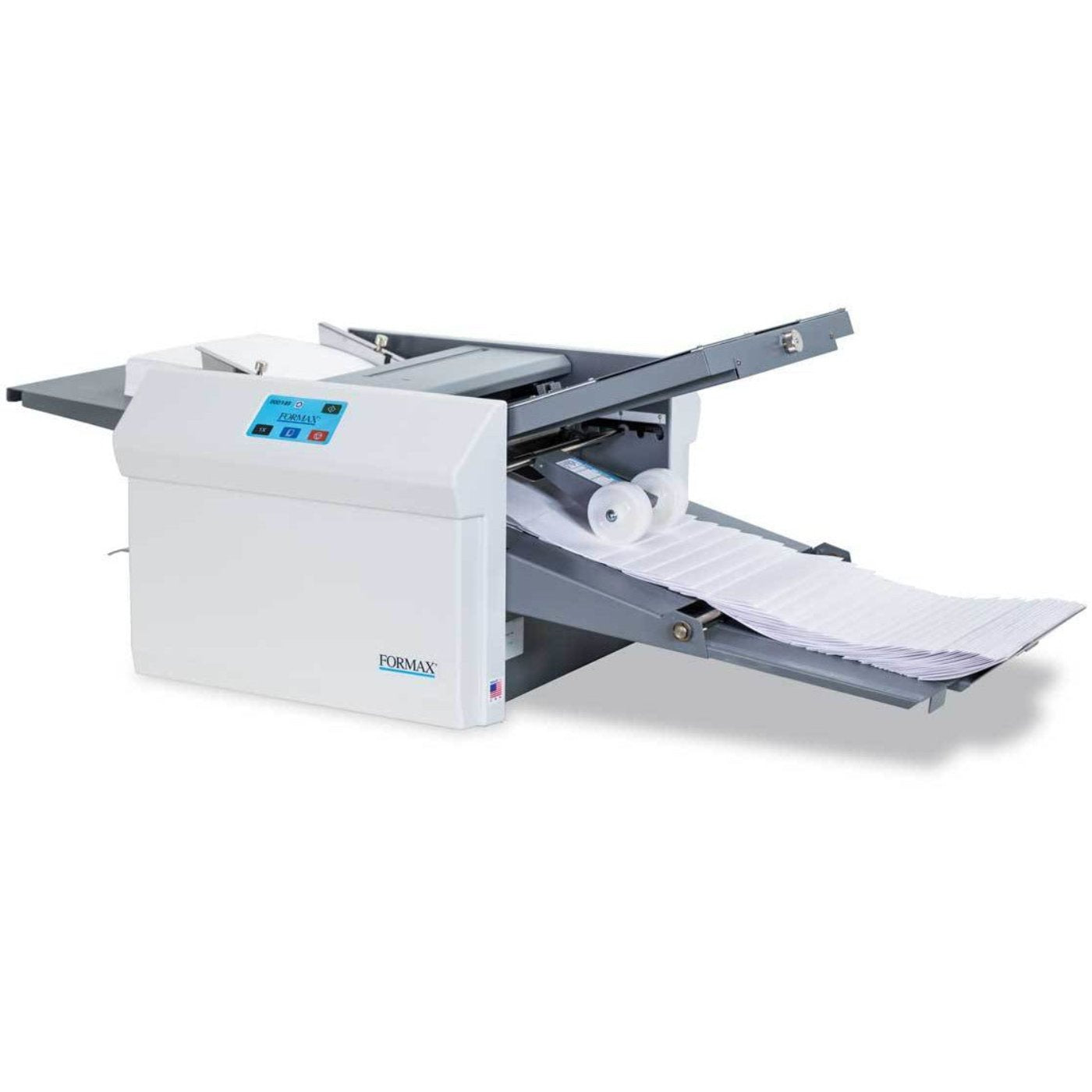

The FD 346 Document Folder is a fast, dependable and easy-to-use solution for virtually all folding applications.  Its color touchscreen control panel features internationally-recognized symbols in place of text, making it easy for anyone to use. Six popular folds are clearly marked on the fold plates for quick set-up and operation, simply slide the fold stop to the desired fold and go.  Additional adjustments can be made with the fine tuning knobs at the end of each fold plate for precision folding.

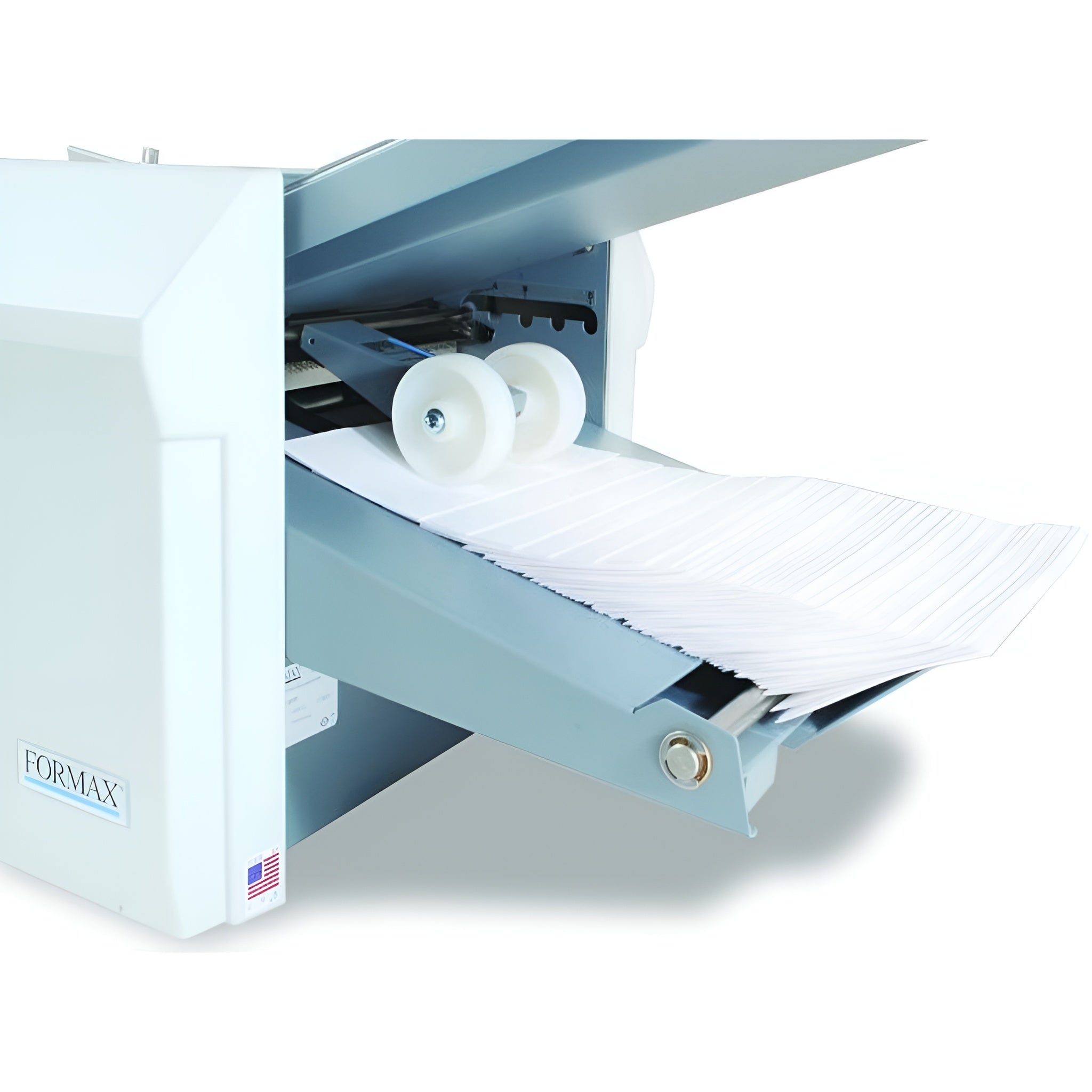

No need to stand and watch over this folder: operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks.  The FD 346 will fold the 500 sheets in no time at all and hold the folded pieces on its patented telescoping conveyor system until they are retrieved.

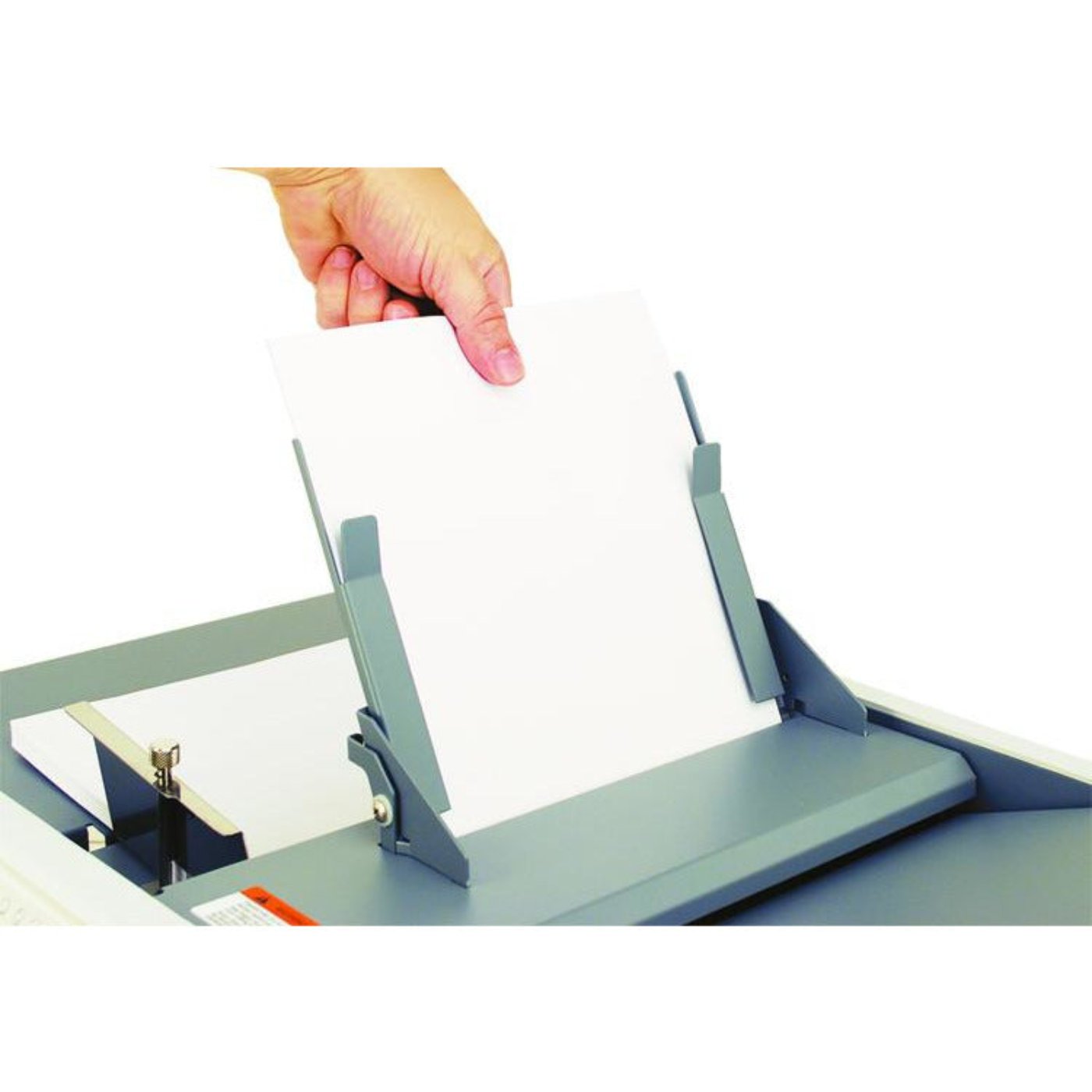

The optional Multi-Sheet Feeder allows up to 4 stapled or unstapled sheets to be folded at one time through a dedicated feed system with its own side guides and skew adjustment system.

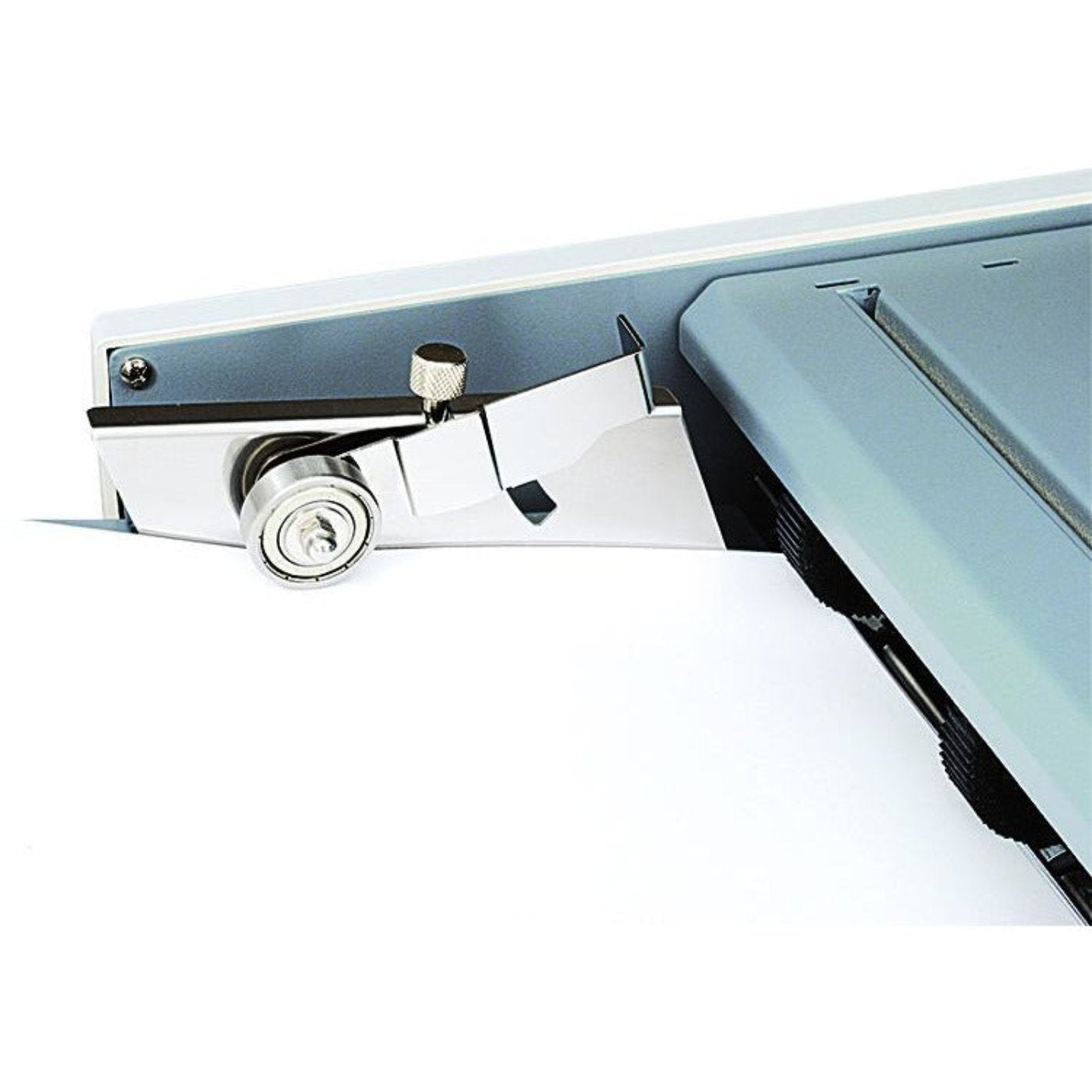

The FD 346 is capable of processing paper up to 18” in length and up to 12” in width giving it the flexibility to handle a variety of paper sizes.  With its customizable jobs, operators can fold in virtually any configuration that requires only two folds. Cross folding adds to the FD 346’s flexibility allowing for additional folds in a second pass.

The innovative touchscreen, simple set-up and operation make the FD 346 an ideal solution for any church, school or small business that is cost conscious but requires the easy operation, versatility and dependability of a more expensive folder.

Features:

• Color touchscreen, graphics-based
• Telescoping output stacker
• Speed: up to 15,500/hour
• Folds up to 12' x 18'
• Adjustable stacker wheels

Product Brochure

• Advanced Touchscreen Control: Intuitive 4.3" color touchscreen simplifies operation and fold setup for efficiency.
• High-Speed Performance: Processes up to 15,500 sheets per hour, perfect for medium to high-volume folding needs.
• Versatile Folding Options: Handles six pre-programmed fold types with the ability to create custom folds for unique projects.
• Durable & Compact: Rugged construction with a space-saving design makes it suitable for busy office environments.

Q: What paper sizes and weights does it support?
A: It accommodates paper sizes from 3.5" x 5" to 12.25" x 18" and weights ranging from 16 to 65 lbs. bond.

Q: Is it easy to set up custom folds?
A: Yes, the touchscreen interface allows for quick and precise adjustments for custom folding requirements.

Q: Does it include a stacking tray?
A: Yes, the FD 346 features a telescoping outfeed stacking tray that holds up to 500 folded sheets.

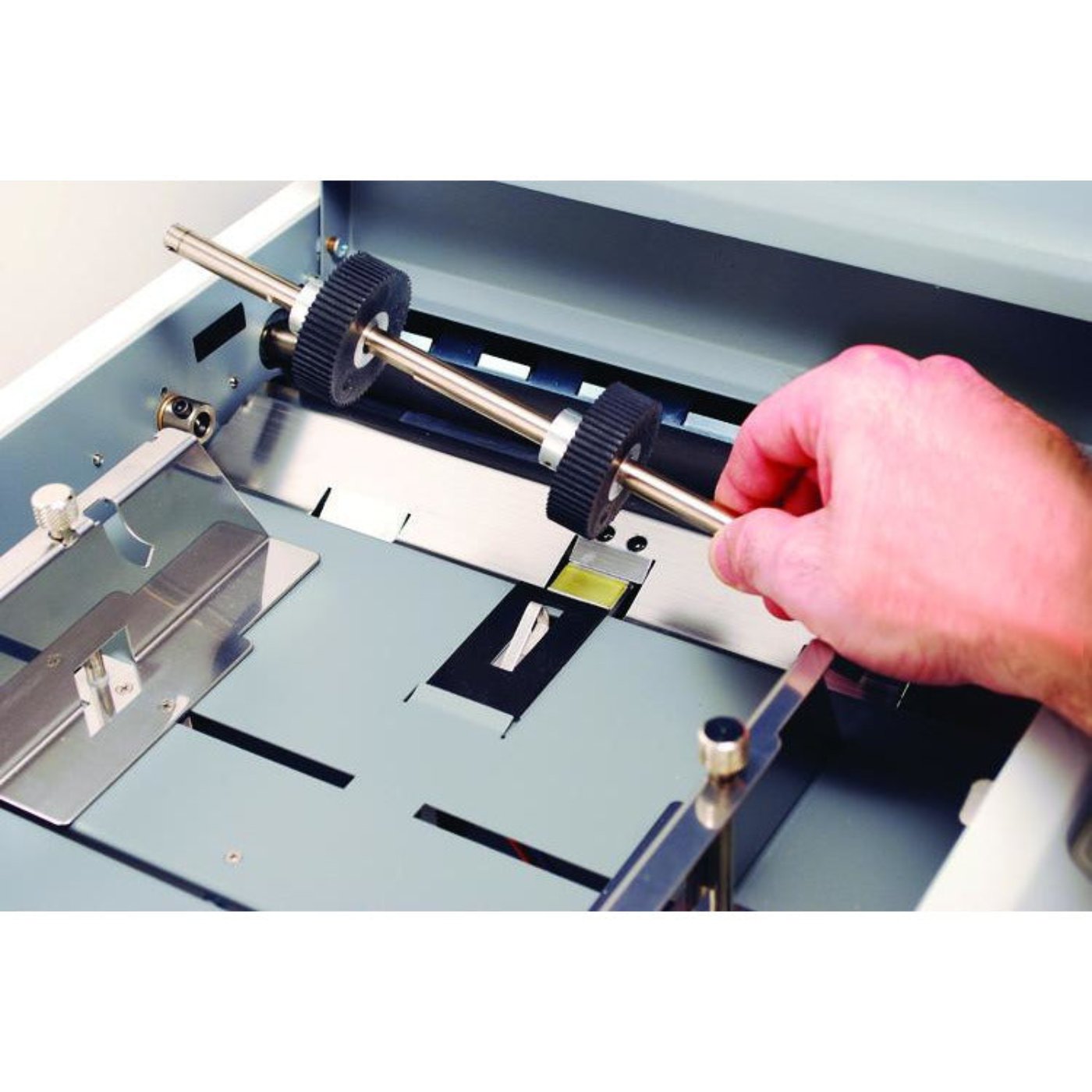

1. Clean Feed Rollers: Wipe rollers with a damp cloth regularly to prevent slippage and misfeeds.
2. Keep Sensors Clear: Dust and clean sensors periodically for accurate paper detection.
3. Check Fold Plates: Inspect and clean fold plates to ensure proper paper alignment and folding.
4. Lubricate Moving Parts: Apply approved lubricants to maintain smooth operation.
5. Avoid Overloading: Do not exceed the machine's paper capacity to prevent jams and wear.
