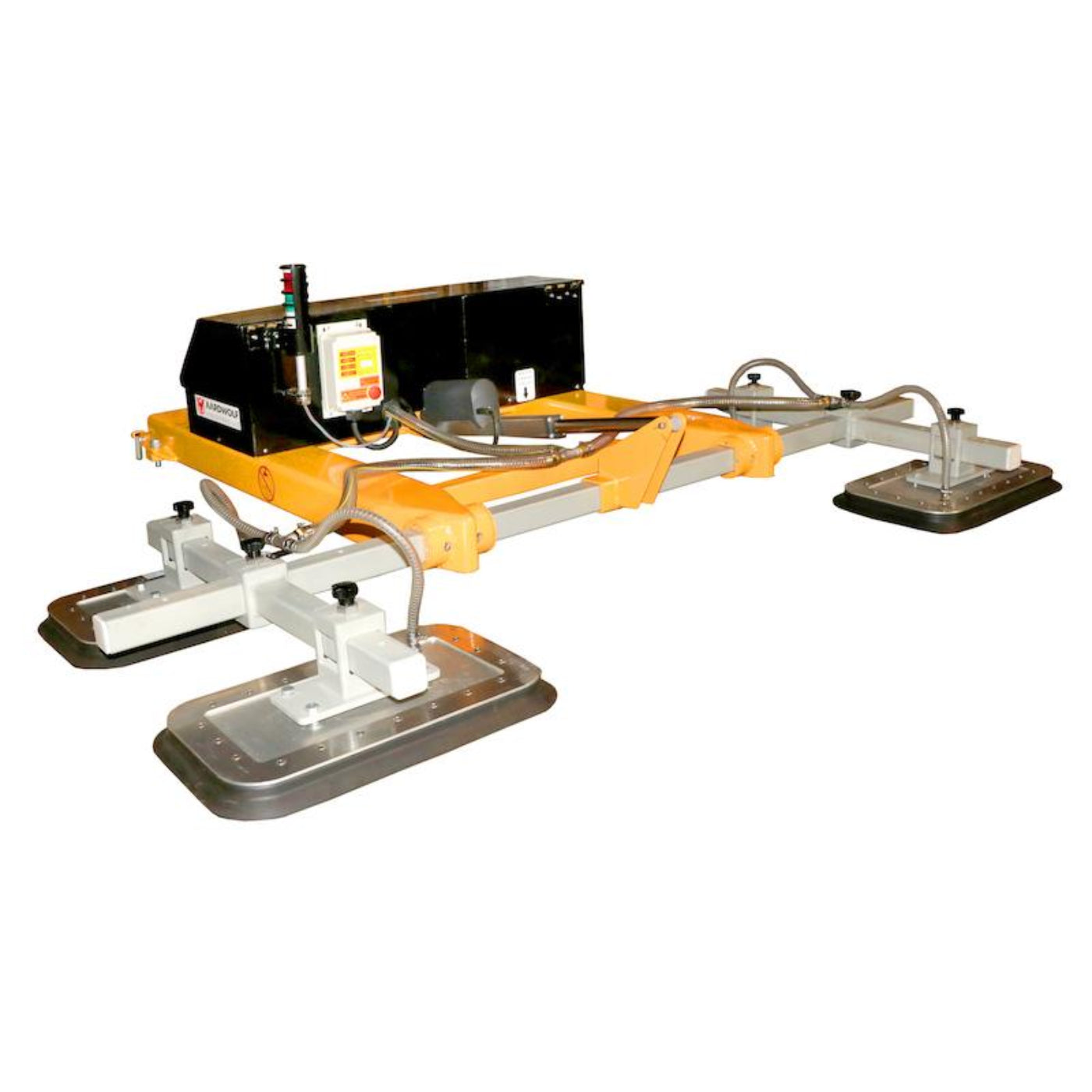

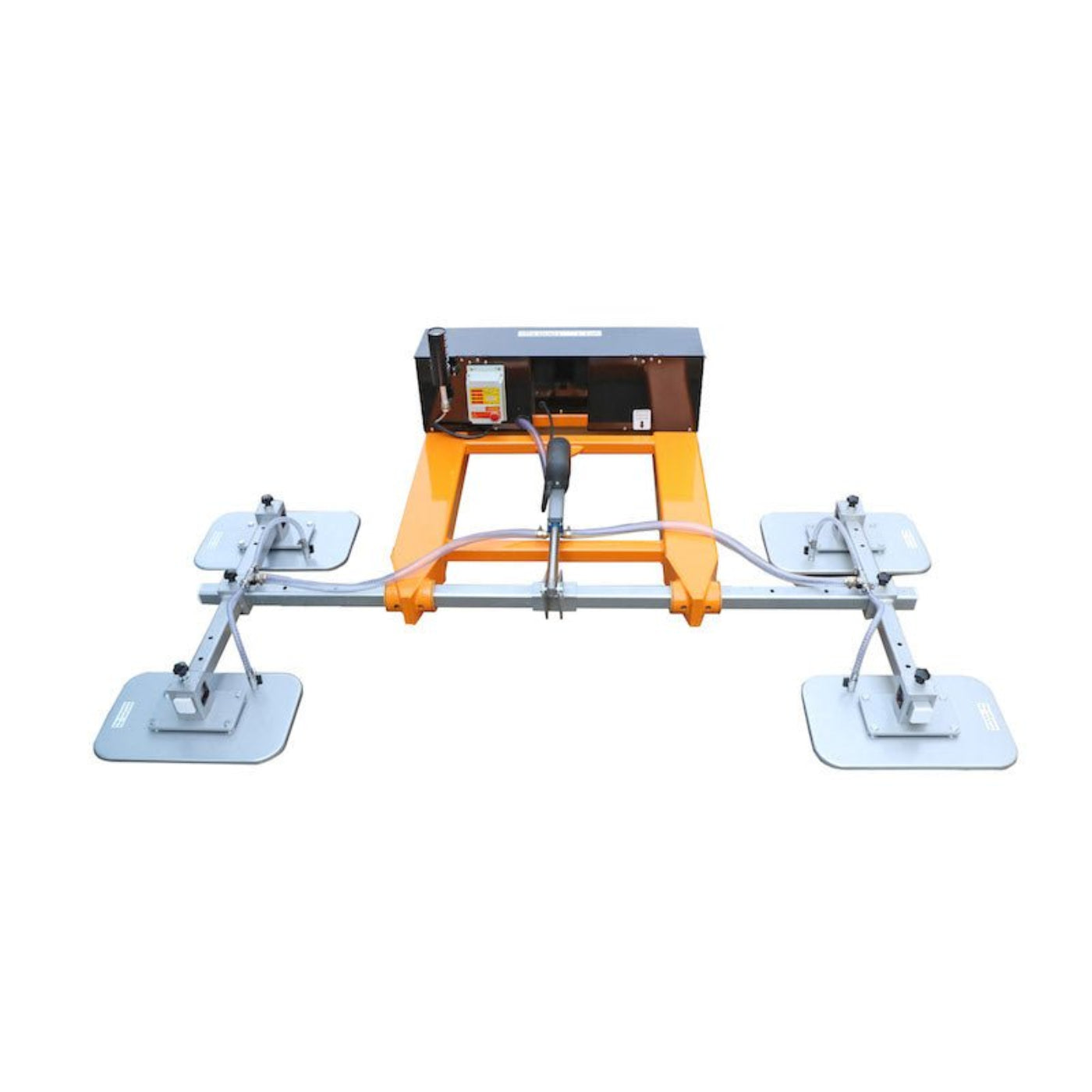

Aardwolf FMVLA Fork Mounted Vacuum Lifting Attachment - FMVLA
The electrically operated remote control enables the ability to turn 90 degrees effortlessly.
The vacuum pads are designed for easy adjustments, ensuring a secure grip. A pressure control system is in place to automatically activate the vacuum pump when the pressure drops below the allowed limit. Powered by an Australian Standard AS4991-2004 battery, this system ensures reliable operation. For enhanced safety, an audio/visual safety system is integrated. It is seamlessly connected to a forklift through a safe chain system, allowing for efficient and secure lifting. This versatile lifting solution proves to be cost-effective, surpassing the limitations of magnets and outperforming clamps or slings, ultimately boosting productivity.
Specifications
|
Metric (mm-kg) |
Imperial (inch-lb) |
| Length-width of sheet material |
3000 - 2000 |
118" - 79" |
| Pad sizes |
Pad 300
Pad 520x320 |
12"
20.5"x12.6" |
| Working load limit |
Vertical: 760
Horizontal: 1000 |
1676
2204 |
| Net weight |
275 |
606 |
| Gross weight |
360 |
1200 |
| Packaging dimensions |
2140x1650x580 |
84.3"x65"x22.8" |
What our Experts Think
-
Versatile Material Handling: Designed to lift and lower various sheet materials—including glass, stone, metal, concrete, plastics, timber, and laminates—by integrating with a forklift for efficient operation
-
Remote-Controlled Tilting: Features an electrically operated remote control that allows for 90-degree tilting, enhancing maneuverability and precision during lifting tasks
-
Adjustable Vacuum Pads: Equipped with easily adjustable vacuum pads to accommodate different material sizes and shapes, ensuring a secure grip.
-
Automatic Pressure Control: Incorporates a pressure control system that automatically activates the vacuum pump when pressure drops below the allowed limit, maintaining consistent performance.
-
Safety Features: Includes an audio/visual safety system and integrates with forklifts through a secure chain system, prioritizing operator safety.
-
Battery-Powered Efficiency: Operates on a 24V-100A battery, offering over 100 hours of standby time and approximately 3 hours of continuous operation, with a charging time of 5 hours.
Q&A
Q: What is the Aardwolf FMVLA Fork Mounted Vacuum Lifting Attachment?
A: The FMVLA is a vacuum lifting system that mounts directly onto a forklift, designed for lifting and handling non-porous materials like stone, glass, and metal sheets safely and efficiently.
Q: What equipment is it compatible with?
A: It’s compatible with most standard forklifts, transforming them into powerful vacuum lifters without permanent modifications.
Q: What is the lifting capacity?
A: Capable of lifting up to (insert specific weight capacity), ideal for heavy-duty industrial, construction, and warehouse use.
Q: What materials can the FMVLA lift?
A: Designed for smooth, non-porous materials such as granite, marble, glass, steel plates, and composite panels.
Q: What are the key features?
A: Quick forklift mounting, powerful vacuum suction, integrated safety alarms, and durable construction for long-term reliability.
Q: Why choose the Aardwolf FMVLA?
A: It increases material handling efficiency, minimizes manual labor, and improves job site safety—ideal for high-demand lifting operations.
Maintenance Tips
Daily Maintenance:
-
Visual Inspection: Before each use, inspect the vacuum pads for cleanliness and damage. Ensure the vacuum pad surfaces are clean and free from dirt and oil.
-
System Checks: Verify that the vacuum system operates without leaks and maintains proper suction
Weekly Maintenance:
-
Lubrication: Apply appropriate lubricant to all moving parts to ensure smooth operation.
-
Battery Maintenance: Check the 12V-100A battery's charge level and recharge as necessary. The battery should provide over 100 hours of standby time and approximately 3 hours of continuous operation.
