Elevate your off-grid capabilities with the EcoFlow DELTA Pro 3 Portable Solar Kit, offering the pinnacle of independence and sustainability.

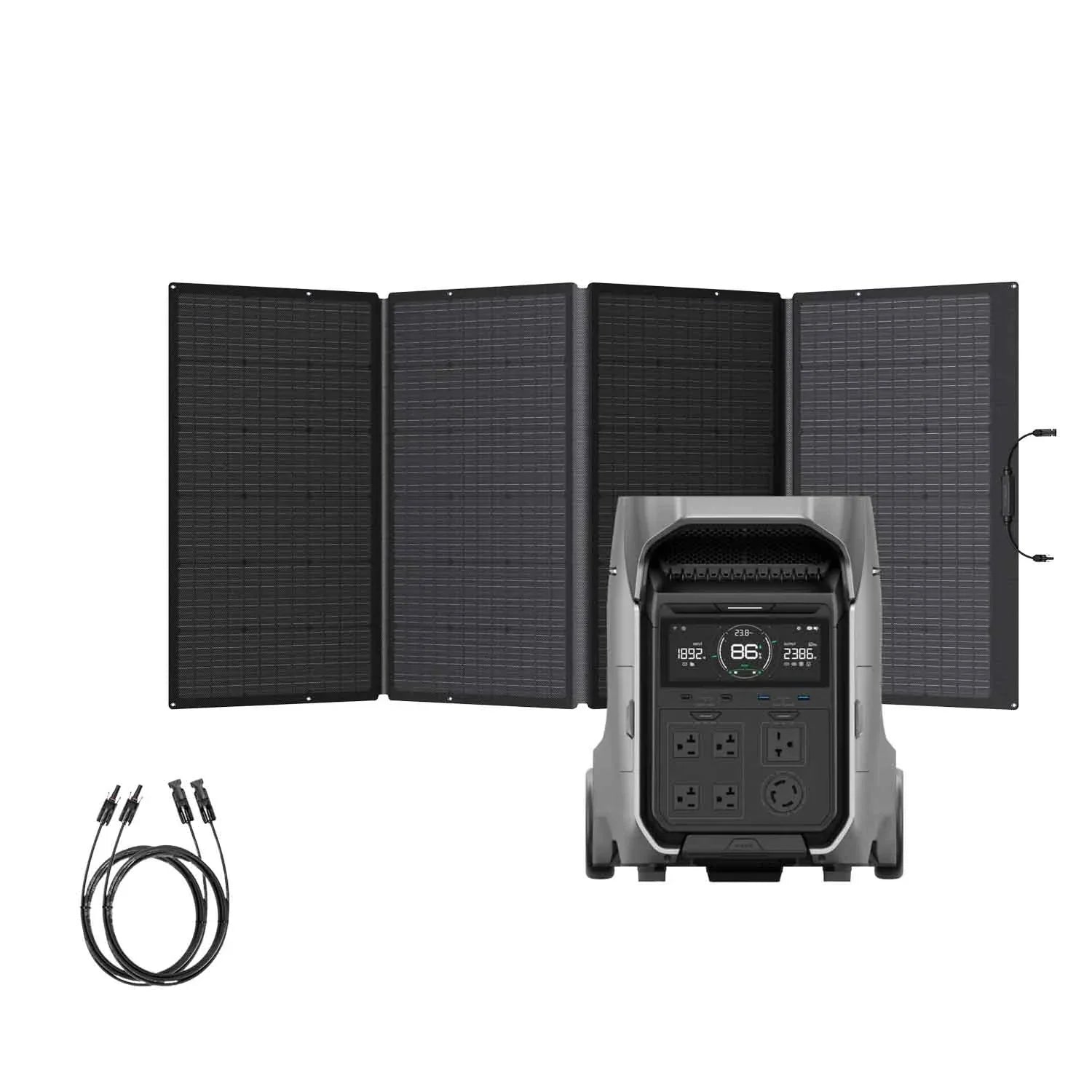

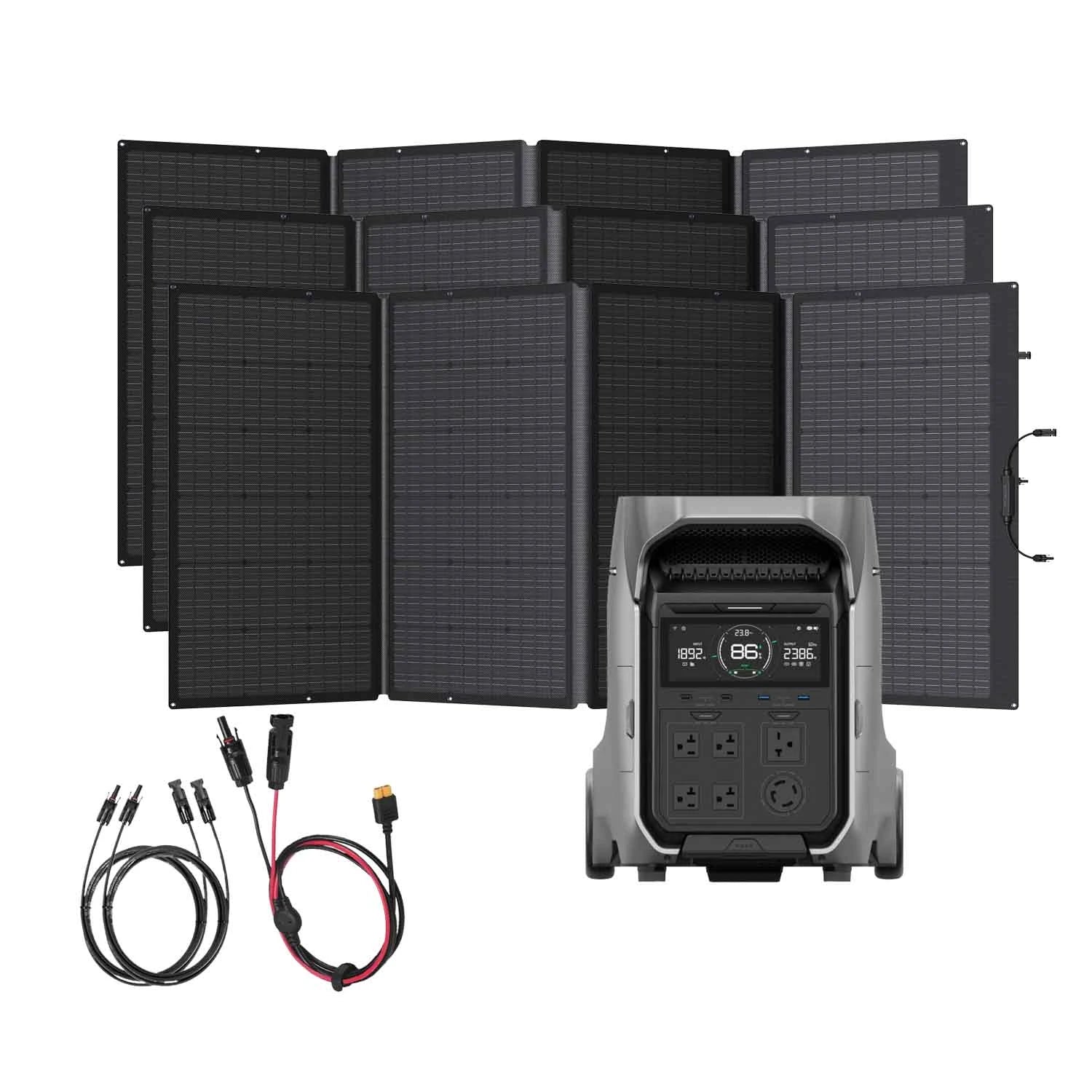

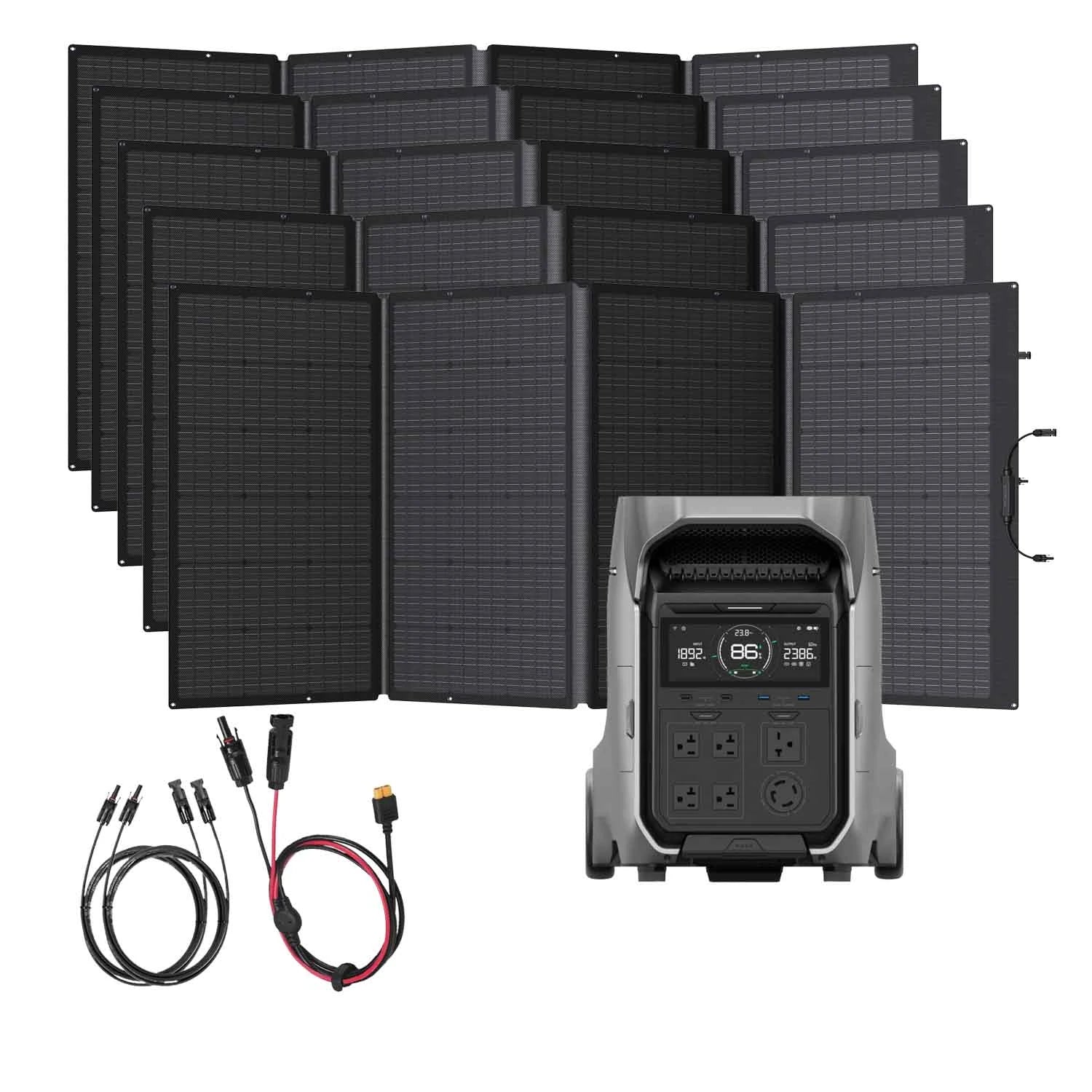

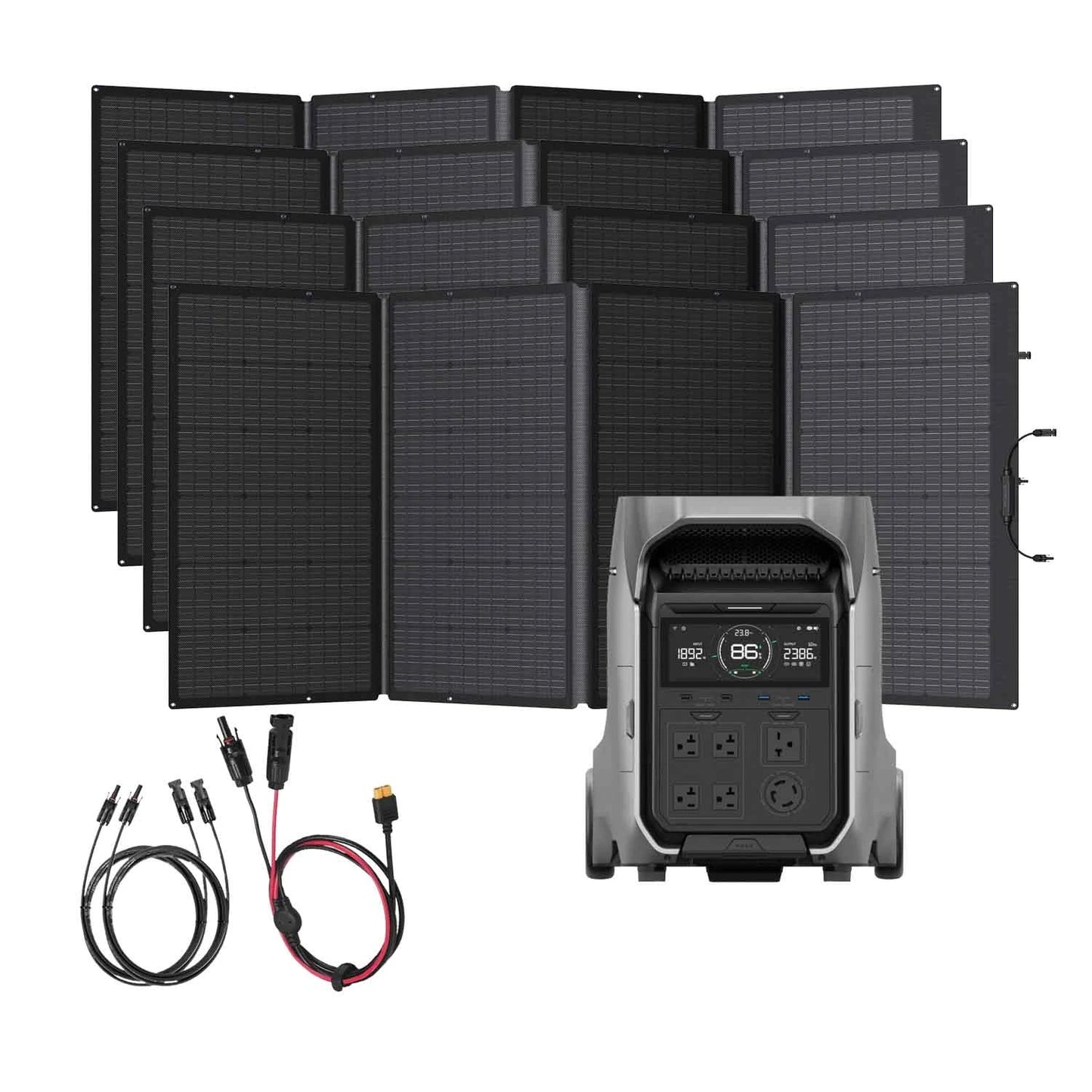

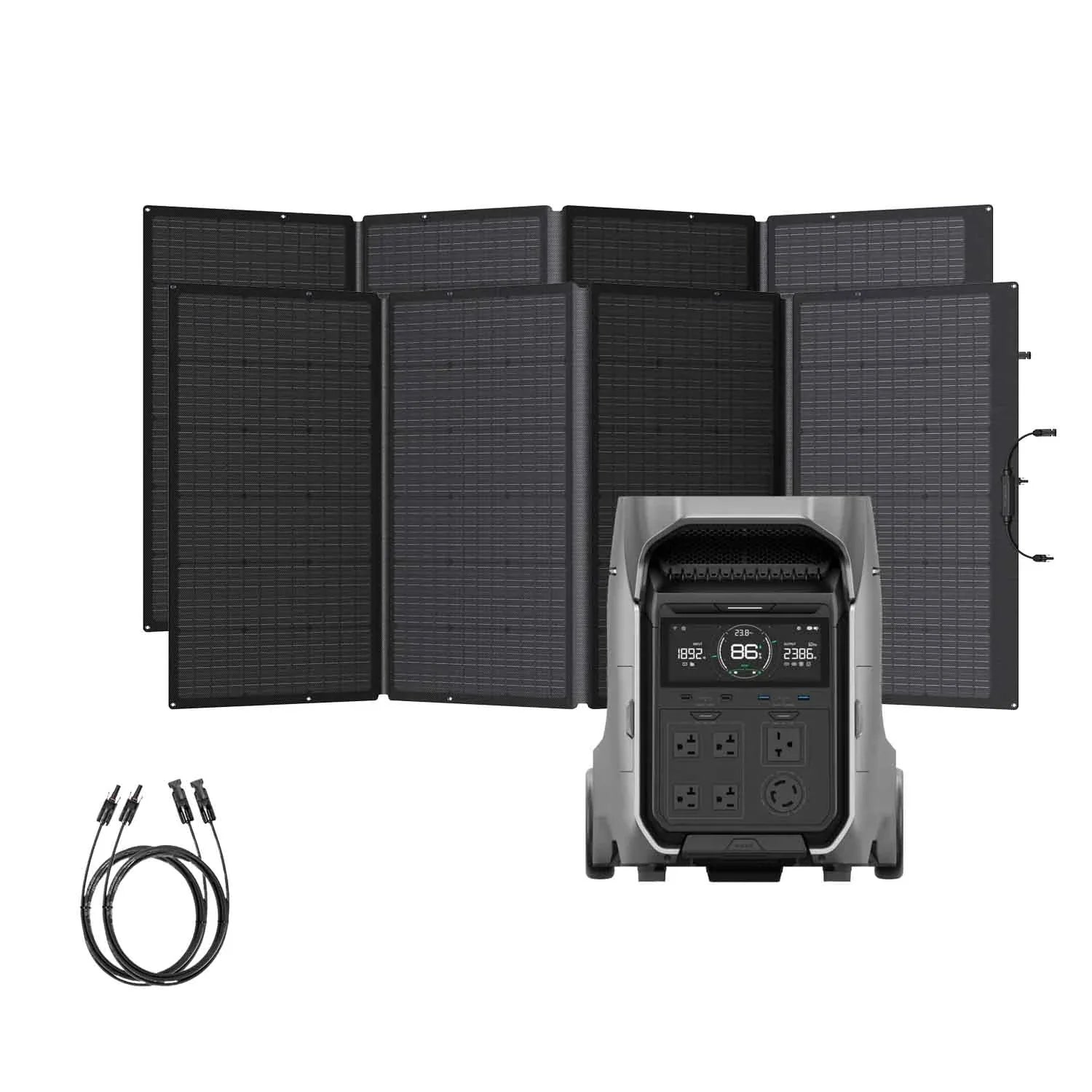

The EcoFlow DELTA Pro 3 Portable Solar Kit provides a comprehensive solution for dependable and mobile power, perfect for outdoor adventures, off-grid living, or emergency preparedness. This kit features the top-of-the-line EcoFlow DELTA Pro 3 power station, paired with a durable EcoFlow 400W solar panel and 30-foot extension cables, giving you the flexibility to produce and store sustainable energy in any location.
EcoFlow Warranties
The EcoFlow DELTA Pro 3 comes with a 5-year warranty, with its LFP batteries lasting longer than 10 years with up to 4,500 cycles.
The EcoFlow 400W Portable Solar Panel comes with a 12-month warranty.
What's Included
DELTA Pro 3
- 1 x EcoFlow DELTA Pro 3 Portable Power Station
- 1 x EcoFlow DELTA Pro 3 AC Charging Cable
- 2 x Handle Cover
- 1 x Quick Start Guide
- 1 x Solar Installation Guide
- 1 x App Introduction
- 1 x Safety Guide
- 1 x Ecosystem Intro page
- 1 x Warranty Card
EcoFlow 400W Portable Solar Panel
- 1 x EcoFlow 400W Portable Solar Panel
- 1 x Protective Case & Kickstand
- 1 x MC4 to XT60 Solar Charging Cable
- 4 x Snap Hooks
- 1 x User Manual
- 1 x Warranty Card
EcoFlow Solar Extension Cables
- 2 x EcoFlow Solar Extension Cables - 3m | 9.8 Ft Each
EcoFlow MC4 to XT60i Solar Charging Cable (for 3+ solar panels only)
- 1 x EcoFlow MC4 to XT60i Solar Charging Cable
DELTA Pro 3 Smart Extra Battery (optional)
- 1 x EcoFlow DELTA Pro 3 Smart Extra Battery
- 1 x EcoFlow Extra Battery Cable
- 1 x Quick Start Guide
- 1 x Safety Guide
- 1 x Warranty Card
Frequently-Asked Questions
Does the Delta Pro 3 support the X-Boost function?
Yes, X-Boost can output 6000W.
How many batteries can be connected to a single Delta Pro 3?
A single Delta Pro 3 can connect to 2 extra batteries.
Can the DELTA Pro 3 output 240V and 120V at the same time?
No, you can only output 120V or 240V individually.
What is Bluetooth Standby Mode?
You can set the Bluetooth standby duration in the EcoFlow app. During the Bluetooth standby period, the Bluetooth module will remain on even when the product is turned off, allowing you to remotely turn on the product via Bluetooth on your phone.
However, the Bluetooth module consumes some power during standby. If you do not need this feature or wish to shorten the Bluetooth standby time, you can adjust the Bluetooth standby duration in the EcoFlow app.
Can DELTA Pro 3 connect to electric vehicle charging guns?
Yes, it supports Level 1/2 charging guns. You need to purchase a special adapter. The domestic charging port of the US specification machine usually only supports AC 120V 1800W charging (i.e., Level 1), but through the 5+8 special interface, coupled with the5+8 to 7-hole adapter, you can connect to a 220V charging gun for charging, thereby increasing the charging rate to 4kW (i.e., Level 2).
| GENERAL SPECIFICATIONS | |
|---|---|
| Color | Galactic Silver |
| Capacity | 4096Wh |
| Net Weight | 51.5 kg | 113.5 lbs |
| Dimensions | 695.5 x 341 x 410 mm | 27.3 x 13.4 x 16.1 in |
| WiFi 2.4GHz/Bluetooth/CAN | Supported |
| Smart Home Panel 2 Connections | Maximum 3 DELTA Pro 3 |
| LCD Screen | Yes |
| App Control | Supported |
| Warranty | 5 Years |
| Noise Level | 35dB (under 2kW，25°C) |
| Wheels & Tie Rod | Supported |
| Operating Temperature |
Discharging temperature: -10°C to 45°C | 14° to 113°F Charging temperature: 0°C to 45°C | 32° to 113°F Storage temperature: -10°C to 45°C | 14° to 113°F |
| OUTPUT SPECIFICATIONS | |
| Number of AC Outlets | 7 |
| Maximum Continuous Output | 4000W |
| Maximum Surge Output | 8000W, 400ms |
| Optional Extended Range | ~8KW with 2 x DELTA Pro 3 + 50amp Hub |
| Split Phase | Supported |
| Voltage | 120V/240V |
| X-Boost | 6000W Maximum |
| X-Fusion | 120V/1800W AC input, 120V/240V 4000W maximum AC output |
| X-Stream | Supported |
| EPS/UPS | 10ms, UPS |
| AC Power IN/OUT Port (Discharge Only) | 120/240V~16.7A 60Hz |
| Single Phase Low Voltage Socket | 4 x NEMA 5-20R, 120V/20A 1 x TT-30, 120V/30A Total 4000W |
| High Voltage Socket | 1 x L14-30, 120V/240V/16.7A 1 x NEMA 6-20R, 240V/16.7A Total 4000W |
| DC OUTPUT SPECIFICATIONS | |
| USB-C | 2 x USB-C 5/9/12/15/20V 5A 100W Max |
| USB-A Fast Charging | 2 x USB-A, 5V 2.4A 9V 2A 12V 1.5A 18W Max |
| Car Power Output | Not Supported |
| 12V DC Output | 12.6V/30A 378W Total DC5521, 1X, 5A Max Anderson, 1X, 30A Max |
| Remote Control Port | 1 |
| INPUT SPECIFICATIONS | |
| Utility Power Charging | C20 port, 100-240V~15A 50/60HZ 1800W Max @ 120V 3600W Max @ 240V Bypass Mode: 100-120V~15A 50/60HZ |
| Adjustable AC Charging Speed | Supported |
| EV Charger Charging (AC Power IN/OUT Port) | AC Power IN/OUT Port 4000W Max, 120/240V~20A 50/60Hz |
| Solar Input | 2600W Max 2 Ports: High PV: 30-150V/15A, 1600W Max Connect this port to solar panels using an EcoFlow Solar to XT60 Charging Cable Low PV: 11-60V/20A, 1000W Max Connect this port to solar panels using an EcoFlow Solar XT60i Charging Cable |
| Car Input | 12V 8A Maximum 48V 20A Maximum |
| Generator Input | 3200W Maximum w/EcoFlow SG 4000 Dual Fuel Smart Generator |
| 0-80% Charge Time | 50 minutes (1C Charging) |
|
Bond Charge Input (with 1 x Extra Battery) |
7000W Maximum |
| CERTIFICATIONS & PROTECTION | |
| Certifications | UL, CE, FCC, RoHS, TELEC New: UL9540+UL9540A |
| AC Surge | Anti-Surge, Enhanced Surge Protection |
| Battery Protection | Over Voltage Protection Overload Protection Over Temperature Protection Short Circuit Protection Low Temperature Protection Low Voltage Protection Overcurrent Protection |
| Battery Life Protection | Supported |
| BATTERY SPECIFICATIONS | |
| Battery Type | LFP |
| Battery Life Cycle | 4000 cycles to 80% |
| Extra Battery Port | 2 x Ports | Support DP EB, DP3 EB |
| IP Rating For Battery Pack | IP65 |
| CTC Craftsmanship | Yes |
| 400W PORTABLE SOLAR PANEL SPECIFICATIONS | |
| Rated Power | 400W |
| Cell Type | Monocrystalline silicon |
| Efficiency | 22.40% |
| Dimensions | 42.0 x 94.1 x 1.0 in | 106.8 x 239.0 x .4 cm |
| Connector Type | MC4 Solar Connector |
| Open Circuit Voltage | 48V (Vmp 41V) |
| Short Circuit Current | 11A (Imp 9.8A) |
| Weight (solar panel) | 35.3 lbs | 16.0 kg |
| Weight (with kickstand case) | 41.9 lbs | 19 kg |
