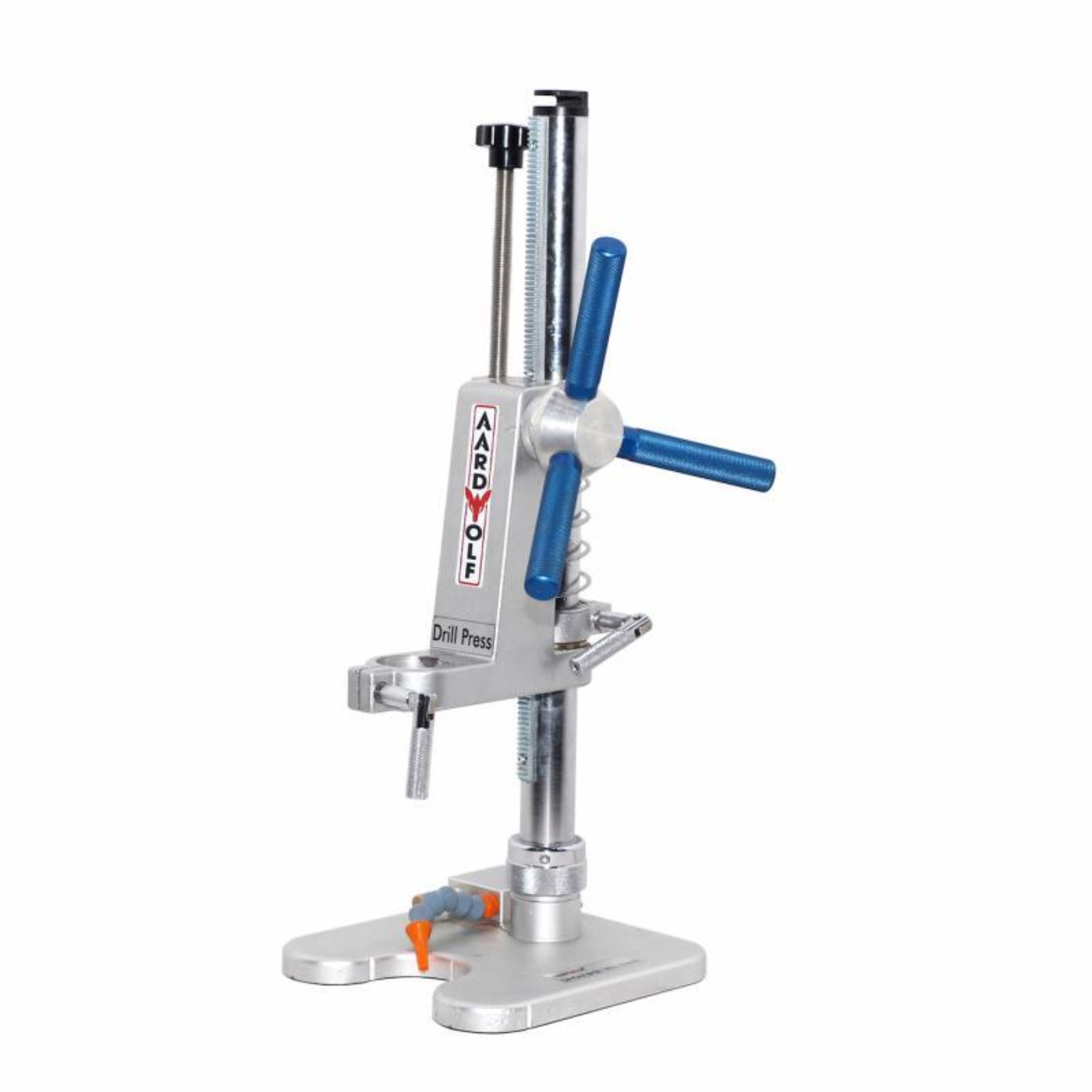

Aardwolf DSA07 Drill Press - DSA07

Aardwolf DSA07 Drill Press - DSA07

Features

• Vacuum can be applied either with compressed air, via an optional battery-powered vacuum pump or an electric vacuum pump
• For drilling with precision
• Sturdy 34mm round column with a 290mm long-toothed rack screwed on
• Integrated return spring Locking button for series drilling
• Adjustable scale ring for setting the accurate drilling depth down to the last millimeter – With cable holder Working height 305mm Drill support collar ø 43mm
• Powerful integrated vacuum base

Specification

What our Experts Think

• Precision Drilling:
  Delivers accurate hole placement with an adjustable scale ring for depth control and a 43mm drill support collar.

• Effortless Setup:
  Features a powerful integrated vacuum base that attaches instantly to both smooth and rough flat surfaces, eliminating the need for anchoring or clamping.

• Versatile Mounting Options:
  Compatible with compressed air, optional battery-powered, or electric vacuum pumps for flexible operation.

• Robust Construction:
  Built with a sturdy 34mm round column and a 290mm long-toothed rack, ensuring stability and durability.

• Enhanced Productivity:
  Equipped with an integrated return spring and a locking button for series drilling, streamlining repetitive tasks.

Q&A

Q: What is the Aardwolf DSA07 Drill Stand?
A: The Aardwolf DSA07 Drill Press is a high-performance, portable drilling stand designed specifically for stone, granite, marble, and other hard surface materials. It's ideal for precise drilling tasks in construction, stone fabrication, and industrial applications. The DSA07 stands out with its integrated vacuum base, ensuring easy and secure setup without the need for bolting or clamping.

Q: What makes the DSA07 unique?

• Vacuum Base Technology: The vacuum base ensures easy installation on smooth surfaces. It's perfect for applications where the stone or material is already set in place, eliminating the need to move or reposition it for drilling. The vacuum base also adds incredible stability, reducing vibration during the drilling process.

• Portable and Lightweight: Despite its robust build, the DSA07 is portable and light enough to be moved around a workshop or job site. It’s perfect for fieldwork, where setup time is minimal.

• Precision Drilling: The DSA07 has a precise adjustable depth mechanism, making it suitable for accurate drilling at controlled depths. The scale ring helps ensure depth accuracy within millimeters.

Q: What are its key specifications?

• Drill Stand Material: Heavy-duty steel for durability and strength

• Vacuum Base Dimensions: 200mm x 205mm (7.9 inches x 8.1 inches)

• Column Length: 290mm (11.4 inches) with a sturdy round column of 34mm diameter

• Drilling Bore Size: 60mm (2.4 inches)

• Net Weight: 6kg (13 lbs)

• Return Spring: Built-in return spring with an easy-to-use locking mechanism for quick adjustments

Q: What is included in the package?

• Drill Stand with Vacuum Base

• Column with rack

• Depth scale ring

• Cable holder for organized wiring

Note: The electric drill is sold separately and must be attached to the stand.

Q: Is it suitable for other materials besides stone?
A: Yes, while the Aardwolf DSA07 Drill Stand is optimized for stone and marble, it can be used for other materials like concrete, granite, ceramic tiles, and other hard surfaces.

Q: How does the vacuum base work?
A: The vacuum base uses either a compressed air or battery-powered vacuum pump to hold the stand firmly in place. It creates a strong bond to any flat, non-porous surface, making it easy to use without permanent fixtures or adhesives.

Q: Can it be used for series drilling?
A: Yes, the integrated return spring and locking button mechanism are designed for continuous, series drilling, providing efficiency and consistent results.

Q: What are the benefits of this drill press?

• Fast Setup: No need for mounting, drilling, or bolting. Simply attach it to a flat surface using the vacuum pump and you’re ready to go.

• Compact: Its small size and light weight allow for easy storage and transport, ideal for mobile or on-site jobs.

• Durability: The high-quality materials used in construction ensure the drill press can withstand heavy-duty, long-term use, even in the toughest environments.

Maintenance Tips

Regular Cleaning:

• After each use, clean the drill press to remove dust and debris.

• Use a plastic abrasive pad or steel wool to scrub the surfaces.

• Wipe all parts dry with a clean rag to prevent any moisture buildup.

Lubrication:

• Lubricate the chuck and spindle assembly regularly with a dry lubricant, such as WD-40 Specialist Dry Lube, to keep the components moving smoothly and prevent rust without leaving an oily residue.

Vacuum Base Maintenance:

• Ensure the integrated vacuum base is clean and free from debris.

• Regularly check the vacuum system for leaks or loss of suction.

• Maintain the vacuum pump (if used) according to the manufacturer's guidelines.
