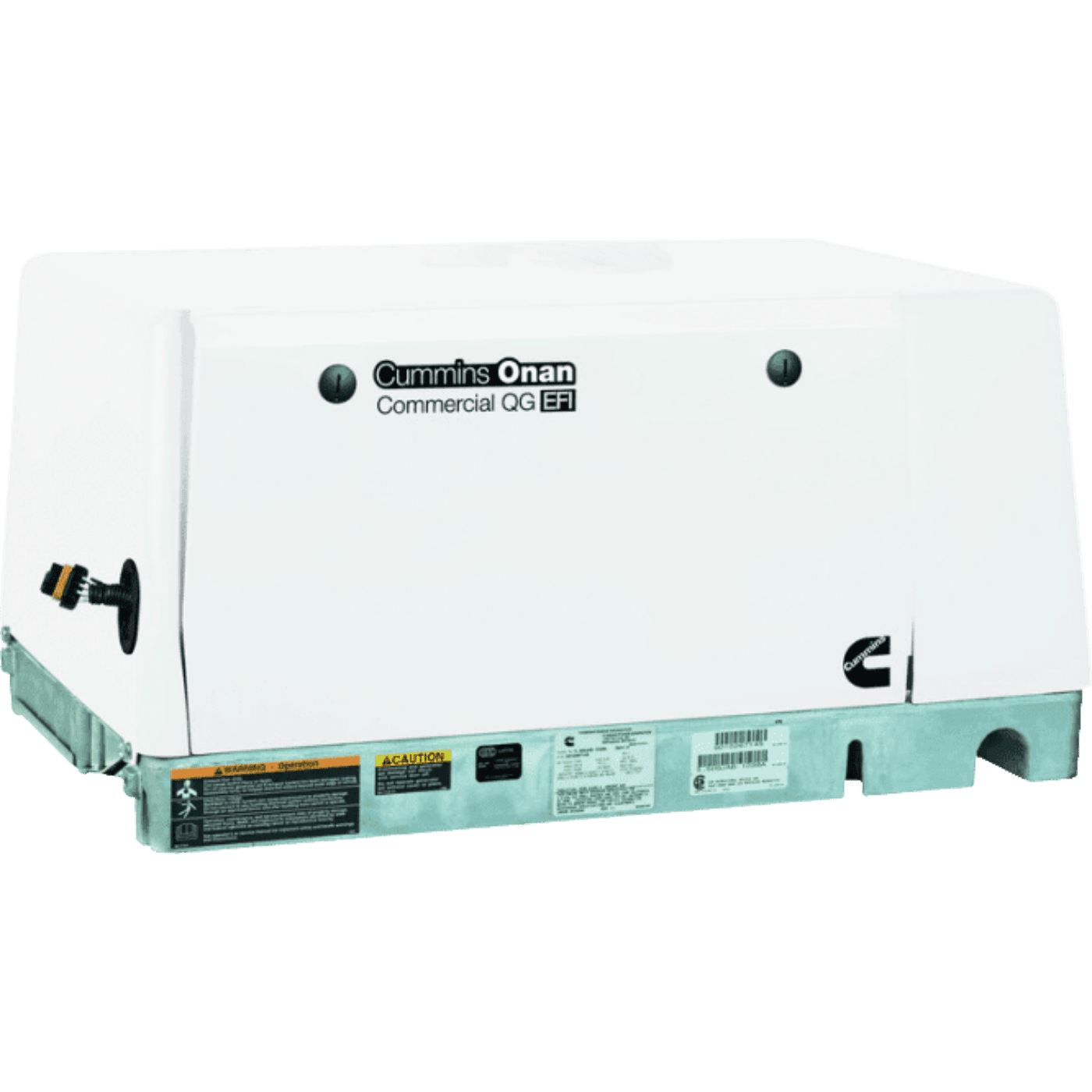

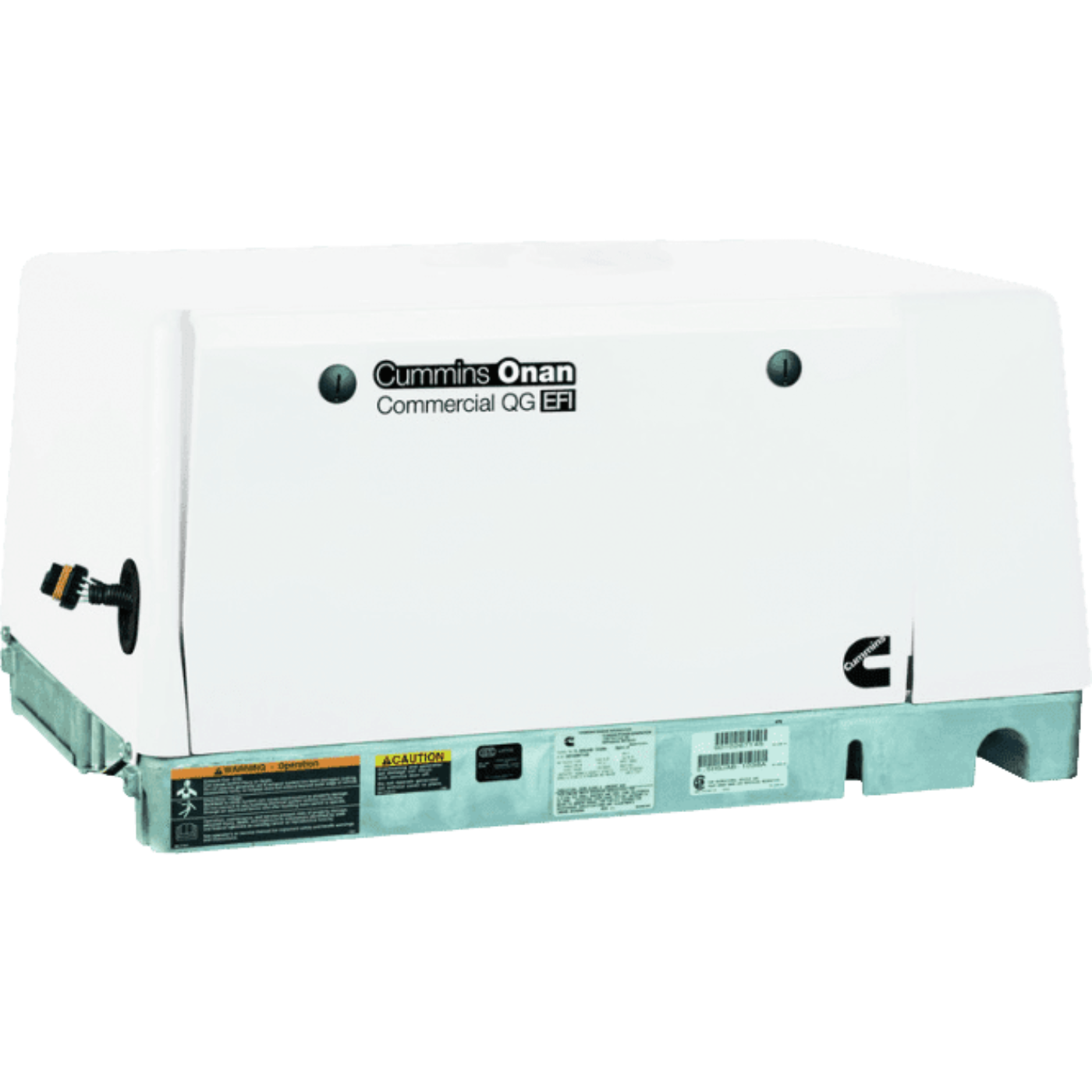

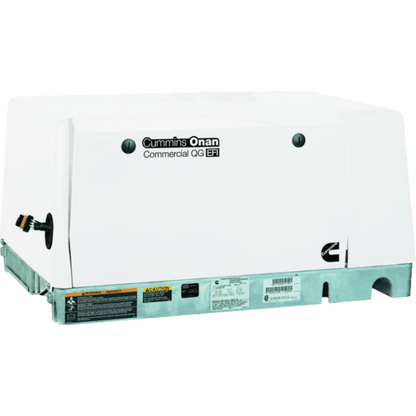

Cummins Onan QG 5500 5.5kW Generator 5.5HGJAD-6759+ Commercial Mobile Gas Single Phase 120/240 Volt Air Cooled EVAP New
The Cummins Onan 5.5HGJAD is designed for tough commercial applications. This generator includes exceptionally low noise and vibration, easy installation, diagnostic capability and digital regulation which maintains voltage stability as loads change. Cummins backs this generator with a standard 2 year limited warranty.
Features
- EVAP Model - Meets CARB Tier 3 & EPA Phase 3 Standards
- 5.5 kW QG EFI Commercial Mobile Generator EVAP (120/240V - 30A)
- Quietest and lowest vibration generator set in its class
- Designed for tough commercial applications - Runs (2) ACs
- Electronic Fuel Injection (EFI) - Improves Hot & Cold Starting
- Provides clean, smooth running under all conditions
- Cummins Onan 4-Cycle OHV V-Twin Engine (.6 Gal/H @ 1/2 Load)
- Allows for start & run without AC output to conserve fuel
- Microprocessor Controlled w/ Automatic Safety Shutdowns
- Digital voltage regulatotion provides stabilty as loads change
- Self-diagnostic capability to simplify troubleshooting
- Low oil pressure, over/under speed, and overcurrent protection
- Sound-Attenuating Enclosure w/ Thru Flow Cooling System
- Lowers noise levels while providing cross-flow cooling
- NON EVAP MODEL- Generator Fuel Must Come from Chassis Fuel Tank
- Integral Control Panel w/ Waterproof Remote Connector
- Instant one-touch stop switch & Remote disable/continuous stop capability
- 4-Point Mounting System w/ Vibration Isolators & Universal Tray
- Added Features - Auto Choke, Full-Flow Oil Filter & Long Life Fuel Filter
- 2-Year Limited & 5-Year Drive Warranty (See Warranty Sheet)
- Requires Cummins Onan EFI Fuel Pump Kit "541-1002" (Not Included)
Ā
Specifications
| Hour Meter |
Yes |
| Circuit Breaker Size |
30 Amps |
| Grade Type |
Professional |
| Engine Brand |
Cummins Onan |
| Starting System |
12-Volt Button Start |
| CC |
653 CC |
| Consumer Engine Warranty |
2 Years |
| Commercial Engine Warranty |
2 Years |
| Engine RPM |
2400 RPM |
| Low Oil Alert/Shutdown |
Yes |
| Cast Iron Sleeve |
Yes |
| Product Category |
Generator - RV |
| Weight |
290 Pounds |
| Consumer Warranty |
3 Years |
| Commercial Warranty |
3 Years |
| Product Style |
RV Generator |
| Product Length |
33.6 Inches |
