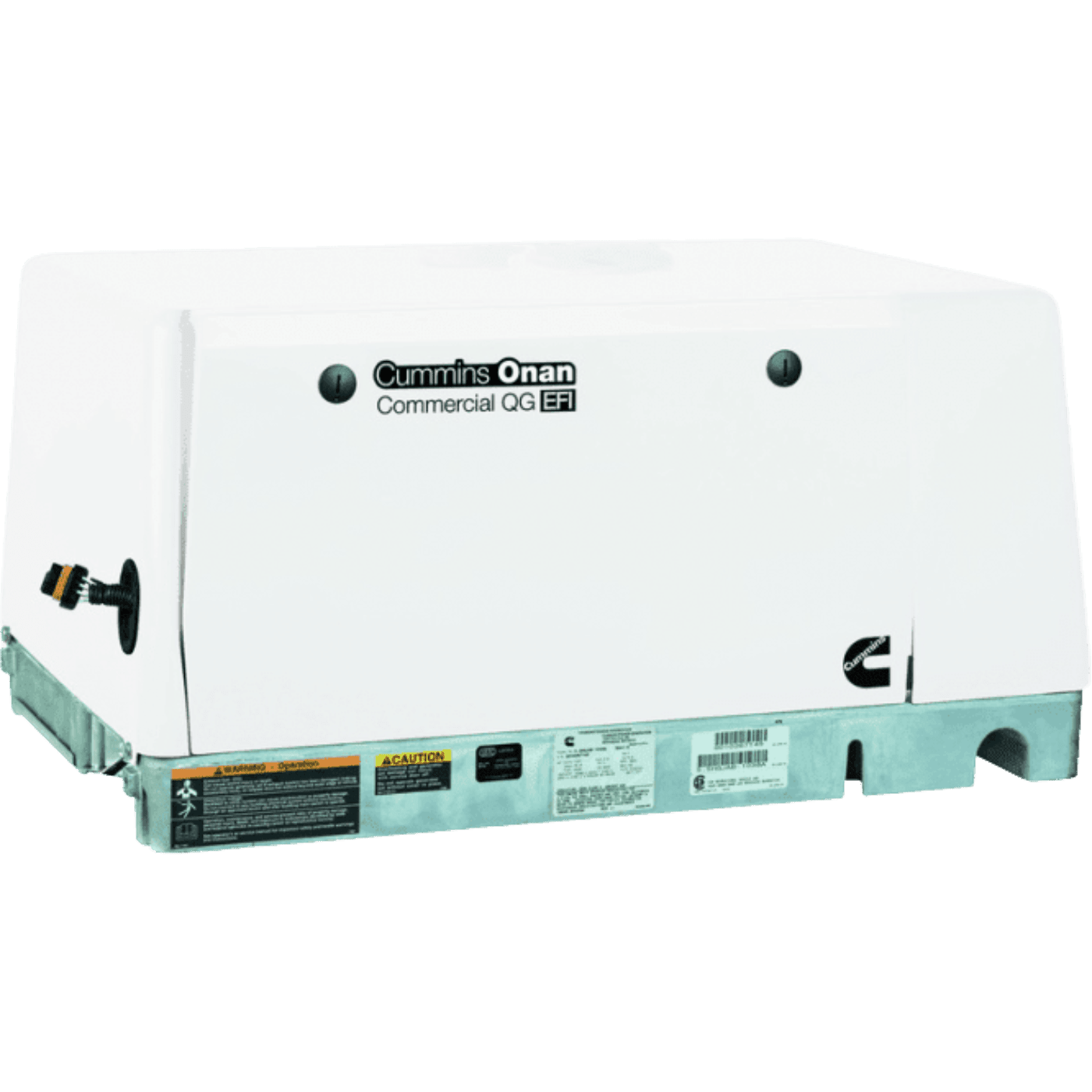

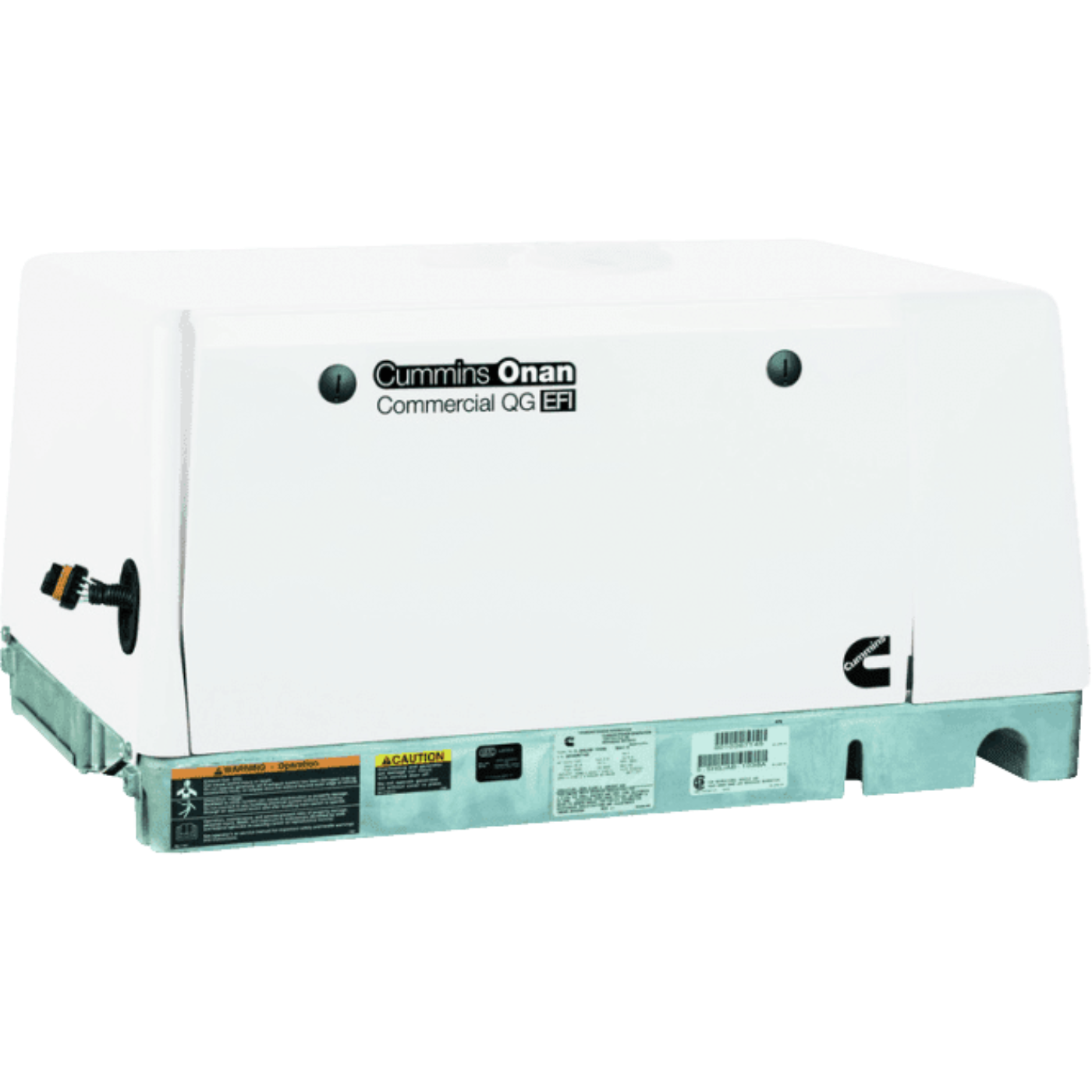

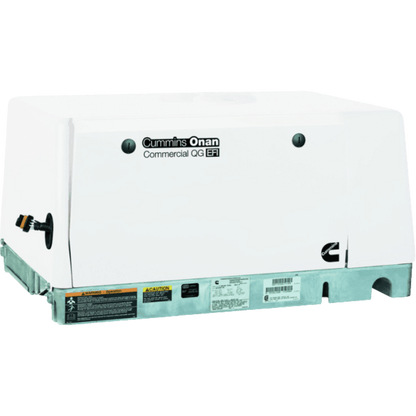

Cummins Onan QG 5500 5.5kW Generator 5.5HGJAD-2274+ Commercial Mobile Gas Single Phase 120 Volt Air Cooled EVAP New
The Cummins Onan 5.5HGJAD is designed for tough commercial applications. This generator includes exceptionally low noise and vibration, easy installation, diagnostic capability and digital regulation which maintains voltage stability as loads change. Cummins backs this generator with a standard 2 year limited warranty.
Features
- EVAP Control Model: Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system
- 4-cycle Air-Cooled, OHV, 90-degree V-twin engine
- Meets full load capability at 120° F (50° C) ambient conditions
- High performance motor-starting capability for heavy loads.
- Completely enclosed with muffler, quick and easy to install.
- EFI (electronic fuel injection)
- Start and run without AC output - engine run only
- Requires Cummins Onan EFI Fuel Pump Kit "541-1002" (Not Included)
Â
Specifications
| Battery For Electric Start |
Not Included |
| Warranty |
2 Year (Limited) |
| Weight (Lbs.) |
288 |
| Ship Weight (Lbs.) |
328 |
| Operating Weight (Lbs.) |
288 |
| Dimension No Wheel Kit |
22.2"W x 33.6"L x 16.7"H |
| Agency Compliance |
CARB (California), EPA, National Park Approved |
| Surge Start Watts |
5,500.0 |
| Continuous Rated Watts |
5,500.0 |
| Prime Rating Watts |
5,500 |
| Phase |
Single-Phase |
| Voltage |
120 |
| Rated Amps @ Min Volt (Commonly 120v) |
45.8 |
| Frequency |
60 Hz |
| Power Factor |
1.0 |
| Poles |
2 |
| Alternator |
Brush |
| Voltage Regulation |
1.7% |
| Voltage Regulation Type |
Digital |
| Circuit Breakers |
30 Amp |
| Insulation |
Class H |
| Manufacturer |
Cummins |
| SKU |
5.5HGJAD-2274 |
| Model Number |
QG 5500 |
| Generator Grade |
Commercial |
| Generator Style |
Commercial Mobile Generator |
