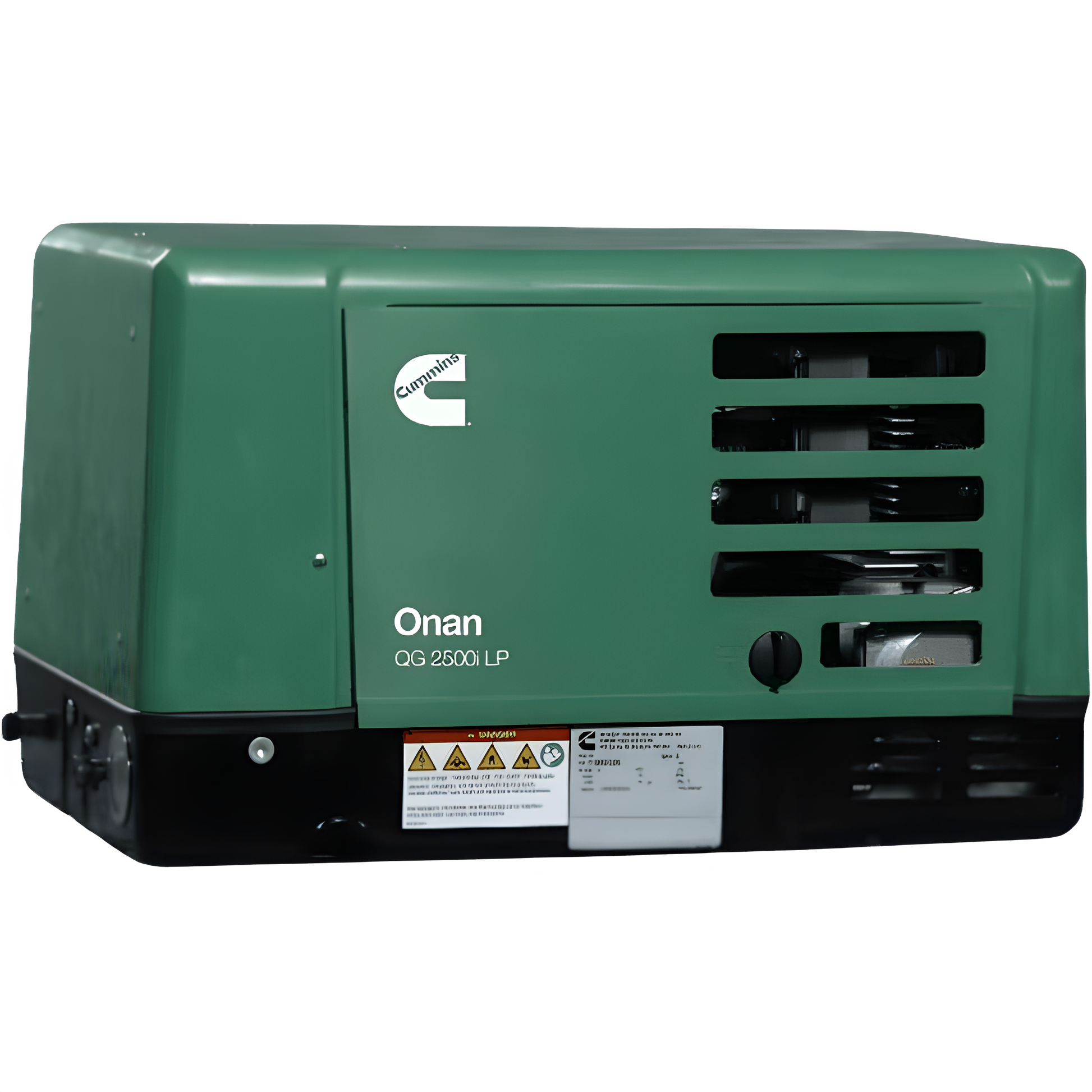

Cummins Onan QG 2500 EVAP 2.5kW RV Generator 2.5HGLAA-8304 RV Propane Single Phase 120 Volt New
The Cummins Onan 2.5HGLAA is an aesthetically pleasing quiet generator with 2.5 kW of power for RV. This generator is the quietest generator in its size. All of this while maintaining a low fuel consumption. Cummins backs this generator with a standard 3 year limited warranty.
Features
- Computer-controlled variable speed operation matches engine speed to load demand, minimizing noise level and vibration.
- LP and EFI gasoline models
- No fuel return line necessary - EFI gasoline
- EVAP model for specialized applications
- High power quality with inverted electrical output for sensitive RV loads.
- J1939 communications capable
- Increased oil capacity, reduced oil consumption, low oil shutdown switch, high oil temperature sensor, allows for no required oil checks between recommended oil changes.
- Quietest generator sets of their size.
- Completely enclosed with muffler, quick and easy to install.
- 3-year limited warranty
- Low fuel consumption
Specification
| Design |
Cummins, permanent magnet |
| Bearings |
None |
| DC Brushes |
None |
| Exciter system |
None |
| Air Conditioner Operation |
2.8kW generator set will start and run one 13500 Btu high efficiency air conditioner (15.5 Amps or less) plus 600-Watt base load with an additional 300 Watts of power available. 2.5kW generator set will start and run one 13500 Btu high efficiency air conditioner (15.5 Amps or less) plus a 600- Watt base load. |
| Voltage Regulation |
Exceeds requirements of ANSI/RVIA EGS-1 Ā±10% |
| Frequency Regulation |
Exceeds requirements of ANSI/RVIA EGS-1 Ā± 5% Note: See your Cummins distributor or authorized Cummins service dealer for a listing of approved air conditioners |
| Design |
4-cycle, single cylinder, OHV |
| Displacement |
15.4 in3 (252 cm3 ) |
| Compression Ratio |
8.8:1 |
| Power |
7.1 bhp (max) at 3600 r/min |
| Cooling |
Pressurized air |
| Cooling Air Volume |
120 ft3 /m (3.40 m3 /min) at full load Fuel System: (Gasoline) Electric fuel transfer pump, max fuel lift 3 ft (914 mm), internal high-pressure injection pump module; (LP) electric fuel solenoid |
| Combustion Air |
7.2 ft3 /m (0.20 m3 /min) at 2900 r/min |
