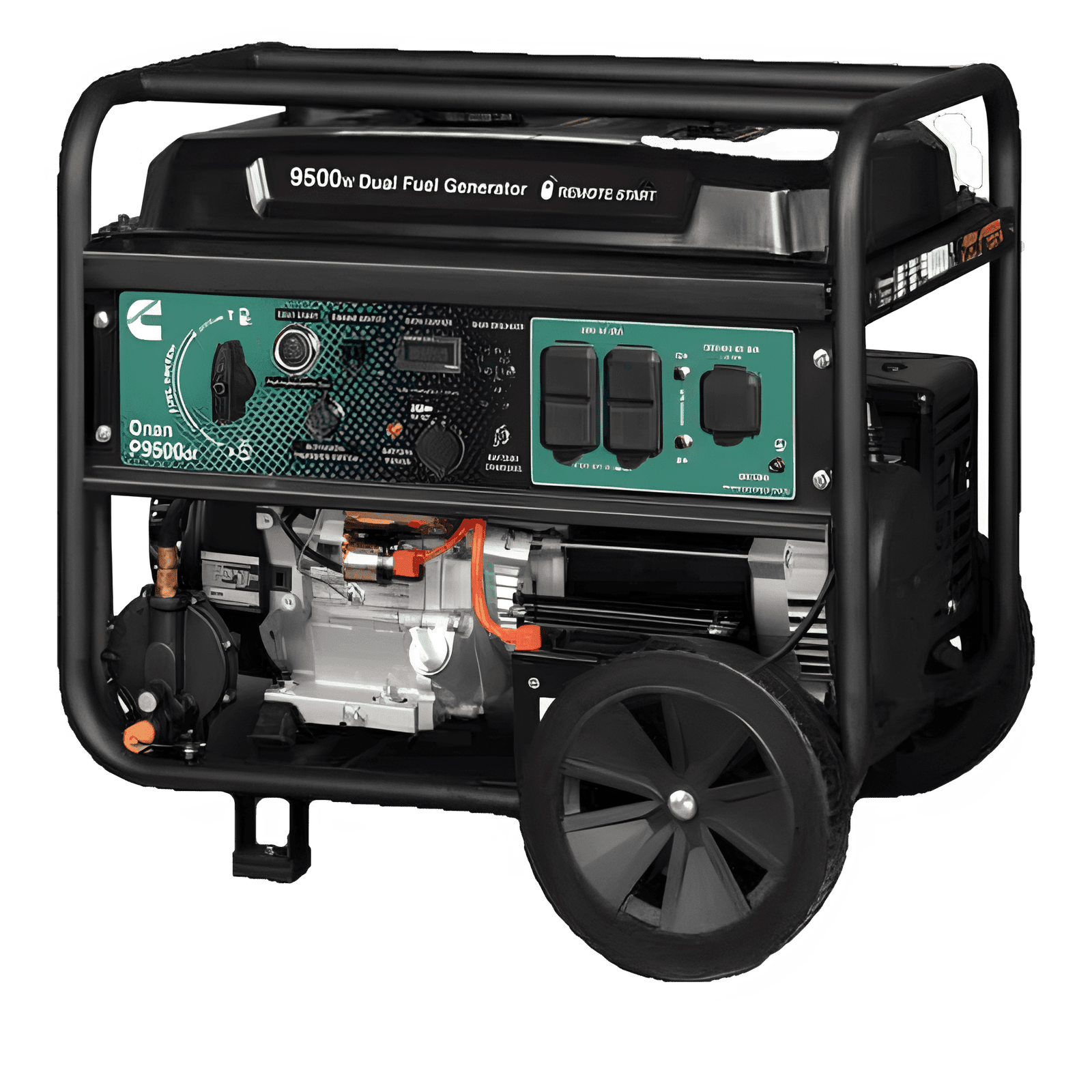

Cummins Onan P9500DF 7500W/9500W A058U967 Portable Dual Fuel Remote Start Generator New
Designed to go wherever you do, the new advanced portable dual fuel generators by Cummins, bring together efficiency, durability and performance to deliver three of our most versatile and reliable products ever, all backed by the Cummins 24/7 global support network to ensure that you’ll always have power for when you need it most.
The Cummins Onan P9500df is a dual fuel generator capable of producing 7500/9500 peak watts (gasoline) and 6750/8550 peak watts (propane) . With a fuel capacity of 6.6 gallons of gasoline, and dual fuel capability, the Onan P9500df allows you to easily switch from gas to propane. The P9500df features push-button and remote start, along with a recoil start. The VFT Data Center displays volts, frequency, and lifetime hours. The unit is also transfer switch ready with an L14-30R twist lock outlet. A pair of rear wheels and handle allow you to easily move the generator where you need it.
Features
- Push button and remote start with pull cord backup
- Fuel selector switch to easily switch from gas to propane
- Lightweight and telescoping handle for easy transportation
- Convenient transfer switch ready with L14-30R twist lock outlet
- VFT Data Center displays volts, frequency and lifetime hours
- Dependable 13 HP 420cc OHV 4-Stroke Cummins Onan engine
- Fuel gauge on top of 6.6 gallon tank
- Battery charging port with charger included
- 3-year warranty
- EPA and CARB Compliant
Specification
| FUEL TANK CAPACITY | 6.6 GAL |
|---|---|
| GAS RUN TIME AT 25% LOAD | 16 HRS |
| GAS RUN TIME AT 50% LOAD | 11 HRS |
| PROPANE RUN TIME AT 25% LOAD WITH 20LB STANDARD PROPANE TANK | 8 HOURS |
| GASOLINE FUEL GAUGE | YES |
| CHOKE TYPE | AUTOMATIC |
| CHOKE LOCATION | ABOVE AIR FILTER |
| AC OUTLETS | (1) 120V/240V 30A (L14-30R) (2) DUPLEX 120V 20A (5-20R) |
| GROUND | NEUTRAL BONDED |
| COVERED OUTLETS | YES |
| TRANSFER SWITCH READY | YES |
| CUMMINS SMART TRANSFER SWITCH READY | YES |
| GFCI OUTLETS | YES |
| VFT DATA CENTER | YES, VOLTS, FREQUENCY, LIFETIME HOURS |
| RV READY OUTLET | NO |
| OVERLOAD PROTECTION | YES |
| HANDLE STYLE | SING HANDLE WITH FOAM GRIP |
| EMISSIONS | EPA, CARB |
| CANADA CSA COMPLIANT | NO |
| WHEEL KIT INCLUDED | YES |
| SPARK ARRESTOR | YES |
| WHEEL SIZE | 10" DIAMETER, 2.5" WIDE |
| ASSEMBLED DIMENSIONS | 27.25" x 26.25" x 26.25" |
| DRY WEIGHT | 194 LB |
| PEAK WATTS (GASOLINE) | 9500 |
| RUNNING WATTS (GASOLINE) | 7500 |
| PEAK WATTS (PROPANE) | 8550 |
| RUNNING WATTS (PROPANE) | 6750 |
| GASOLINE RUNNING AMPS | 62.5A @ 120V 31A @ 240V |
| GASOLINE PEAK AMPS | 79A @ 120V 39A @ 240V |
| PROPANE RUNNING AMPS | 56A @ 120v 28A @ 240V |
| PROPANE PEAK AMPS | 71.25A @ 120V 35.6A @ 240V |
| AC VOLTAGE | 120V/240V |
| AC FREQUENCY | 60HZ |
