Coxreels EZ-SGW Series “Side Mount” Low Pressure Spring Driven Hose Reels - EZ-SG17W-150
Coxreels EZ-SGW Series “Side Mount” Low Pressure Spring Driven Hose Reels

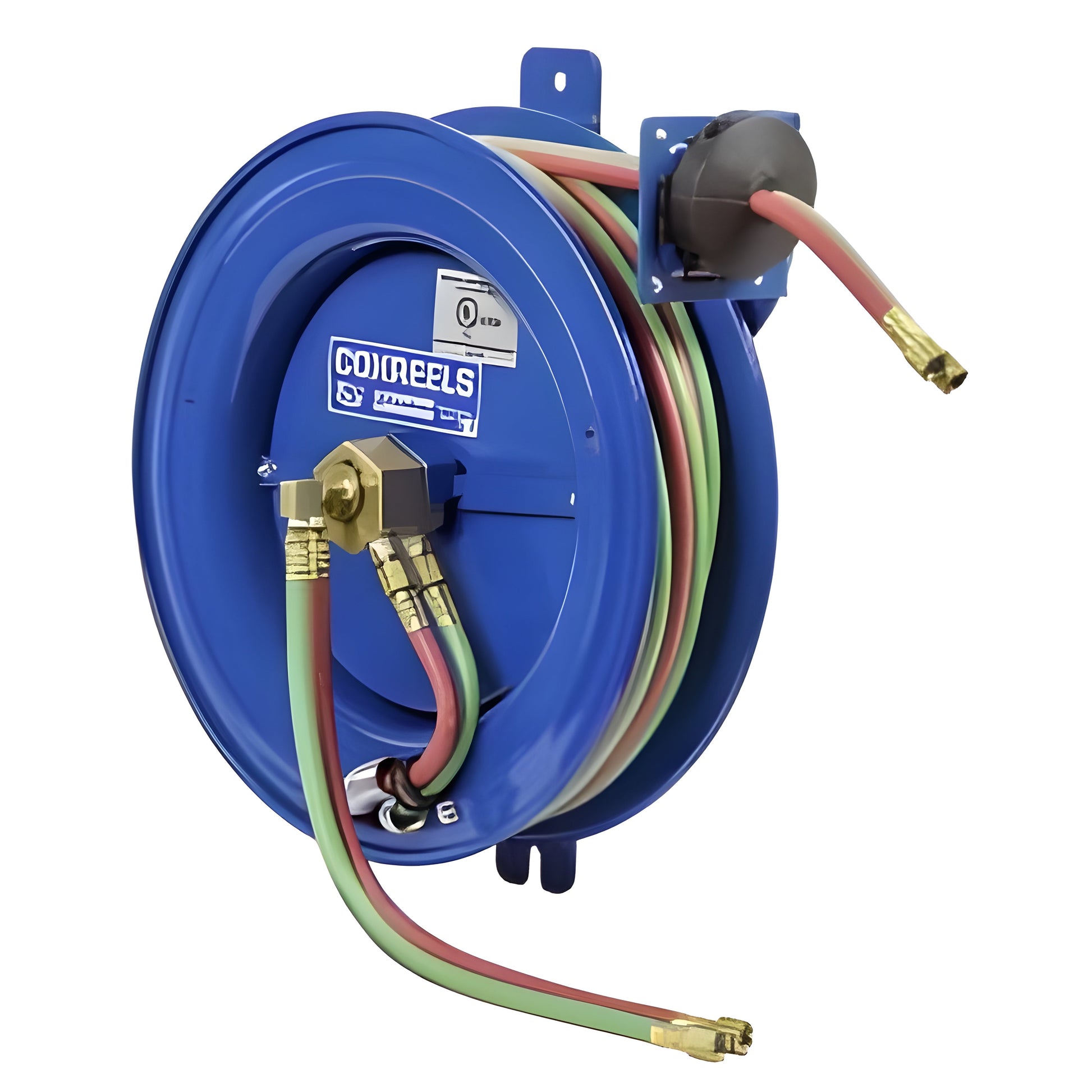

Coxreels EZ-SGW Series expand the capabilities of the “Side Mount” spring driven hose reels, adding a multi-position guide arm for maximum and convenient hose control. Ideal for tight spaces, the versatile SGW Series (for oxy-acetylene and T Grade gas welding hose) feature a simple two-bolt mounting pattern for easy installation and detachment on any vertical flat surface. Common applications include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, machine tools and more. The guide arm and roller assembly are easily moved to one of the six different positions with a standard ½” wrench.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features

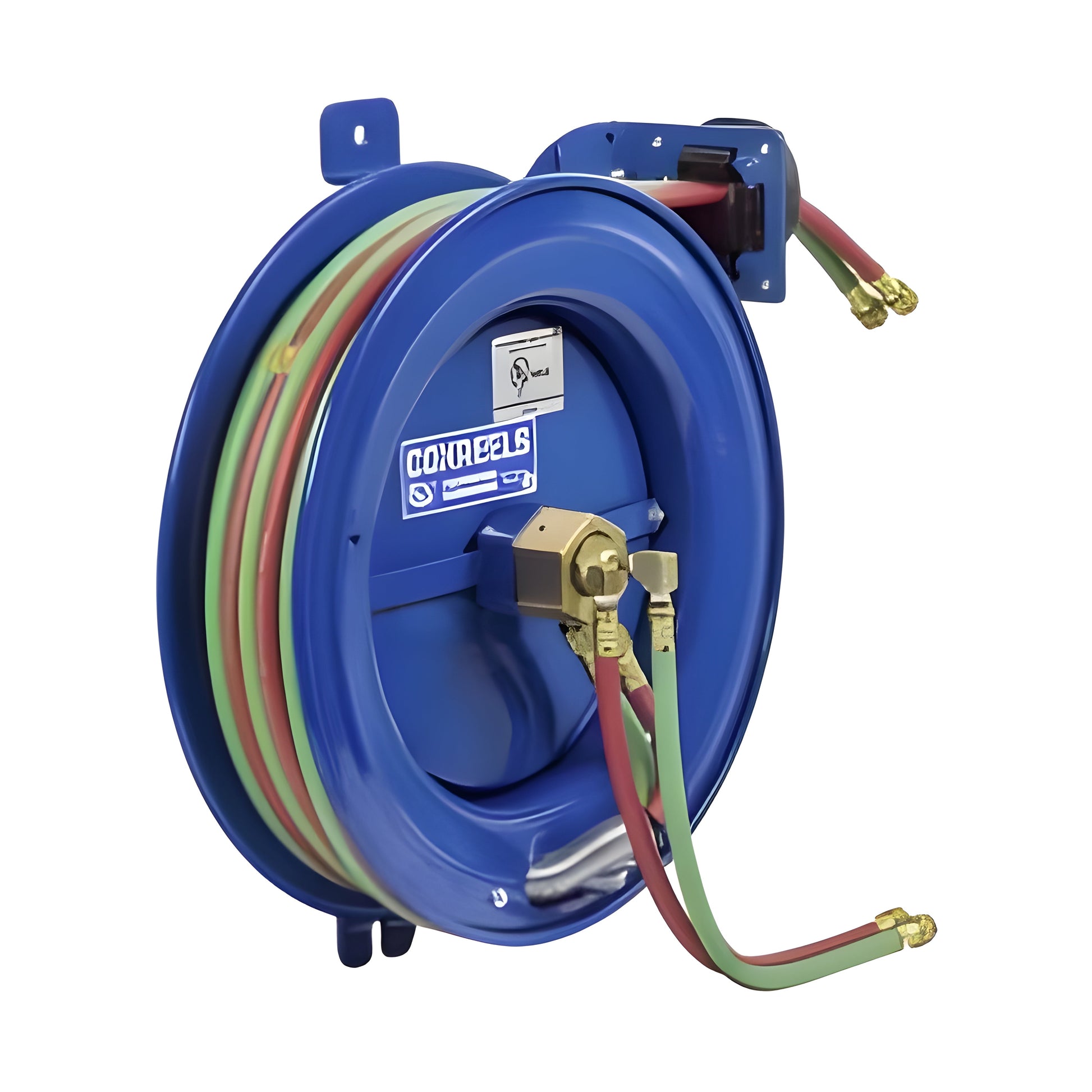

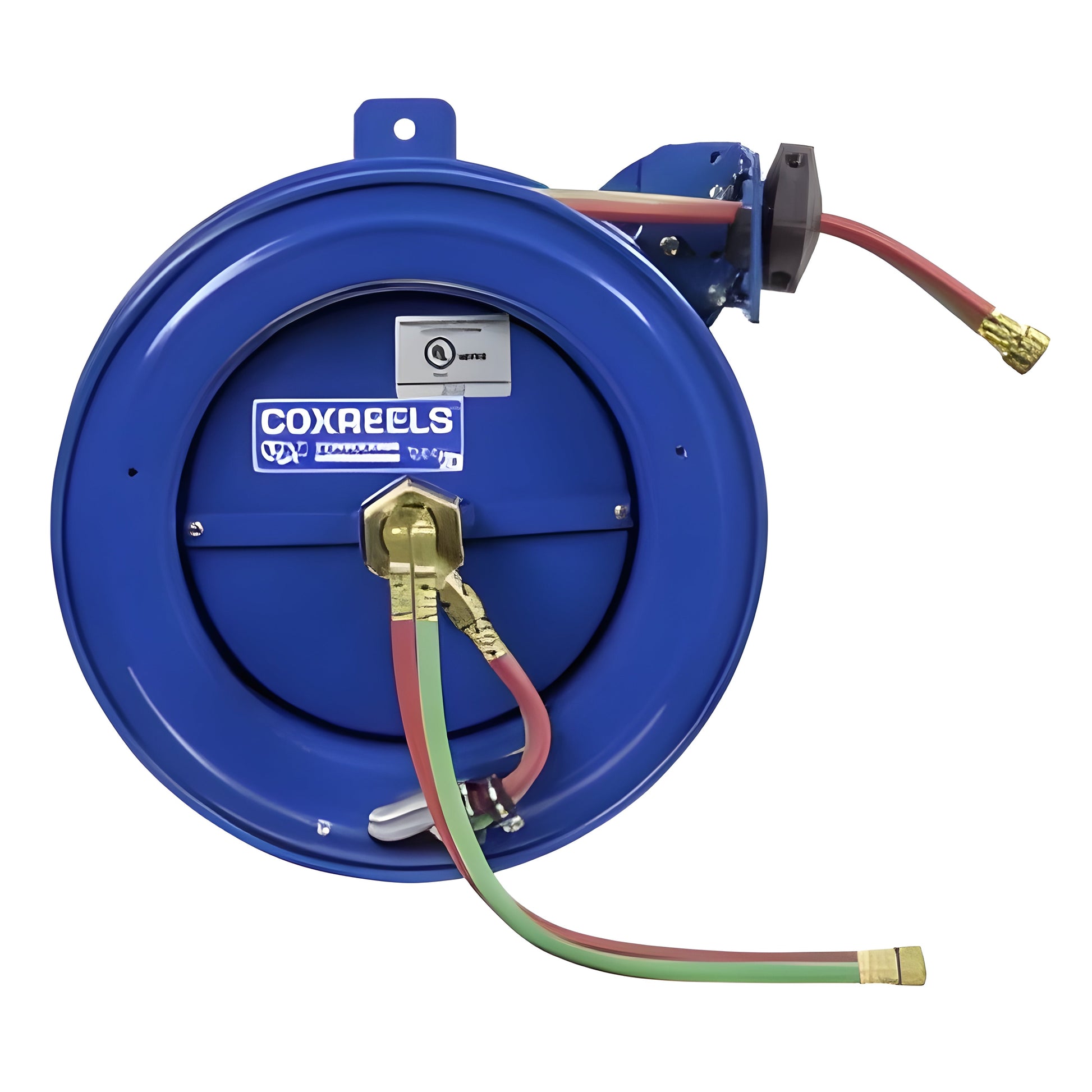

- WELDING GAS SWIVEL - External 90◦ full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
- EZ-COIL EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- SIDE MOUNT DESIGN - Side mount for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.

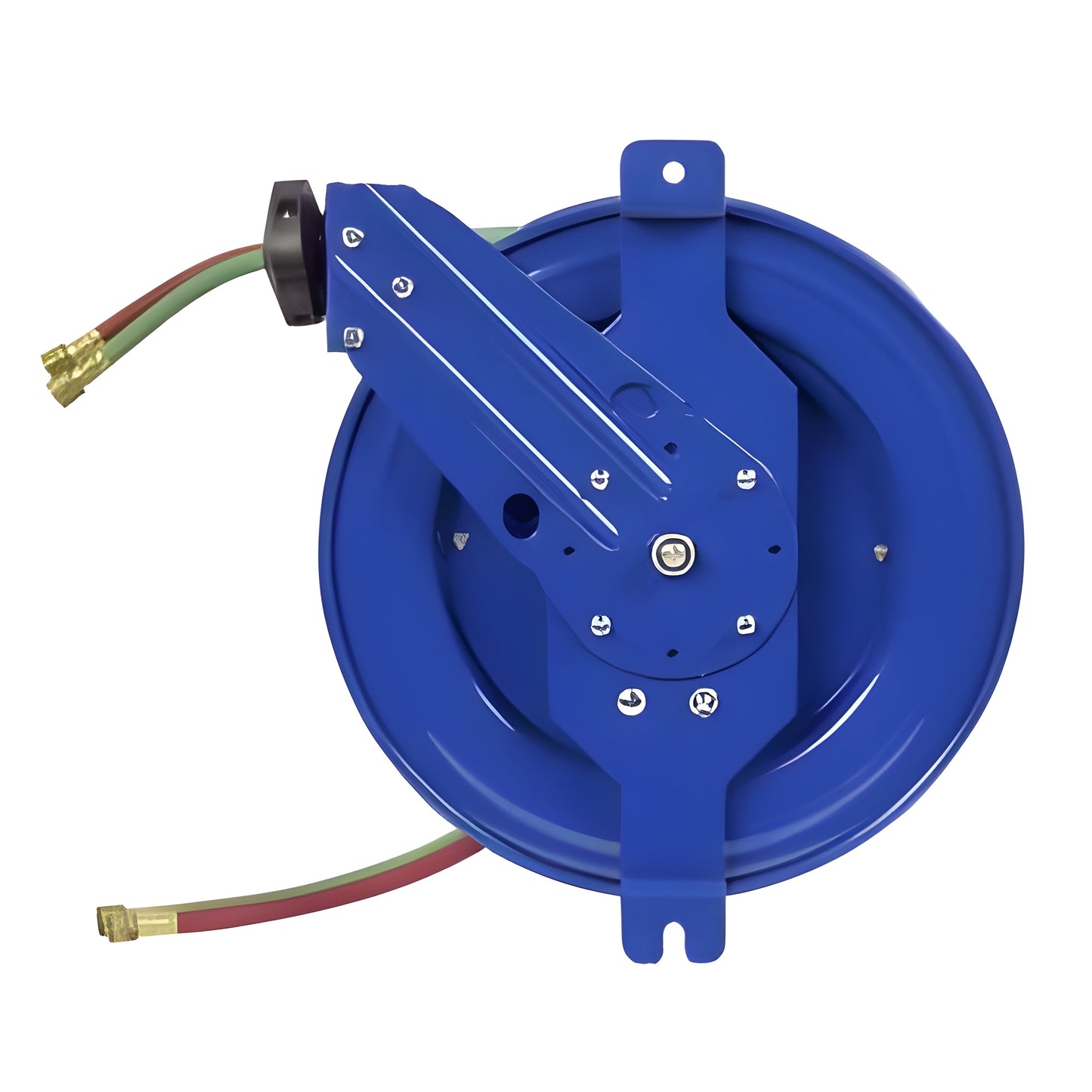

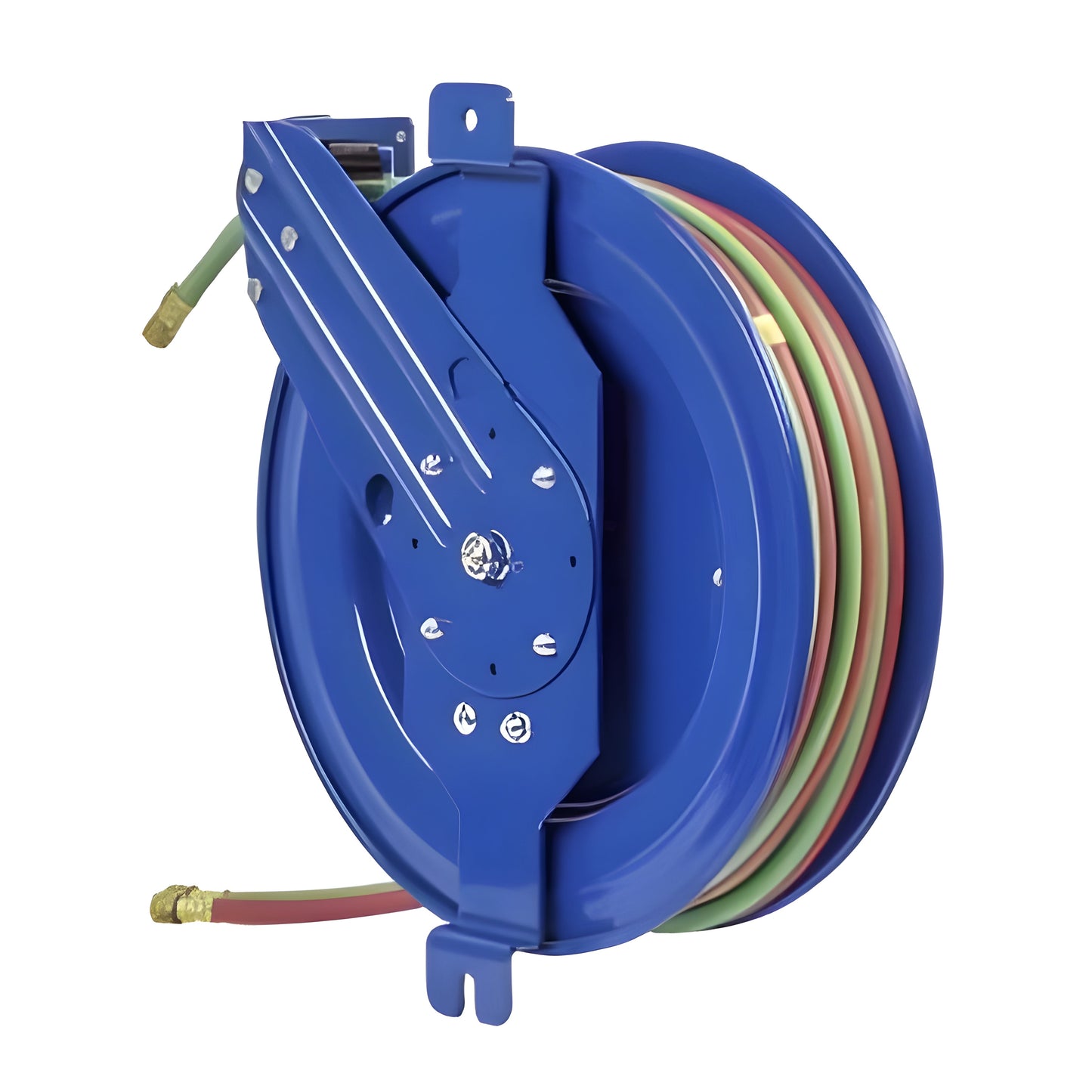

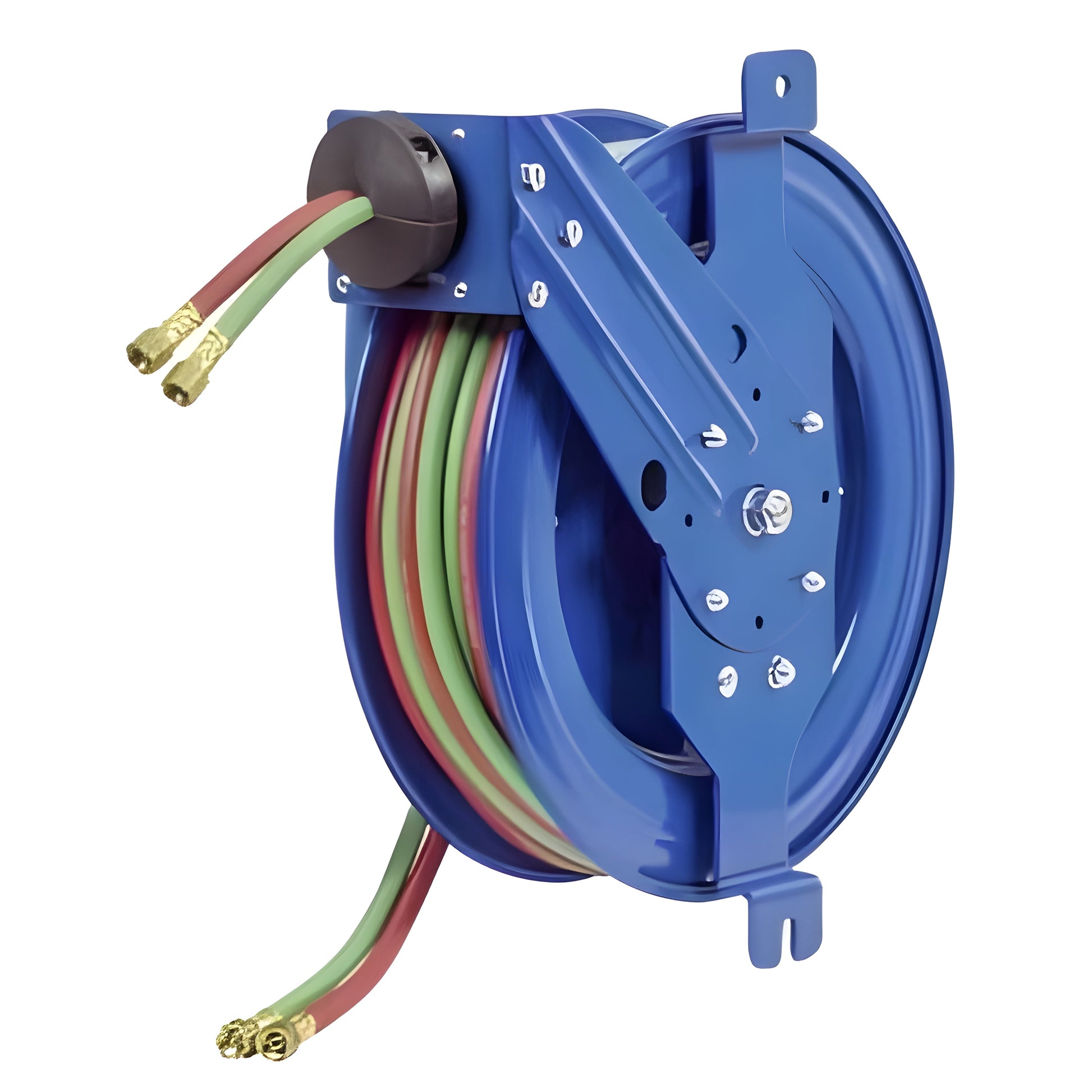

- MULTI-POSITION GUIDE ARM - Adjustable 6 positions guide arm and roller assembly provide maximum hose control.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose, oxy-acetylene or "T" grade welding hose, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| EZ-SG17W-150 |
1/4" |
50' |
Yes |
200 |
59 |
8.88"(W) 19.5"(H) 17"(L) |
18"(M) -"(N) |
-"(X) 2.5"(Y) |
| EZ-SG17WT-150 |
1/4" |
50' |
Yes |
200 |
59 |
8.88"(W) 19.5"(H) 17"(L) |
18"(M) -"(N) |
-"(X) 2.5"(Y) |
| EZ-SG19W-175 |
1/4" |
75' |
Yes |
200 |
77 |
10.5"(W) 22"(H) 19.5"(L) |
20.5"(M) -"(N) |
-"(X) 2.88"(Y) |
| EZ-SG19WL-175 |
1/4" |
75' |
No |
200 |
60 |
10.5"(W) 22"(H) 19.5"(L) |
20.5"(M) -"(N) |
-"(X) 2.88"(Y) |
| EZ-SG19WT-175 |
1/4" |
75' |
Yes |
200 |
77 |
10.5"(W) 22"(H) 19.5"(L) |
20.5"(M) -"(N) |
-"(X) 2.88"(Y) |
What Our Experts Think
-
Side-Mount Design: Space-saving, compact reel ideal for walls, workbenches, and vehicle applications.
-
Low-Pressure Capability: Designed for air and water applications, perfect for industrial and commercial use.
-
Spring-Driven Retraction: Ensures smooth, automatic hose retraction for hassle-free operation.
-
Heavy-Duty Steel Construction: Built for durability in tough work environments.
-
Corrosion-Resistant Finish: Protects against rust and wear for long-lasting performance.
-
Versatile Mounting Options: Optimized for side-mounting to maximize workspace efficiency.
Q&A
Q: What is the Coxreels EZ-SGW Series “Side Mount” Low Pressure Spring Driven Hose Reel - EZ-SG17W-150?
A: The EZ-SG17W-150 is a low-pressure, spring-driven hose reel with a side-mount design, ideal for compact spaces and service vehicles. It features automatic hose retraction and is perfect for managing up to 50 feet of hose.
Q: How does the spring-driven mechanism work?
A: The reel uses a spring-driven rewind system that automatically retracts the hose after use, reducing manual effort and keeping your workspace organized.
Q: What materials is the reel made of?
A: The reel is constructed with heavy-duty steel and has a corrosion-resistant finish, ensuring durability in demanding environments.
Q: What types of hoses can this reel handle?
A: This reel is designed for use with low-pressure hoses, making it ideal for air, water, and light fluid applications.
Q: How is it installed?
A: The side-mount design allows for flexible installation on walls, workbenches, or service vehicles, saving valuable space.
Q: What is the hose capacity of the reel?
A: It can hold up to 50 feet of low-pressure hose, providing efficient and convenient hose management.
Maintenance Tips
-
Model: EZ-SG17W-150
-
Hose Capacity: Holds up to 150 feet of 3/8” or 1/2” low-pressure hose
-
Pressure Rating: Designed for low-pressure applications up to 300 PSI
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for enhanced durability
-
Drive Mechanism: Spring-driven automatic rewind for smooth and effortless hose retraction
-
Swivel Inlet: Full-flow brass swivel ensuring unrestricted fluid or air transfer
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth and consistent hose operation
-
Mounting Type: Side mount design, perfect for wall, workbench, or vehicle installation to save space
-
Applications: Ideal for low-pressure fluid and air transfer in workshops, service vehicles, and industrial settings
-
Temperature Range: Operates efficiently in a wide range of environmental conditions
-
Weight: Varies based on configuration and hose selection
