Apollolift Counterbalanced Electric Stacker 2200lbs 98" High - A-3043

• 650-watt drive motor,  2,200-watt lift motor.
• Perfect for approaching racks and trucks, as there are no straddle legs to obstruct to close approach.
• With upright walking function, especially suitable for narrow aisle.
• 2 minutes will replacement thanks to the wheel because of the upper horizontal structure design.
• 4-5 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries

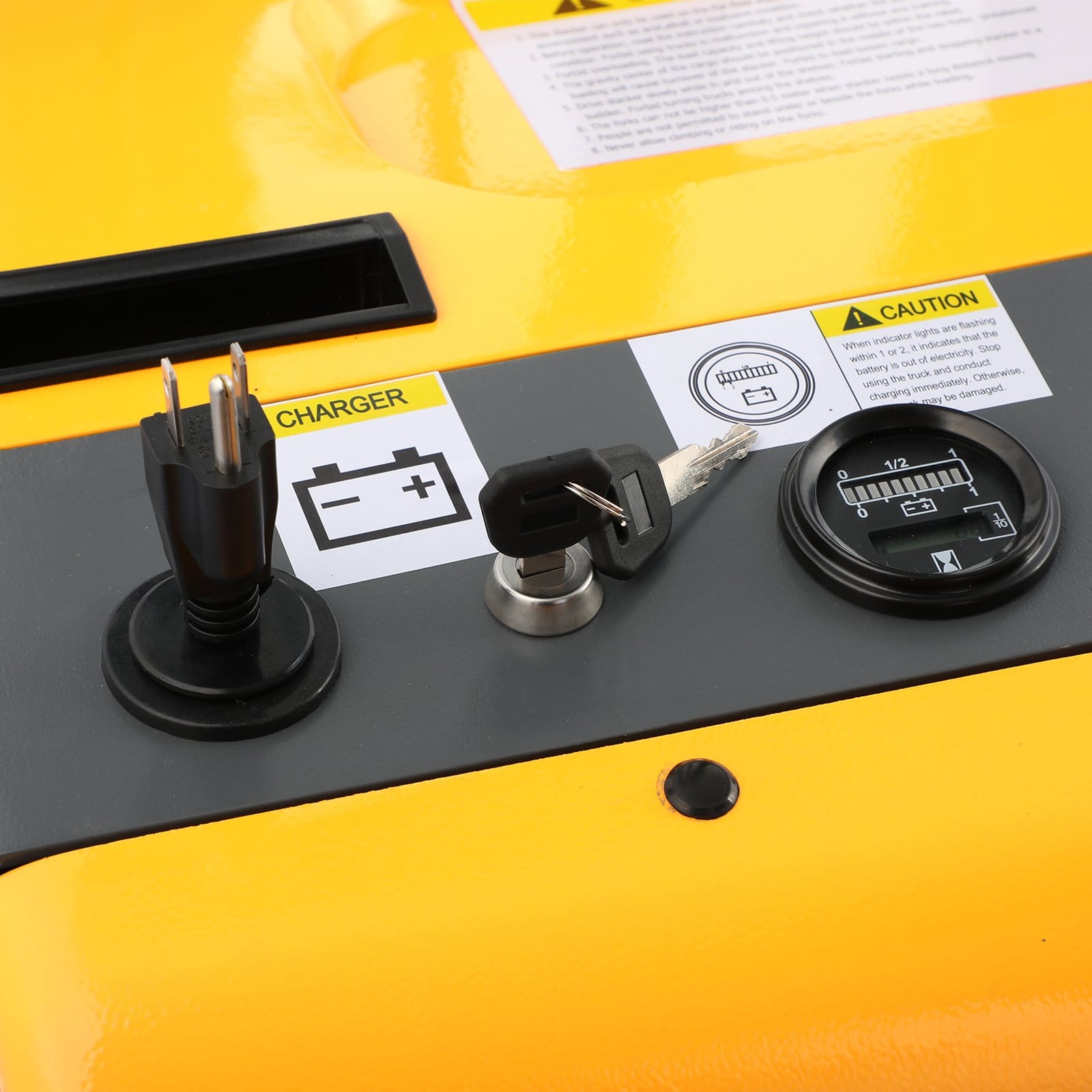

• 110V Built-in charger.

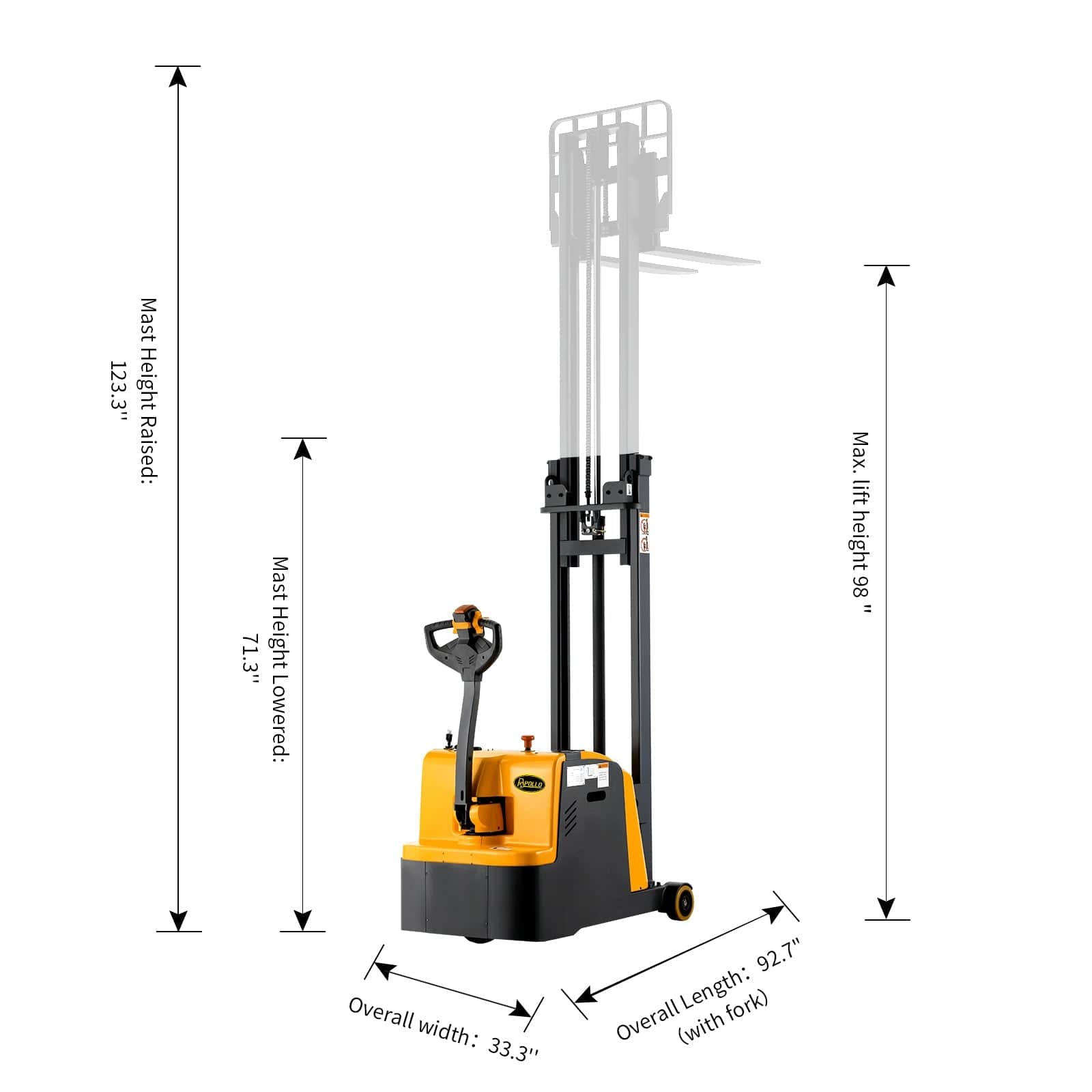

DIMENSIONS

• Overall Length：92.76"
• Overall Width: 33.3''
• Recommended Aisle Width：113.38"/ 9.45 feet
• Turning Radius：52.52"
• Load Center: 15.7"
• Gradeability(laden/unladen):5%/10%

MAST

• Mast Height Lowered: 80.8''
• Mast Lifting Height: 98''
• Mast Height Raised: 123.3''
• Mast tilt(forward/backward):1°/3°

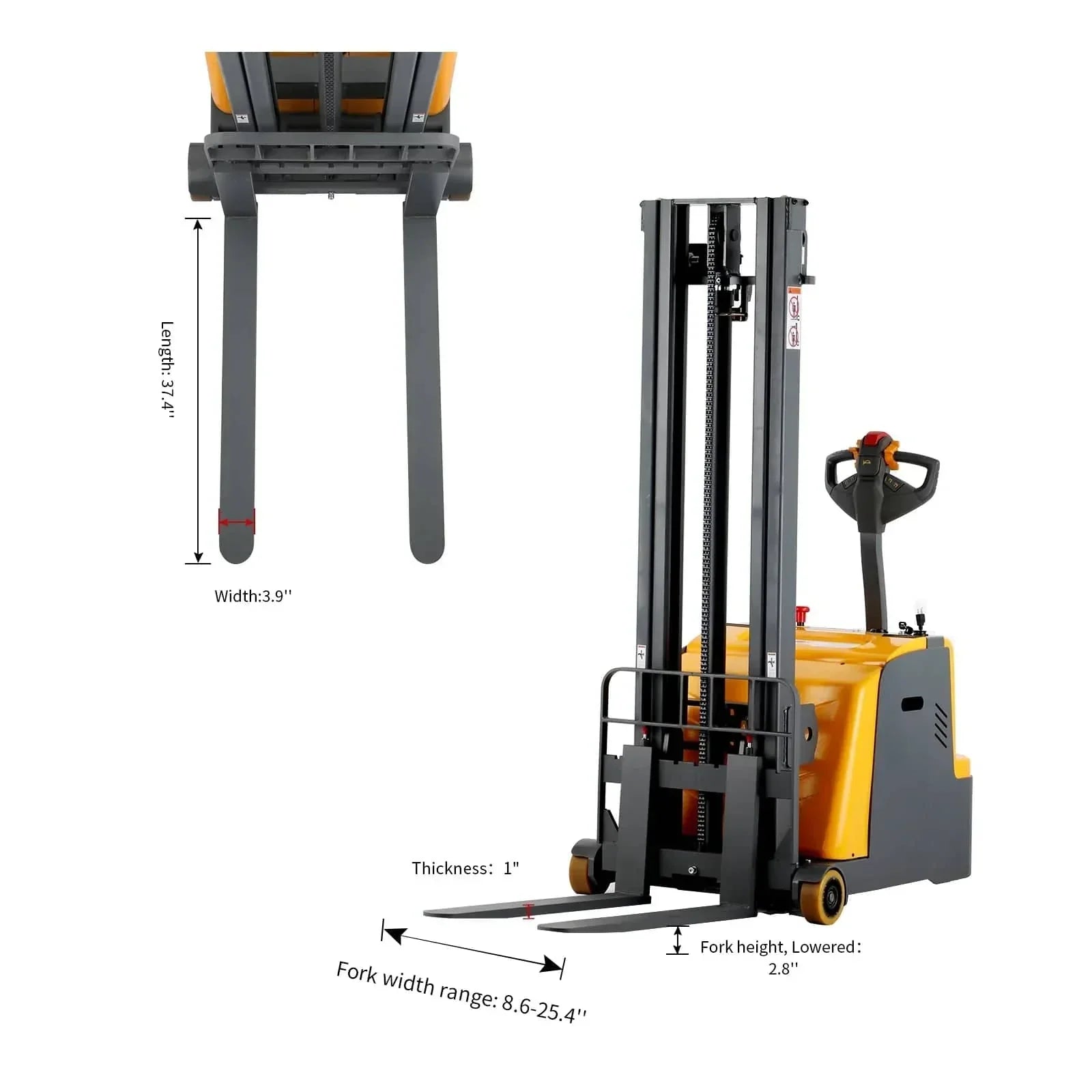

FORKS

• Thickness: 1''
• Width:3.9''
• Length: 37.4"
• Fork width range: 8.6-25.4''

FEATURES

• Long handle structure makes truck steering light and flexible
• Thoughtful mast design for wide viewing angles
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

SPEED

• Lifting speed(laden/unladen) : 0.11/0.15 m/s
• Lowering speed(laden/unladen) : 0.85/0.9 m/s
