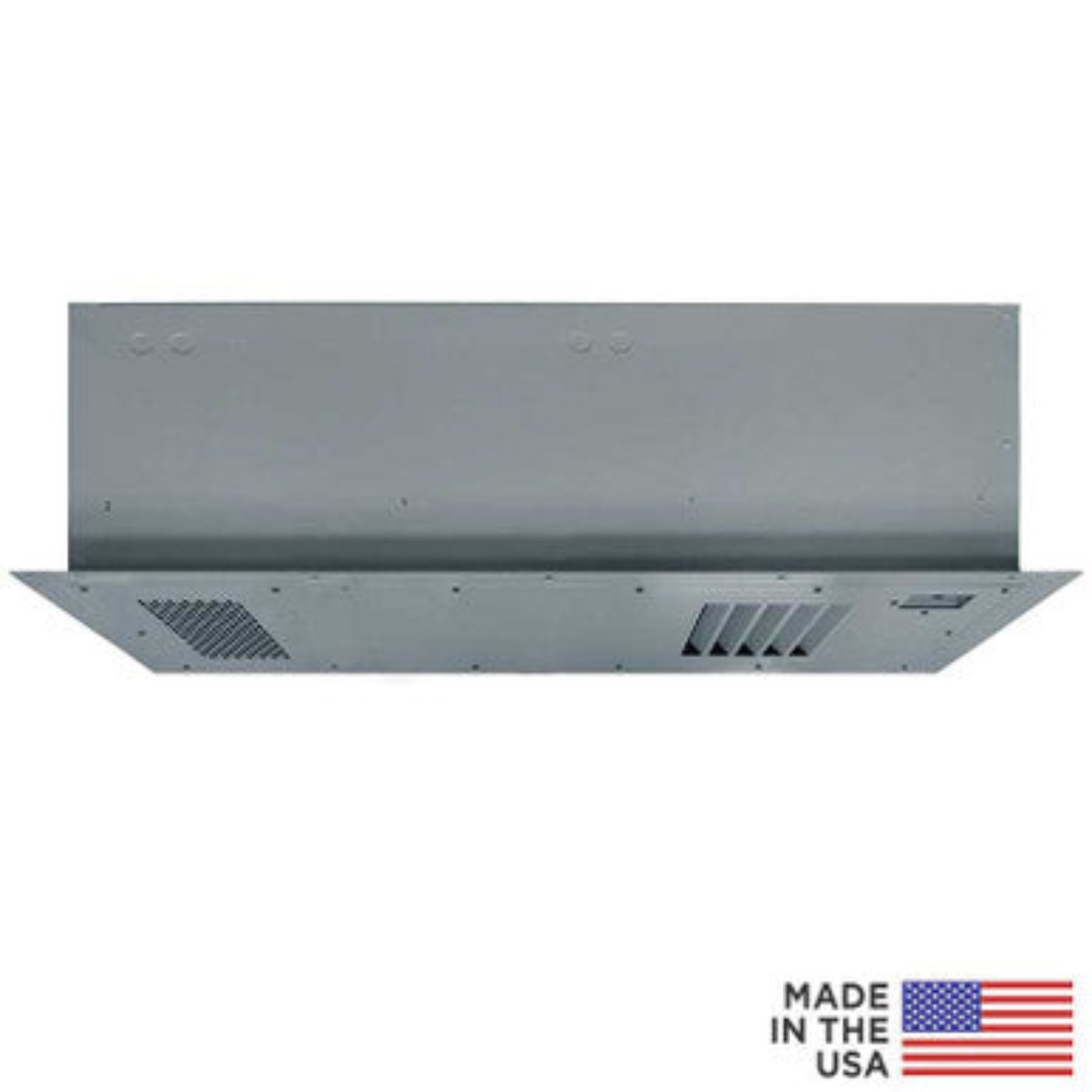

CellarPro Ceiling Mount Recessed 3000Scmr-EC.

NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the Ceiling Mount Mini-Split 3000Scmr-EC cooling system to provide maximum cooling power and adjustable humidity control with a ceiling-mounted evaporator that can be recessed in the ceiling and therefore hidden from view. The condensing unit can be configured for indoor or exterior installations, and the evaporator includes a variable-speed fan with a low setting for quieter operation and a high setting for maximum power.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The condensing unit must be installed outside the cellar in a location that provides ample space and access to fresh air.

This unit is suitable for wine cellars up to 600* cubic feet in both commercial and residential wine cellars.

    Inside the cellar, the evaporator unit is designed to mount on the wall near the top of the wine cellar. Outside the cellar, the condensing unit is attached to the evaporator unit by a line-set (sold separately) up to 100 equivalent feet.

    ALL Cellar Pro Split systems are available with optional exterior hood which allows the condensing units to be installed in external environments, subject to the temperature range noted above. Please inquire.

    Exposure to temperatures below 40°F requires the addition of our low ambient heater kit. The split systems are not shipped with the fan cycling switch required for low temperatures.  On its own, the cooling unit will function in environments above 40F/4C.  If your condenser will be in and environment below 40F/4C and approaching as low as  -20F/ -28C  you require the Low Ambient Heater kit.  The kit includes both the compressor heater and the fan cycling switch.

    Specifications
    • Condenser Operating Temperature Range: 0°F to 110°F
    • Certified by ETL to UL standards
    • Active Humidity Control
    • Digital Controls (LED Display)
    • 115V AC / 60Hz
    • Auto-Defrost Cycle
    • Electronic Thermostat
    • Energy-Saver Mode
    • Quick-Chill Mode
    • Audible and Visual Alarms
    • Min/Max Temperature
    • Maintenance-Needed Indicator
    • Power On/Off Switch

    Size:
    Condensing Unit Dimensions:
    - 42 lbs
    - 13 1/2w x 18 7/8d x 9 1/8h

    Evaporator Unit Dimensions:
    - 65 lbs
    - 35 3/4w x 14 1/4d x 12 7/8h

    Shipping Weight: 161 lbs

    Power/Rating:
    115V AC / 60 Hz

    System Amps:
    - Startup: 28.2 Amps
    - Common dedicated 15-amp circuit is required to power the unit.
    - Unit Amp Rating: 5.7 Amps (high fan speed)
    - Total Watts: 459 (med fan speed)

    BTUH @ 55F / Evaporator Decibels
    - Low Fan Speed: 2253 BTUH / 51 dbA
    - Medium Fan Speed: 2605 BTUH / 55 dbA
    - High Fan Speed: 2720 / 63 dbA
    - 1/4 Ton Nominal


    Condensing Unit Decibels
    - Indoor: 64
    - Outdoor: 62

    Manuals

    Celling Mounted Split System Owner's Manual
    Wall Mounted Split System Owner's Manual
    Water Cooled Split System Owner's Manual

    Split System Spec Sheet

    Split System Condensing Unit Cut Sheets
    Split System Evaporator Cut Sheets

    Split System Check List

    Split System Configuration Options
