The evaporator and the condensing unit each can be ducted up to 100 equivalent feet (50 equivalent feet per duct.) As a split system, the evaporator can be separated from the condensing unit up to 100 feet, allowing the noise and heat from the condensing unit to be located away from interior living areas. Designed for internal installations, the AH8500Si-ECX includes independent energy-efficient variable-speed EC fans with a low setting for quieter operation and a high setting for maximum power.
All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.

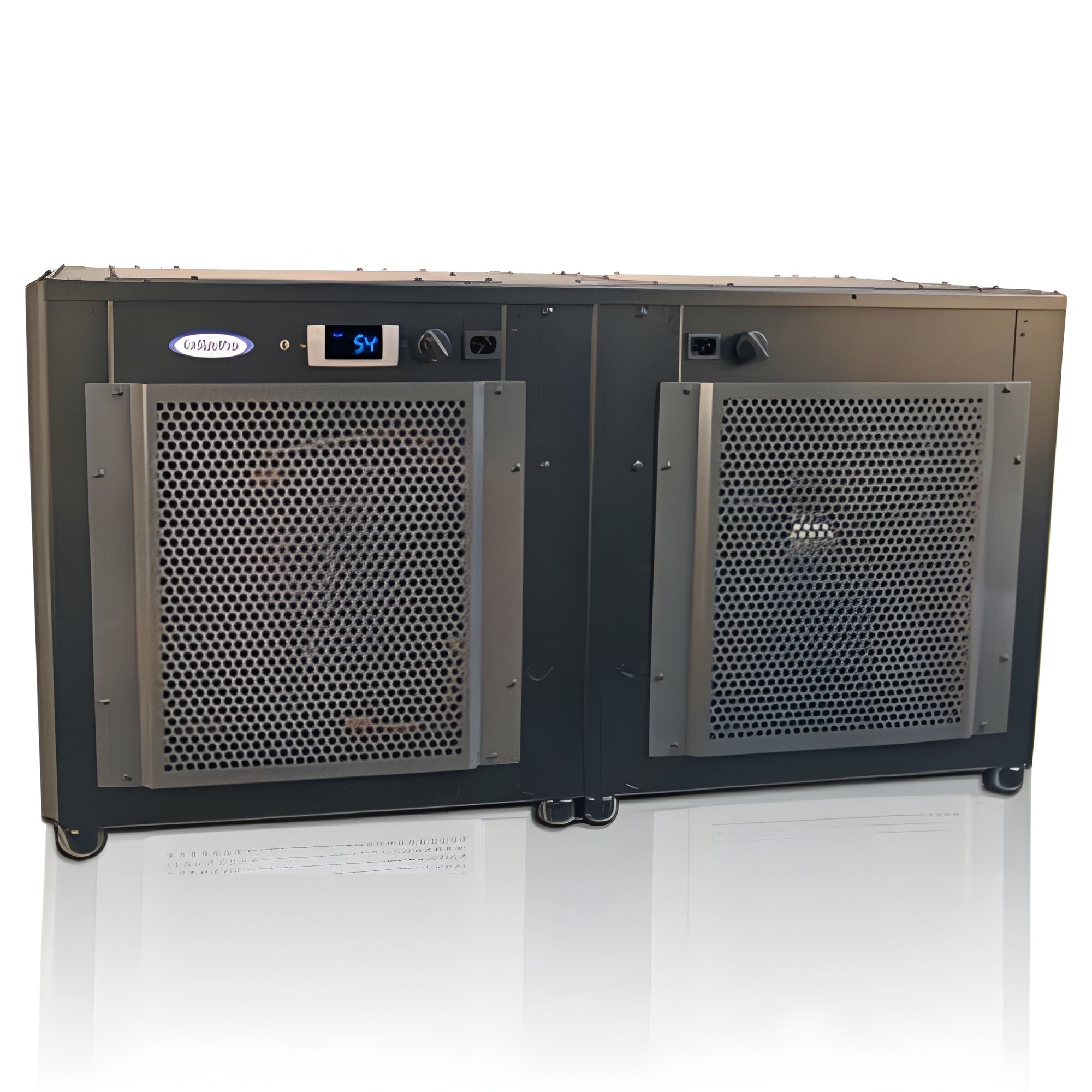

CellarPro's AH8500Si-ECX ducted cooling units (1 Ton Nominal) are engineered for wine cellars up to 2,500* cubic feet in both commercial and residential wine cellars. When ducted, this unit uses 10-inch insulated ducting on the cold side, and 10-inch ducting on the hot side.
ROSEHILL RESERVES THE RIGHT TO CONTACT YOU PRIOR TO PROCESSING YOUR ORDER IN REGARDS TO SHIPPING OVERSIZED ITEMS.
*The cellar size assumes that the cellar is constructed with a proper vapor barrier, insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), a setpoint of 55F inside the cellar and ambient temperatures up to 85F outside the cellar.
This unit maintains optimal cellar temperature and humidity conditions in extreme conditions up to 110F. AH8500Si units use energy-efficient EC fans and are significantly quieter than comparable units from other brands. Visit our Learning Center for data tables, performance charts and product comparisons among different brands.
When the condensing unit will be exposed to or pulling air that is below 40F, a Compressor Heater is a required addition to protect the compressor. For installation of the condensing unit in environments below 20F down to -20F, our Fan Cycling Switch is required in addition to the Compressor Heater, and Electronic Configuration is required.
ALL Cellar Pro Split systems are available with optional exterior hood which allows the condensing units to be installed in external environments, subject to the temperature range noted above. Please inquire.
Size (Evaporator Dimensions):
- 60 lbs
- 18.6w x 18.6d x 19.3h
Condensing Unit Dimensions:
- 120 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h
Power/Rating: - CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:
System Amps:
- Startup Amps: 54.5 Amps
- Running Amps Cord-Connected: 14.6 Amps
- Total Watts: 1078 (medium fan speed)
- 1 Ton Nominal
BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 6245
- Med Fan Speed: 6649
- High Fan Speed: 7156
Evaporator Decibels
- Low Fan Speed, Ducted: 38 dbA
- Med Fan Speed, Ducted: 44 dbA
- High Fan Speed, Ducted: 52 dbA
Condensing Unit Decibels
- Low Fan Speed, Ducted / Non-Ducted: 45 dbA / 58 dbA
- Med Fan Speed, Ducted / Non-Ducted: 52 dbA / 65 dbA
- High Fan Speed, Ducted / Non-Ducted: 57 dbA / 70 dbA
CP Air Handler Humidifier Cut Sheet
CP Air Handler Configuration Options
