Cellar Pro Recessed Ceiling Mount 4000 Wine Cellar Cooling System - CP-SPLIT-4000SCMR-EC-110-34217

FREE SHIPPING Save 5%

Price:
Sale price$7,203.99 Regular price$7,583.00
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

Description

CellarPro Ceiling Mount Recessed 4000. WITH ENERGY-EFFICIENT EC FANS!

CellarPro engineered the Ceiling Mount Mini-Split 4000Scmr-EC cooling system to provide maximum cooling power and adjustable humidity control with a ceiling-mounted evaporator that can be recessed in the ceiling and therefore hidden from view. The condensing unit can be configured for indoor or exterior installations, and the evaporator includes a variable-speed fan with a low setting for quieter operation and a high setting for maximum power.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The condensing unit must be installed outside the cellar in a location that provides ample space and access to fresh air.

This unit is suitable for wine cellars up to 1000* cubic feet in both commercial and residential wine cellars.

ROSEHILL RESERVES THE RIGHT TO CONTACT YOU PRIOR TO PROCESSING YOUR ORDER IN REGARDS TO SHIPPING OVERSIZED ITEMS.

*The cellar size assumes that the cellar is constructed with a proper vapor barrier, insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), a setpoint of 55F inside the cellar and ambient temperatures up to 85F outside the cellar.

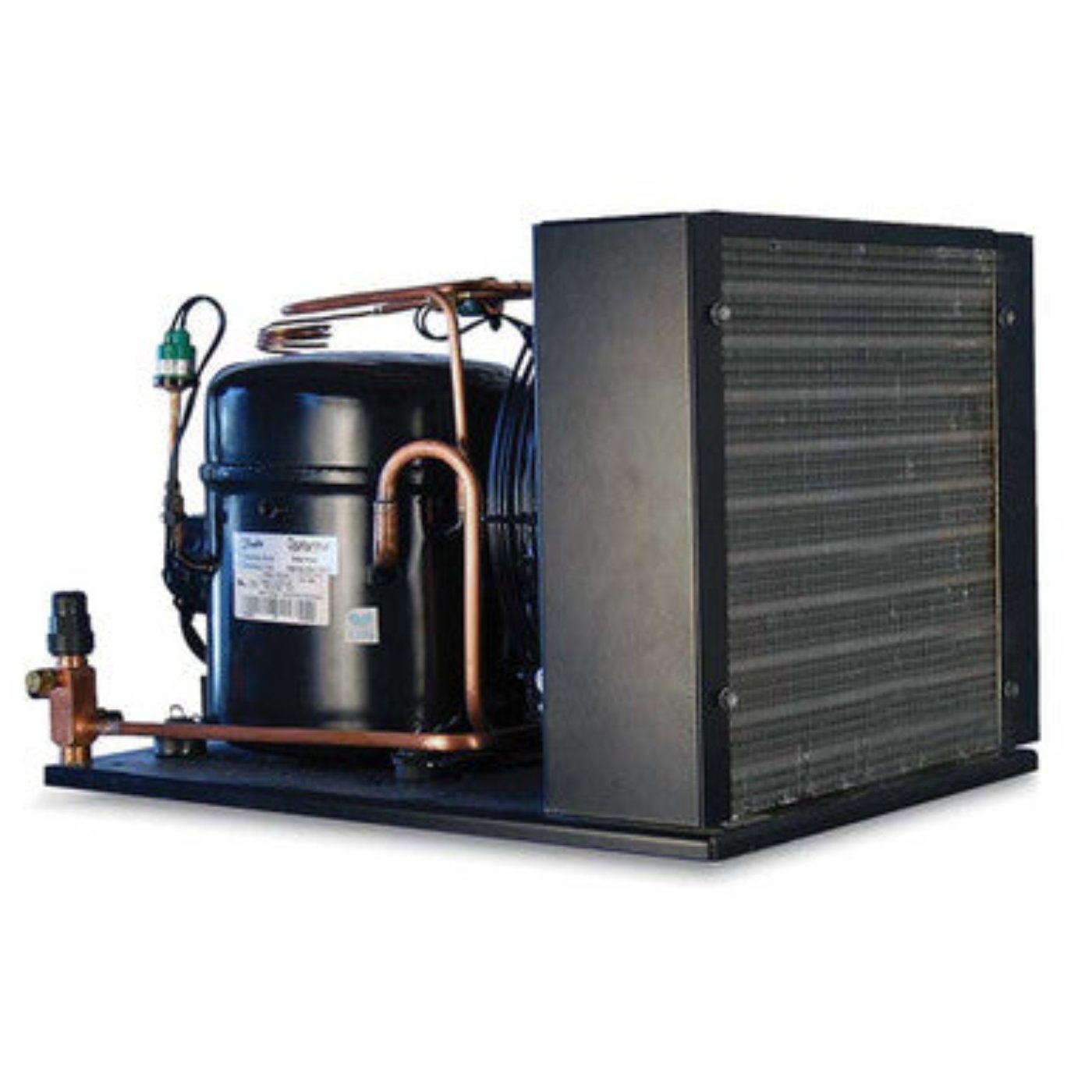

    Inside the cellar, the evaporator unit is designed to mount on the wall near the top of the wine cellar. Outside the cellar, the condensing unit is attached to the evaporator unit by a line-set (sold separately) up to 100 equivalent feet.

    ALL Cellar Pro Split systems are available with optional exterior hood which allows the condensing units to be installed in external environments, subject to the temperature range noted above. Please inquire.

    Exposure to temperatures below 40°F requires the addition of our low ambient heater kit. The split systems are not shipped with the fan cycling switch required for low temperatures.  On its own, the cooling unit will function in environments above 40F/4C.  If your condenser will be in and environment below 40F/4C and approaching as low as  -20F/ -28C  you require the Low Ambient Heater kit.  The kit includes both the compressor heater and the fan cycling switch.

    • Condenser Operating Temperature Range: 0°F to 110°F
    • Certified by ETL to UL standards
    • Active Humidity Control
    • Digital Controls (LED Display)
    • 115V AC / 60Hz
    • Auto-Defrost Cycle
    • Electronic Thermostat
    • Energy-Saver Mode
    • Quick-Chill Mode
    • Audible and Visual Alarms
    • Min/Max Temperature
    • Maintenance-Needed Indicator
    • Power On/Off Switch

    Size (Evaporator): 35 3/4w x 14 1/4d x 12 7/8h (in)

    Weight: 142 lbs

    Power/Rating:
    115V AC / 60 Hz

    System Amps:
    - Common dedicated 15-amp circuit is required to power the unit.
    - Startup: 40.0 Amps
    - Unit Amp Rating: 8 Amps (high fan speed)
    - Total Watts: 608 (med fan speed)

    BTUH @ 55F / Evaporator Decibels
    - Low Fan Speed: 3059 BTUH / 51 dbA
    - Medium Fan Speed: 3538 BTUH / 55 dbA
    - High Fan Speed: 3694 / 63 dbA
    - 2/5 Ton Nominal

    Condensing Unit Decibels
    - Indoor: 64
    - Outdoor: 62

    Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
