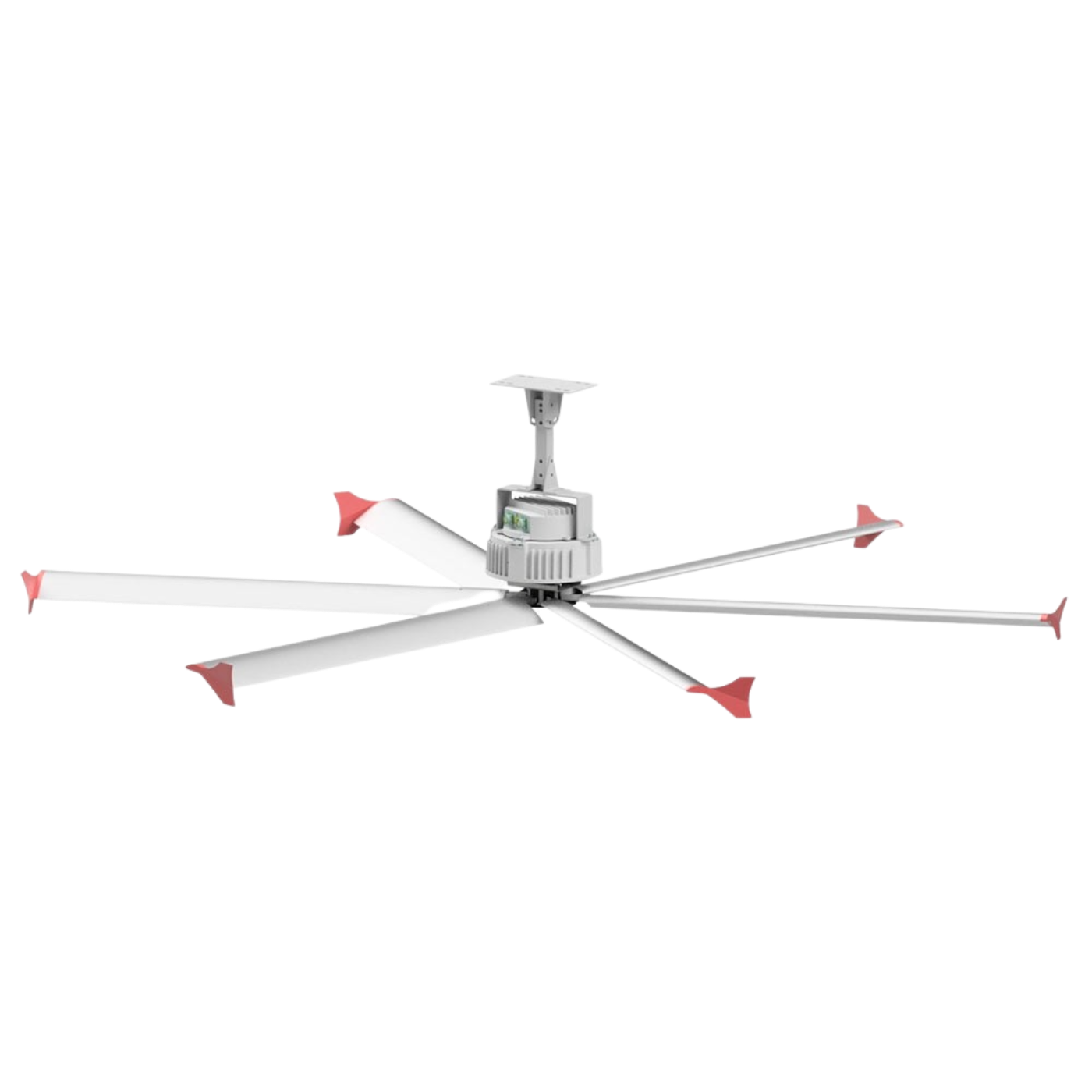

Canarm Hexa-Lite EC HVLS 14 Foot Blade Industrial Fan New - 6L14EC-230-1

FREE SHIPPING
CLEARANCE SALE
80 Peoples are also watching.
Brand: Canarm
SKU: 6L14EC-230-1
$6,205.99
$7,300.00
$6,205.99
Choose Voltage and Phase: 230 Volt/ Single Phase
Subtotal: $6,205.99
clearance Sale Ends In
00 Hours
00 Minutes
00 Seconds
authorized dealer, shop your favorite brand.
Expert Support,

Dial (888) 851-3898

Limited Supply,

grab it before it's gone.

Lowest prices,

As low as possible.

All Item are brand New,

Never used.

Canarm Hexa-Lite EC HVLS 14 Foot Blade Industrial Fan New - 6L14EC-230-1

Canarm Hexa-Lite EC HVLS 14 Foot Blade Industrial Fan New - 6L14EC-230-1

$7,300.00 $6,205.99

Canarm Hexa-Lite EC HVLS 14 Foot Blade Industrial Fan New - 6L14EC-230-1

$7,300.00 $6,205.99
Choose Voltage and Phase: 230 Volt/ Single Phase

Popular Add-Ons

$200.00

$70.00

$100.00

$30.00

Add-Ons Bundle

$200.00

$70.00

$100.00

$30.00

Bundle Offer

$300.00

$100.00

Recently Viewed Products

Canarm Hexa-Lite EC HVLS 14 Foot Blade Industrial Fan New - 6L14EC-230-1

Features

  • Equipped with six extruded anodized, high performance E420 design aluminum airfoils.
  • Contoured for maximum air movement so environments become cooler faster.
  • six wingtip fences constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards.
  • 1/4” powder-coated steel and anodized aluminum chassis resists rusting and corrosion even in cold and damp environments.
  • Direct drive system allows this fan to operate incredibly quiet. Totally enclosed direct drive, IP65 rated ECM motor. Onboard VFD is factory assembled and programmed for minimum start/stop torque loads.
  • Quiet Performance & Minimal Maintenance.
  • Conforms to CSA Standard 22.2# 133 and UL507.
  • Note: Required controller sold separately.
Specifications
Model 6L14EC-230-1 14 ft blade, 230 volts, single phase
Model 6L14EC-230-3 14 ft blade, 230 volts, 3 phase
Model 6L14EC-460-3 14 ft blade, 460 volts, 3 phase
Diameter (ft) 14
Voltage (VAC) 180-480 (50/60hz)
Max RPM 75
Motor FLA 5.2
Phase 1 - 3
HP (KW) 1.35 (1.0)
Manuals & Documentation
manual icon

Literature

What Our Experts Think
  • Superior Airflow: 14-foot blades provide efficient circulation in expansive spaces.
  • Energy-Efficient EC Motor: Optimized for reduced power consumption without sacrificing performance.
  • Durable Construction: Built to withstand demanding industrial and commercial environments.
  • Quiet & Smooth Operation: Delivers powerful airflow with minimal noise.
  • Adjustable Speed Control: Customize settings for precise airflow management.
  • Versatile Application: Ideal for warehouses, gyms, factories, and large commercial facilities.
Q&A

Q: What is the Canarm Hexa-Lite EC HVLS 14 Foot Blade Industrial Fan?
A: The Canarm 6L14EC-230-1 is a 14-foot blade HVLS (High Volume Low Speed) industrial fan designed for efficient, large-scale air circulation in commercial and industrial spaces.

Q: What are the key features of the 6L14EC-230-1?
A: This fan features a 14-foot blade span, an energy-efficient EC motor, quiet operation, and optimized airflow distribution for improved ventilation and temperature control.

Q: Where can the Canarm Hexa-Lite EC HVLS Fan be used?
A: Ideal for warehouses, factories, gyms, and other large indoor spaces that require consistent and powerful airflow.

Q: How does the Canarm 6L14EC-230-1 benefit users?
A: It enhances comfort, reduces energy costs, eliminates hot spots, and maintains even air distribution while operating with minimal noise.

Q: Is the Canarm Hexa-Lite EC HVLS Fan easy to install?
A: Yes, it is designed for simple installation with low maintenance requirements, making it a reliable solution for large-space ventilation

Maintenance Tips
  • Clean Blades Regularly – Remove dust and debris to maintain optimal airflow and prevent imbalance.
  • Inspect Bearings & Motor – Lubricate bearings as needed and check for unusual noises or overheating.
  • Check Electrical Connections – Ensure wiring is secure and free from wear or corrosion.
  • Test Fan Operation – Run periodic tests to confirm smooth speed transitions and detect any issues.
  • Ensure Proper Clearance – Keep the area around the fan free of obstructions for efficient airflow.
  • Monitor for Vibrations – Tighten any loose components to prevent excessive movement and wear.
