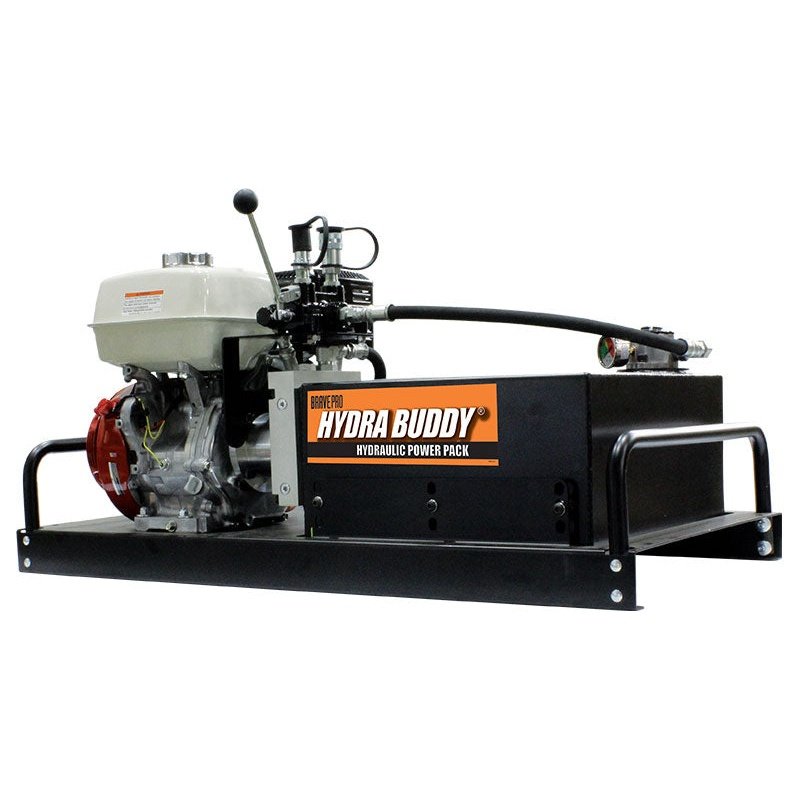

BravePro® Hydra Buddy™ Remote Hydraulic Power Pack (HBHR350GX)

BravePro® Hydra Buddy™ Remote Hydraulic Power Pack (HBHR350GX)

Remote units come standard with a control valve and quick disconnect couplings. They are powered by Honda® GX commercial engines and are ideal for job sites where no power or air is available. They're compatible for use with single or double-acting cylinders.

Highlights

• Comes standard with control valve and quick disconnect couplings

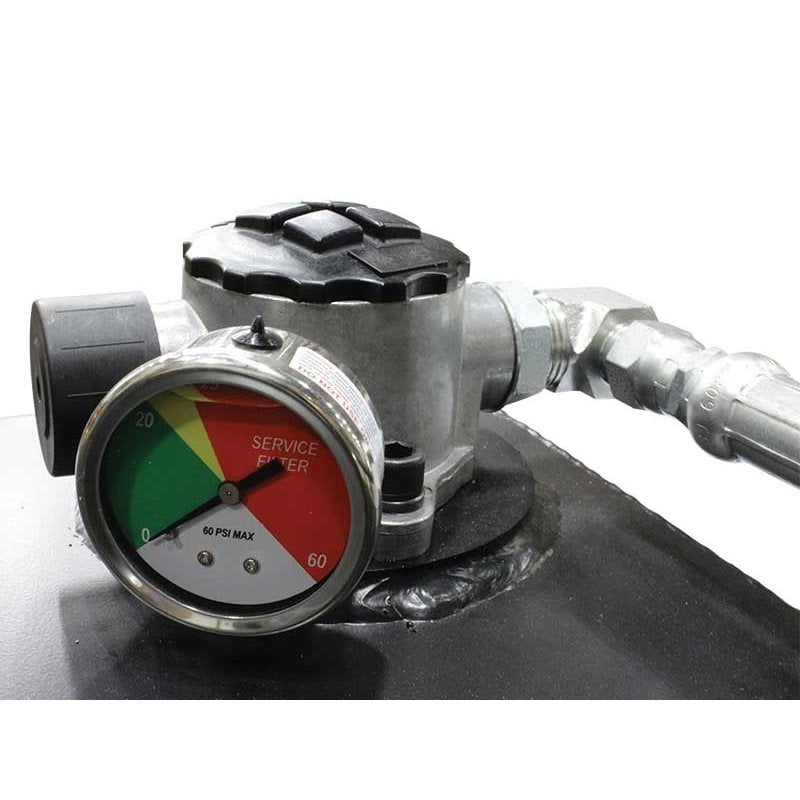

• Zinga in-tank hydraulic filter with indicator
• System relief valve
  Compatible for use with single or double-acting cylinders

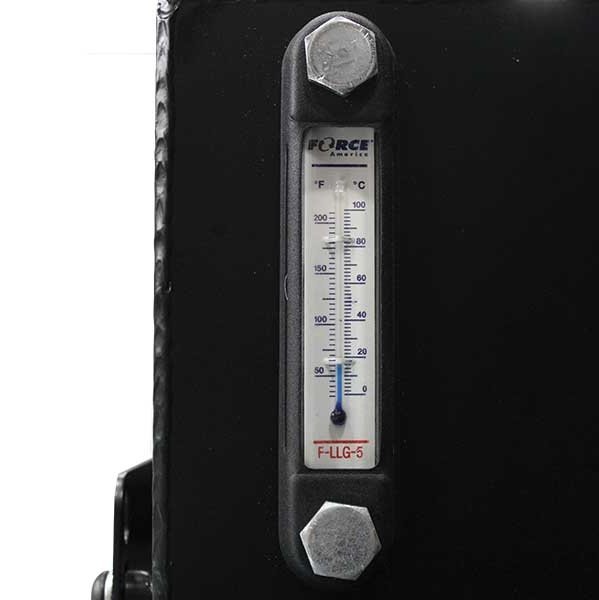

• Large hydraulic oil tank with sight / temperature gauge

• Shipping: Free (standard ground shipping)
• Manual: Download PDF
• UPC: __
• Engine: 390cc Honda GX390
• Start: Recoil
• Flow: 7 GPM
• Pump Displacement: .51 CIR
• Pump Ports: Inlet: 1-1/16-12 Orb / Outlet: 7/8-14 Orb
• Pump Rotation Direction: Clockwise
• Hydraulic Tank Volume: (Nominal, Actual, Useable) 15, 13.6, 10.3
• Hydraulic Tank Material: 12 Gauge Steel
• Hydraulic Tank Drain Port: 1/2' NPT
• Hydraulic Valve: 2,000 PSI
• Hydraulic Valve Type: 3-Position, 4-Way Spring to Center Direction Control Valve with Integral Adjustable Main Relief Valve
• Hydraulic Valve: Inlet: 12 ORB Plumbed to Reservoir / Outlet: 8 Male JIC Adapter Installed

• Weight (Dry): 198 lbs
• Dimensions (LxWxH): 44' x 24.5' x 20'
• Warranty: 2 years

Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
