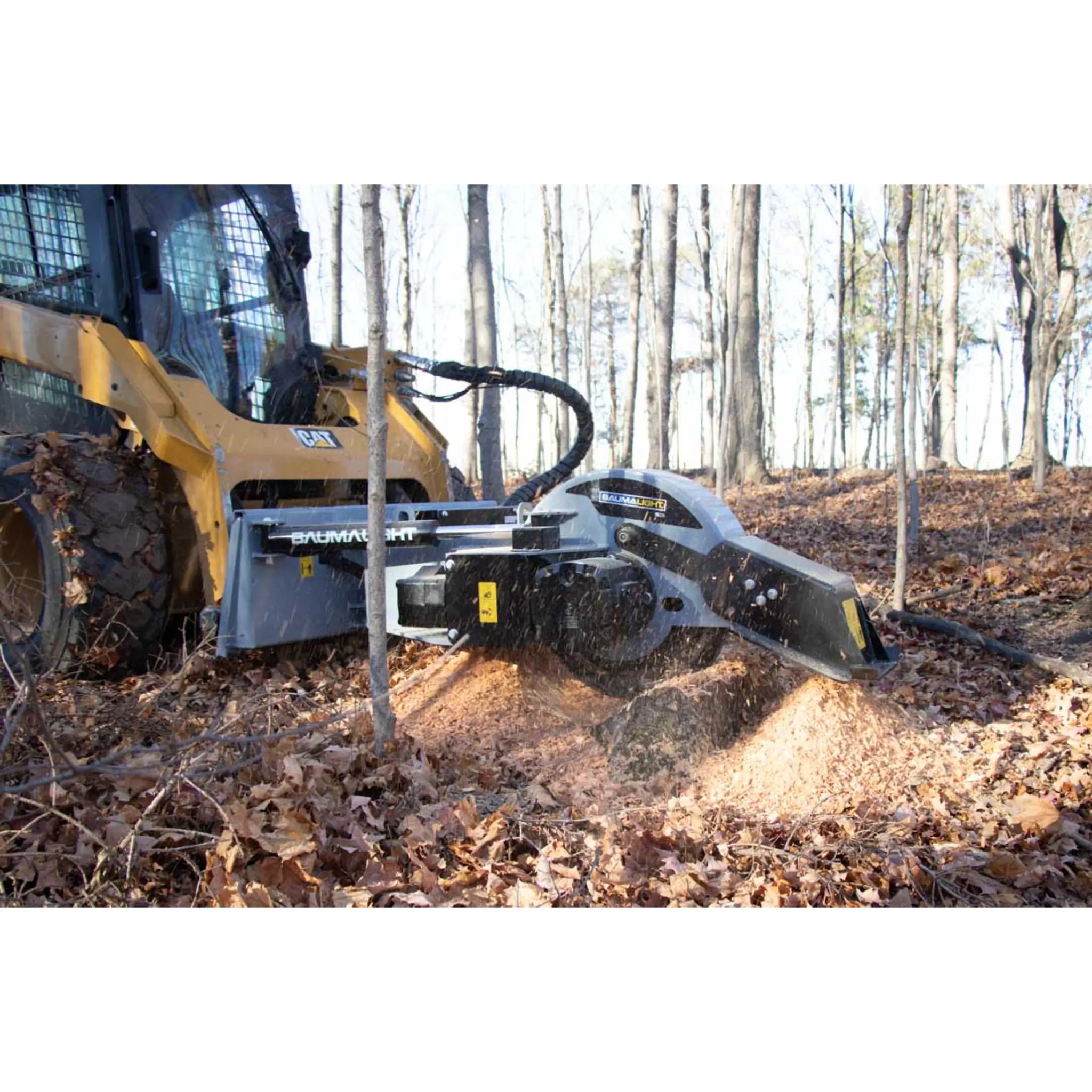

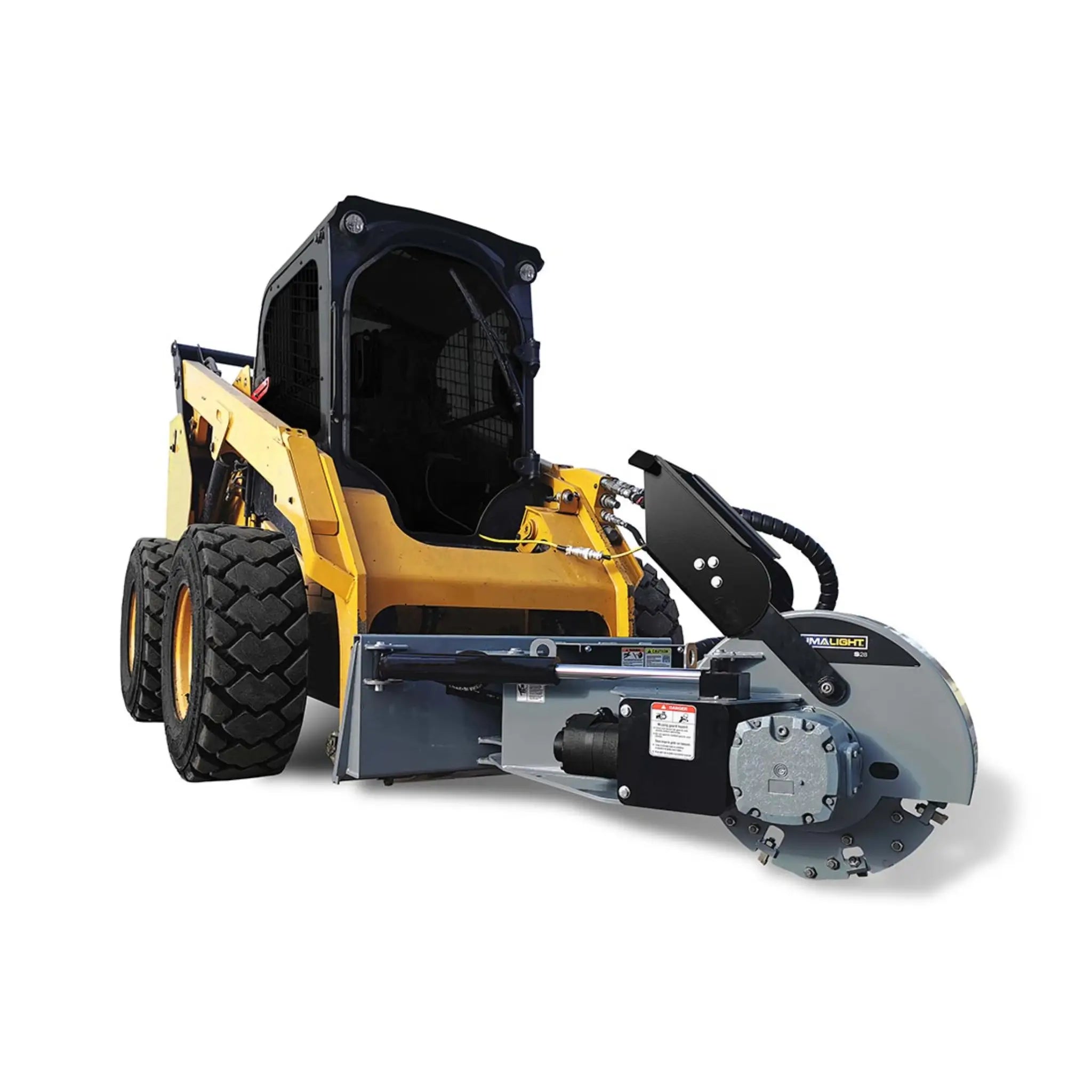

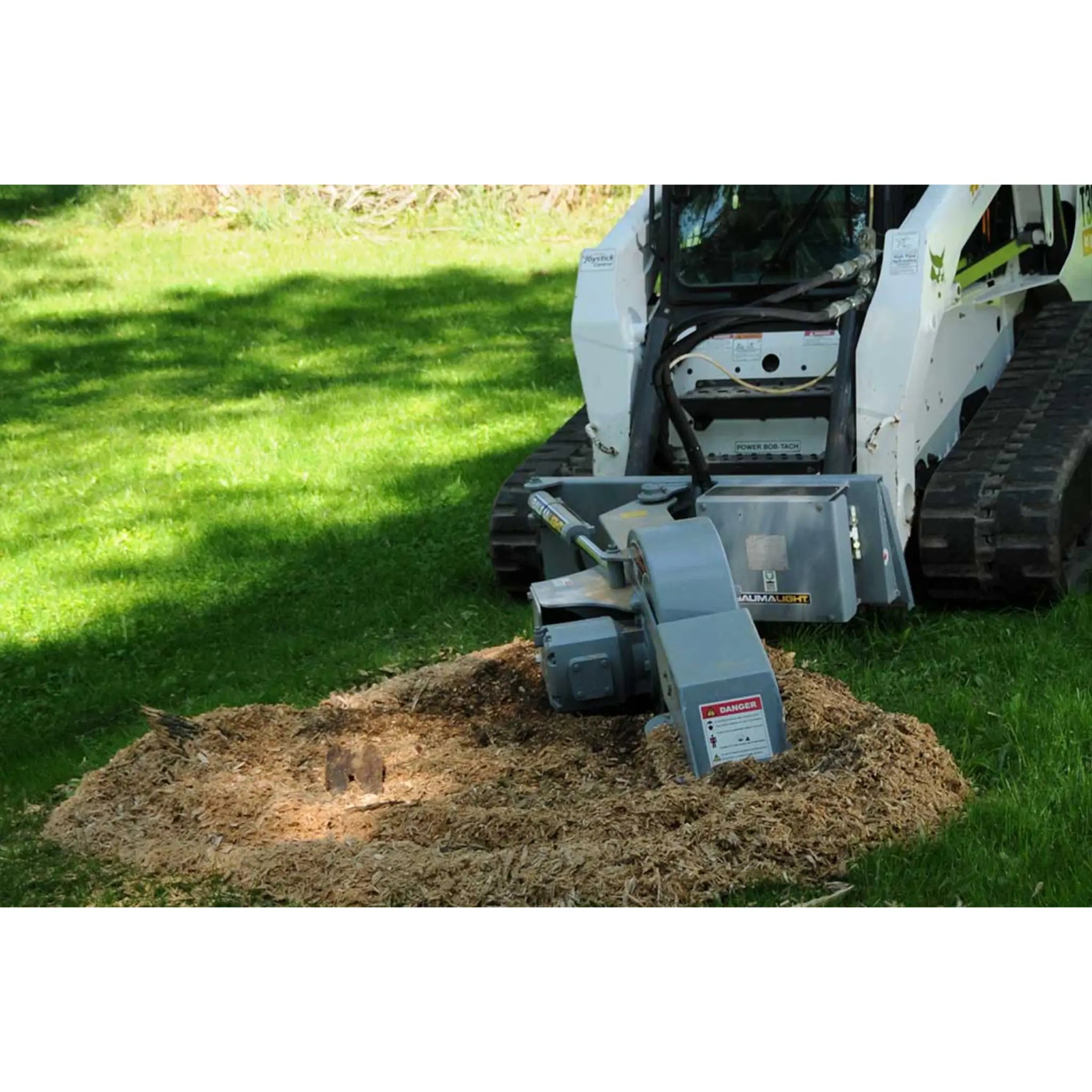

Baumalight S28 Stump Grinder For High Flow Skid Steers - BML-S28-S645-AUX
Engineered for high flow and high horsepower skid steers, the Baumalight S28 is one of our most potent stump grinders. With a high-volume hydraulic motor and a robust gearbox, it delivers unmatched precision, power, and cutting speed. Boasting a ¾" thick steel rotor, carbide-tipped teeth, and a swing radius of 63 degrees, this model is perfect for larger landscaping tasks.
Harness the full potential of your high-flow skid steer with the Baumalight S28 Stump Grinder, designed to dominate stump-grinding jobs. This top-tier model is one of Baumalight's most powerful stump grinders, designed to optimize the balance of speed and torque thanks to its high-volume hydraulic motor paired with a robust gearbox.

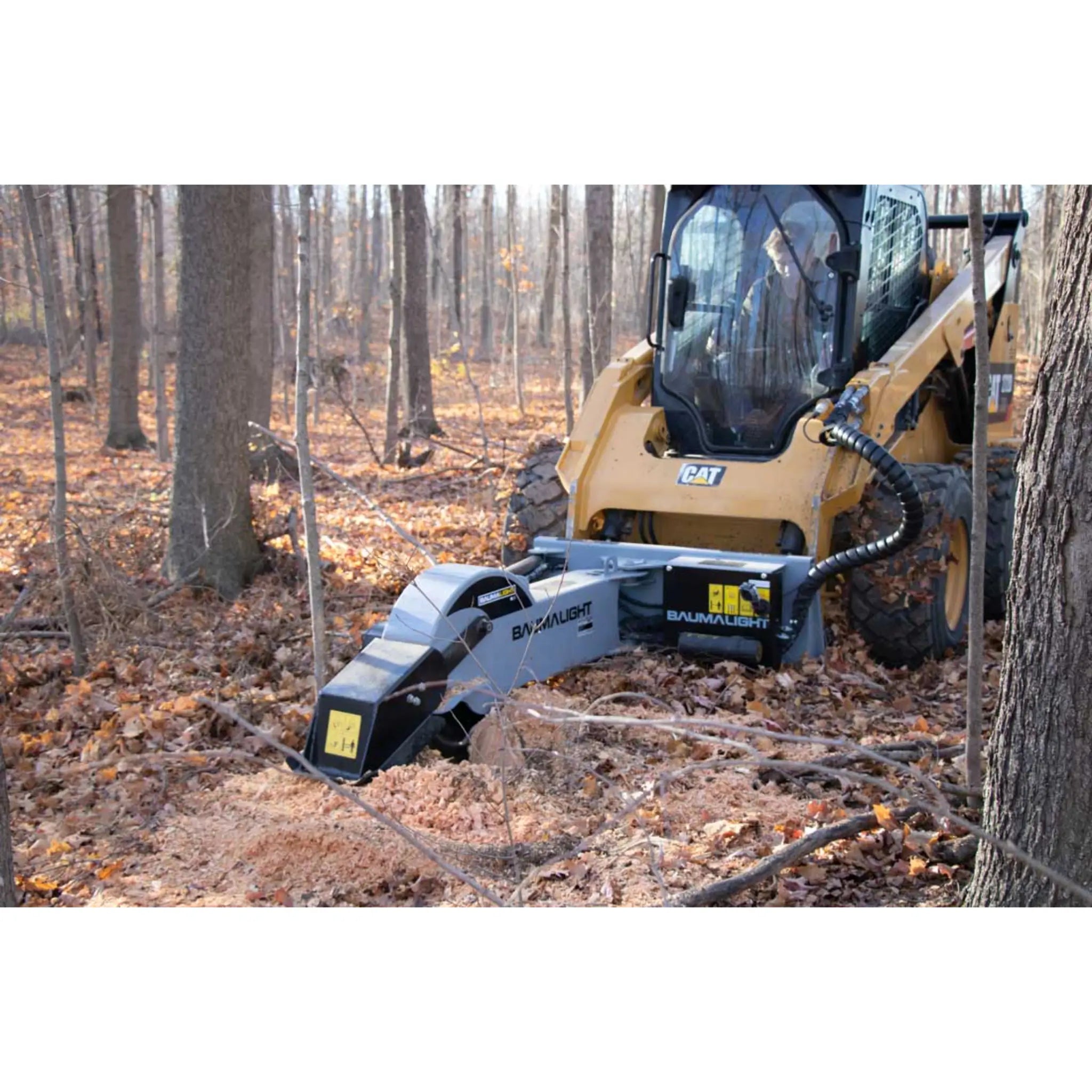

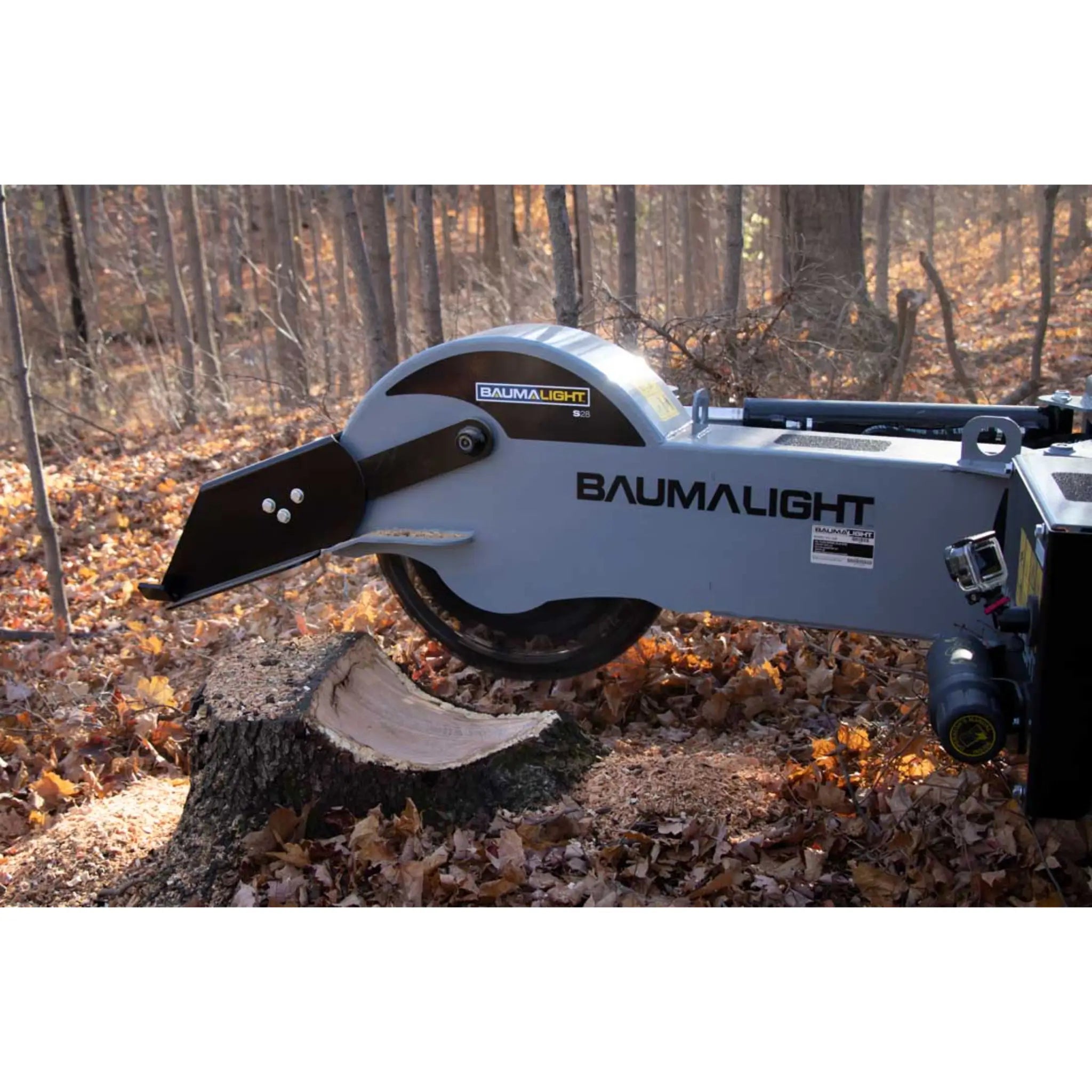

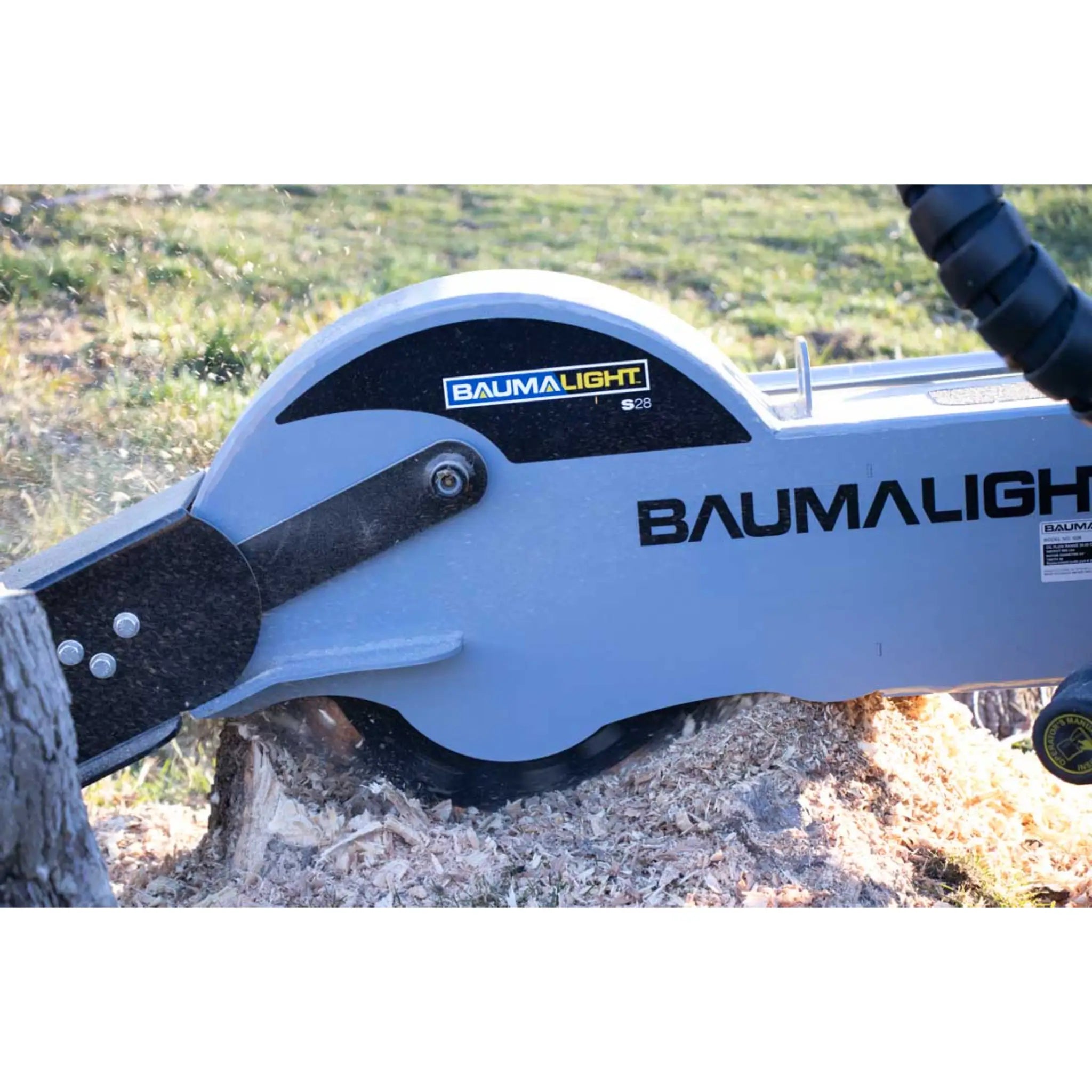

Safety and efficiency are paramount with the S28. A floating deflector directs debris away from the work area, facilitating a quicker cleanup and safer operation. The design includes a massive ¾" thick steel rotor that anchors carbide-tipped teeth, providing a foundation for sustained, high-impact use. These teeth project an impressive 1-¼ inches from the rotor, enhancing debris clearance and reducing the risk of jams and overheating, which in turn extends the life of both the rotor and teeth.
| Model No. | S14 | S16 | S18 | S24 | S28 | S40 |
|---|---|---|---|---|---|---|
| Recommended HP Size | Mini Skidsteer | Mini Skidsteer | 25-80 | 30-80 | 50-120 | 50-120 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Bent Axis Piston | Gerotor | Gerotor | Gerotor | Bent Axis Piston |
| Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
| Rotor Size | 18" | 18" | 24" | 24" | 24" | 24" |
| Number of Teeth | 12 | 24 | 34 | 34 | 34 | 20 |
| Tooth Part number | H3000 | H3000 | S1000 | S1000 | S1000 | H3000 |
| Tooth Construction | High speed | High speed | Planer | Planer | Planer | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 6" | 10" | 10" | 10" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 2" | 5" | 6" | 6" | 1" |
| Maximum Horizontal Cut | 12" | 12" | 22" | 22" | 22" | 22" |
| Swing Arc | Self-feeding | 56° | Self-feeding | 60° | 63° | 85° |
| Hub Torque | 150 Ft.-Lbs. | - | 250 Ft.-Lbs. | 250 Ft.-Lbs. | 803 Ft.-Lbs. | - |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Remote |
| Hitch | 1" pivot pins | 1" pivot pins | Mini Plate | Quick Attach | Quick Attach | Quick Attach |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | Yes | No | Yes | Yes | Yes |
| Unit Weight (Shipping) Lbs. | 394 | 400 | 642 | 995 | 995 | 1,200 |
Skidsteer Stump Cutting Times Based on 24" Stump
| Motor | Case Drain | PSI | 12 GPM | 15 GPM | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | 50 GPM | CC |
Motor Type |
RPM at MAX GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S508 Motor Available for : S16 |
Critcal | 2500 | 40 min | 30 min | 20 min | -- | -- | -- | -- | -- | 25 | Piston | 2700 |
| 3,000 | 30 min | 25 min | 15 min | -- | -- | -- | -- | -- | |||||
|
S445 Motor Available for : S24 |
Recommended | 2500 | -- | 60 min | 40 min | 35 min | -- | -- | -- | -- | 125 | Roller Vane | 520 |
| 3,000 | -- | 50 min | 30 min | 30 min | -- | -- | -- | -- | |||||
| 3,500* | -- | 50 min | 30 min | 30 min | -- | -- | -- | -- | |||||
|
S545 Motor Available for : S24 |
Recommended | 2500 | -- | 80 min | 40 min | 35 min | 25 min | 20 min | -- | -- | 130 | Roller Vane | 700 |
| 3,000 | -- | 70 min | 30 min | 30 min | 20 min | 16 min | -- | -- | |||||
| 3,500* | -- | 60 min | 30 min | 30 min | 20 min | 16 min | -- | -- | |||||
|
S645 Motor Available for : S28 |
Recommended | 3,000 | -- | 40 min | 40 min | 25 min | 15 min | 12 min | 10 min | 130 | Roller Vane | 540 | |
| 3,500 | -- | -- | 30 min | 20 min | 12 min | 10 min | 8 min | ||||||
|
S740 Motor Available for : S40 |
Critcal | 2500 | -- | -- | 30 min | 15 min | 12 min | 10 min | -- | -- | 56 | Piston | 2100 |
| 3,000 | -- | -- | 25 min | 12 min | 10 min | 8 min | -- | -- | |||||
| 3,500* | -- | -- | 23 min | 10 min | 8 min | 6 min | -- | -- | |||||
|
S770 Motor Available for : S40 |
Critcal | 2500 | -- | -- | -- | 30 min | 20 min | 9 min | 8 min | 7 min | 84 | Piston | 2000 |
