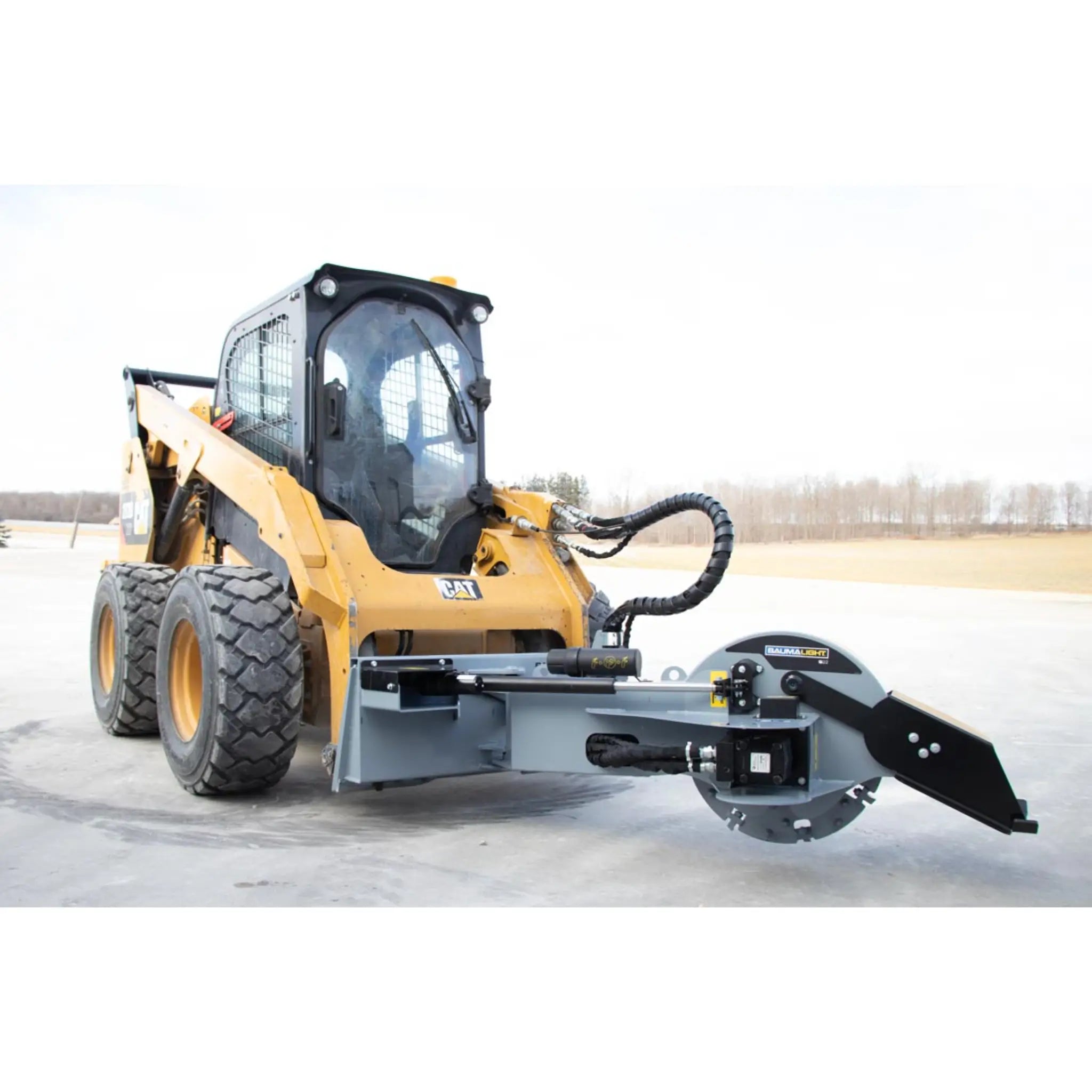

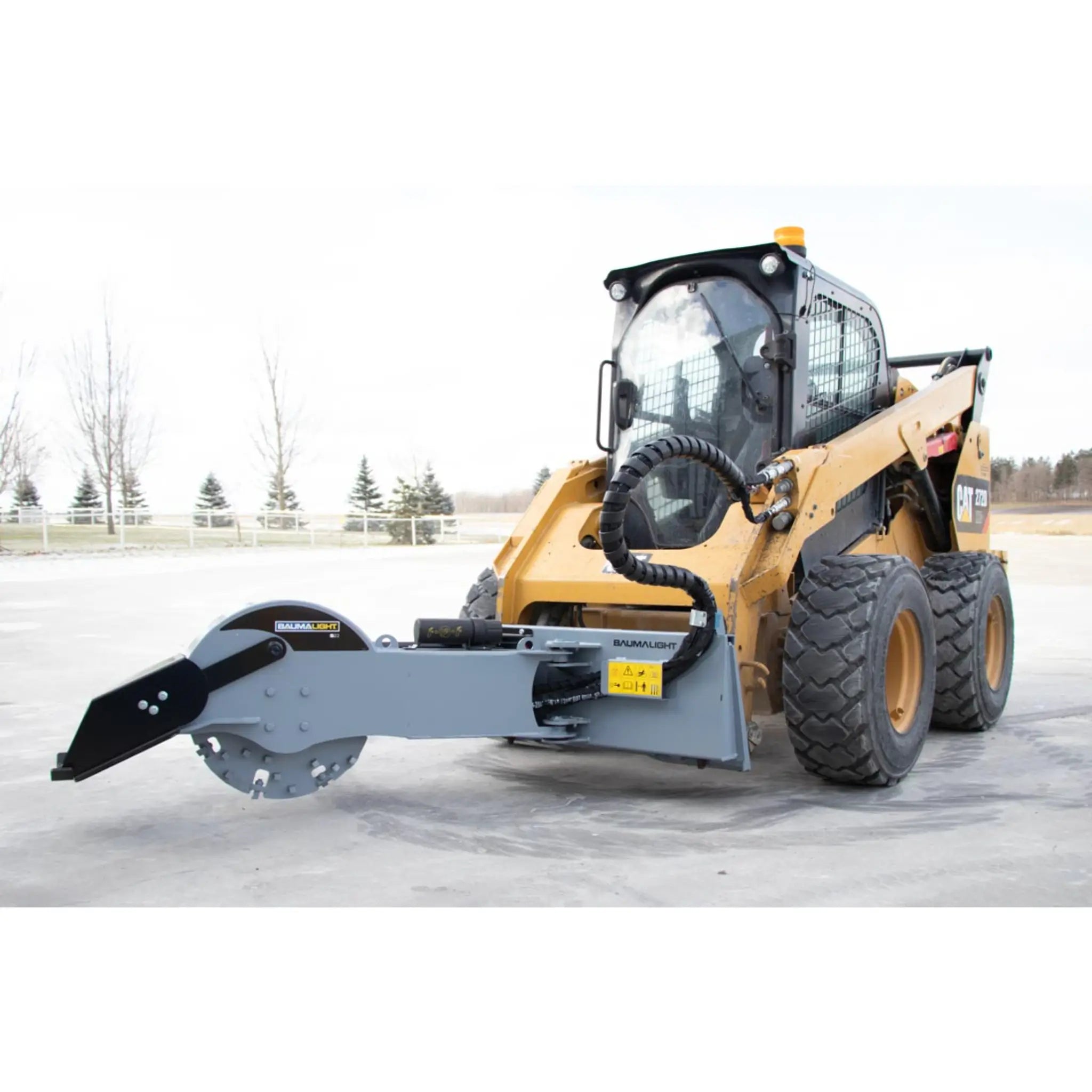

Baumalight S22 Stump Grinder With 12V Swing Actuator For Skid Steers - BML-S22-S450-AUX
This innovative model uses a 12V electric linear actuator for enhanced torque and efficient grinding, bypassing traditional hydraulic systems. The S22 boasts three-sided carbide teeth that project 1-¼ inches for optimal clearance. Durability is guaranteed with hardened steel bushings and greaseable pins, designed to resist corrosion and ensure smooth operation.
Harness the power of the Baumalight S22 Skid Steer Stump Grinder, a premier tool in stump removal technology, designed specifically for full-sized Skid Steers. This robust grinder features a 12V electric linear actuator, enhancing the machine's efficiency by allowing you to swing the grinder while still channeling all hydraulic flow and pressure directly to the motor. This innovative design drastically speeds up the grinding process, ensuring swift and effective stump removal.
The S22 is built to last with hardened steel bushings and greaseable pins, expertly crafted to resist corrosion and maintain smooth joint operation throughout its lifespan. Additionally, the stump grinder provides exceptional clearance with carbide teeth that extend 1-¼ inches from the rotor, promoting efficient debris removal and reducing rotor heat buildup for extended durability. Every S22 comes with a set of six replacement teeth, making maintenance straightforward and cost-effective.
| Model No. | S14 | S16 | S18 | S22 | S24 | S28 | S40 |
|---|---|---|---|---|---|---|---|
| Recommended HP Size | Mini Skidsteer | Mini Skidsteer | 25-80 | 25-65 | 30-80 | 50-120 | 50-120 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Bent Axis Piston | Gerotor | Gerotor | Gerotor | Gerotor | Bent Axis Piston |
| Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
| Rotor Size | 18" | 18" | 24" | 24" | 24" | 24" | 24" |
| Number of Teeth | 12 | 24 | 34 | 34 | 34 | 34 | 20 |
| Tooth Part number | H3000 | H3000 | S1000 | S1000 | S1000 | S1000 | H3000 |
| Tooth Construction | High speed | High speed | Planer | Planer | Planer | Planer | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 6" | 10" | 10" | 10" | 10" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 2" | 5" | 6" | 6" | 6" | 1" |
| Maximum Horizontal Cut | 12" | 12" | 22" | 22" | 22" | 22" | 22" |
| Swing Arc | Self-feeding | 56° | Self-feeding | 60° | 60° | 63° | 85° |
| Hub Torque | 150 Ft.-Lbs. | - | 250 Ft.-Lbs. | 250 Ft.-Lbs. | 250 Ft.-Lbs. | 803 Ft.-Lbs. | - |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Remote |
| Hitch | 1" pivot pins | 1" pivot pins | Mini Plate | Quick Attach | Quick Attach | Quick Attach | Quick Attach |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | Yes | No | Yes | Yes | Yes | Yes |
| Unit Weight (Shipping) Lbs. | 394 | 400 | 642 | - | 995 | 995 | 1,200 |
