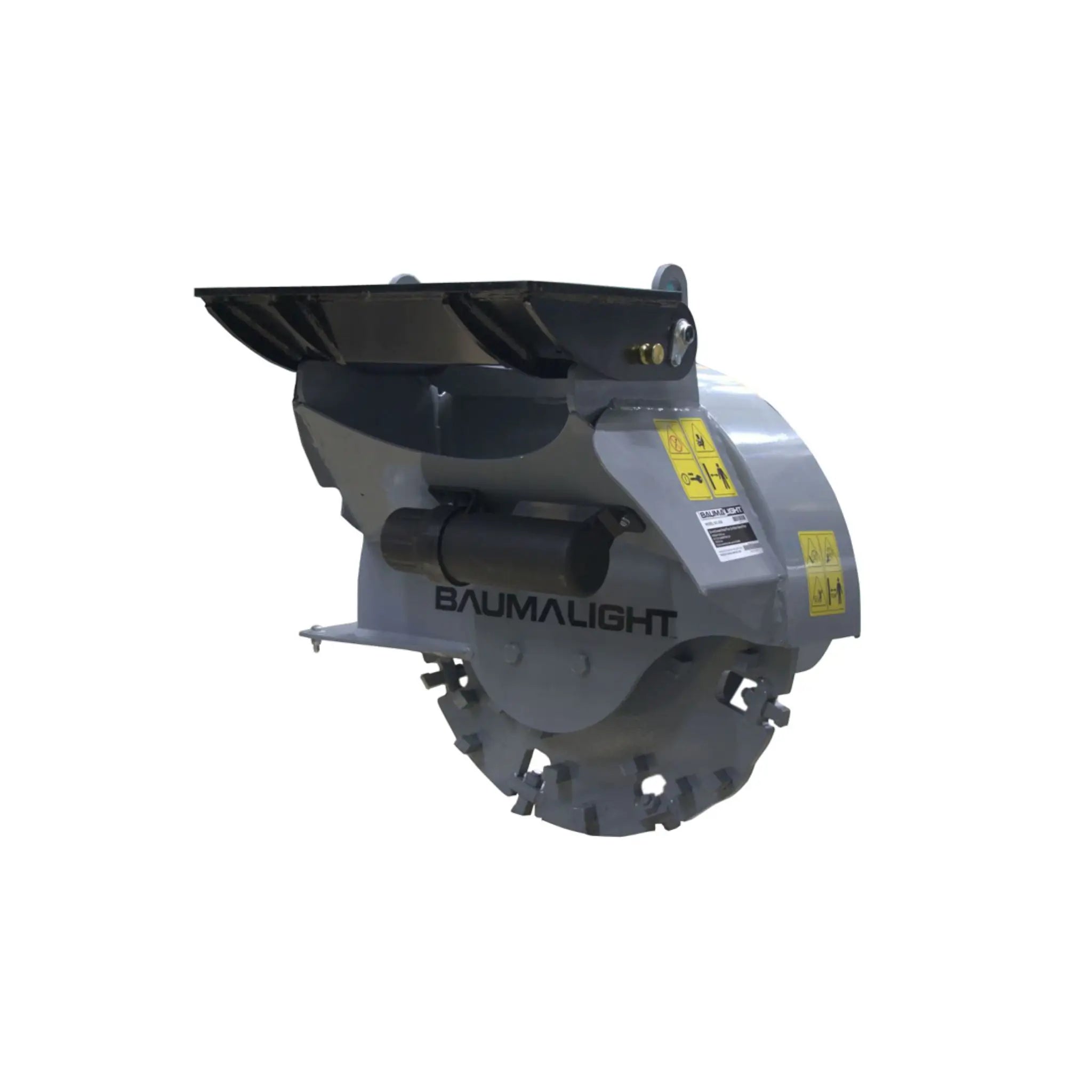

Baumalight S18 Stump Grinder For 1.5 - 4 Ton Mini Excavators - BML-S18-S450-B
Maximize stump removal efficiency with the Baumalight S18 Stump Grinder, compatible with both skid steers and small excavators. Featuring a robust direct-flow hydraulic drive and a thick steel rotor, this model offers exceptional durability and smooth operation. It includes three motor options to optimize performance, ensuring rapid stump grinding even under tough conditions.
The core of the Baumalight S18 lies in its formidable ¾" thick steel rotor, the foundation of the Stump Blaster cutting system. This heavy-duty rotor not only supports the carbide-tipped teeth essential for cutting but maintains its integrity with no flex under pressure. This stability is crucial for smooth operation and enduring the toughest stumping tasks. Additionally, the S18’s rotor design aids visibility, allowing operators to watch the stump grinding action unfold directly, complemented by a heavy-duty fixed deflector that safely manages debris flow.

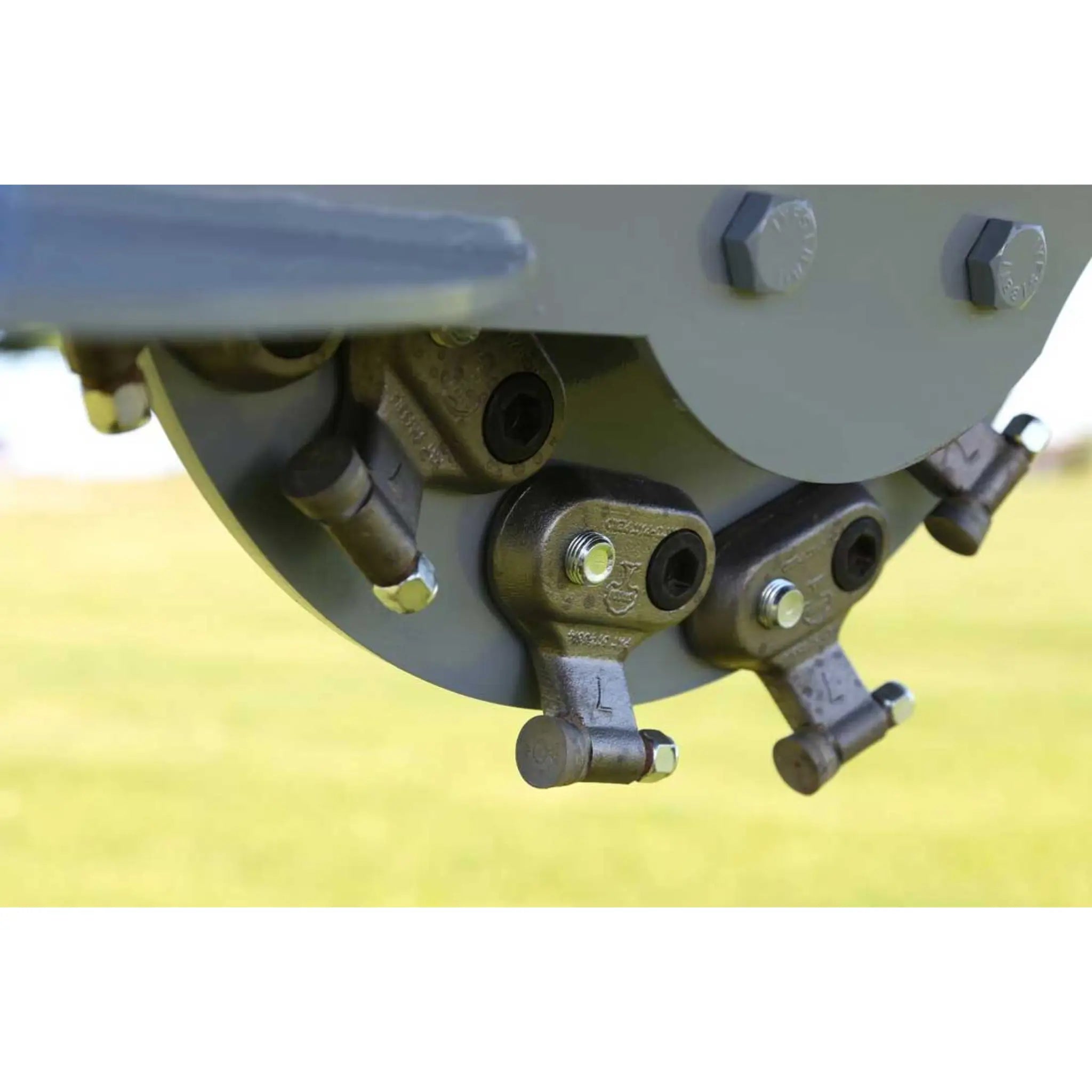

To enhance its cutting prowess, the S18 Stump Grinder features multiple carbide-tipped teeth, renowned for their durability and cutting precision. These teeth are designed to withstand unexpected underground hazards such as rocks and metal, ensuring relentless performance and minimal wear. Each S18 unit comes with six free replacement teeth, making maintenance convenient and cost-effective. The Baumalight S18 is a premier choice for professionals seeking a dependable, powerful stump grinding solution that promises longevity and superior results.
| Model No. | S14 | S18 | GXM350 | GXM550 | GXM750 |
|---|---|---|---|---|---|
| Baumalight Connection Code | A04 | A04 | A02 | A02 | A02 |
| Recommended Carrier Size | 1-2 ton | 1.5-4 ton | 1.5-4.5 ton | 3.5-8 ton | 7-18 ton |
| Motor Type | Gerotor | Gerotor | High efficiency bent axis piston | High efficiency bent axis piston | High efficiency bent axis piston |
| Hydraulic GPM | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options |
| Rotor Size | 18" | 24" | 19" | 24" | 24" |
| Number of Teeth | 12 | 34 | 12 | 12 | 12 |
| Tooth Part number | H3000 | S1000 | H3000 | H3000 | H3000 |
| Tooth Construction | High speed | Planer | High speed | High speed | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 10" | 16" | 24" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 5" | 3/4" | 1" | 1" |
| Maximum Horizontal Cut | 12" | 22" | 12" | 22" | 22" |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve |
| Hitch | 1" pivot pins | 1" pivot pins | Bolt on | Bolt on | Bolt on |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | No | No | No | No |
| Unit Weight (Shipping) Lbs. | 394 | 642 | 650 | 822 | 1300 |
STUMP CUTTING TIMES BASED ON 24" STUMP
- Motor will run at this PSI but excess pressure is dumping over relief.
| Motor | Case Drain | PSI | 12 GPM | 15 GPM | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | CC |
Motor Type |
RPM at MAX GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S250 Motor Available for : S14 |
Not Required | 2,500 | 50 min | 40 min | -- | -- | -- | -- | -- | 50 | Roller Vane | 910 |
| 3,000 | 40 min | 35 min | -- | -- | -- | -- | -- | |||||
|
S450 Motor Available for : S14,S18 |
Not Required | 2,500 | 60 min | 40 min | 35 min | -- | -- | -- | -- | 125 | Roller Vane | 520 |
| 3,000 | 50 min | 30 min | 30 min | -- | -- | -- | -- | |||||
|
S550 Motor Available for : S18 |
Recommended | 3,000 | -- | 30 min | 25 min | 20 min | 16 min | -- | -- | 130 | Roller Vane | 700 |
| 3,500* | -- | 30 min | 25 min | 20 min | 16 min | -- | -- | |||||
|
S650 Motor Available for : S18 |
Recommended | 3,000 | -- | -- | 40 min | 25 min | 15 min | 12 min | 10 min | 245 | Roller Vane | 540 |
| 3,500* | -- | -- | 30 min | 20 min | 10 min | 8 min | 6 min |
