Baumalight MX960R Fixed Tooth Brush Mulcher For 18-33 Ton Excavators - BML-MX960R-C940-EWC12-15-B
Optimize your excavator's capability with the Baumalight MX960R Fixed Tooth Mulcher, tailor-made for machines weighing 18-33 tons. Featuring a robust 60" rotor, this mulcher comes equipped with durable R9000 double carbide-tipped teeth, designed to withstand heavy vegetation and occasional stones. Constructed from high-strength AR400 steel, it offers a lightweight yet heavy-duty solution with replaceable wear plates.
The Baumalight MX960R Fixed Tooth Mulcher for Excavatorsstands as a paragon of strength and efficiency for heavy-duty brush clearing. Designed to pair with excavators weighing between 18 to 33 tons, this mulcher features a robust 60-inch rotor. It's equipped with double carbide-tipped teeth (R9000), renowned for their resilience against tough vegetation and occasional stones, ensuring long-lasting performance and minimal downtime.

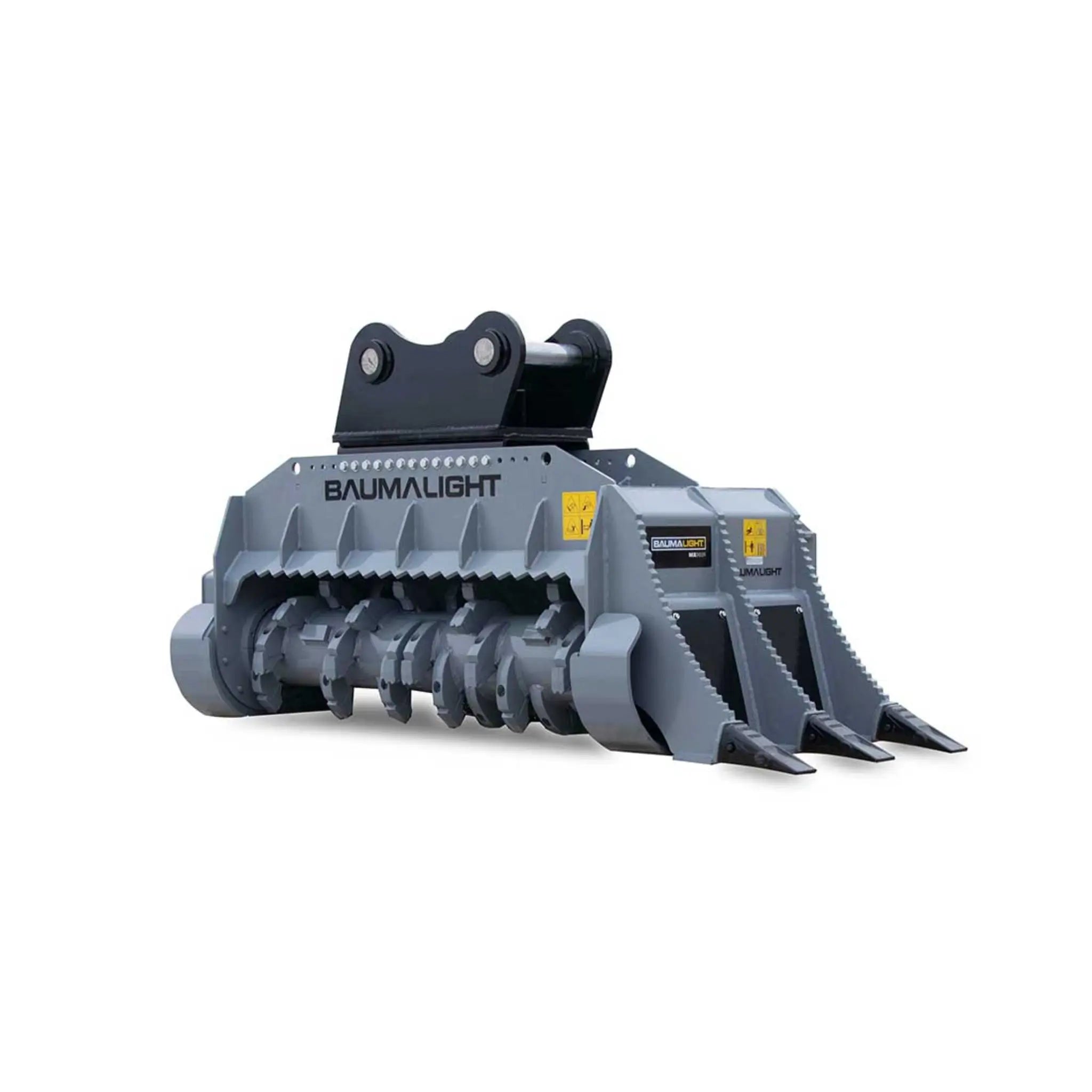

Durability is paramount in the MX960R's design, crafted from high-strength, low-weight AR400 steel. This not only enhances the mulcher's structural integrity but also includes replaceable body wear plates for extended equipment life. Integral to its functionality, the rotor is flanked by aggressive root rake ripper teeth built into the frame, adept at excavating rocks and repositioning logs, making it a versatile tool for comprehensive land management.
| Model No. | MX230 | MX330 | MX530 | MX530R | MX548R | MX948R | MX960R | MX1160R |
|---|---|---|---|---|---|---|---|---|
| A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 | |
| Path Width | 38" | 38" | 40" | 40" | 62" | 70" | 90" | 90" |
| Rotor Width | 30" | 30" | 30" | 30" | 48" | 48" | 60" | 60" |
| Minimum Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
| Minimum Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
| Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
| Max wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
| Cutting Depth | Level | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | Level | Level | Level |
| Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer teeth |
| Tooth Part number | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
| Rotor Shaft Size | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Rotor Diameter (tool tips) | 17.25" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 18.5" |
| Rotor Weight (with tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
| No. of Motor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Case Drain | Not important | Not important | See motor options | See motor options | Critical | Critical | Critical | Critical |
| Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
900 Series
| MOTOR | PSI | CASE DRAIN |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
65 GPM |
70 GPM |
75 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1450 | 1800 | 2100 | |||||||||||
| C930 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | 3.5" 4" 4.5" 5.5" |
4.5" 5" 5.5" 6" |
5.5" 6" 6.5" 7" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1500 | 1800 | 2100 | |||||||||||
| C940 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
4.25" 4.75" 5.25" 5.75" |
6.25" 6.5" 6.75" 7" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1600 | 1875 | 2140 | |||||||||||
| C950 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
5.5" 6" 6.5" 6.75" |
7" 7.5" 8" 8.5" |
7.5" 8" 8.5" 9" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
| C970 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
5.5" 6" 7.5" 8" |
6" 6.5" 7" 7.5" |
7.5" 8" 8.5" 9" |
8" 8.5" 9" 9.5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1570 | 1750 | 1900 | ||||||||||
| C990 Bent Axis Piston |
3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
6" 6.5" 7" |
8.5" 9" 10" |
10" 10.5" 11" |
10.5" 11" 12" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | Adjustable | |||||||||||||
| D97X2 Two speed |
2500 3000 3500 4000 |
Critical | 4.25" 5" 5.5" 6.75" |
5.5" 6.25" 6.75" 7.5" |
7.75" 8" 8.5" 8.75" |
8.75" 9.25" 10" 10.5" |
9.25" 10" 10.5" 11.25" |
10.25" 11" 11.5" 12.25" |
11.25" 12" 12.5" 13.25" |
12.25" 13" 13.5" 14.25" |
13.25" 14" 14.5" 15.25" |
14.25" 15" 15.5" 16.25" |
15.25" 16" 16.5" 17.25" |
16.25" 17" 17.5" 18.25" |
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
