Baumalight MX230 Flail Mower For Mini Excavators - BML-MX230-F2000-EWC1.5-6-B

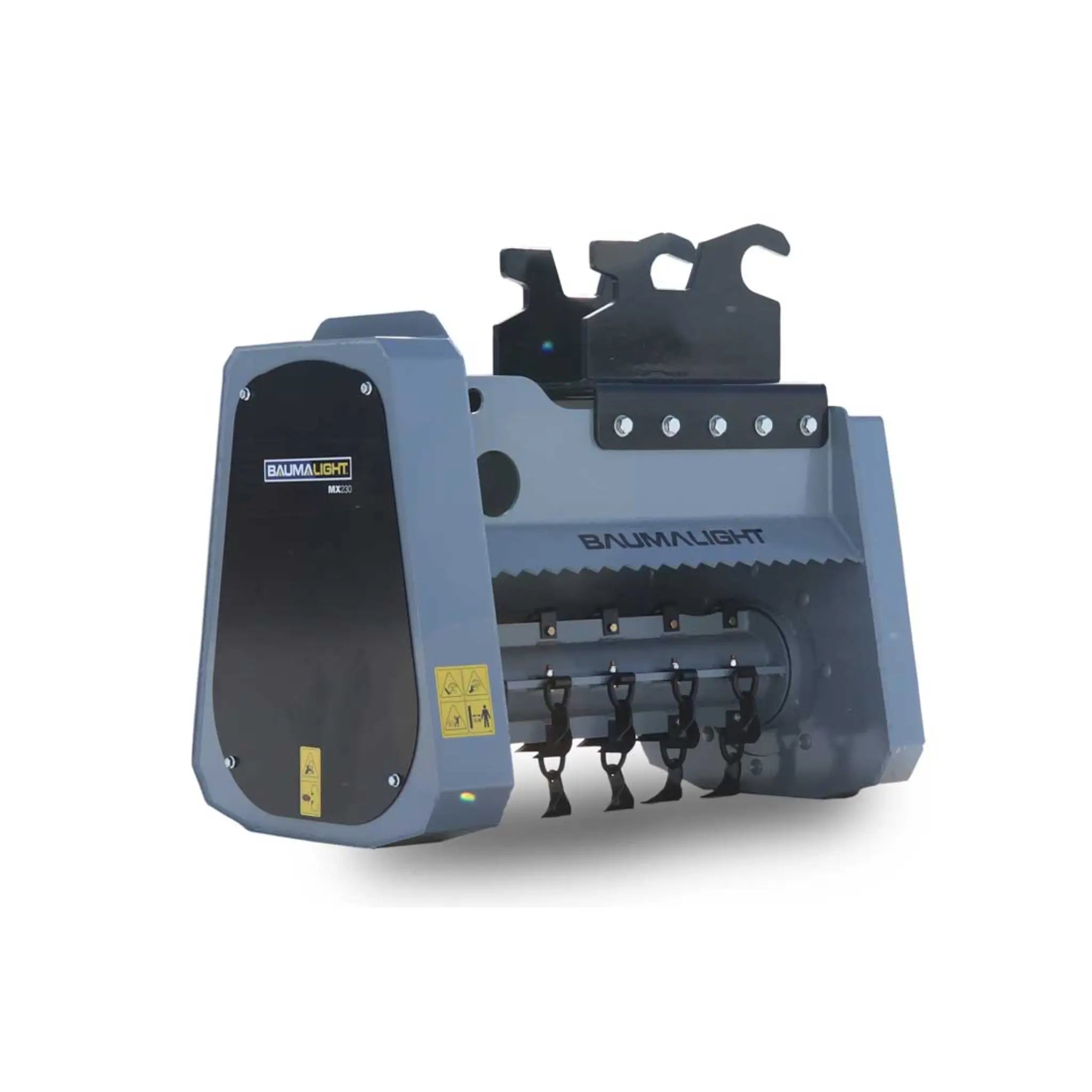

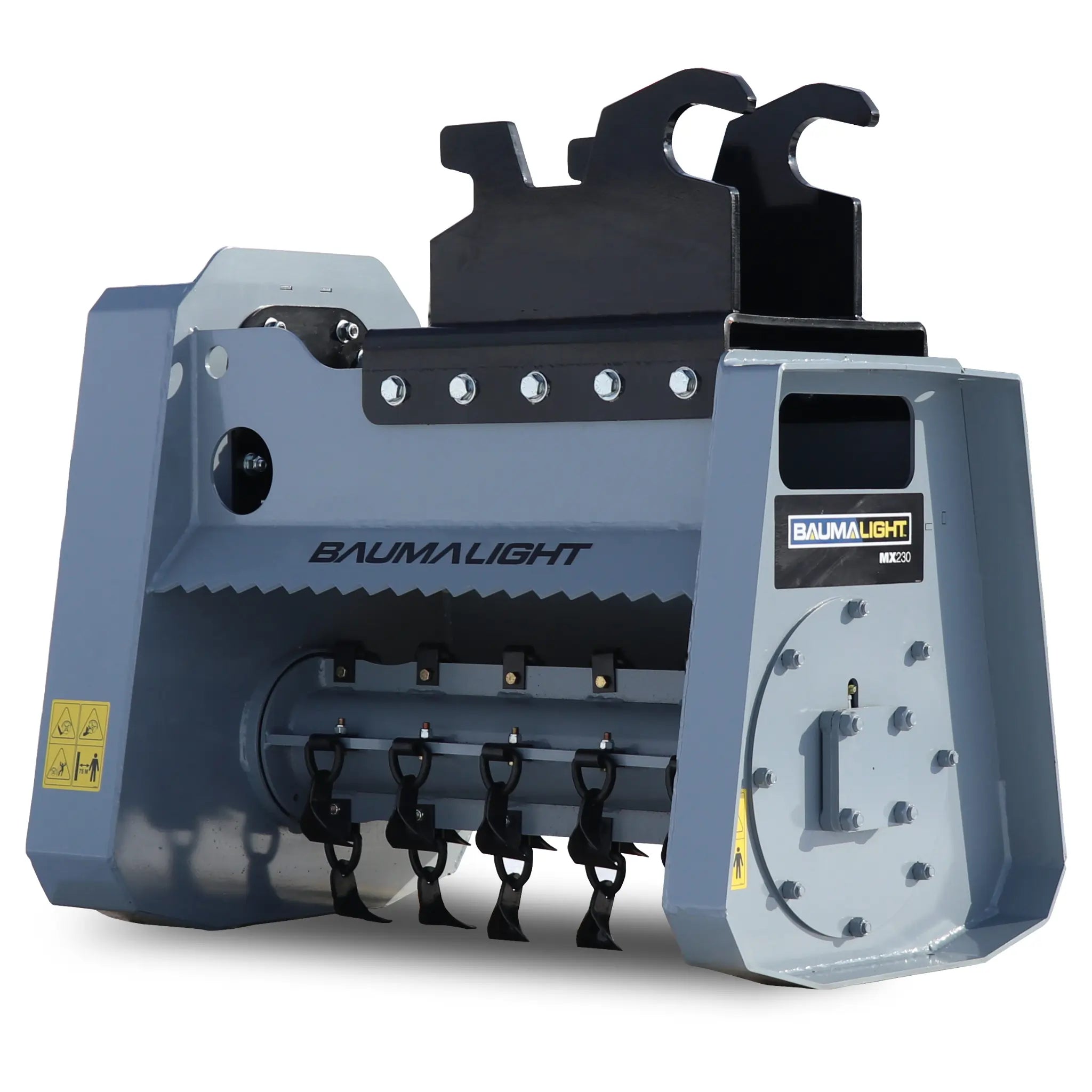

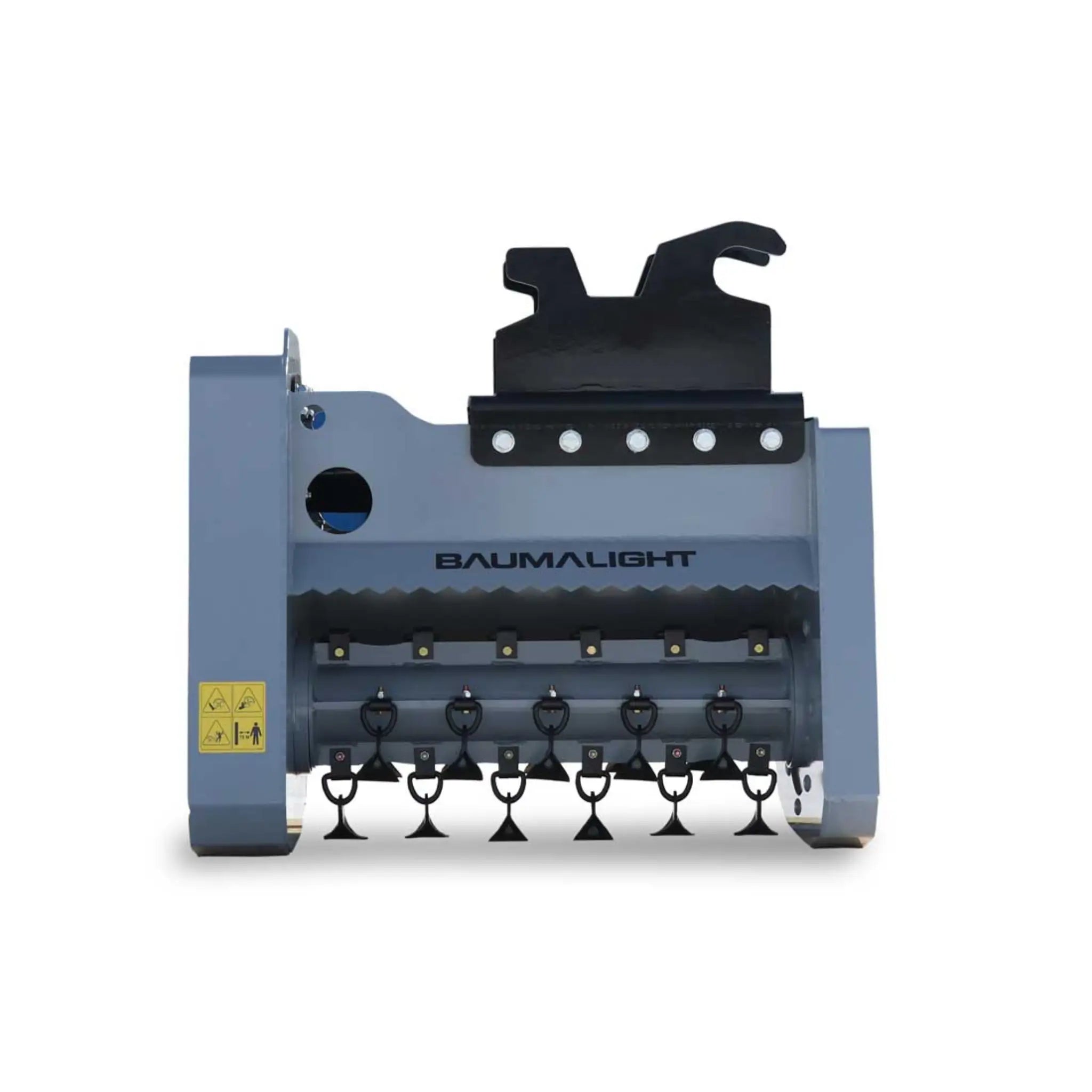

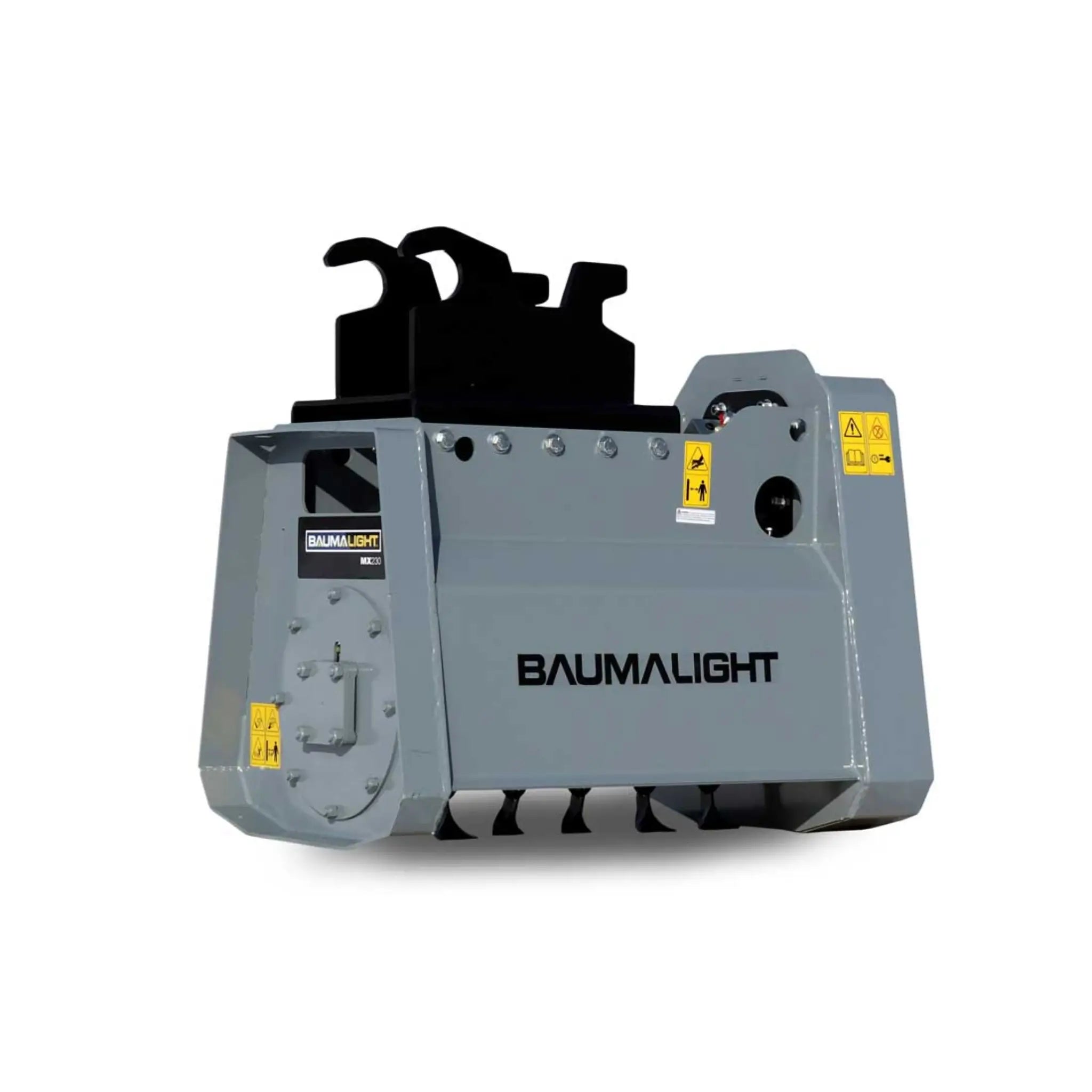

The Baumalight MX230 is the most economical flail mulcher for mini excavators, ideal for efficiently cutting heavy grass and small brush with its 22 flail teeth. The teeth pivot to minimize damage upon stone contact. This mulcher offers optional F3000 blade teeth, enhancing its cutting capacity with a robust 6mm thickness and smooth spiral pattern for seamless mulching.

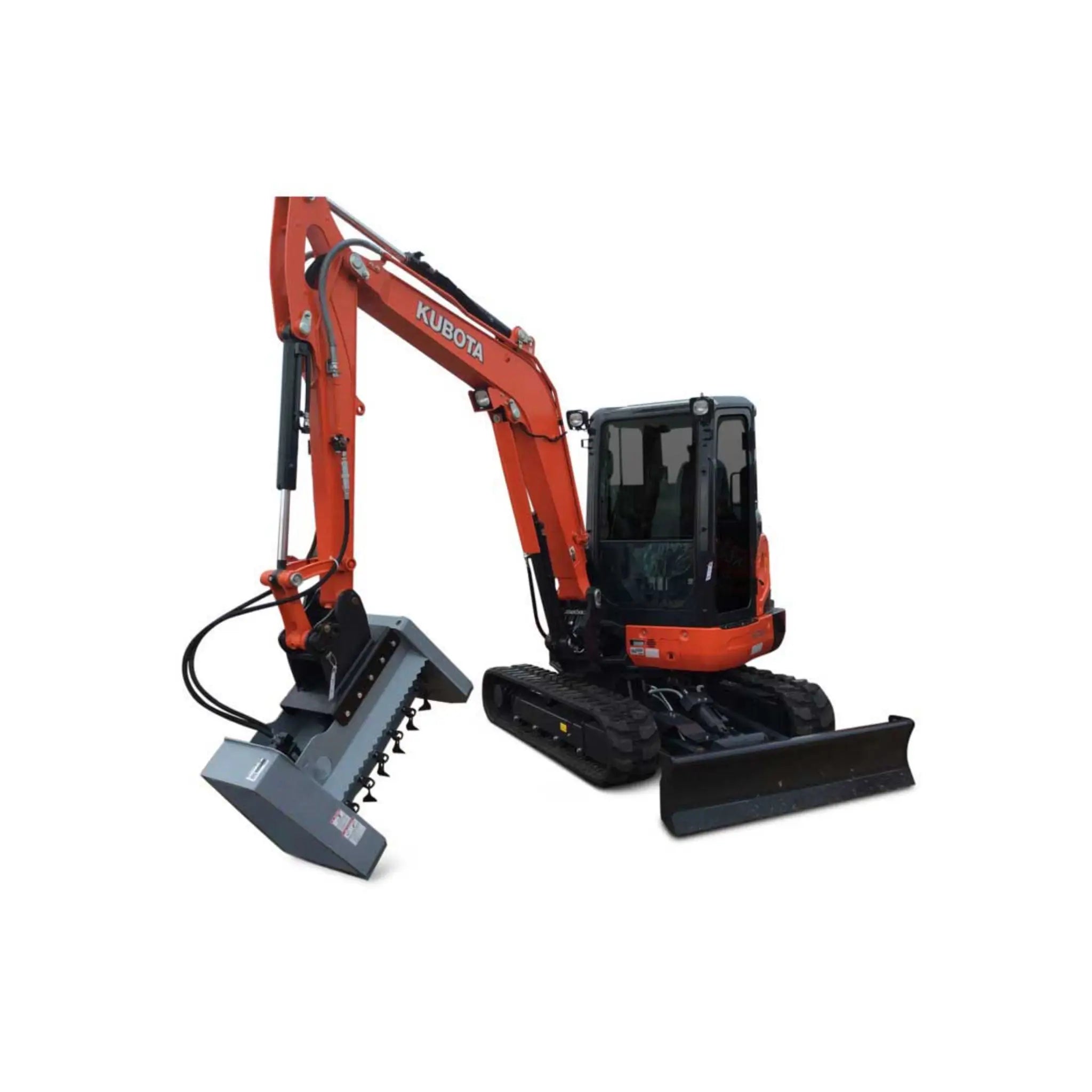

The Baumalight MX230 Flail Mulcher for Mini Excavators is a robust, economical solution for clearing brush and heavy vegetation with your mini excavator. Equipped with 22 dynamic flail teeth, the MX230 efficiently handles heavy grass and small-diameter brush, with a unique flail design that minimizes damage by swinging back when encountering stones. This feature extends the life of each tooth, ensuring longer operational periods without the need for replacements.

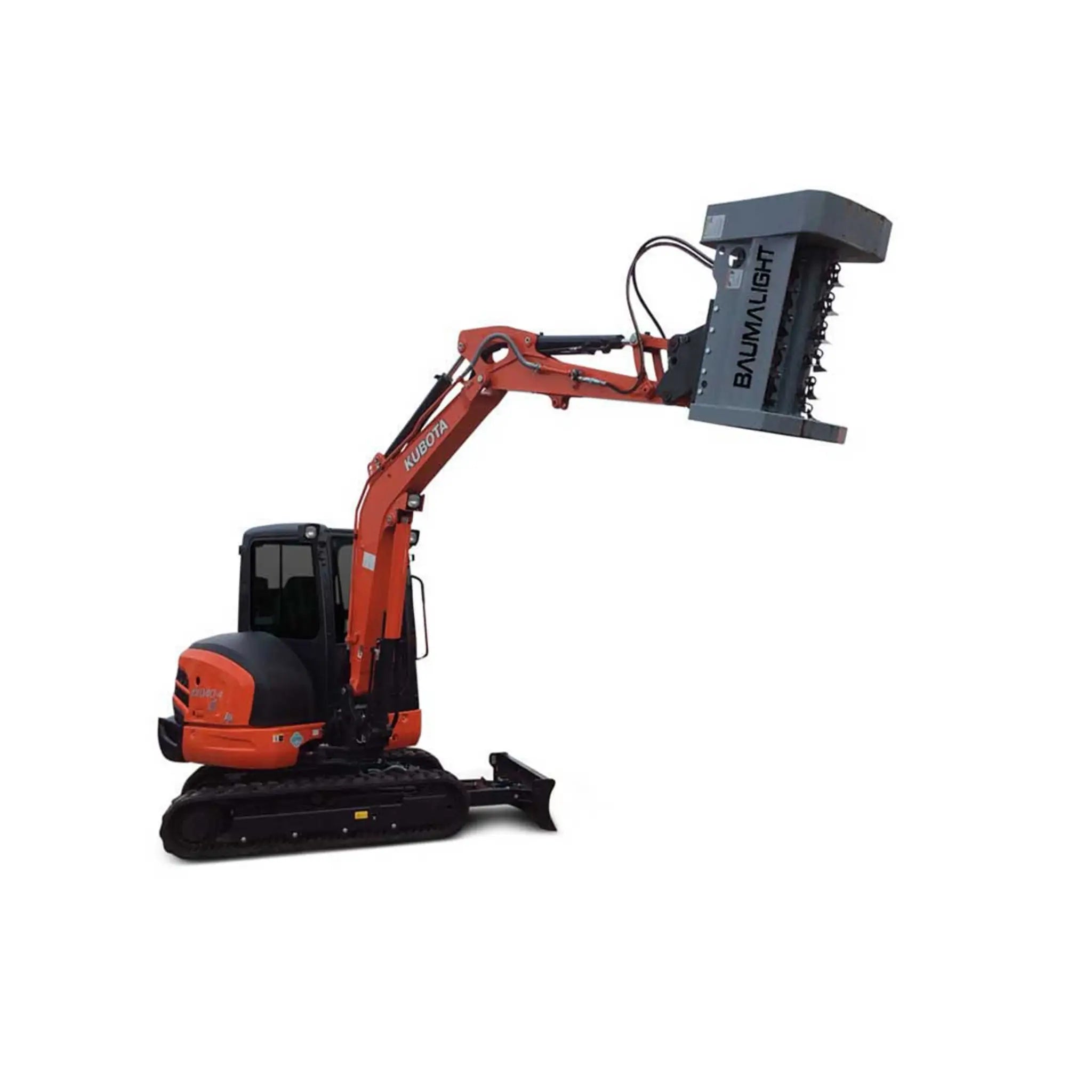

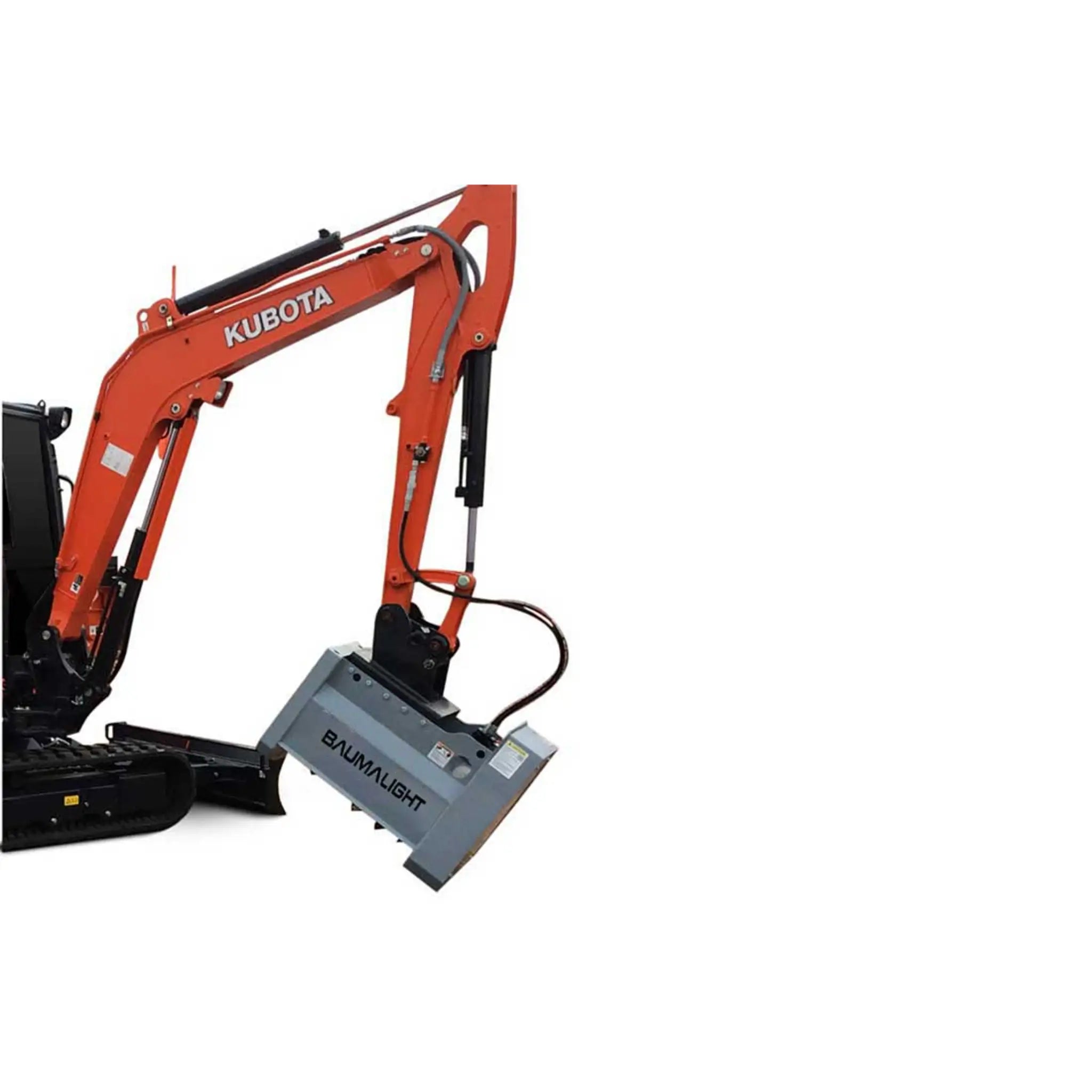

Upgradable to F3000 blade teeth, the MX230 enhances its mulching capability, with thicker 6mm blades arranged in a spiral pattern for smoother, more efficient mulching. This light-duty excavator-mounted forestry mulcher is designed for precision, allowing easy maneuverability around objects, whether in ditches or overhead scenarios. The integrated relief valve safeguards the hydraulic motor and system from pressure spikes, enhancing durability and maintenance ease.
| Model No. | MX230 | MX330 | MX530 | MX530R | MX548R | MX948R | MX960R | MX1160R |
|---|---|---|---|---|---|---|---|---|
| A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 | |
| Path Width | 38" | 38" | 40" | 40" | 62" | 70" | 90" | 90" |
| Rotor Width | 30" | 30" | 30" | 30" | 48" | 48" | 60" | 60" |
| Minimum Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
| Minimum Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
| Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
| Max wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
| Cutting Depth | Level | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | Level | Level | Level |
| Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer teeth |
| Tooth Part number | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
| Rotor Shaft Size | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Rotor Diameter (tool tips) | 17.25" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 18.5" |
| Rotor Weight (with tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
| No. of Motor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Case Drain | Not important | Not important | See motor options | See motor options | Critical | Critical | Critical | Critical |
| Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
200 Series
| MOTOR | PSI | CASE DRAIN | 10 GPM | 12 GPM | 15 GPM | 18 GPM | 20 GPM |
|---|---|---|---|---|---|---|---|
| RPM | 832 | 1060 | 1250 | 1390 | |||
| F2000 Series Motor Standard Cup Teeth | 2500 3000 3500 |
Not Important for Roller-Vane motors | 0.225" 0.338" 0.338" |
0.25" 0.375" 0.375" |
0.375" 0.5" 0.5" |
0.5" 0.75" 0.75" |
0.75" 1" 1" |
| RPM | 832 | 1060 | 1250 | 1390 | |||
| F3000 Series Motor Heavy Blade Teeth | 2500 3000 3500 |
Not Important for Roller-Vane motors | 0.45" 0.675" 0.675" |
0.5" 0.75" 0.75" |
0.75" 1" 1" |
1" 1.5" 1.5" |
1.5" 2" 2" |
