Baumalight MS972 Heavy Duty Fixed Tooth Brush Mulcher For Skid Steers - MS972-C930
Maximize your skidsteer's potential with the Baumalight MS972 Fixed Tooth Mulcher. With a robust 72” rotor and 84” path, it offers unmatched mulching efficiency. Features replaceable wear plates and a compact frame for optimal weight distribution, enhancing maneuverability and productivity on any site. Ideal for managing dense vegetation and varying limb sizes.

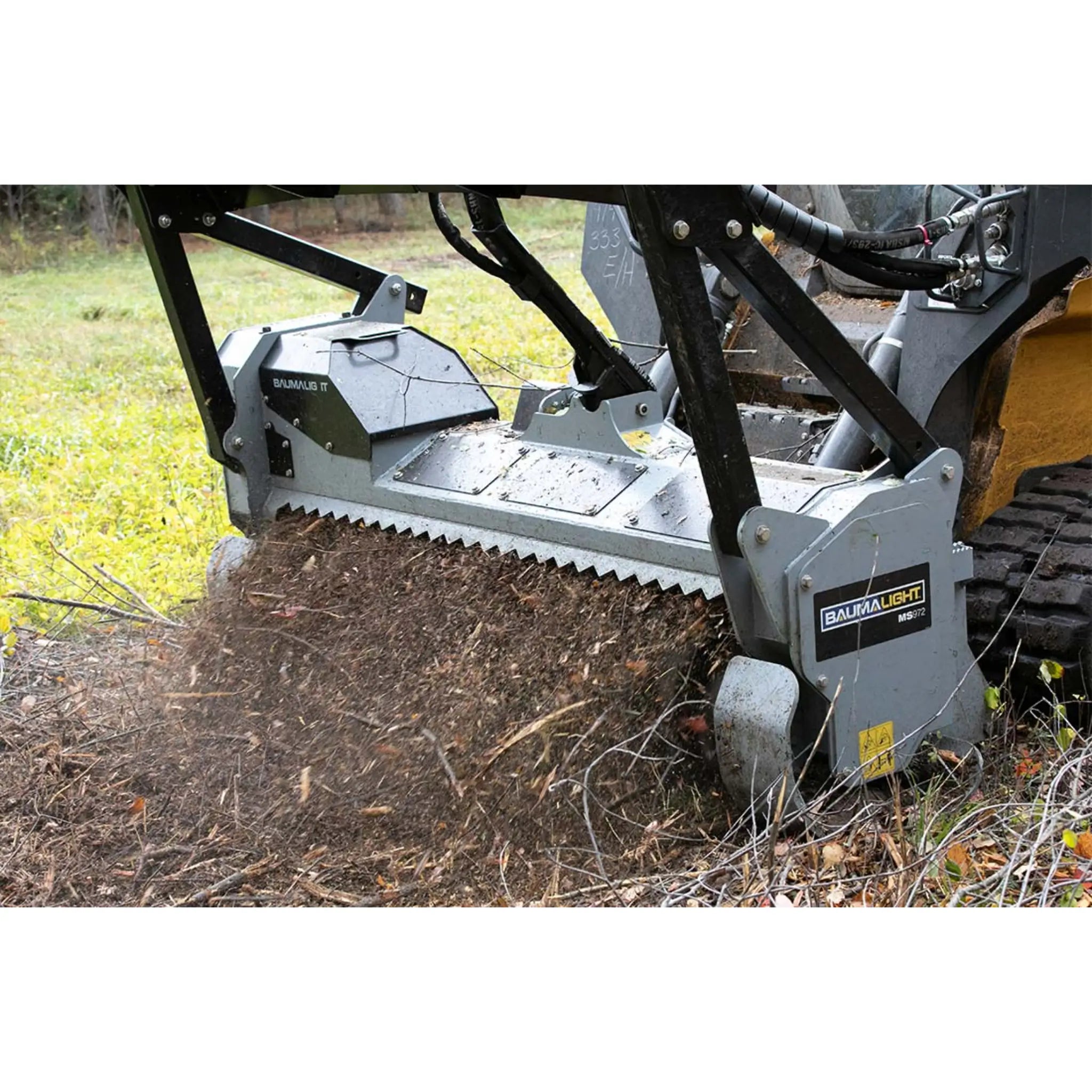

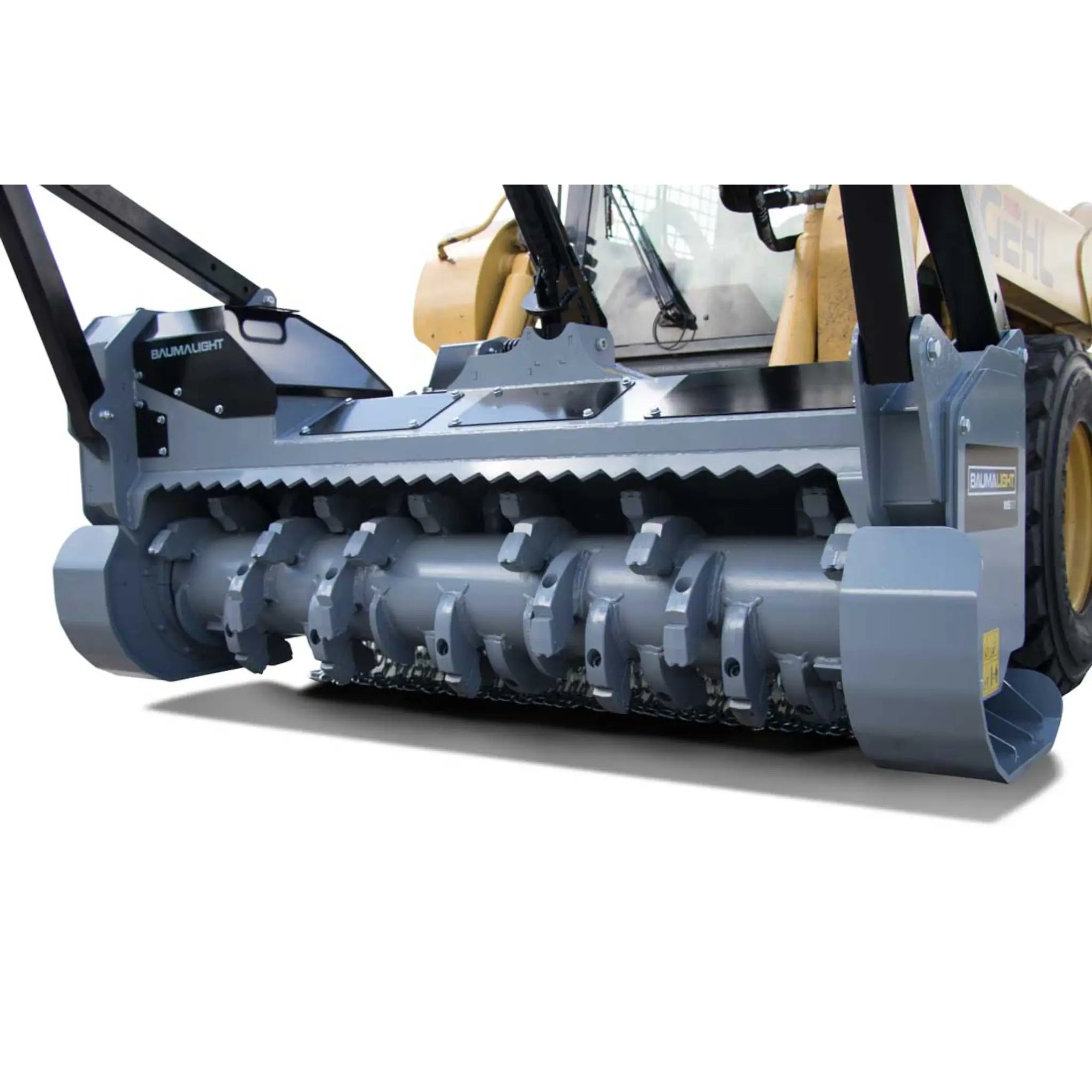

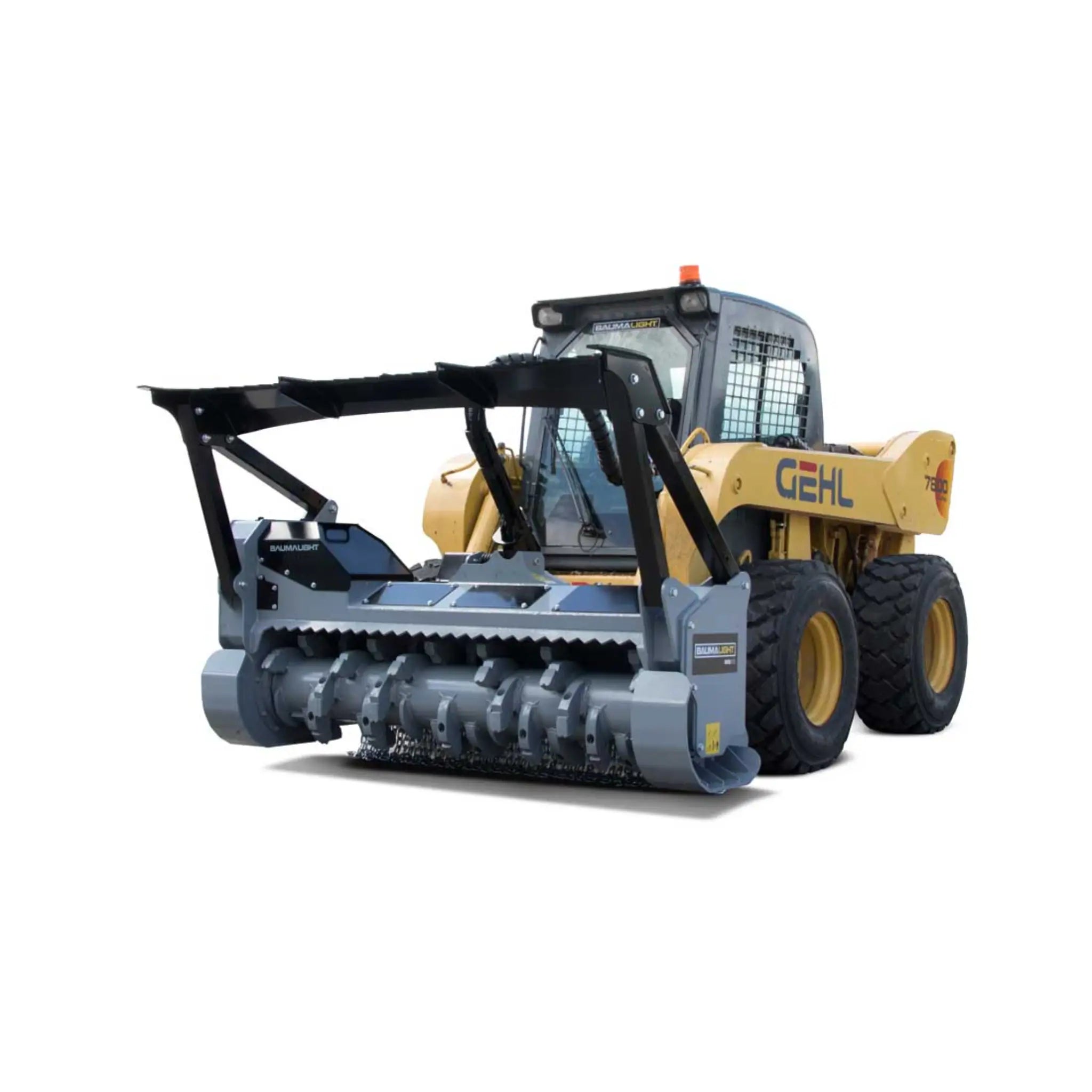

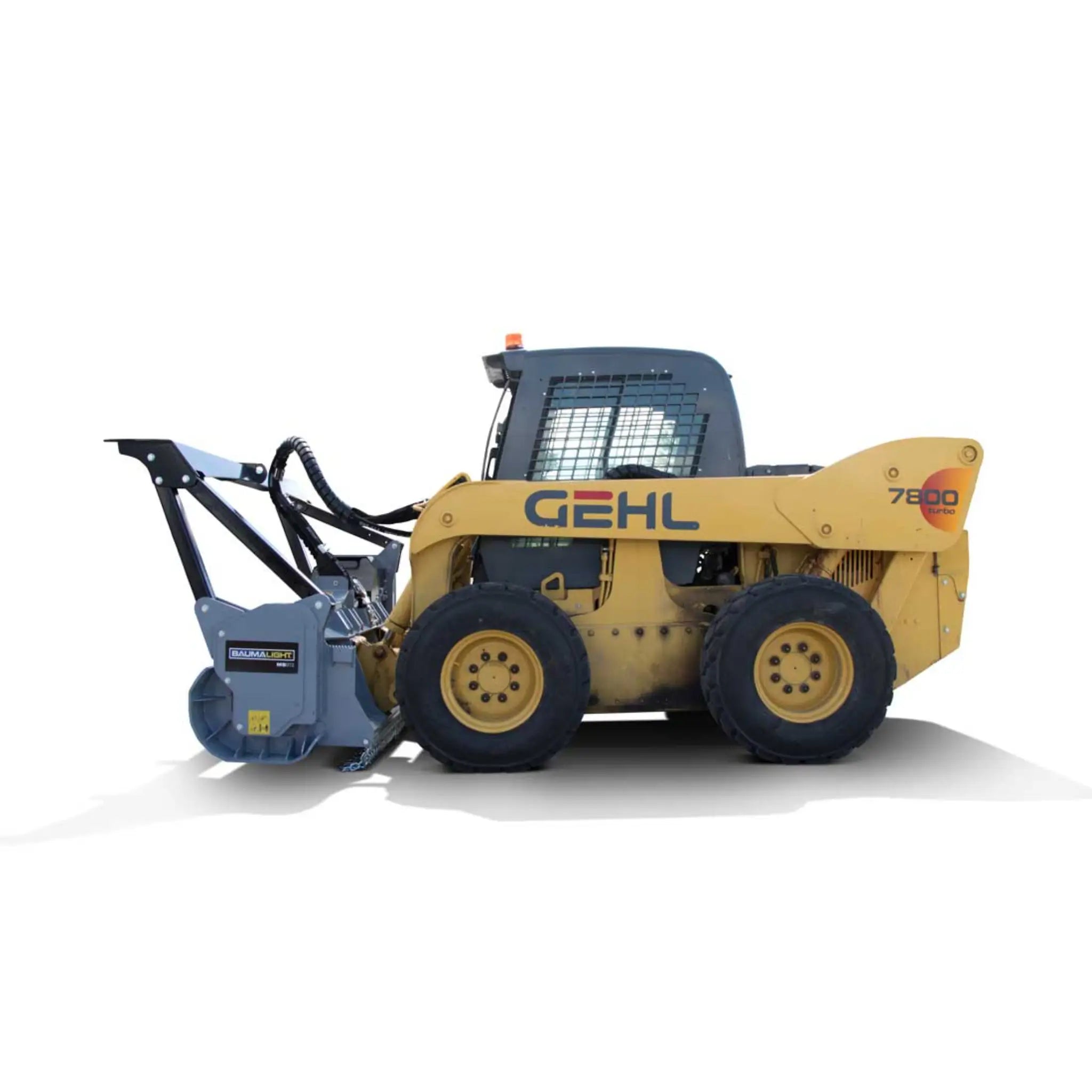

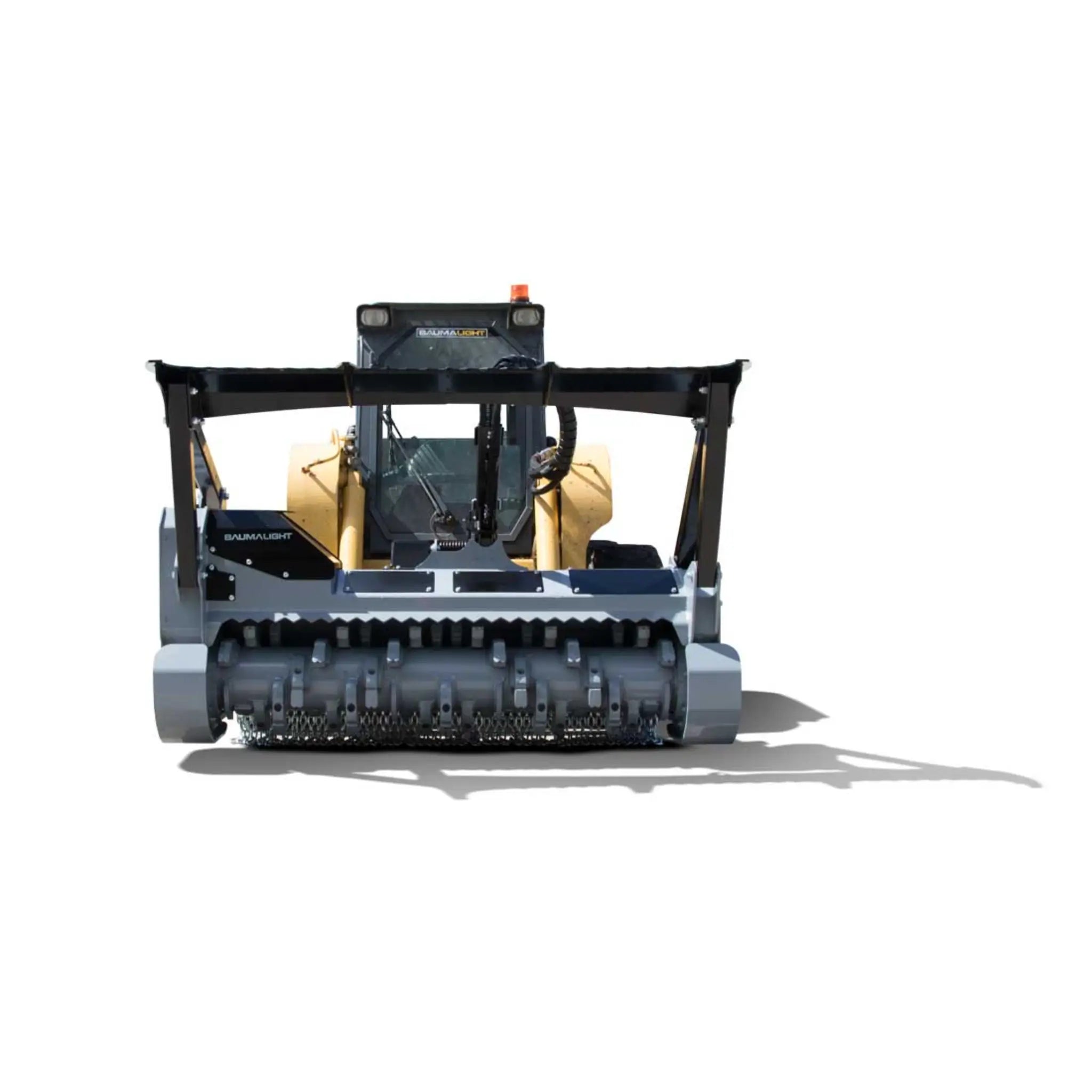

Unleash the full potential of your skid steer with the Baumalight MS972 Heavy Duty Fixed Tooth Mulcher. Designed for superior vegetation management, this attachment boasts a robust 72” rotor and an expansive 84” path width, making it perfect for clearing large areas efficiently. Its innovative design features replaceable AR400 steel wear plates, ensuring long-lasting durability and easy maintenance. With a compact frame that brings the weight closer to your skid steer, the MS972 enhances maneuverability and effectiveness, even with smaller track machines.

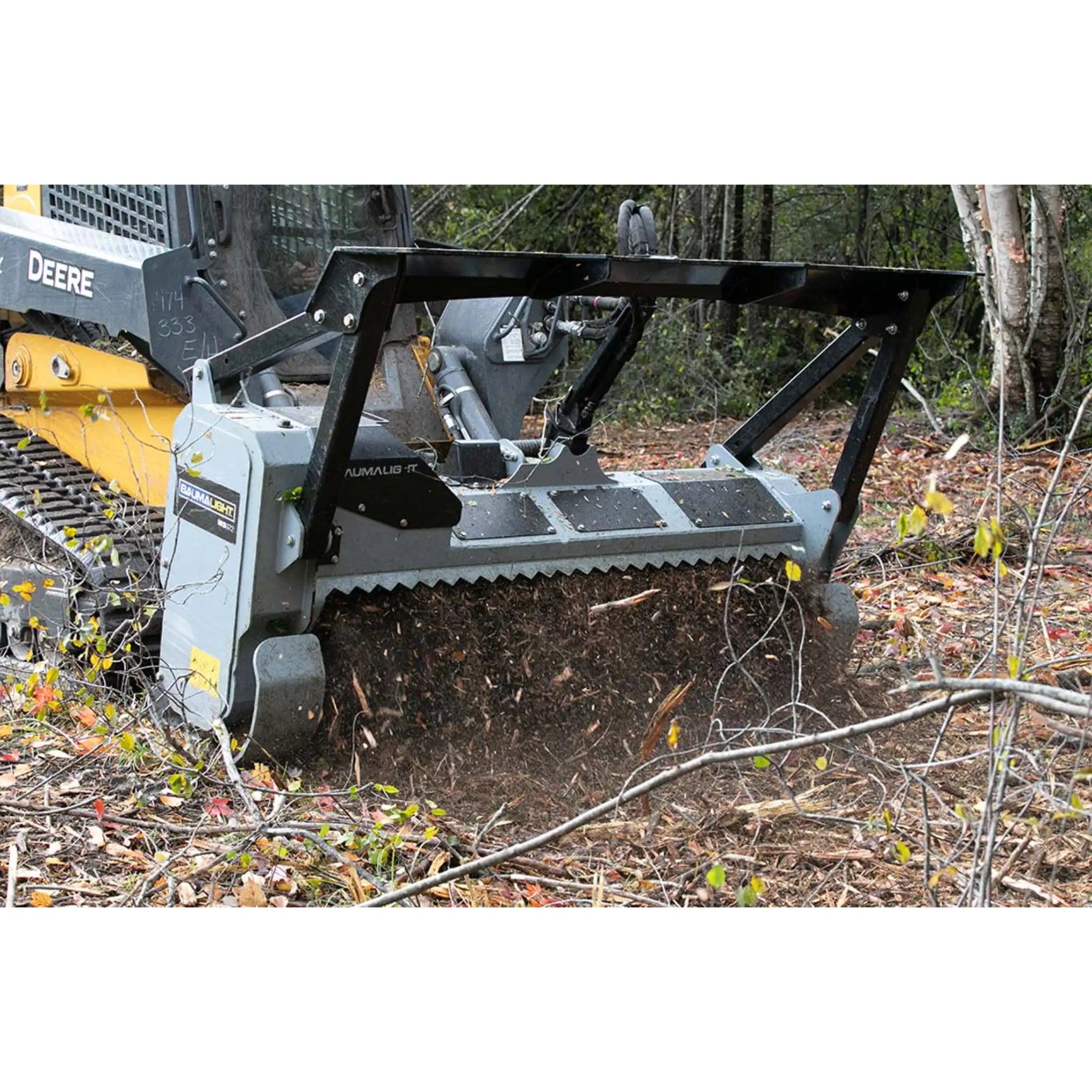

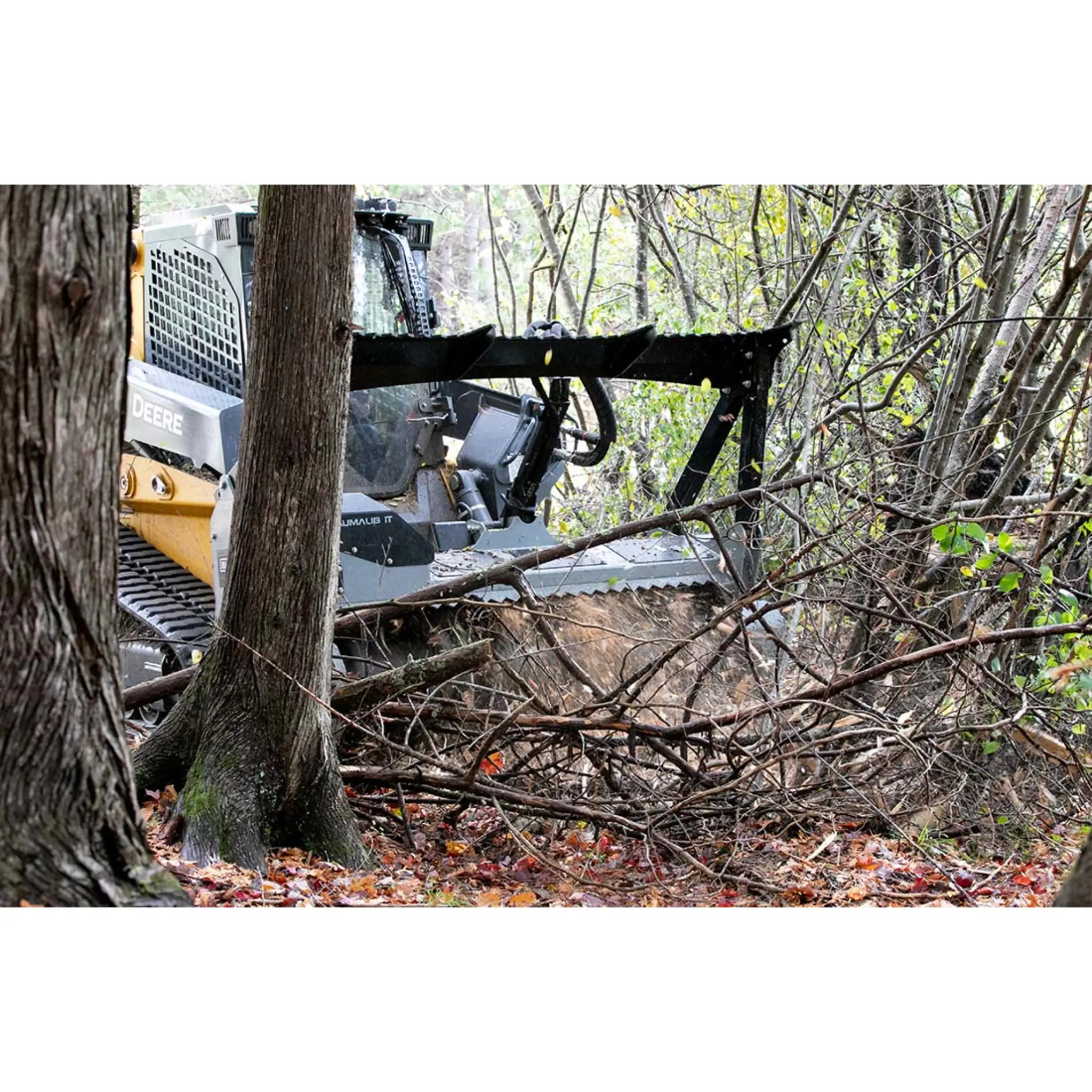

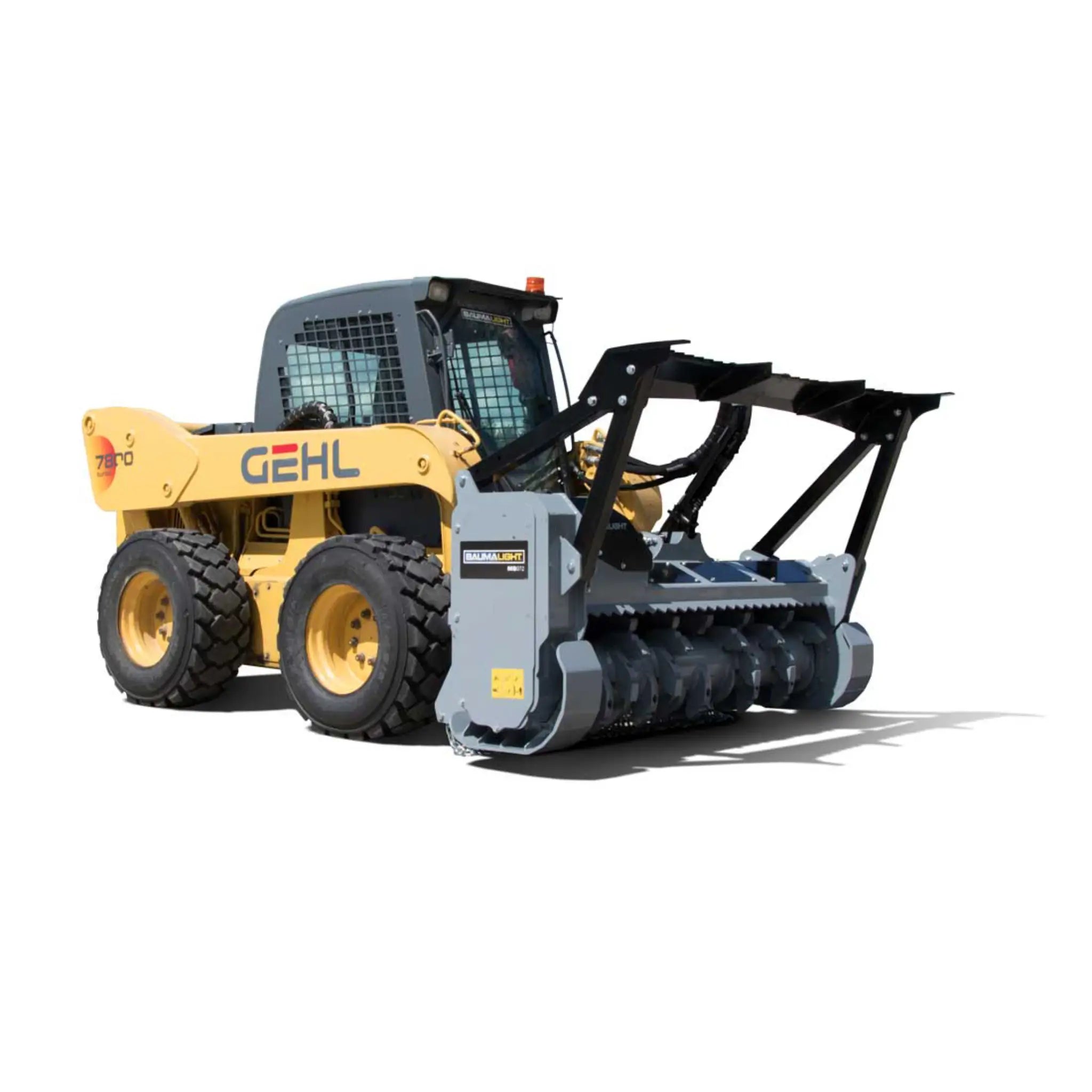

The MS972 doesn't just mulch; it transforms your skid steer into a powerhouse of productivity. Featuring an integrated push bar with a directional felling hook, this attachment offers precise control over fallen trees and unruly brush, ensuring clean and clear land with each pass. Adjustable skid shoes allow for customization of cutting heights, optimizing your mulching operations. Additionally, the unique roll-back design enables the felling of standing trees, demonstrating unmatched versatility in land management tasks.
| Model No. | MS348 | MS548 | MS560 | MS572 | MS960 | MS972 | MS1160 |
|---|---|---|---|---|---|---|---|
| Path Width | 60" | 62" | 75" | 87" | 75" | 84" | 75" |
| Rotor Width | 48" | 48" | 60" | 72" | 60" | 72" | 60" |
| Minimum carrier weight | 3,000 | 4,000 | 5,500 | 6,000 | 7,000 | 7,500 | 7,000 |
| Cutting Depth | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 2" Below Grade | 1.5" Above to 2" Below Grade | 1.125" Above to 2.375" Below Grade |
| Holder Style | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Tool Style | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | Double Tipped | Sharpenable Planer |
| Tooth Part number | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 60 | 72 | 92 | 112 | 38 | 43 | 31 |
| Rotor Diameter (tool tips) | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 19.3" |
| Rotor Weight (with tools) | 230 lbs | 480 lbs | 575 lbs | 700 lbs | 860 lbs | 1,105 lbs | 860 lbs |
| Case Drain | Not important | See motor options | Critical | Critical | Critical | Critical | Critical |
| Hydraulic Couplers | Included | Not Included | Not Included | Not Included | Not Included | Not Included | Not Included |
| Unit Shipping Weight | 950 lbs | 1491 lbs | 2115 lbs | 2266 lbs | 2975 lbs | 3115 lbs | 2800 lbs |
Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
900 Series
| MOTOR | PSI | CASE DRAIN |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
65 GPM |
70 GPM |
75 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1450 | 1800 | 2100 | |||||||||||
| C930 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | 3.5" 4" 4.5" 5.5" |
4.5" 5" 5.5" 6" |
5.5" 6" 6.5" 7" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1500 | 1800 | 2100 | |||||||||||
| C940 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
4.25" 4.75" 5.25" 5.75" |
6.25" 6.5" 6.75" 7" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1600 | 1875 | 2140 | |||||||||||
| C950 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
5.5" 6" 6.5" 6.75" |
7" 7.5" 8" 8.5" |
7.5" 8" 8.5" 9" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
| C970 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
5.5" 6" 7.5" 8" |
6" 6.5" 7" 7.5" |
7.5" 8" 8.5" 9" |
8" 8.5" 9" 9.5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | Adjustable | |||||||||||||
| D97X2 Two speed |
2500 3000 3500 4000 |
Critical | 4.25" 5" 5.5" 6.75" |
5.5" 6.25" 6.75" 7.5" |
7.75" 8" 8.5" 8.75" |
8.75" 9.25" 10" 10.5" |
9.25" 10" 10.5" 11.25" |
10.25" 11" 11.5" 12.25" |
11.25" 12" 12.5" 13.25" |
12.25" 13" 13.5" 14.25" |
13.25" 14" 14.5" 15.25" |
14.25" 15" 15.5" 16.25" |
15.25" 16" 16.5" 17.25" |
16.25" 17" 17.5" 18.25" |
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
