Baumalight MS560 Fixed Tooth Brush Mulcher For Skid Steers - MS560-C508

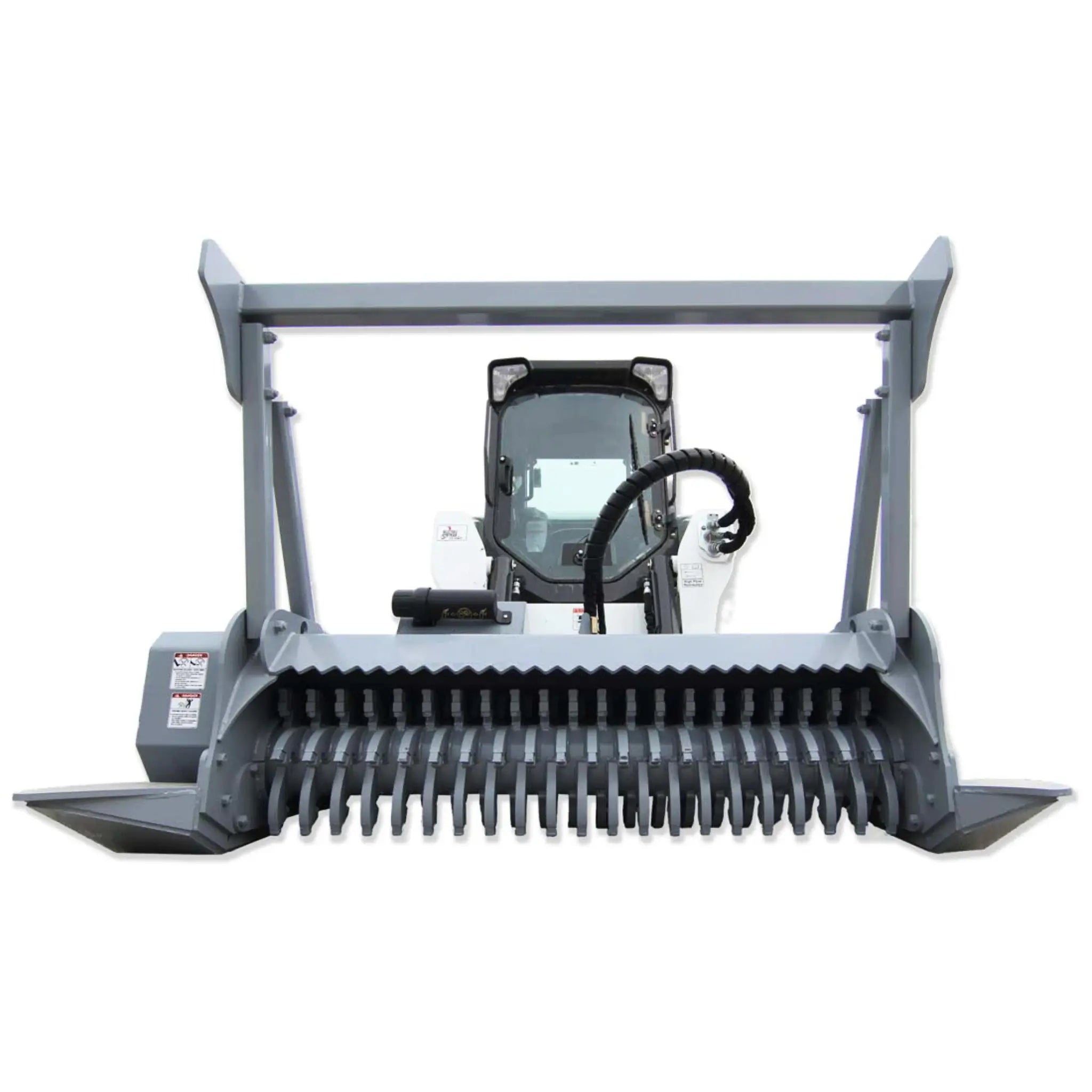

Maximize your skid steer's potential with the Baumalight MS560 Fixed Tooth Mulcher. Engineered for farm fence line maintenance and basic contractor tasks, this mulcher handles heavy brush and small trees with ease. Choose from Planer teeth for precise, efficient mulching or Ripper teeth for robust, impact-resistant shredding. Features include a pressure gauge to monitor optimal operation, enhancing productivity by avoiding pressure overload.
| Model No. | MS348 | MS548 | MS560 | MS572 | MS960 | MS972 | MS1160 |
|---|---|---|---|---|---|---|---|
| Path Width | 60" | 62" | 75" | 87" | 75" | 84" | 75" |
| Rotor Width | 48" | 48" | 60" | 72" | 60" | 72" | 60" |
| Minimum carrier weight | 3,000 | 4,000 | 5,500 | 6,000 | 7,000 | 7,500 | 7,000 |
| Cutting Depth | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 2" Below Grade | 1.5" Above to 2" Below Grade | 1.125" Above to 2.375" Below Grade |
| Holder Style | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Tool Style | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | Double Tipped | Sharpenable Planer |
| Tooth Part number | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 60 | 72 | 92 | 112 | 38 | 43 | 31 |
| Rotor Diameter (tool tips) | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 19.3" |
| Rotor Weight (with tools) | 230 lbs | 480 lbs | 575 lbs | 700 lbs | 860 lbs | 1,105 lbs | 860 lbs |
| Case Drain | Not important | See motor options | Critical | Critical | Critical | Critical | Critical |
| Hydraulic Couplers | Included | Not Included | Not Included | Not Included | Not Included | Not Included | Not Included |
| Unit Shipping Weight | 950 lbs | 1491 lbs | 2115 lbs | 2266 lbs | 2975 lbs | 3115 lbs | 2800 lbs |
Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
500 Series
| MOTOR | PSI | CASE DRAIN |
8 GPM |
12 GPM |
15 GPM |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 555 | 832 | 1060 | 1390 | ||||||||||
| A450 Roller-Vane | 2500 3000 3500 |
Not Needed Not Needed Recommended |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1" 1.25" 1.25" |
1.5" 2" 2" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 640 | 846 | 1100 | 1370 | 1600 | |||||||||
| B550 Roller-Vane | 2500 3000 3500 |
Not Needed Recommended Needed |
-- -- -- |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1.25" 1.75" 1.75" |
2.5" 3" 3" |
3" 3.5" 3.5" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
| RPM | 1090 | 1640 | 2050 | |||||||||||
| C508 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | 1" 1.5" 2" 2.5" |
1.75" 2.25" 2.75" 3.25" |
2.25" 2.75" 3.25" 4" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1190 | 1490 | 2000 | 2490 | ||||||||||
| C510 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
1.5" 2" 2.5" 3" |
2" 2.5" 3" 3.5" |
2.5" 3" 3.5" 4.5" |
3" 3.5" 4.5" 5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1450 | 1800 | 2100 | |||||||||||
| C530 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
2.5" 3" 3.5" 4.5" |
3.5" 4" 4.5" 5" |
4.5" 5" 5.5" 5.75" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1500 | 1800 | 2100 | |||||||||||
| C540 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
3.25" 3.75" 4.25" 4.75" |
5" 5.5" 5.75" 6" |
5.5" 6" 6.5" 7" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1600 | 1875 | 2140 | |||||||||||
| C550 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 5.75" |
6" 6.5" 7" 7.5" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
| RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
| C570 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
5.5" 6" 6.5" 7" |
5" 5.5" 6" 6.5" |
6.5" 7" 7.5" 8" |
7" 7.5" 8" 8.5" |
-- -- -- |
-- -- -- |
| RPM | 1400 | 1570 | 1750 | 1900 | ||||||||||
| C590 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 6" |
7" 7.5" 8" 9" |
8.5" 9" 9.5" 10" |
9" 9.5" 10" 11" |

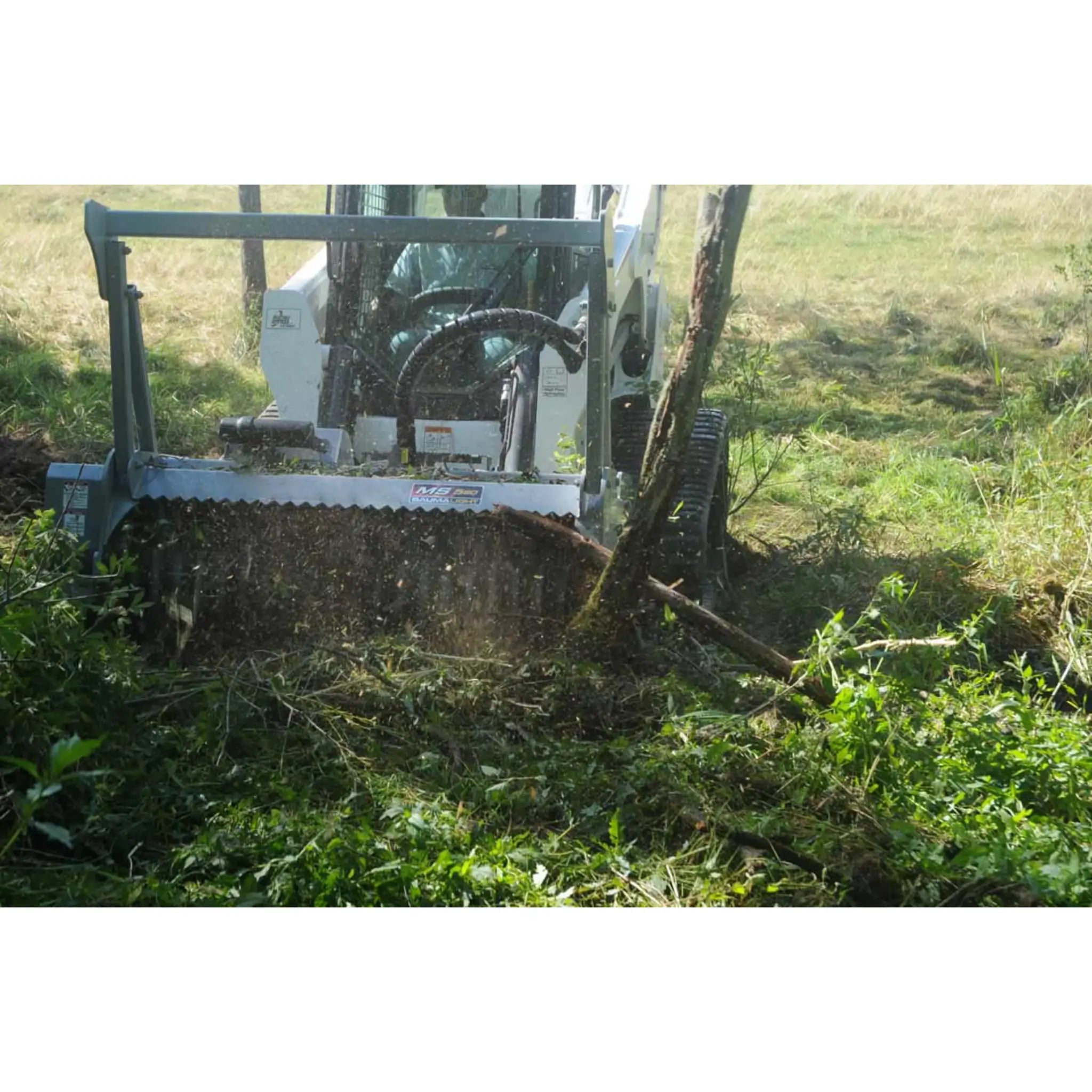

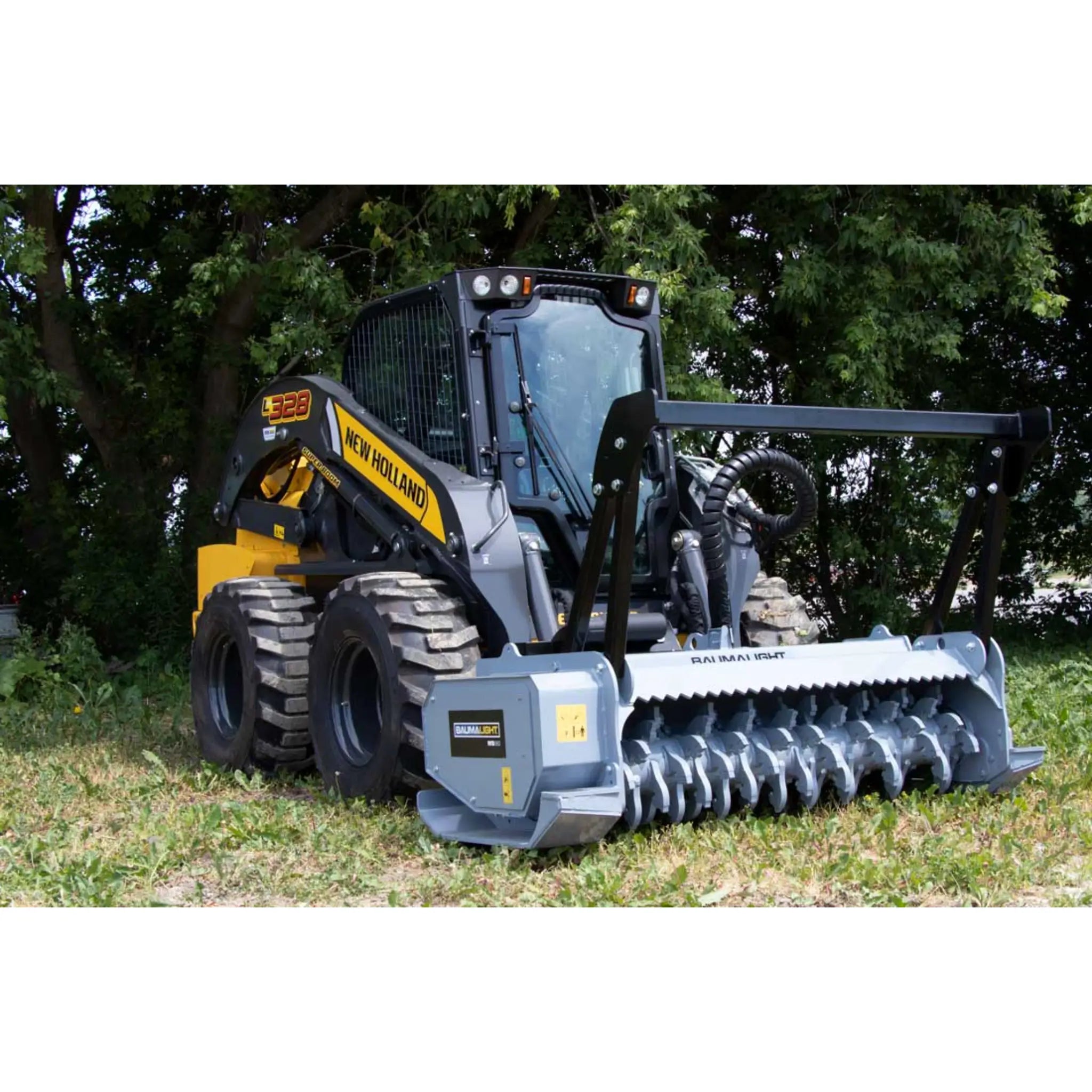

The Baumalight MS560 Fixed Tooth Mulcher for Skid Steers is engineered for robust terrain management, ideal for farmers and entry-level contractors. This versatile attachment handles heavy brush and small trees with ease, featuring Planer teeth for precise, efficient mulching and Ripper teeth designed for shredding and enhanced impact resistance. An integrated push bar and adjustable skid shoes allow for customizable mulching depths, ensuring adaptability across varying site conditions.

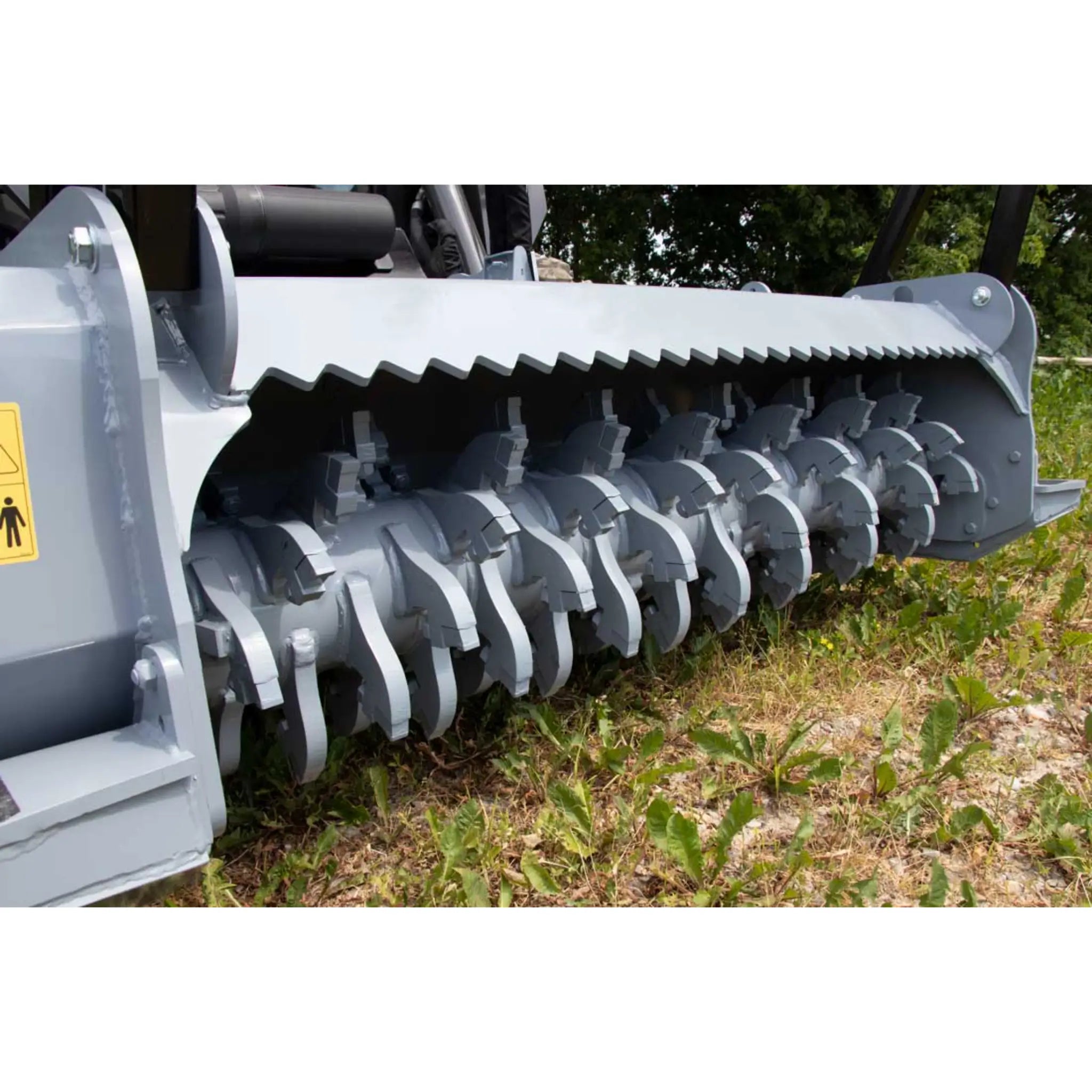

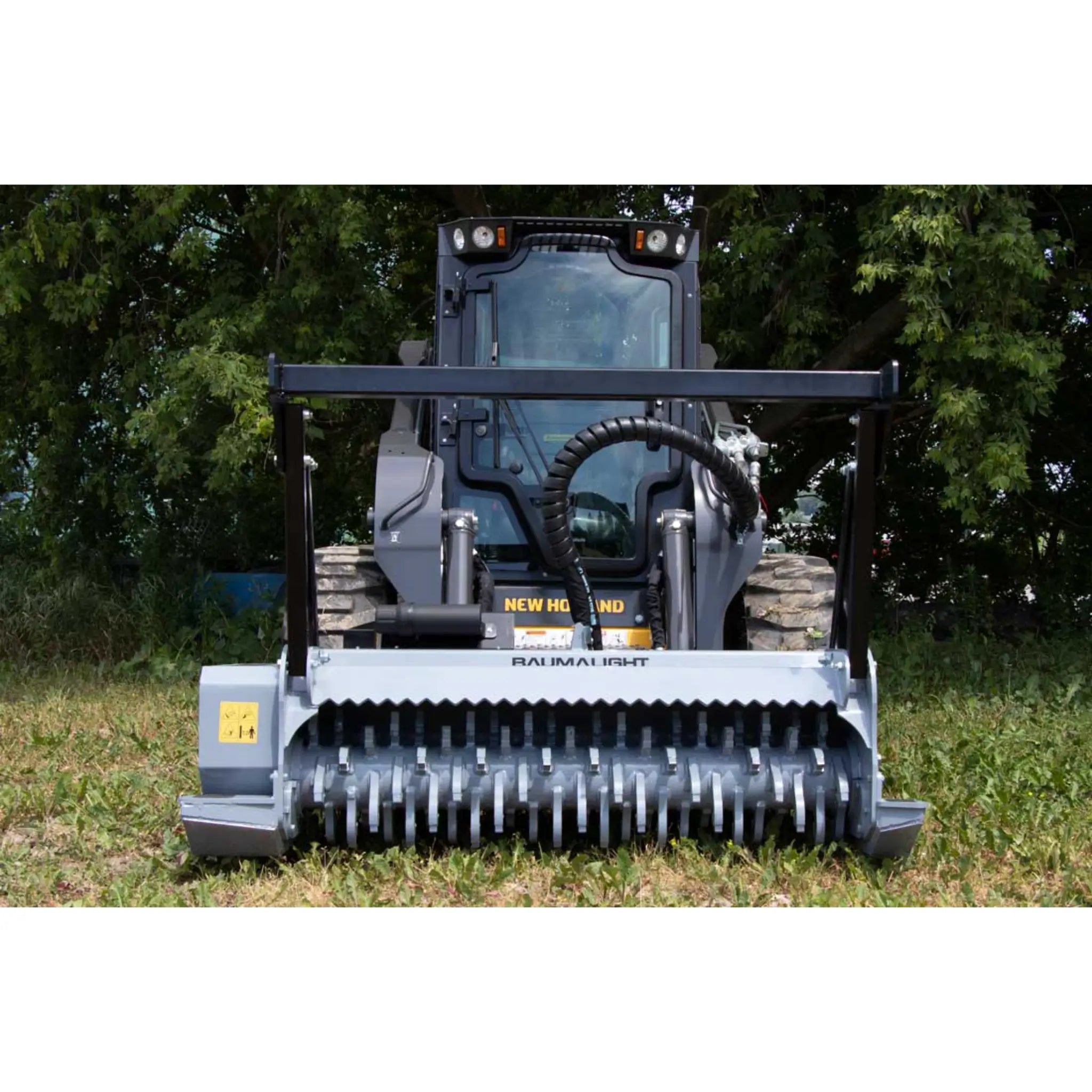

Designed for durability and operator safety, the MS560 includes armored and sleeved hoses with a pivoting arm to reduce wear and strain. The reinforced belt and heavy-duty tooth holders extend the mulcher's operational life. Operational efficiency is monitored via a pressure gauge, and the spiral tooth pattern ensures smoother mulching. Additional safety is provided by an overtorque protection relief valve, which guards the hydraulic system against pressure spikes, making the MS560 a reliable and indispensable tool for comprehensive brush clearing tasks.
