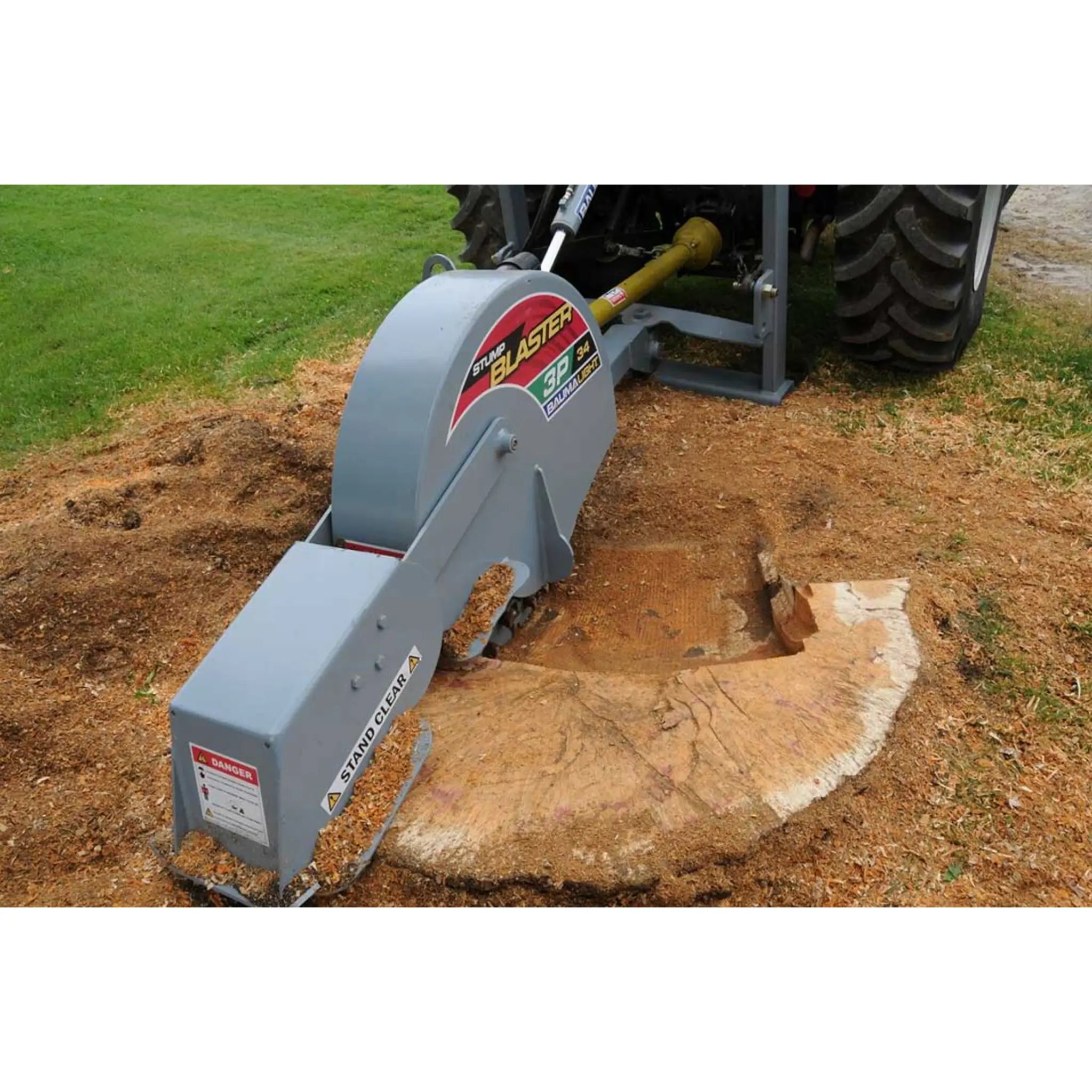

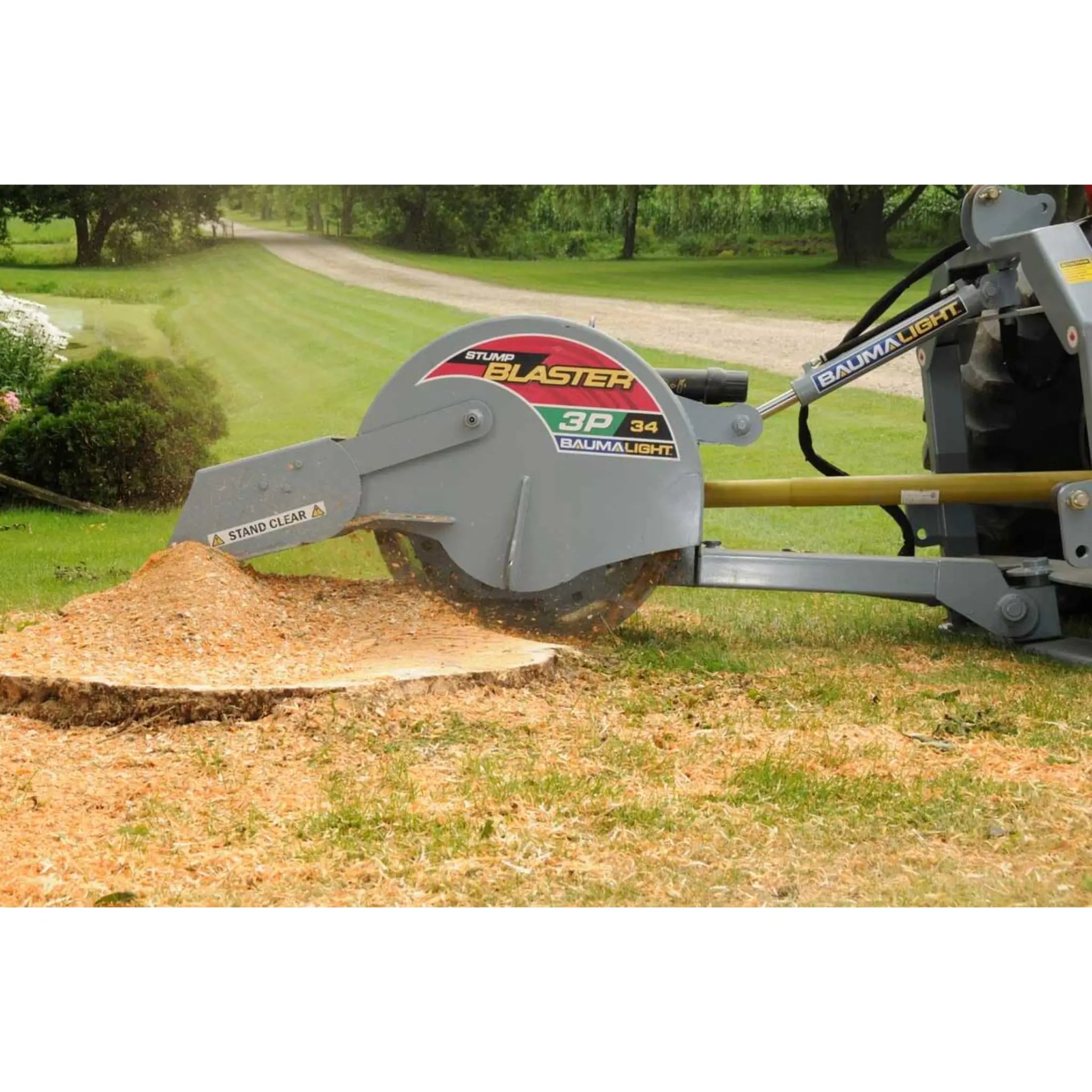

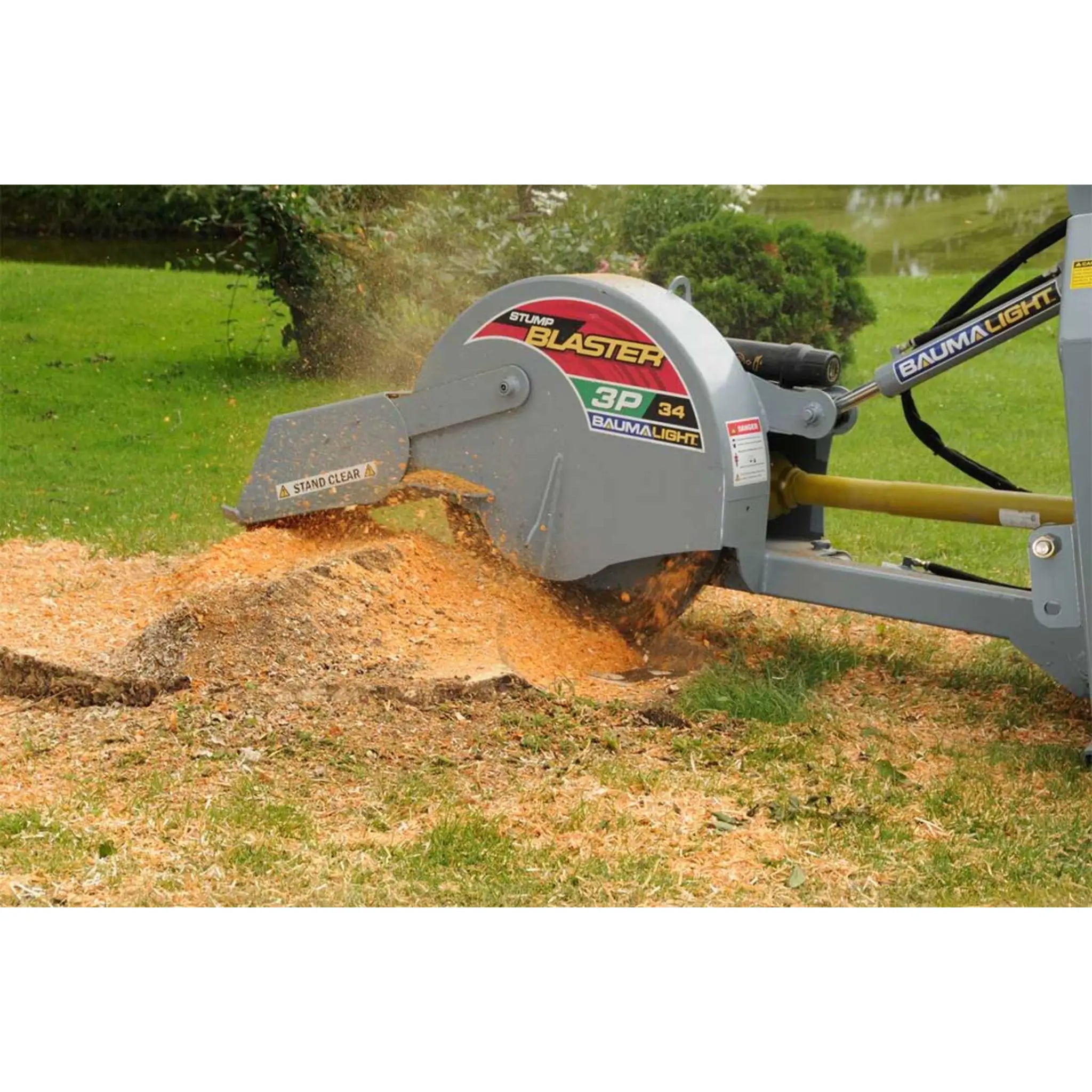

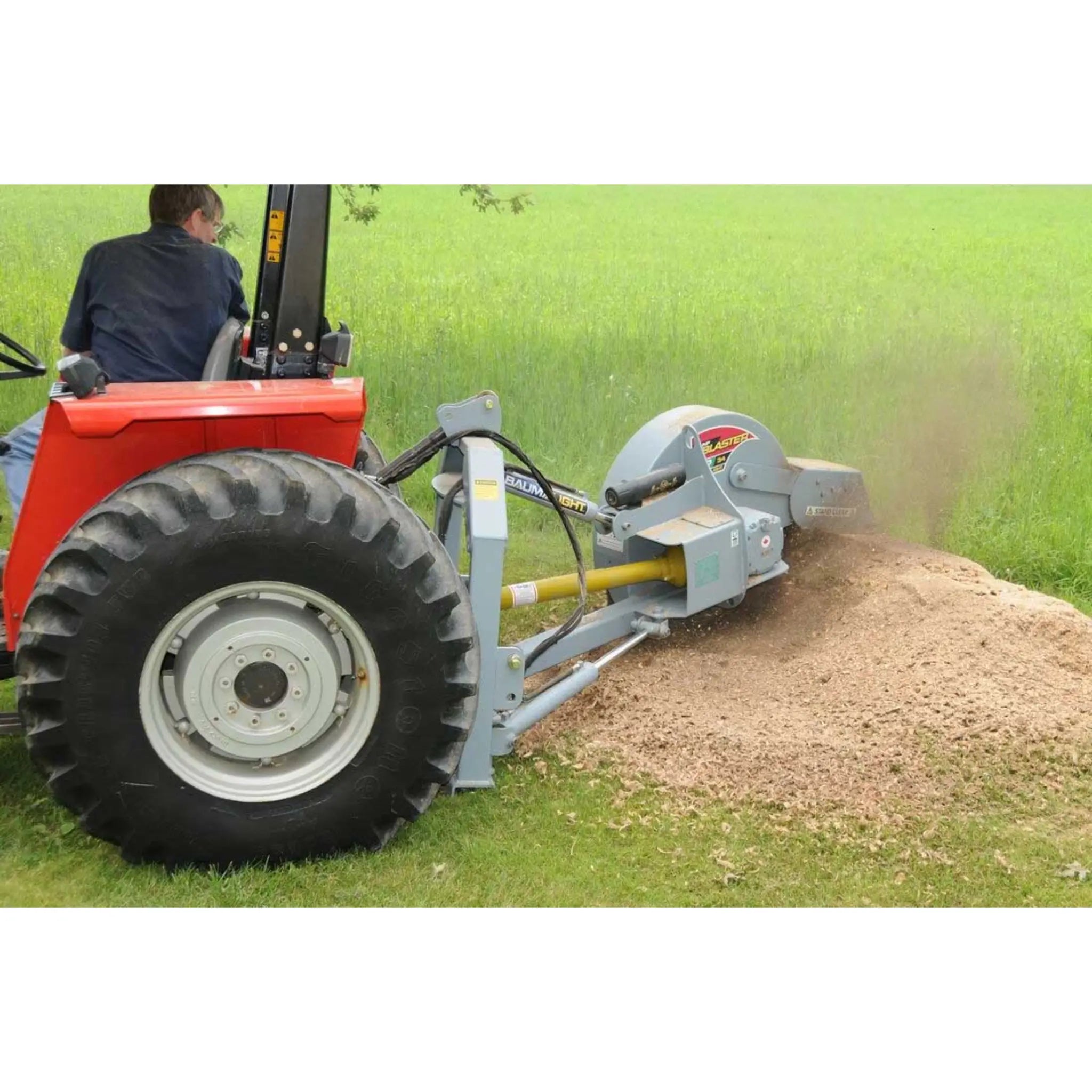

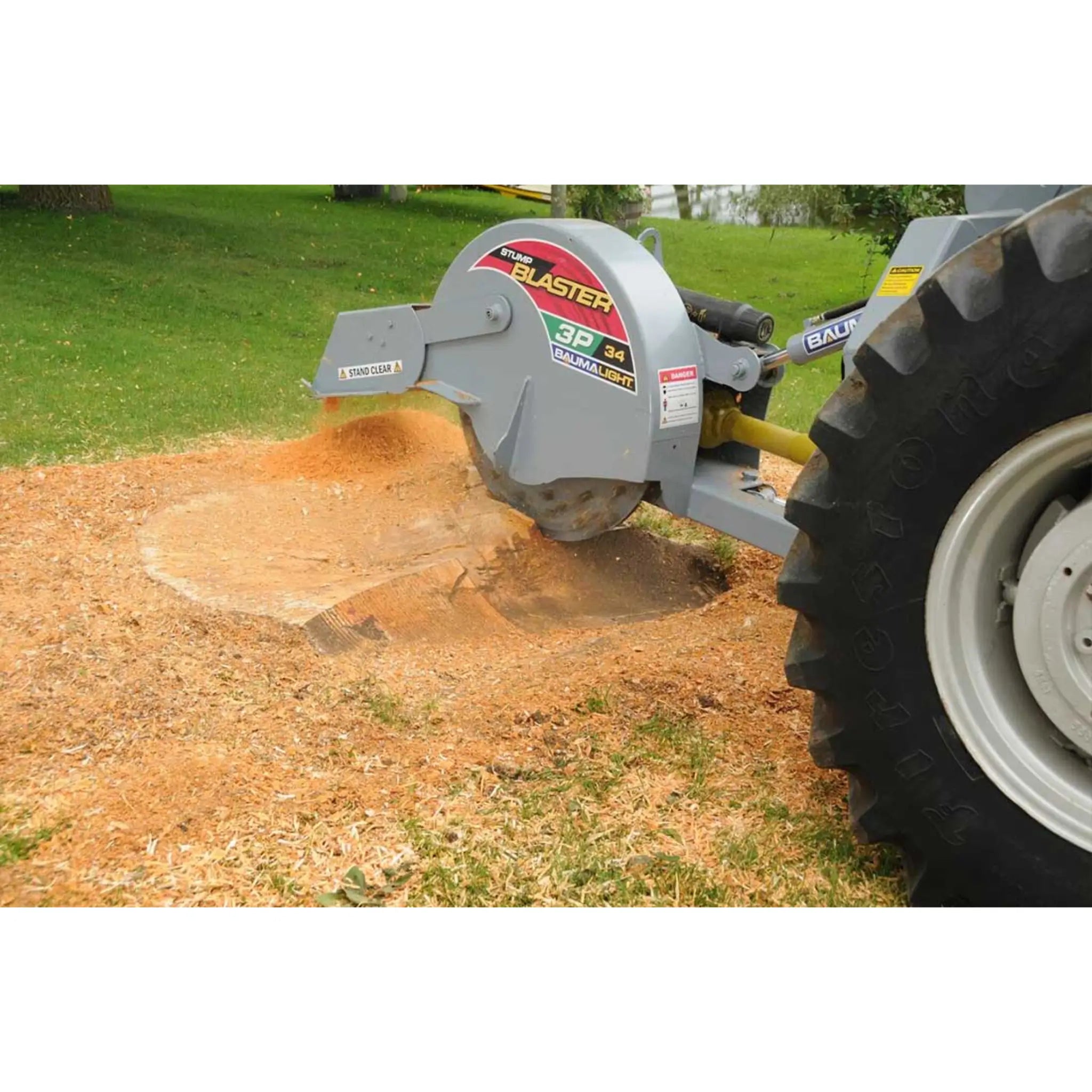

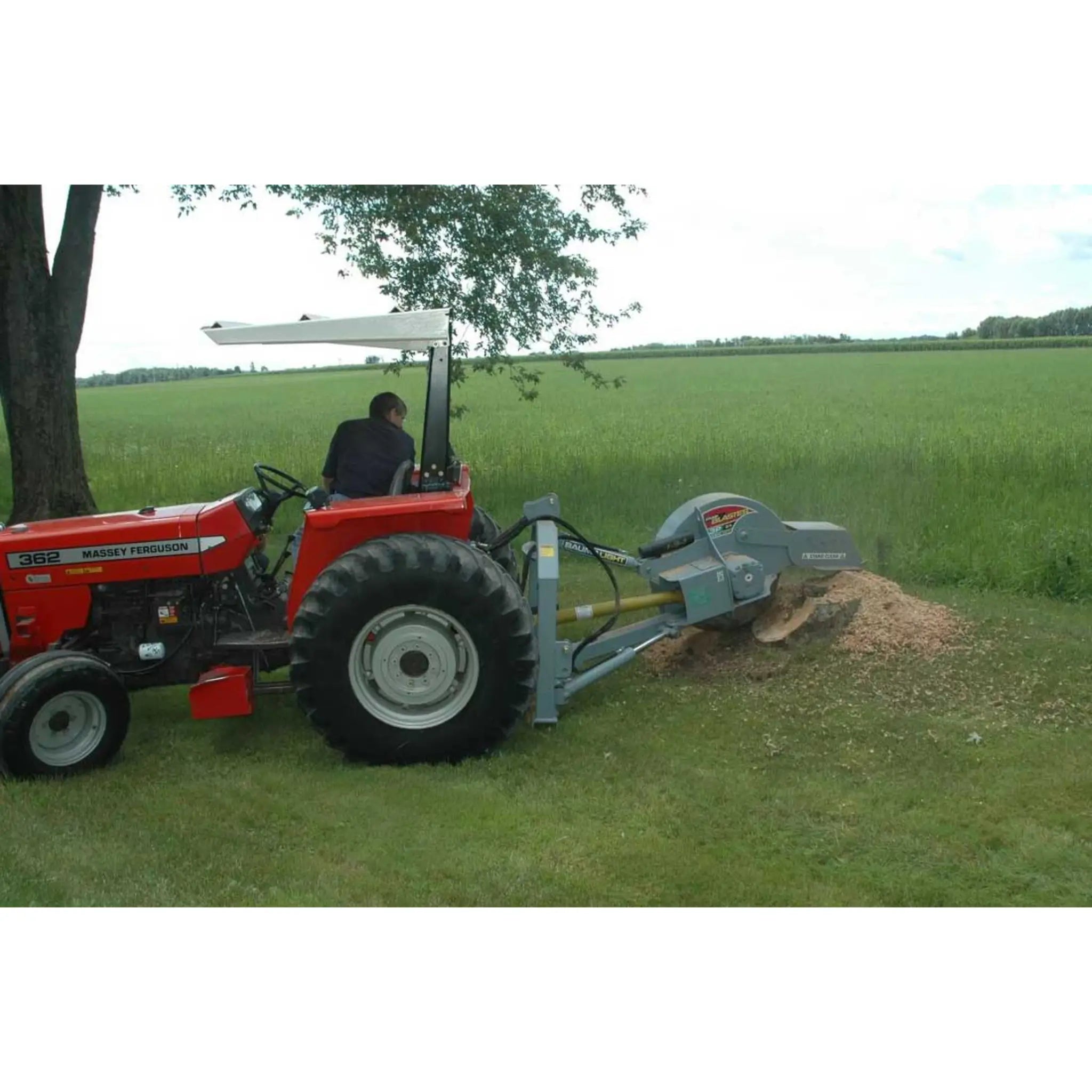

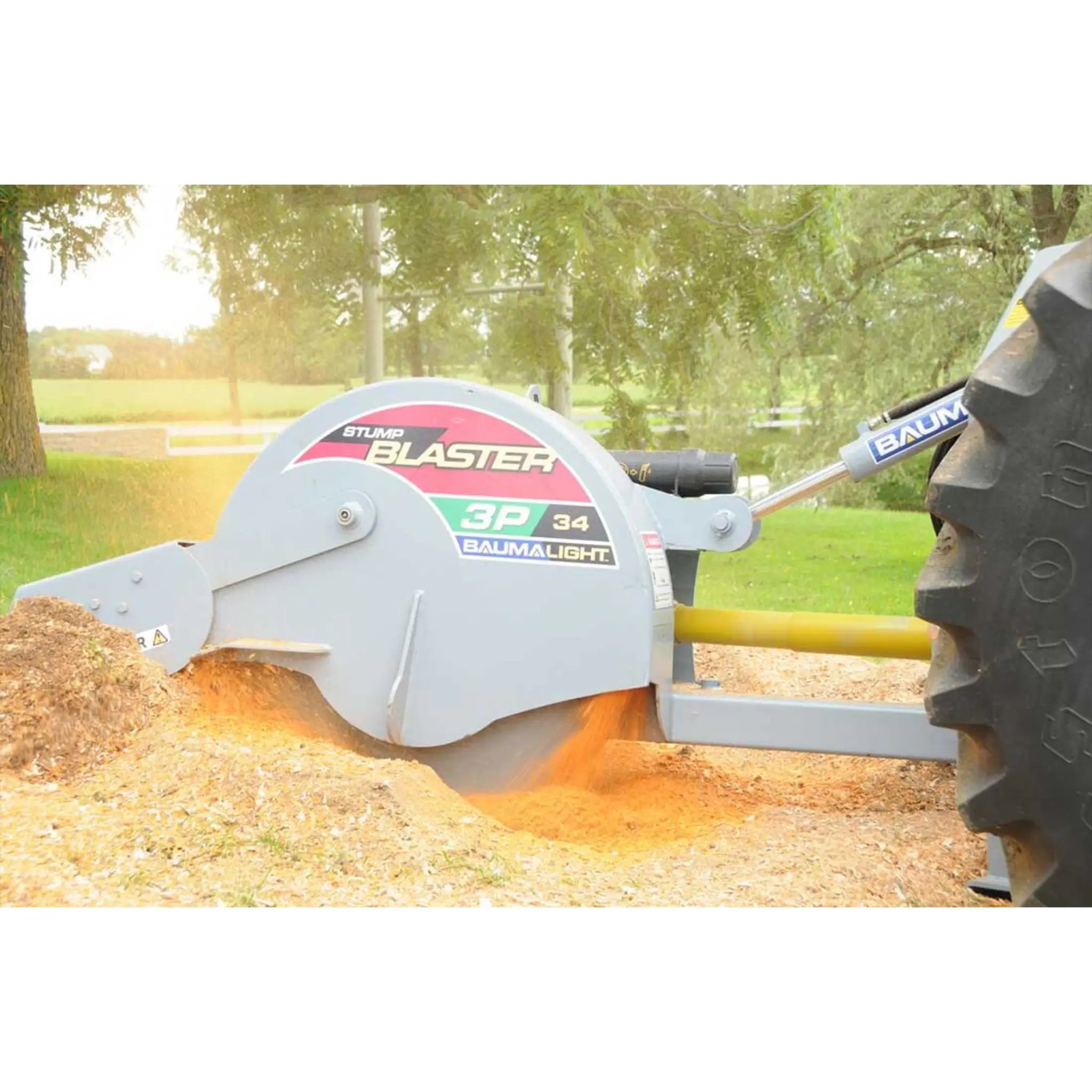

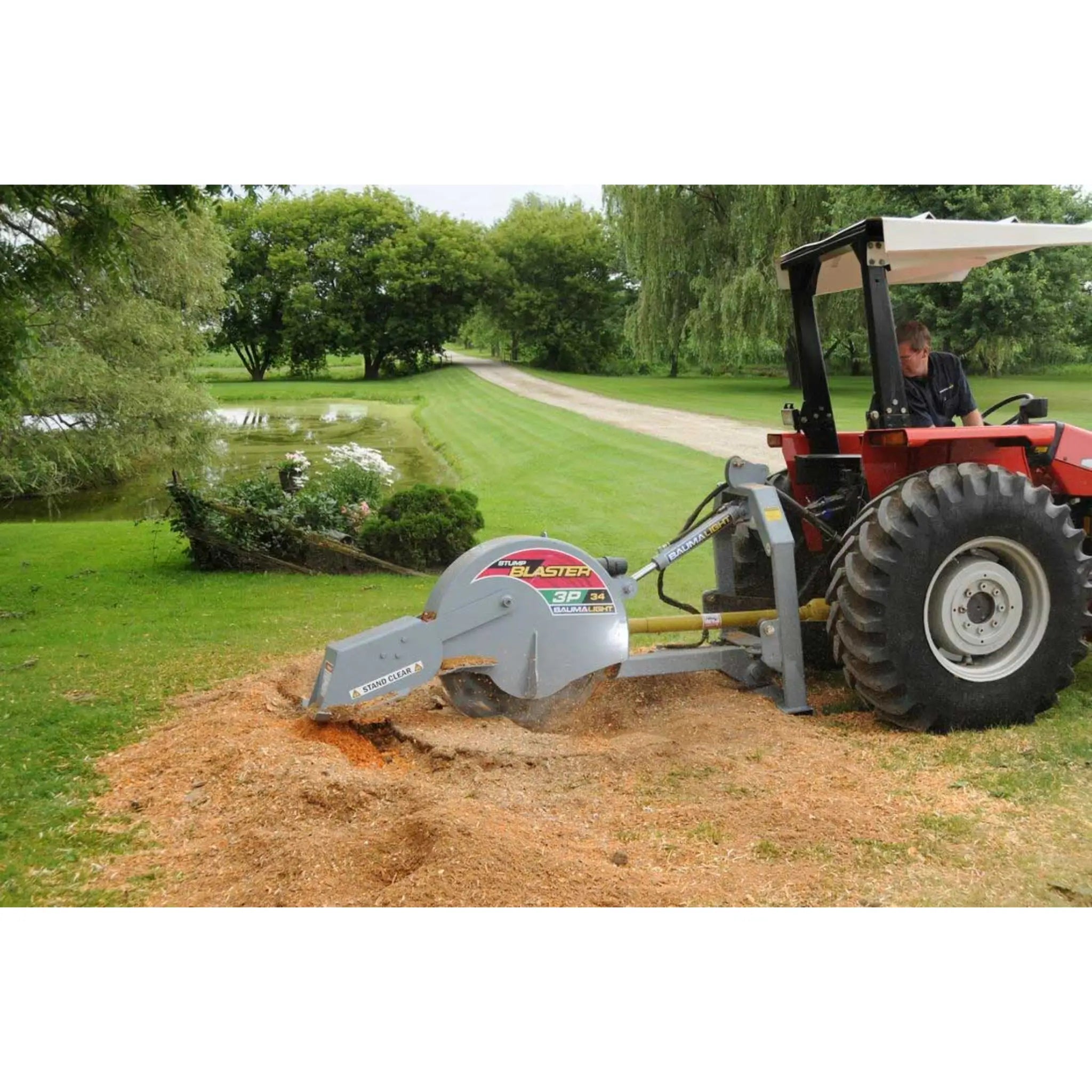

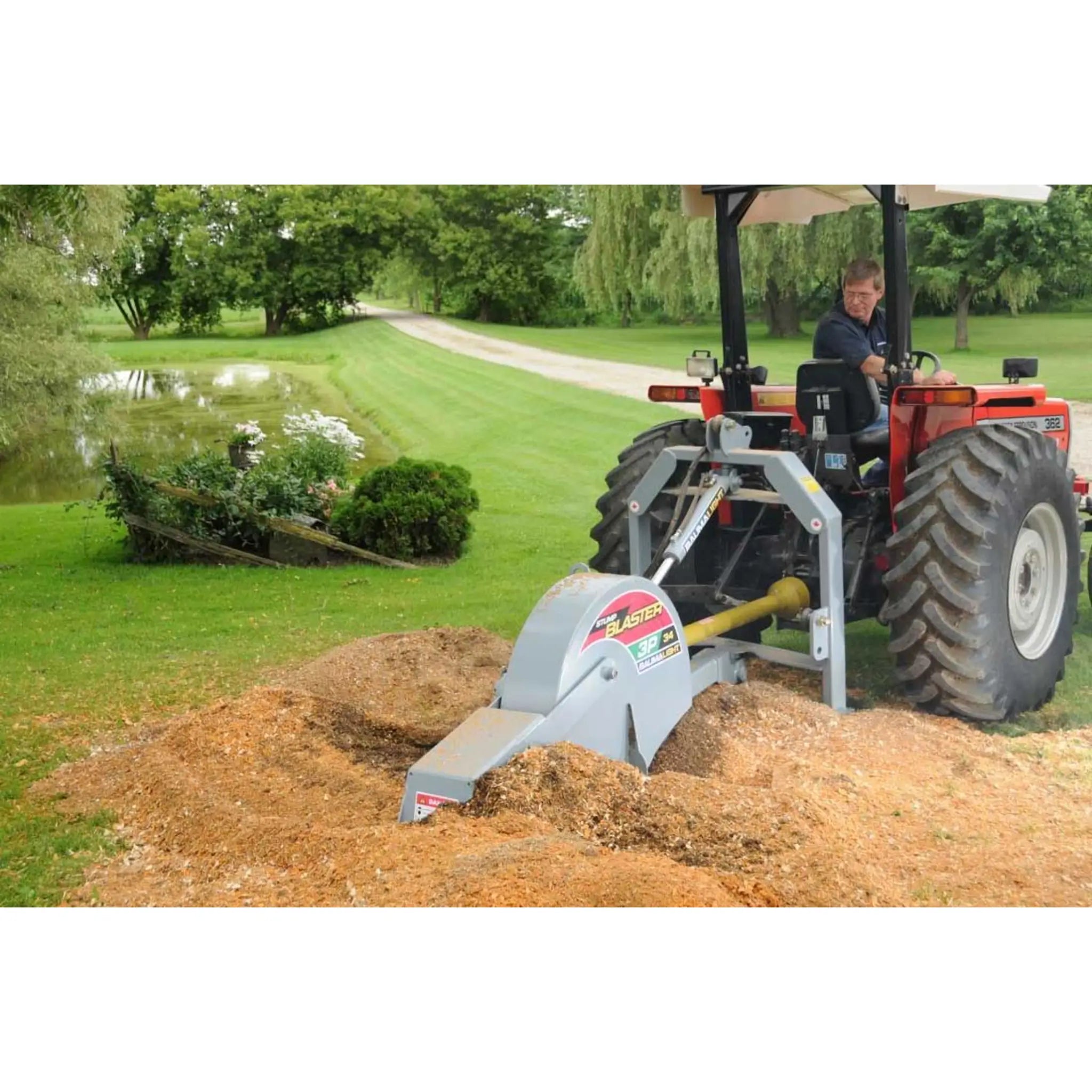

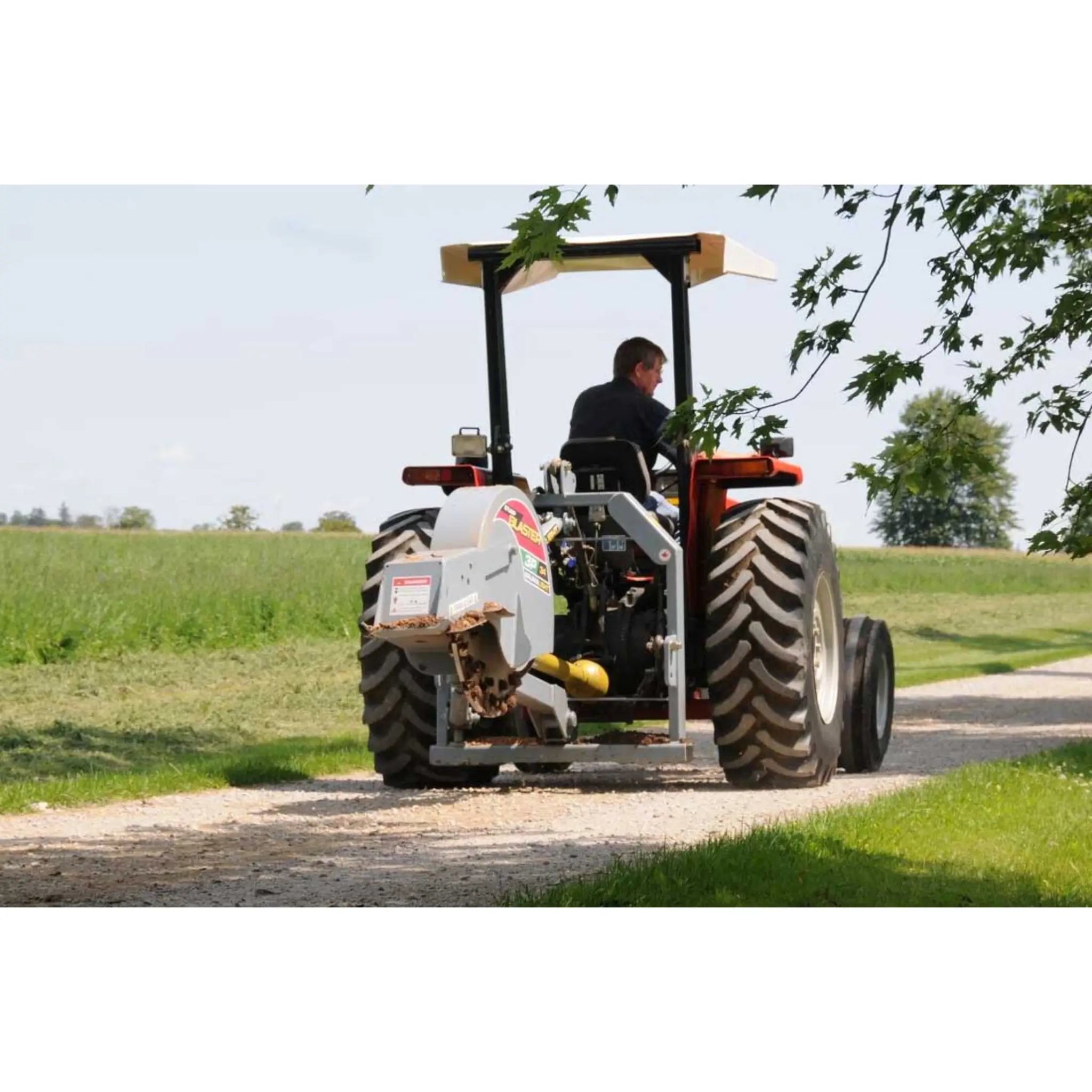

Baumalight 3P34 Stump Grinder For 50-80 HP Tractors - BML-3P34-S1050-NT
Harness the power of your tractor with the Baumalight 3P34 Stump Grinder, designed for tractors with 50–80 HP. Featuring a robust 34" rotor with 54 replaceable carbide teeth, this model grinds through stumps with precision. It boasts a rugged gearbox that handles up to 80 HP and delivers 803 ft/lbs of torque, efficiently grinding a 30" stump in just minutes.

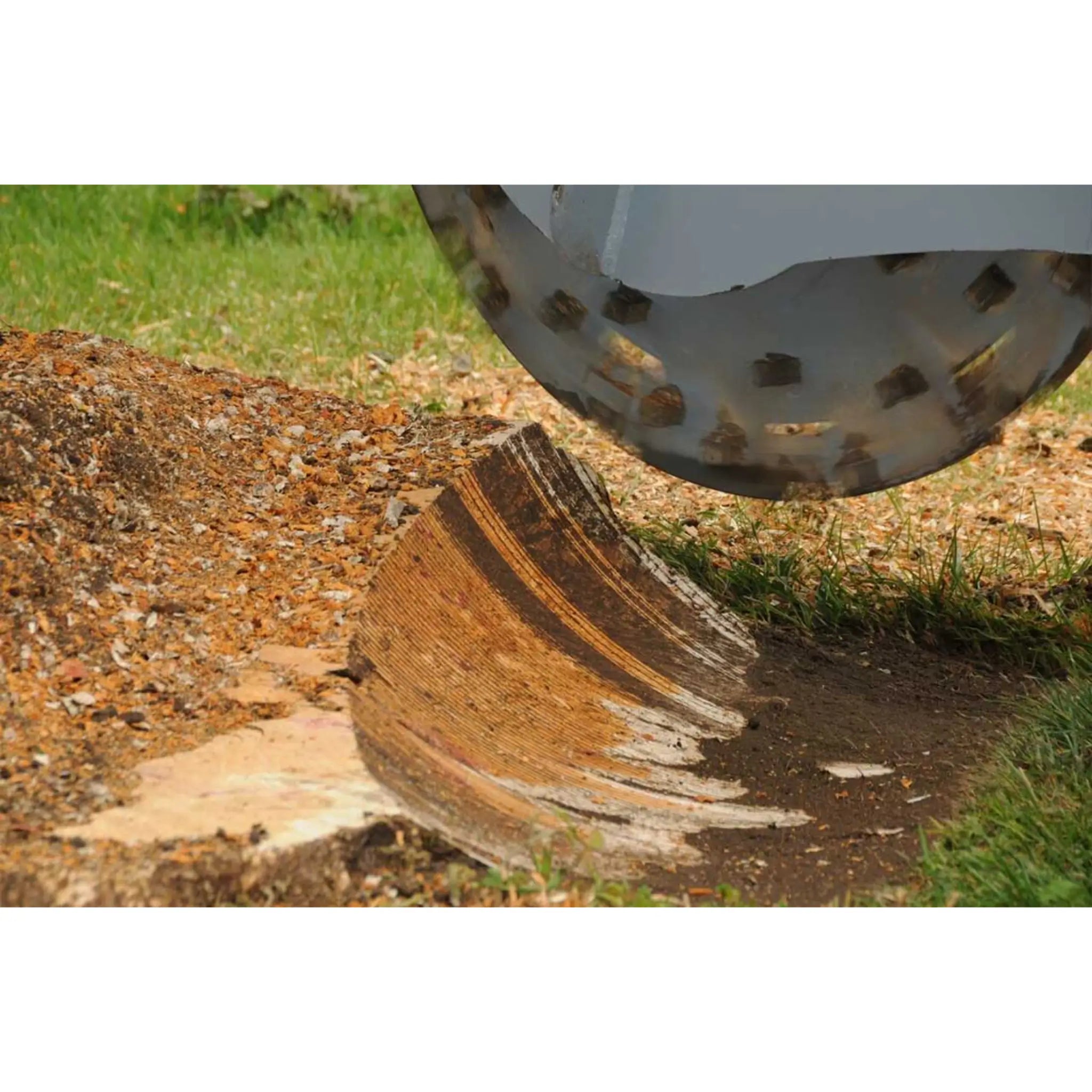

Experience the fantastic efficiency and rugged reliability of the Baumalight 3P34 3-Point Hitch Stump Grinder, specifically engineered for tractors with 50–80 horsepower. This powerhouse features a robust 34" rotor embedded with 54 replaceable carbide teeth. The design ensures that each tooth extends 1-¼ inches from the rotor, maximizing clearance and preventing clogs from chips and mulch. It's designed to annihilate stumps of up to 30" in width and 12" in depth in just minutes, maintaining its performance across horsepower ranges.
The 3P34 isn't just powerful; it's built to last. The heavy-duty gearbox withstands up to 80 HP and delivers an impressive 803 ft/lbs of torque, driving the massive ¾" thick steel rotor that acts as the backbone of the Stump Blaster cutting system. This solid, no-flex rotor maintains stability and enhances the momentum necessary for grinding through even the toughest stumps. Plus, for smooth operation and minimal wear on your tractor, the grinder features a sturdy base and high-grade chrome-vanadium AISI 6150 steel spring bushings at all main pivot points.
This model, designed for Cat 2 3PH and 540 PTO, represents all of Baumalight's stump grinding innovation, providing both power and finesse to tackle any challenge in the field.
| Model No. | 1P24 | 3P24 | 3P34 | 3P40 |
|---|---|---|---|---|
| Recommended HP Size | 20-45 | 25-55 | 45-80 | 60-120 |
| Maximum Engine HP | 50 | 58 | 85 | 125 |
| Maximum PTO HP | 40 | 50 | 75 | 115 |
| Transmission | Hydrostatic only | Any | Any | Any |
| Hydraulic GPM | -- | 5–20 | 5–20 | 5–20 |
| Rotor Size | 24" | 24" | 34" | 34" |
| Number of Teeth | 34 | 34 | 54 | 54 |
| Tooth Part number | S1000 | S1000 | S1000 | S1000 |
| Tooth Construction | Carbide steel bolt-in | Carbide steel bolt-in | Carbide steel bolt-in | Carbide steel bolt-in |
| Cutting Wheel Speed | 540 RPM | 810 RPM | 810 RPM | 1000 RPM |
| Cutting Height - Above Ground | 10" | 18" | 25" | 25" |
| Cutting Depth - Below Ground | 6" | 8" | 14" | 14" |
| Maximum Cutting Depth - Per Pass | 5" | 6" | 9" | 9" |
| Maximum Horizontal Cut | 22" | 22" | 32" | 32" |
| Swing Arc | 0° | 65° | 65° | 65° |
| Hub Torque | 803 Ft.-Lbs. | 803 Ft.-Lbs. | 803 Ft.-Lbs. | 1050 Ft.-Lbs. |
| Over Torque Protection | Slip clutch | Slip clutch | Slip clutch | Slip clutch |
| Hitch | Cat I | Cat I or II | Cat II | Cat II |
| Quick hitch compatibility | Yes | No | No | No |
| No. of Remotes Required - Hydraulic | 0 | 1 or 2 | 1 or 2 | 1 or 2 |
| Requires 12 Volt DC | No | No | No | No |
| Input Speed | 540 | 540 | 540 | 1000 |
| Unit Weight (Shipping) Lbs. | 350 | 920 | 1231 | 1280 |
| Width (Shipping) | 48" | 42" | 48" | 48" |
| Length (Shipping) | 48" | 49" | 54" | 54" |
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Tractor HP | 20Hp | 30Hp | 40Hp | 60Hp | 70Hp | 80Hp | 90Hp | 120Hp |
| -- | 30 min | 20 min | 15 min | -- | -- | -- | -- | -- |
 |
||||||||
| Tractor HP | 20Hp | 30Hp | 40Hp | 60Hp | 70Hp | 80Hp | 90Hp | 120Hp |
| -- | -- | 15 min | 12 min | 10 min | -- | -- | -- | -- |
 |
||||||||
| Tractor HP | 20Hp | 30Hp | 40Hp | 60Hp | 70Hp | 80Hp | 90Hp | 120Hp |
| -- | -- | -- | -- | 6 min | 5 min | 4 min | -- | -- |
 |
||||||||
| Tractor HP | 20Hp | 30Hp | 40Hp | 60Hp | 70Hp | 80Hp | 90Hp | 120Hp |
| -- | -- | -- | -- | 6 min | 5 min | 4 min | 3 min | 2 min |
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
