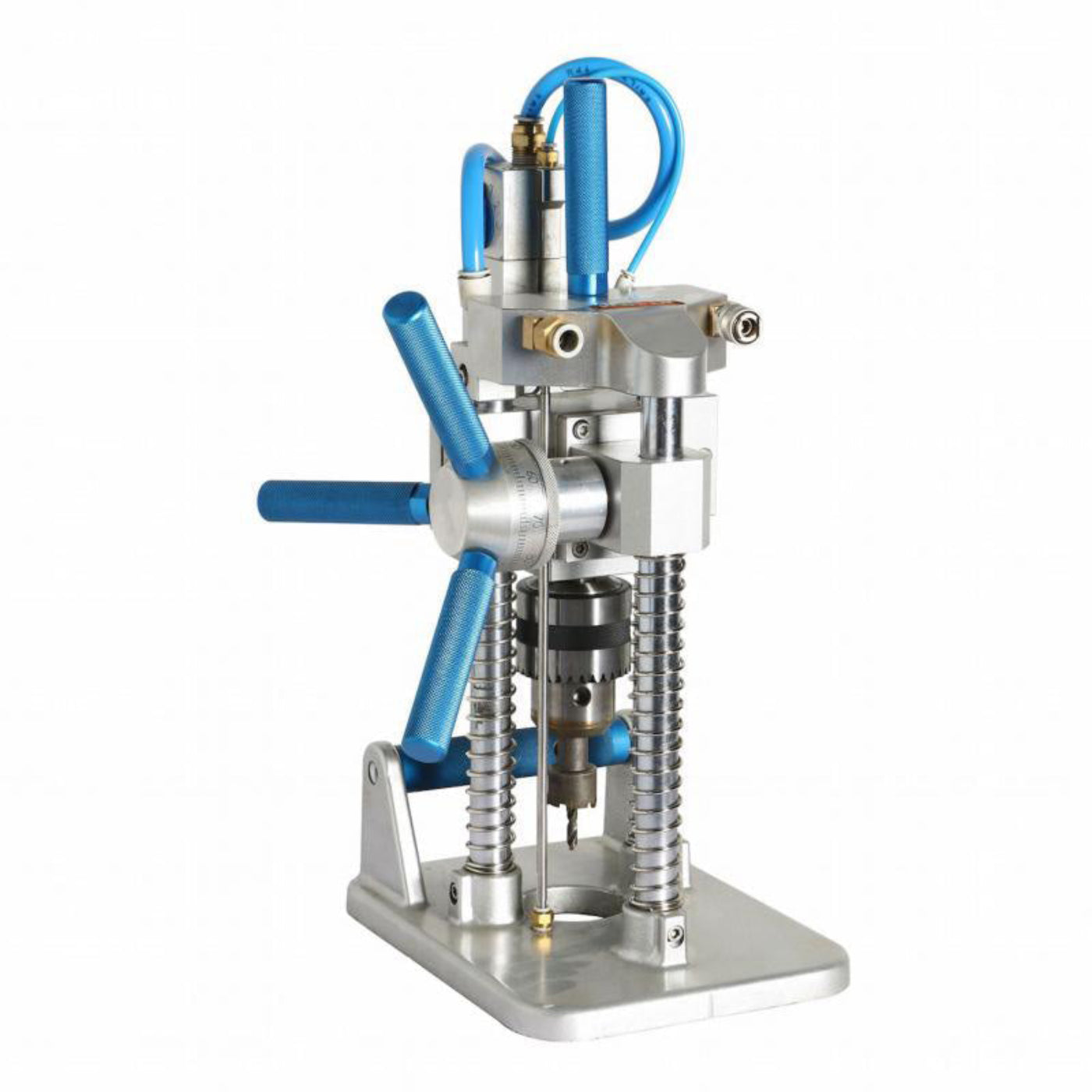

Aardwolf Portable Air Drill Machine - APADM
The Aardwolf Portable Air Drilling Machine is a lightweight, versatile drill made of aluminium to reduce weight. It features an integrated vacuum base, making it instantaneous to set up with no need for anchoring or clamping. The Aardwolf Air Drilling Machine quickly attaches to both smooth and rough flat surfaces once the vacuum is applied. This drilling machine is suitable for use on vertical and horizontal surfaces, whether the surface is cement, stone, glass or metal. The vacuum base provides stability.
Features
- The machine has stepless speed regulation and the max free speed is 1,200rpm.
- Conveniently placed water nozzle ensures that the drill bit is kept cool during drilling.
- The Drilling Depth Control design can show or set the depth that you are drilling.
- Three-speed control switch.
- The Aardwolf Portable Drilling Machine has an integrated vacuum base that can be mounted on cement, stone, glass or metal.
Specifications
|
Metric |
Imperial |
| Net weight |
10 kg |
22 lb |
| Gross weight |
14 kg |
31 lb |
| Packaging dimensions |
L.260xW.260xH.535 mm |
L.10.2"xW.10.2"xH.21" |
What Our Experts Think
-
Integrated Vacuum Base: Secures firmly to surfaces like cement, stone, glass, or metal without the need for clamps, making it versatile for both vertical and horizontal use.
-
Adjustable Speed: Features stepless speed regulation, allowing precise control up to 1,200 rpm, ideal for different materials and tasks.
-
Drilling Depth Control: Ensures accurate and consistent drilling depth for professional results every time.
-
Cooling System: Equipped with a water nozzle to keep the drill bit cool during operation, enhancing efficiency and prolonging tool life.
-
Multiple Speed Settings: Includes a three-speed control switch to customize performance based on material and requirements.
-
Lightweight & Durable: Constructed from lightweight aluminum, this drill is easy to handle without sacrificing durability.
Q&A
Q: What is the Aardwolf APADM used for?
A: A pneumatic drilling machine designed for precise drilling into stone, glass, metal, and concrete surfaces.
Q: What is the max drilling capacity?
A: Supports drill bits up to 125 mm long with a maximum bore size of 50 mm.
Q: What are the technical specs?
A: Operates at 6.3 kgf/cm² (90 psi), with 0.56 m³/min air consumption. Weighs 10 kg and measures 233 x 233 x 392 mm.
Q: Can it be used on vertical surfaces?
A: Yes, the vacuum base allows secure use on both vertical and horizontal surfaces, smooth or rough.
Q: Where can I buy the APADM?
A: Available through authorized dealers and online suppliers.
Maintenance Tips
-
Daily Lubrication: Add a few drops of pneumatic tool oil into the air inlet before and after use to reduce internal wear.
-
Use Clean, Dry Air: Operate with moisture-free, filtered air to prevent rust and internal damage.
-
Maintain Air Pressure: Keep air pressure at the recommended 6.3 kgf/cm² (90 psi) to avoid damaging the motor.
-
Clean Vacuum Base and Seals: Wipe down the vacuum base and rubber seals to ensure a strong, consistent grip.
-
Inspect Water Nozzle: Check the water nozzle regularly for clogs to maintain cooling during drilling.
-
Check for Leaks: Inspect hoses and fittings for air leaks and replace any worn or damaged parts.
-
Proper Storage: Store in a dry, clean area to avoid dust buildup and moisture exposure.
