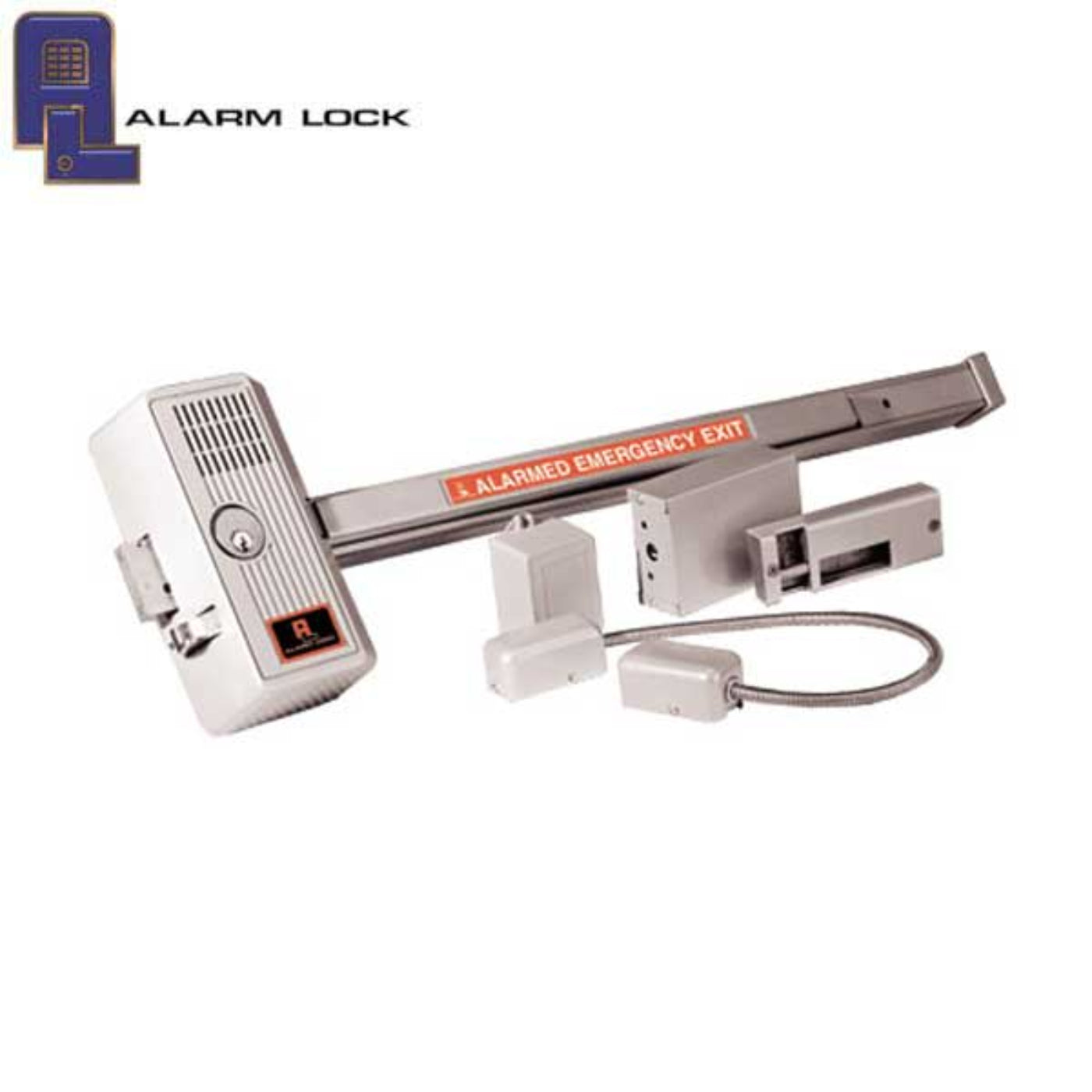

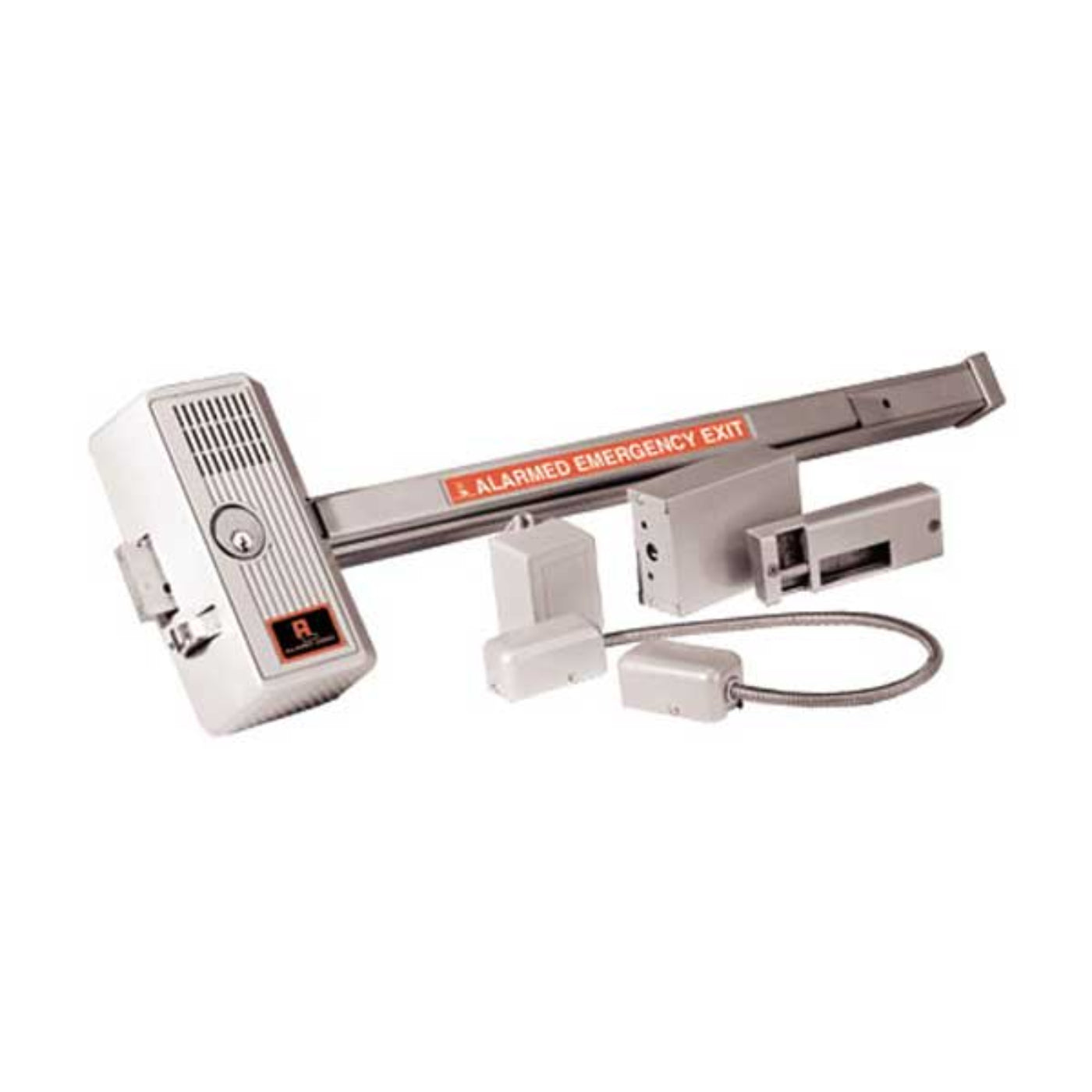

Alarm Lock Sirenlock Delayed Egress Exit Alarm - 15 Sec. Delay - 36" - Aluminum - ALL-715x28x88
Alarm Lock’s Sirenlock model 715 is a UL listed panic alarm deadbolt device which restricts unauthorized use of exit doors, delaying egress while sounding an alarm. Provides instant egress in emergencies per life safety code.
Features
- Offers stylish, cost-effective control of unauthorized use of exit doors
- 15 second delayed egress with instant 95db Dual Piezo alarm (meets UL specifications)
- Instant alarmed exit in case of actual emergency or fire (meets NFPA 1012 Life Safety Code)
- Easy-to-install, surface mount unit in a standard panic bar deadbolt/deadlatch design
- Monitoring output for simultaneous use of CCTV camera, secondary siren, remote monitoring console, etc.
- Smoke detector input can be used to power existing system or standalone smoke detector(s) (Includes armored door cord and cables for wiring)
- 9V battery back-up powers in event of power failure
Specifications
| Function: |
Push Bar |
| Material |
Extruded aluminum channel with activation bar |
| Power: |
12Vac, 20VA Transformer; 9Vdc Alkaline Battery
(Alarm Standby) |
| Current: |
775mA max.; Alarm Circuit, Battery Only (Ac
Failure): Standby, 20µA typ.; Alarm, 75mA typ |
| Standby: |
1 year typ. |
| Battery Life: |
200 alarm sequences typ. or constant alarm for
7 hours typ |
| Deadbolt: |
Full 1” throw deadbolt with rotating steel inserts |
| Strike: |
Single Door Strike |
| Latch Release Time: |
13-15 seconds |
| Auto Alarm Shutdown: |
2 minutes typ |
| Sound pressure Level: |
95dB measured at 10 ft. |
| Mounting Height: |
Center of unit should be approximately 38” from the
floor |
| Operating Temp: |
20 to 135°F (-7 to 57°C) |
| Finish: |
US28 Aluminum |
| Dimensions: |
Lock: 8½” x 33” x 3¼”
Control Box: 5” x 3½” x 2 |
| Certifications: |
Meets NFPA101 Life Safety Code |
Downloads
What Our Experts Think
-
15-second delay exit alarm for controlled egress
-
36" length suitable for standard doors
-
Durable aluminum finish
-
Ideal for securing exits while complying with egress safety regulations
Q&A
Q: What is the Alarm Lock Sirenlock Delayed Egress Exit Alarm (ALL-715x28x88)?
A: The Alarm Lock Sirenlock 715 is a 36-inch delayed egress exit alarm device designed to secure emergency exits, preventing unauthorized egress with a 15-second delay before the alarm sounds.
Q: What is the delay time for the alarm?
A: The device triggers a loud siren after a 15-second delay, giving time for personnel to respond before exit.
Q: What is the primary application for this device?
A: It is used for securing emergency exits in schools, hospitals, retail stores, and commercial buildings to control unauthorized exits while complying with fire safety regulations.
Q: What is the finish of this alarm?
A: It comes in a durable aluminum finish, providing a sleek appearance and corrosion resistance.
Q: What are the key features of this alarm?
A: It features a loud siren, a 15-second exit delay, compatibility with other access control systems, and is designed for easy installation on 36-inch wide doors.
Q: Is the Sirenlock compliant with safety standards?
A: Yes, it complies with NFPA 101 Life Safety Code requirements for delayed egress devices, making it suitable for use in various public spaces.
Maintenance Tips
-
Battery Replacement: Replace batteries every 1-2 years or when the low battery warning activates.
-
Test Delay Function: Periodically test the 15-second delay function to ensure it is operating correctly.
-
Siren Test: Regularly test the siren alarm to confirm it's functioning properly in emergency situations.
-
Clean Surface: Wipe down the lock and surrounding hardware with a soft cloth to maintain cleanliness.
-
Inspect for Damage: Regularly inspect the door and exit hardware for signs of wear or damage.
-
Firmware Updates: Check for firmware updates (if applicable) to maintain performance and security.
