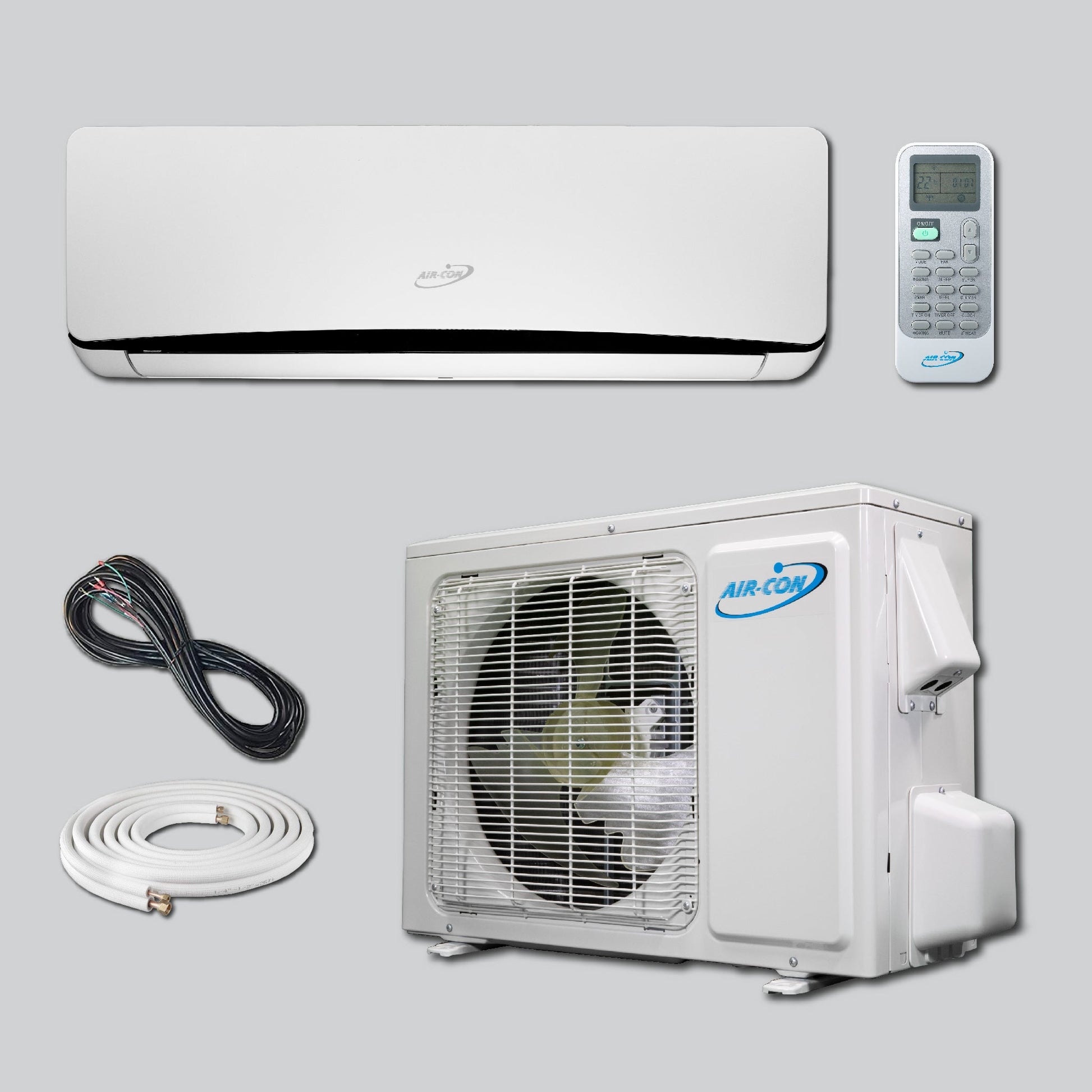

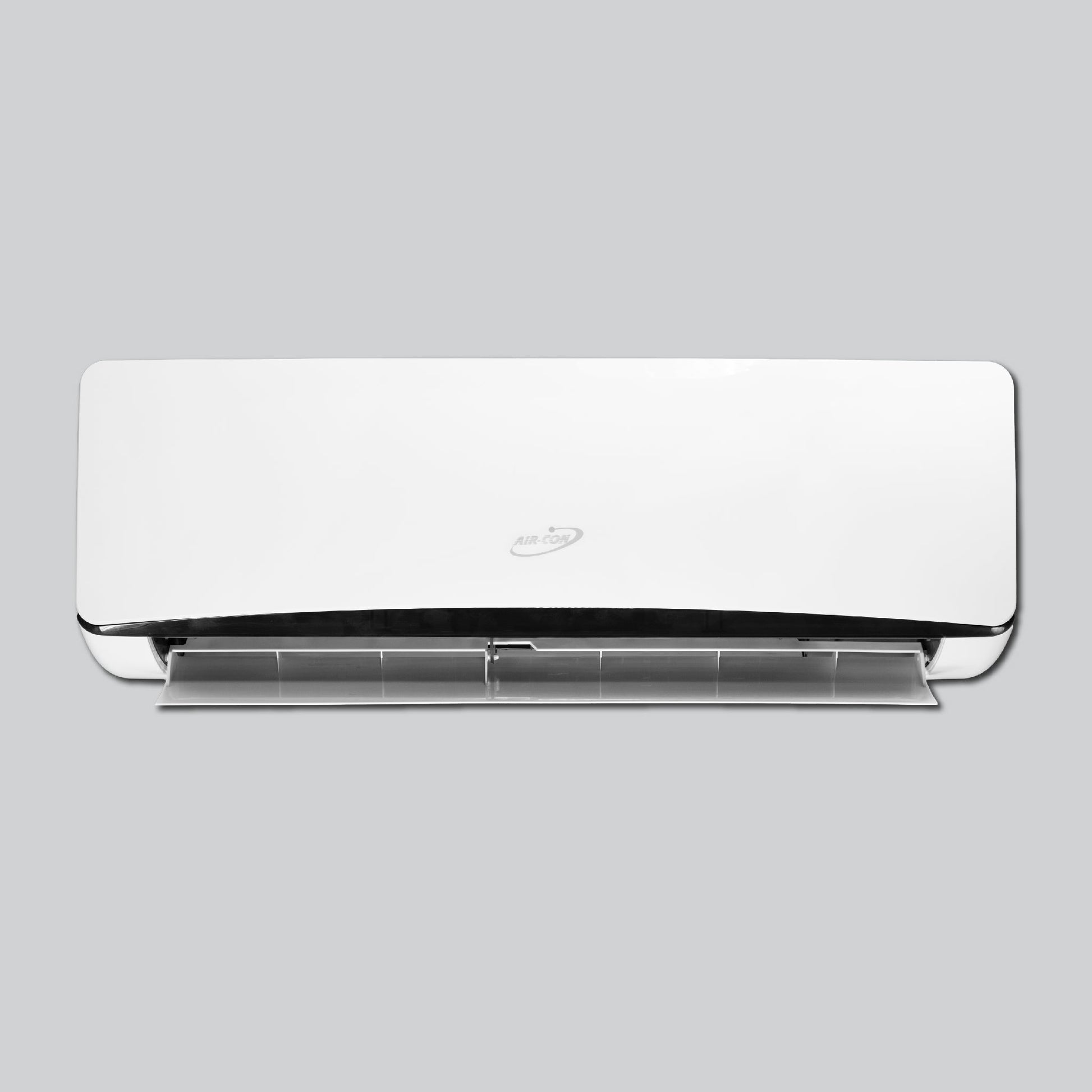

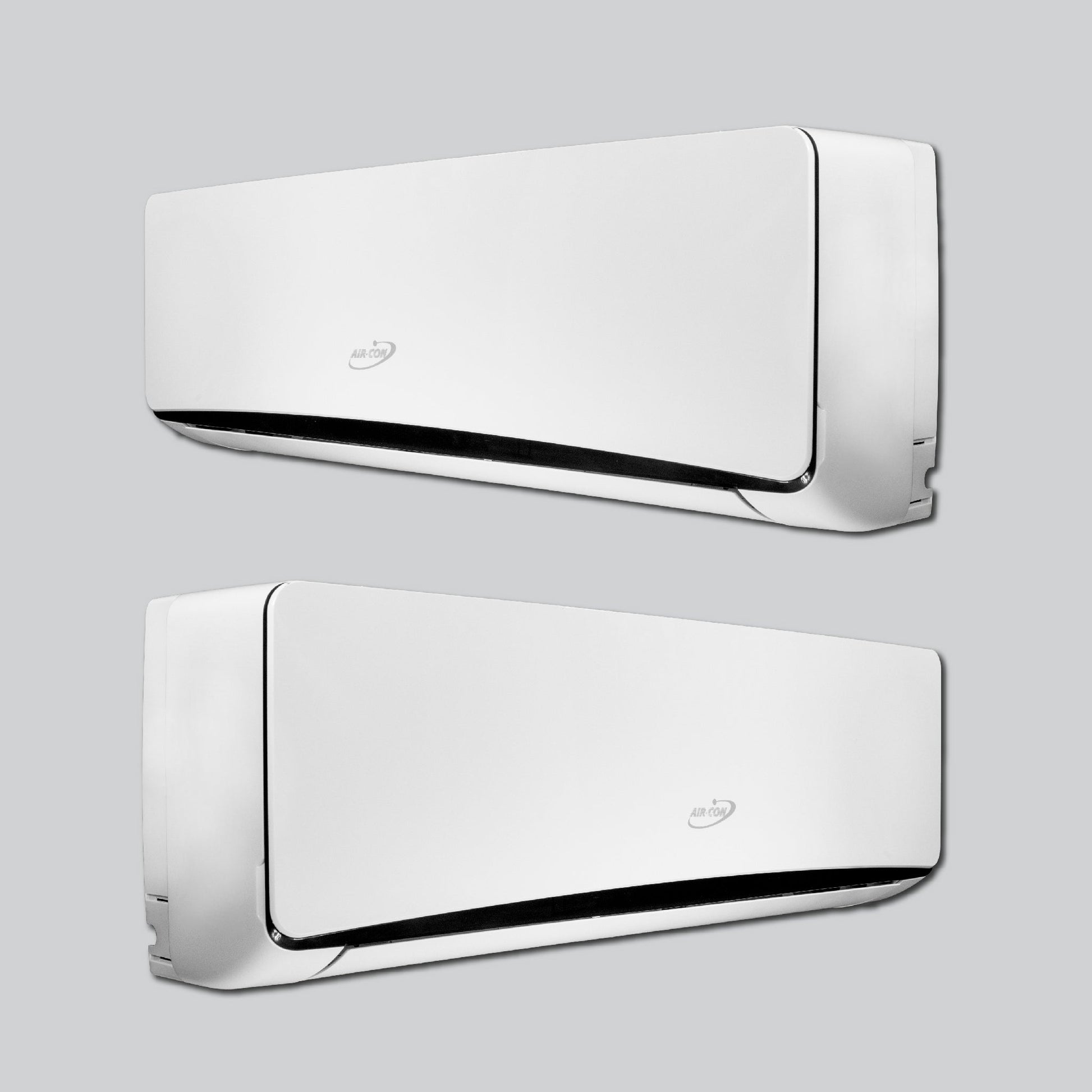

Air-Con Titanium 12000 BTU Ductless Mini Split Air Conditioner Heat Pump System 18 SEER 110-120V - ATUCI/EM4H1S12
Enjoy year round comfort with the ability to heat or cool your room or space with Air-Con Titanium series 12000 BTU ductless air conditioner.
Features
- Inverter technology to lower operating costs
- Turbo mode for fast heating and cooling
- Sleep mode for comfortable sleeping
- Auto clean prevents mildew
- Auto reset for power interruptions
- 24 hour timer with last-setting memory
- Dedicated dehumidifier
- Horizontal and vertical louver motion

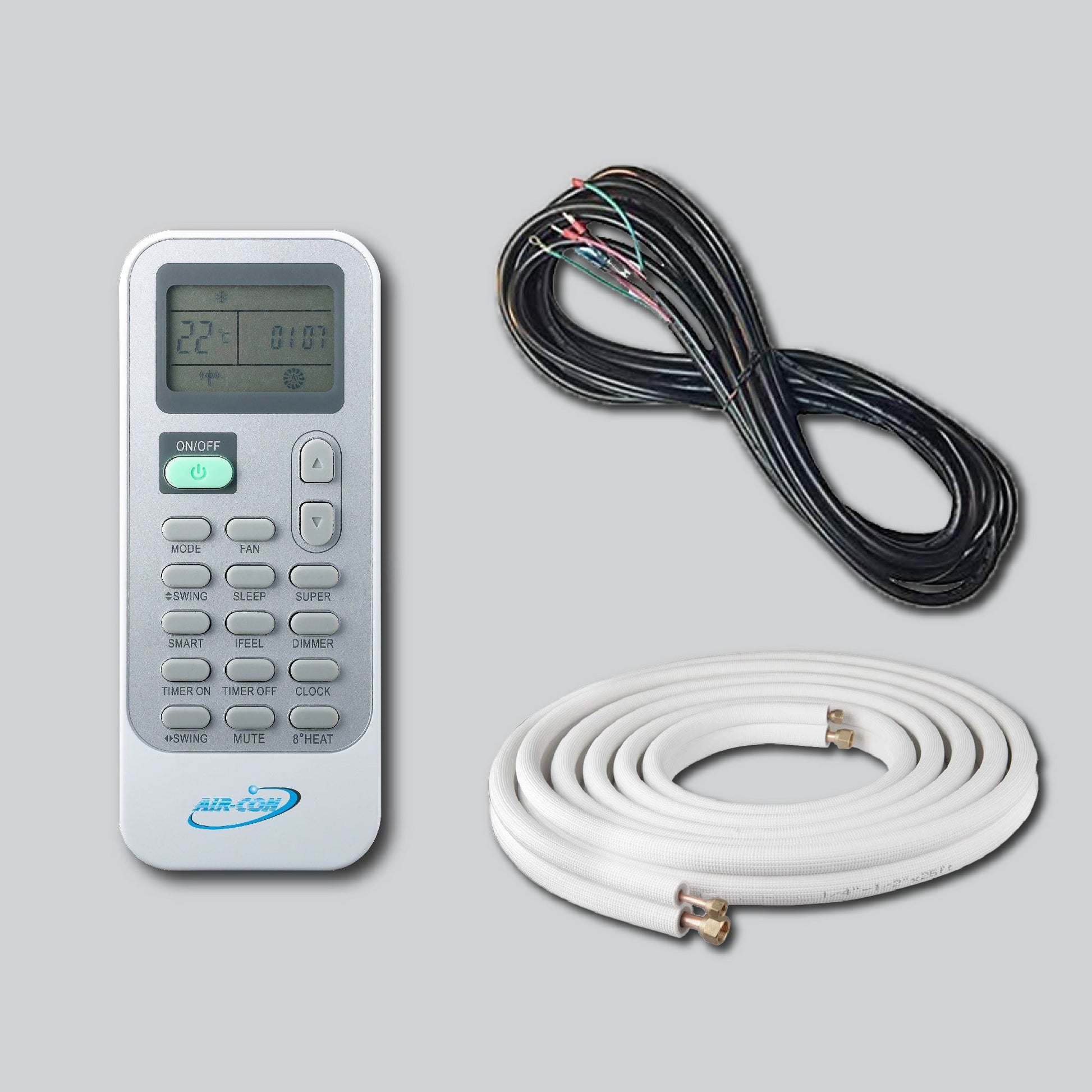

- WIFI ready with optional remote*
Specifications
| Model |
ATUCI4H1S12 / ATUEM4H1S12 |
| Voltage / Frequency / Phase |
110/115V - 60Hz - Single Phase |
| Cooling Capacity (BTU) |
12,000 |
| Heating Capacity (BTU) |
13,000 |
| Power Consumption (Watts) |
1,200 |
| Amperage (A) |
10.8 |
| SEER |
17.9 |
| HSPF |
9.35 |
| Operating Ambient Temperature |
5°F Cooling / -4°F Heating |

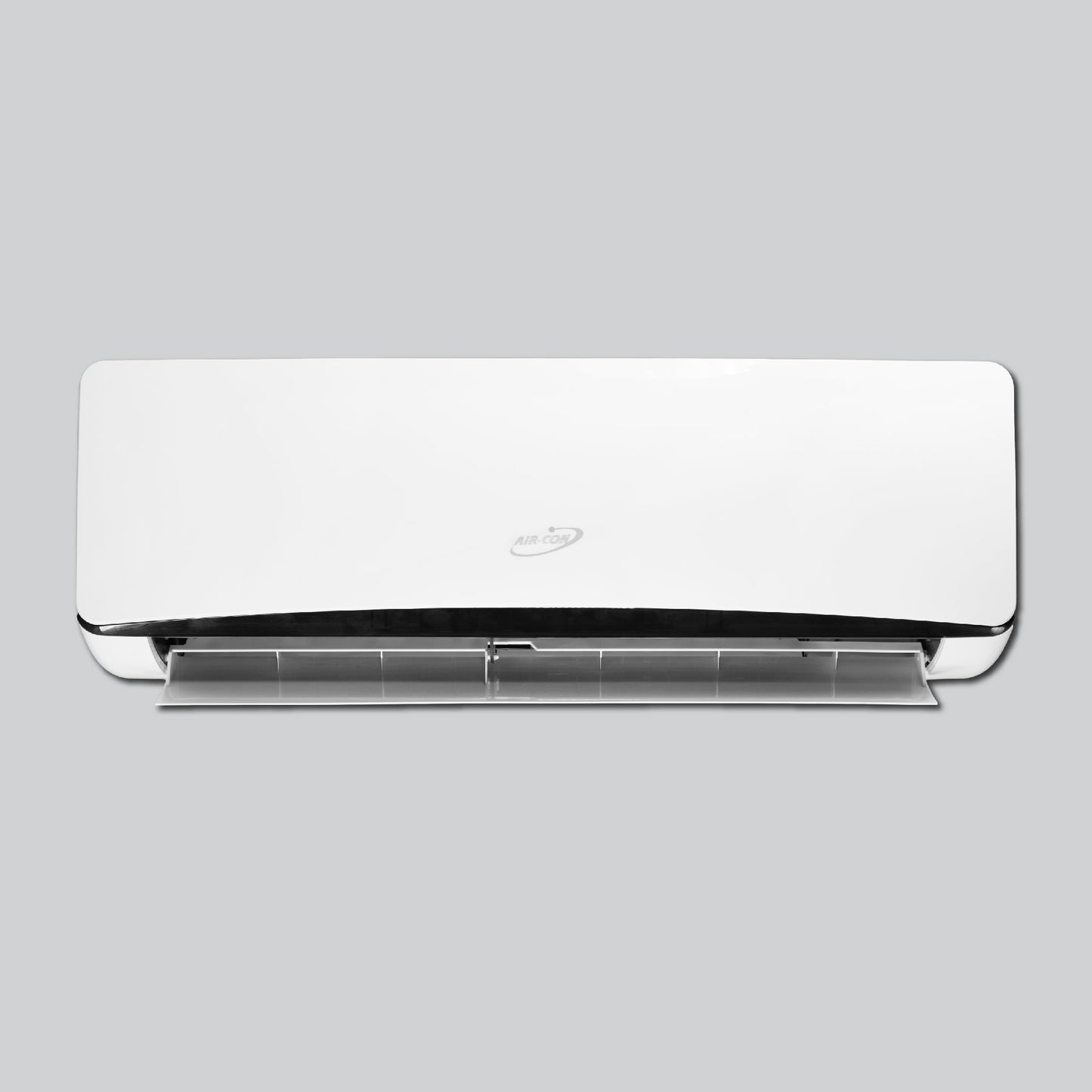

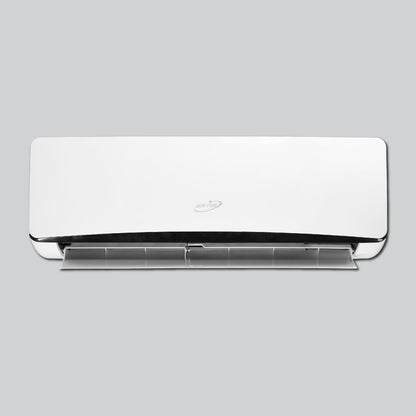

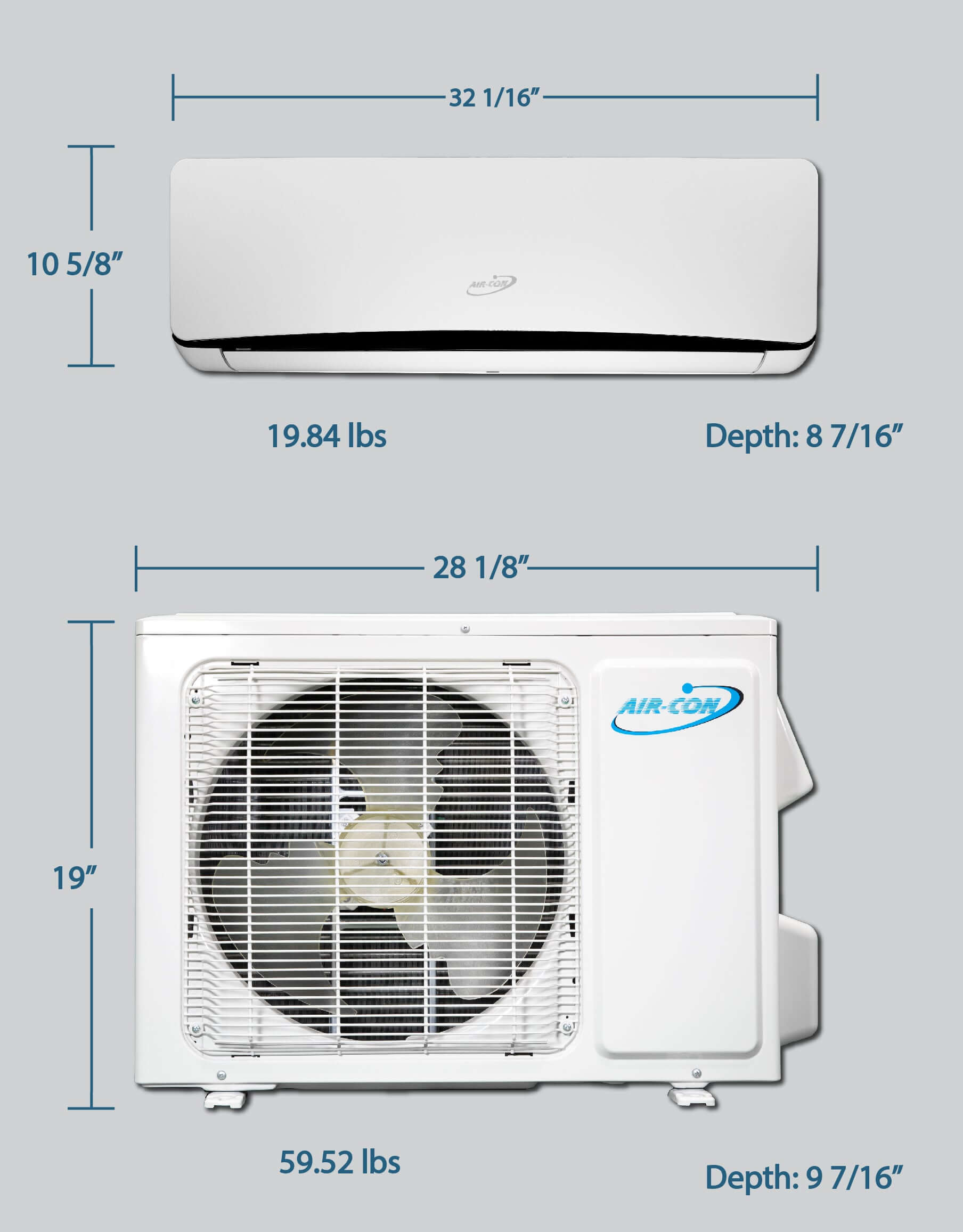

| Indoor Unit Dimensions (W x H x D) |
32 1/16" x 10 5/8" x 8 7/16" |

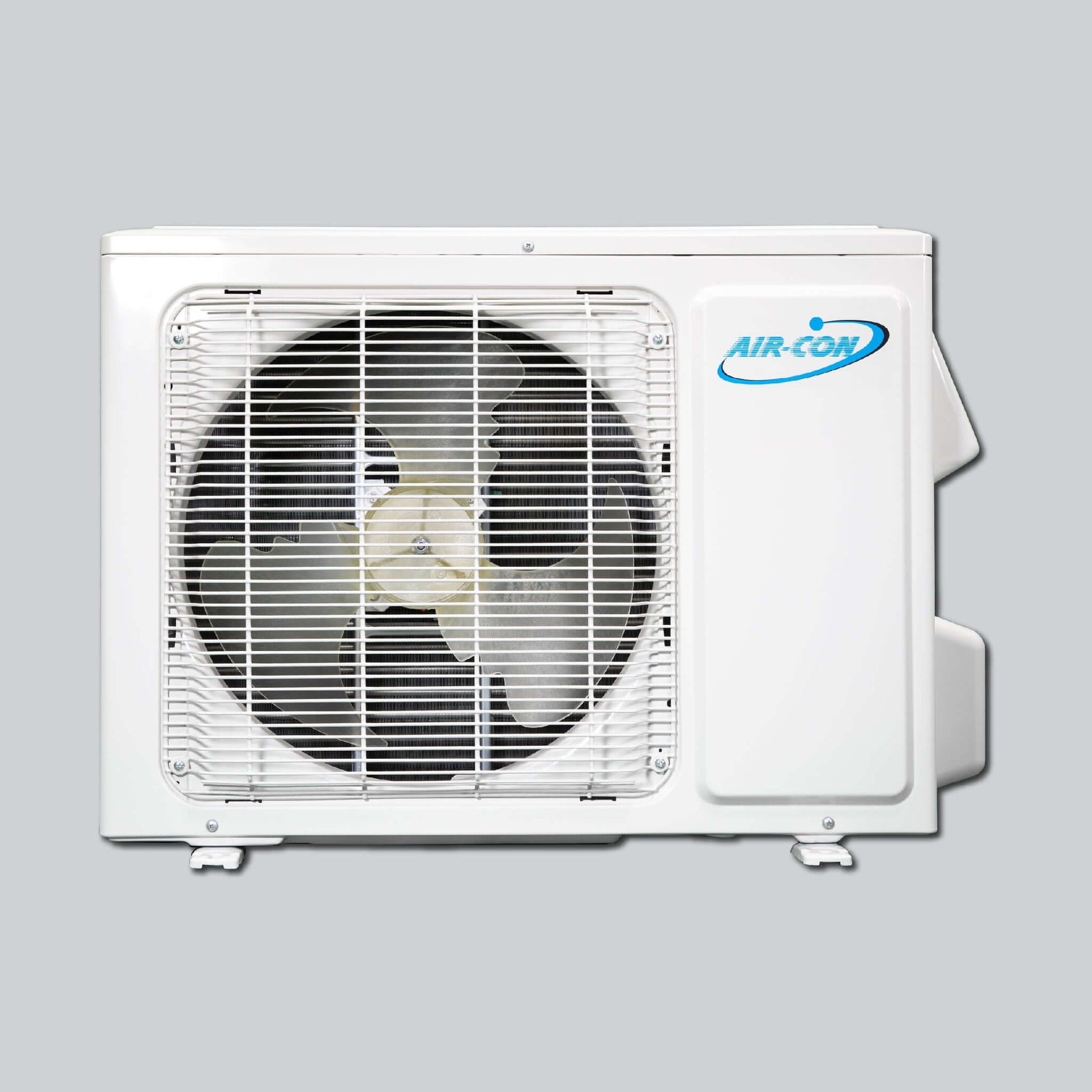

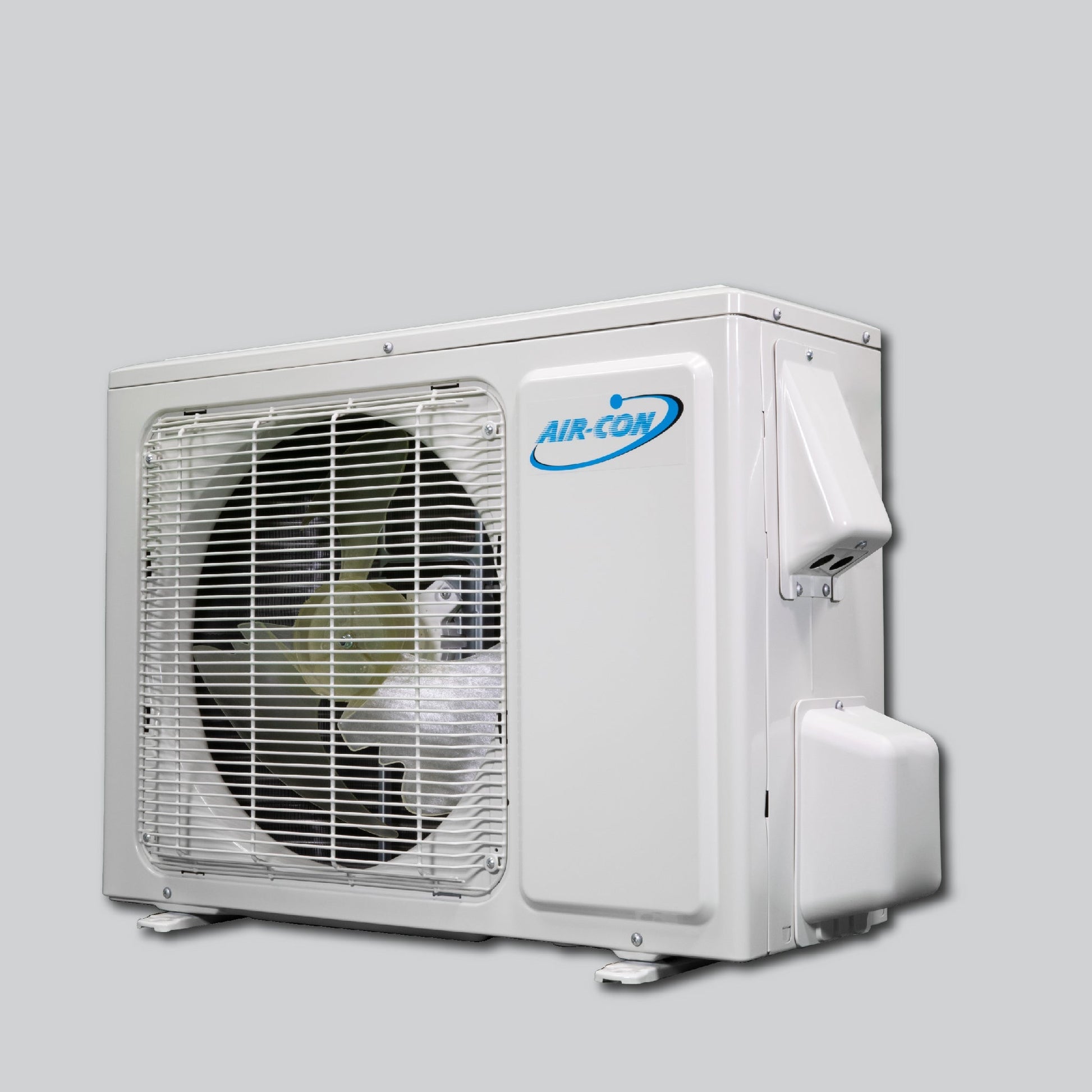

| Outdoor Unit Dimensions (W x H x D) |
28 1/8" x 19" x 9 7/16" |
| Lineset Size |
1/4" & 3/8" |
What our Experts Think
-
Ideal for Small to Medium Rooms: Perfect for spaces up to 600 sq. ft., such as bedrooms, offices, or small living areas.
-
Efficient Year-Round Comfort: Provides both cooling and heating, with heating capabilities down to -4°F, ensuring consistent comfort in various climates.
-
Energy Efficient: Achieves an 18 SEER and 9.35 HSPF rating, helping to reduce energy consumption and lower utility bills.
-
Comprehensive Installation Kit: Comes pre-charged with refrigerant and includes the necessary components for installation, simplifying the setup process.
-
Advanced Features: Equipped with inverter technology, turbo mode, sleep mode, auto-clean, auto-reset, 24-hour timer, and dedicated dehumidifier for enhanced comfort.
-
Quiet Operation: Designed to operate with minimal noise, maintaining a peaceful environment, ideal for bedrooms and offices.
-
Smart Home Integration: Wi-Fi ready with an optional remote, allowing for remote control and integration with smart home systems.
Q&A
Q: What is the cooling and heating capacity of the Air-Con Titanium 12000 BTU Mini Split?
A: This unit provides 12,000 BTU of cooling and heating, ideal for spaces up to 550 sq. ft.
Q: How energy efficient is the Air-Con Titanium system?
A: With an 18 SEER rating, it offers excellent energy efficiency for cost-effective cooling and heating.
Q: Is this unit a heat pump?
A: Yes, it functions as a heat pump, providing both cooling and heating for year-round comfort.
Q: What voltage does this system use?
A: It operates on 110-120V, making it compatible with most standard household electrical systems.
Q: Is professional installation required?
A: Yes, professional installation is recommended to ensure proper performance and maintain warranty coverage.
Maintenance Tips
-
Clean or Replace Air Filters Monthly: Remove and clean the filters every 1–2 months using a vacuum or wash them with water. Replace if damaged.
-
Clean the Indoor Unit: Wipe the indoor unit's exterior and vents with a dry cloth to remove dust and debris.
-
Inspect and Clean the Outdoor Unit: Ensure the outdoor unit is free from debris like leaves and dirt. Use a garden hose with a gentle spray to clean the coils, being careful not to bend the fins.
-
Check Refrigerant Lines for Leaks or Damage: Inspect the refrigerant lines for any signs of leaks or damage, such as corrosion or kinks in the piping. If you notice any issues, contact a professional technician to assess and repair them.Â
-
Clear the Condensate Drain Line: Regularly check and clean the condensate drain line to prevent clogs and water damage.
-
Schedule Annual Professional Maintenance: Have a qualified HVAC technician perform a comprehensive inspection and servicing at least once a year to ensure optimal performance.
