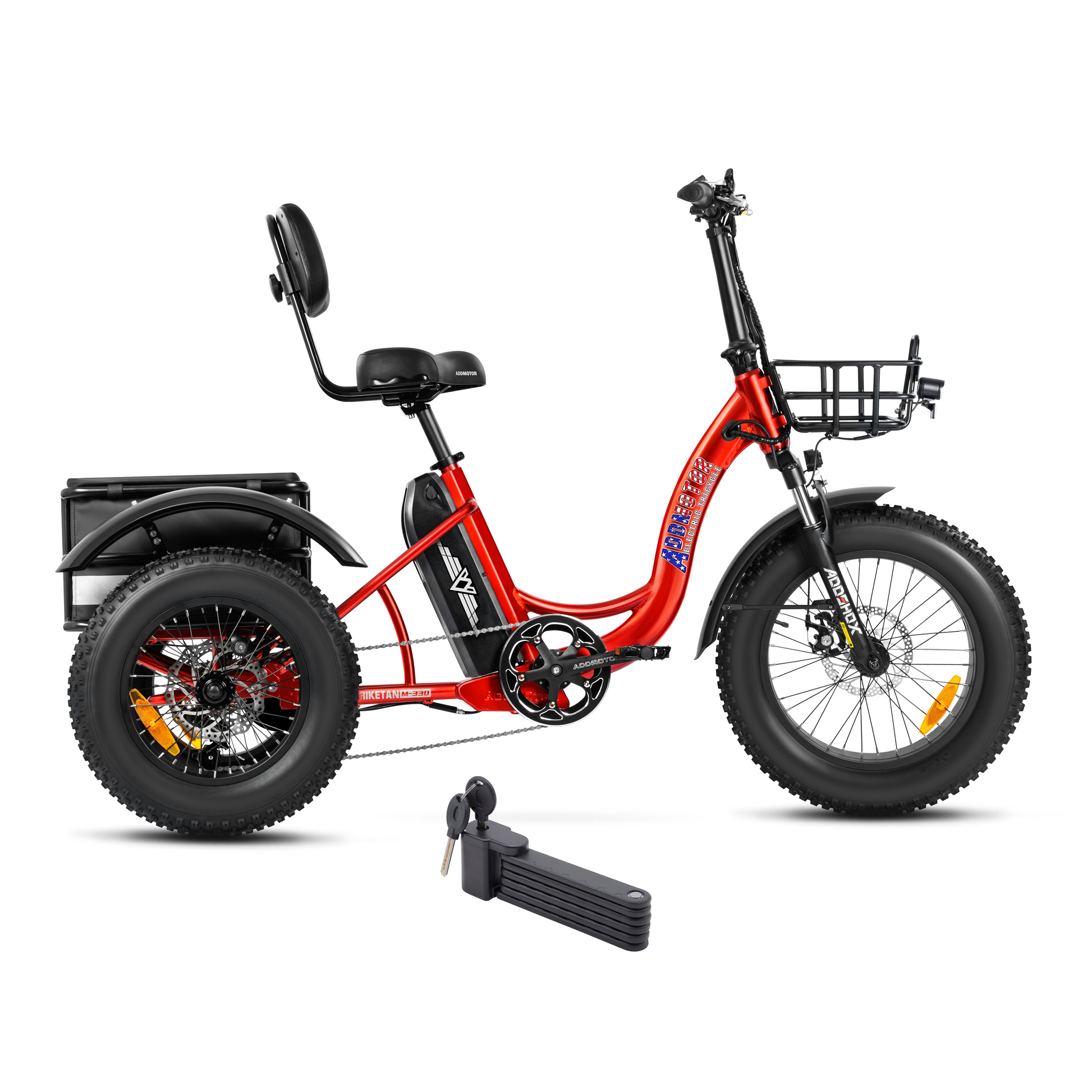

Addmotor 750W 48V Triketan II M-330 Mini Trike Fat Tire Step-Thru Electric Bike - EB-ADD-TT2-M-RED
Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the Addmotor 750W 48V Triketan II M-330 Mini Trike Fat Tire Step-Thru Electric Bike ($84.95 value!)

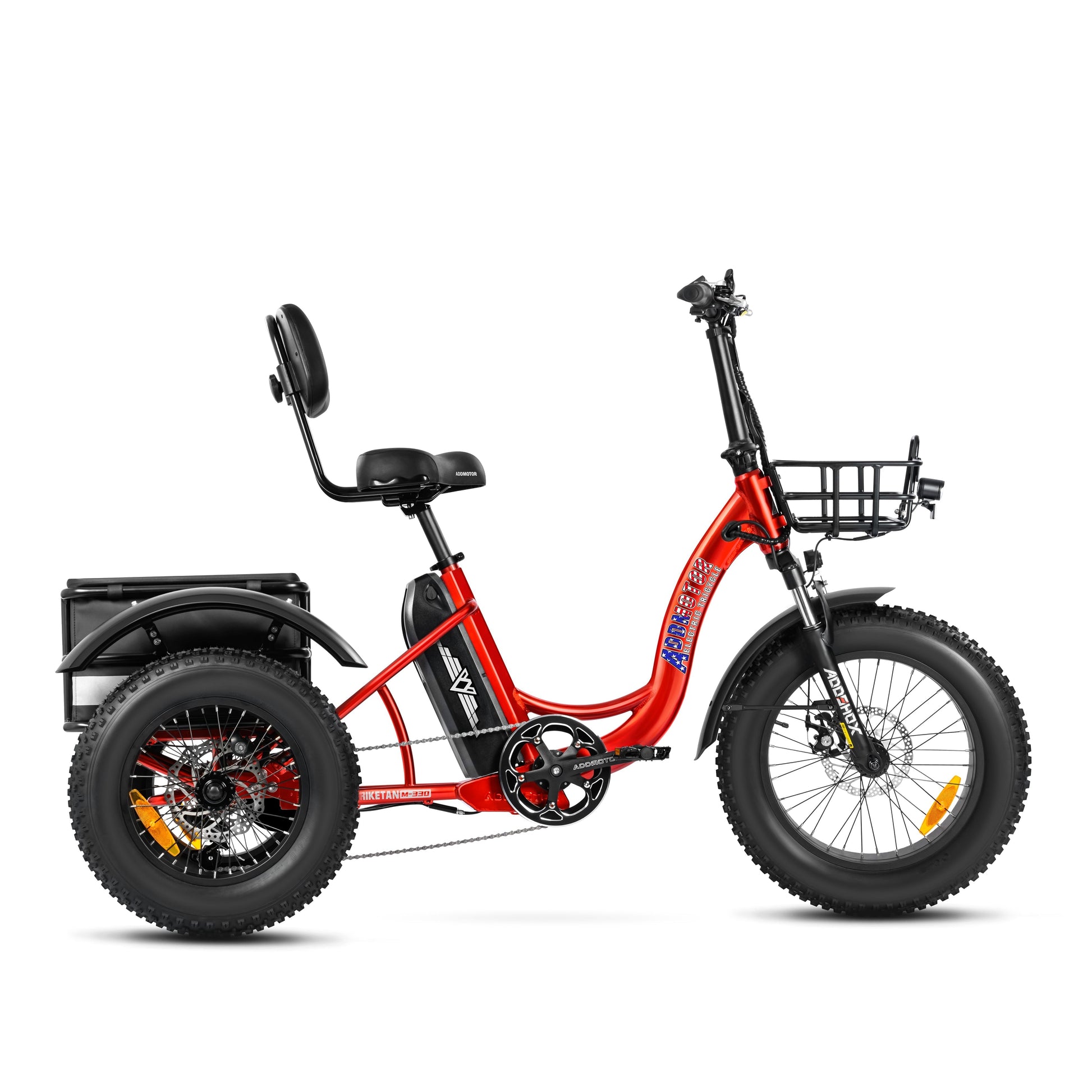

The Add Motor TRIKETAN II M-330 MINI is a compact and efficient electric tricycle designed to provide a superior riding experience with its advanced features, portable design, and reliable performance. Perfect for urban commuters and those with limited storage space, this e-trike combines cutting-edge technology with exceptional comfort and convenience. The TRIKETAN II M-330 MINI is engineered to meet the needs of modern riders, ensuring every journey is smooth and enjoyable.
Experience the ultimate in compact electric mobility with the Add Motor TRIKETAN II M-330 MINI. Whether you're navigating busy city streets or need a convenient travel solution, this electric tricycle offers unmatched performance and ease of use. Elevate your riding adventures with the TRIKETAN II M-330 MINI and enjoy the freedom and flexibility of a compact e-trike.
-
Compact Design: The TRIKETAN II M-330 MINI features a compact and foldable frame, making it easy to store and transport, ideal for riders with limited space or those on the go.
-
Powerful Motor: Equipped with a 750W motor, this electric tricycle provides robust acceleration and the capability to handle various terrains effortlessly.
-
Efficient Battery: Featuring a 48V 15Ah lithium-ion battery, the TRIKETAN II M-330 MINI offers a range of up to 55 miles on a single charge, ensuring you can travel long distances without frequent recharging.
-
Comfort-Oriented Design: The e-trike includes an adjustable, cushioned seat and an advanced suspension system, ensuring a comfortable and smooth ride even on rough surfaces.
Specifications
| Motor |
Bafang 48V 750W Rear Brushless Hub Motor |
| 90 N·m Torque |
|
| Battery |

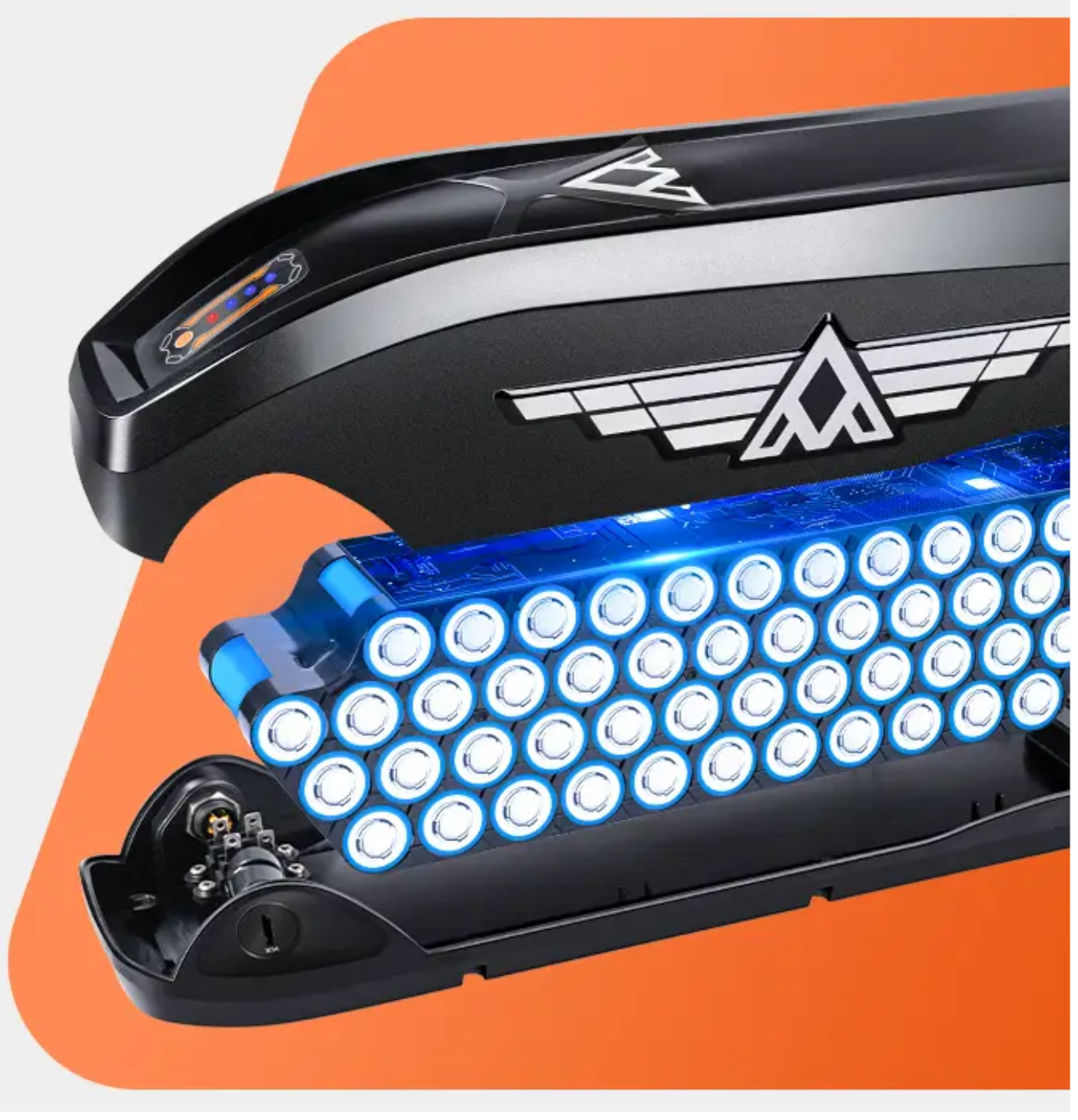

Samsung 48V 20Ah Lithium-Ion Battery |
| Charging Time: 9–10 Hours |
|
| Rated for 1,000–1,500 Charge Cycles |
|
| Display |

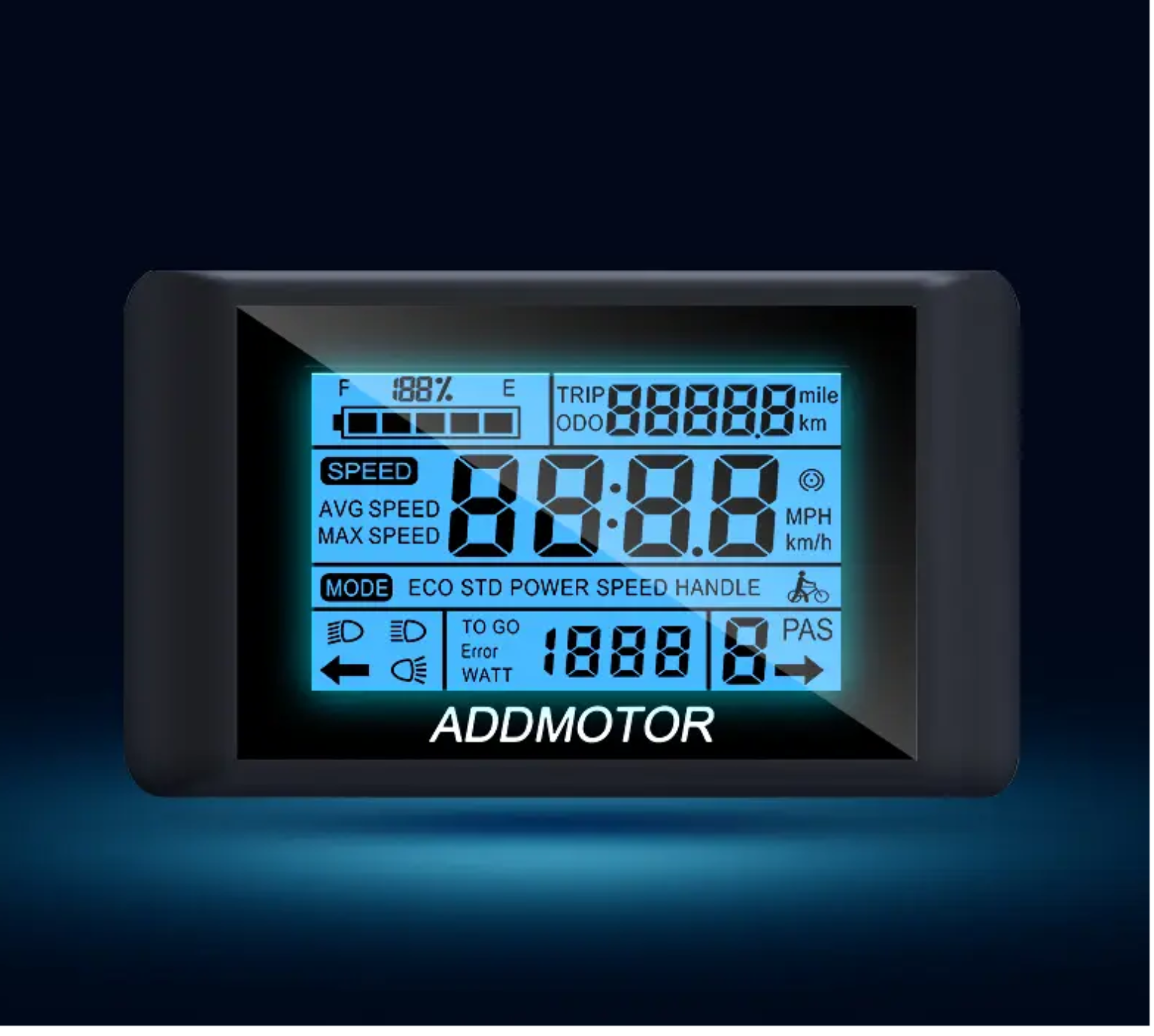

Addmotor 5-Inch LCD Display |
| Controller |
Addmotor 25A Controller |
| Throttle |
Variable Speed Control – 1/2 Twist Throttle |
| Pedal Assist |
7-Level Pedal Assist with Cadence Sensor |
| Charger |
48V 2.0A US Standard DC Charger (5-Pin with Auto Magnetic Suction) |
| Headlight |
Powered by Main Battery, Controlled by Button Panel |
| Taillight |
Powered by Main Battery, Controlled via Display |
| Includes Brake Light Function |
|
| Frame |
7A19 Aluminum Alloy Folding Frame |
| Front Fork |
MOZO Suspension Fork with 50mm of Travel |
| Brakes |
Tektro EL555-RT/EL550-RS Brake Levers with Motor Cutoff |
| Brake Rotors |
Front: 180mm |
| Rear: Dual 180mm Rotors (3-Wheel System) |
|
| Tires |
Front: 20" x 4.0" |
| Rear: 16" x 4.0" Fat Tires – 30 TPI |
|
| Rims |
Aluminum Alloy |
| Chain |
KMC Rust-Resistant Chain |
| Derailleur |
Shimano ALTUS M310, 7-Speed |
| Shifter |
Shimano 7-Speed Thumb Shifter |
| Handlebar |
Black Aluminum, Foldable |
| Seatpost |
30cm Length, Quick Release Clamp |
| Baskets |
Includes Front Basket and Rear Basket with Waterproof Bag |
| Wiring |
Water-Resistant Connectors and Wiring Harness |
What our Experts Think
-

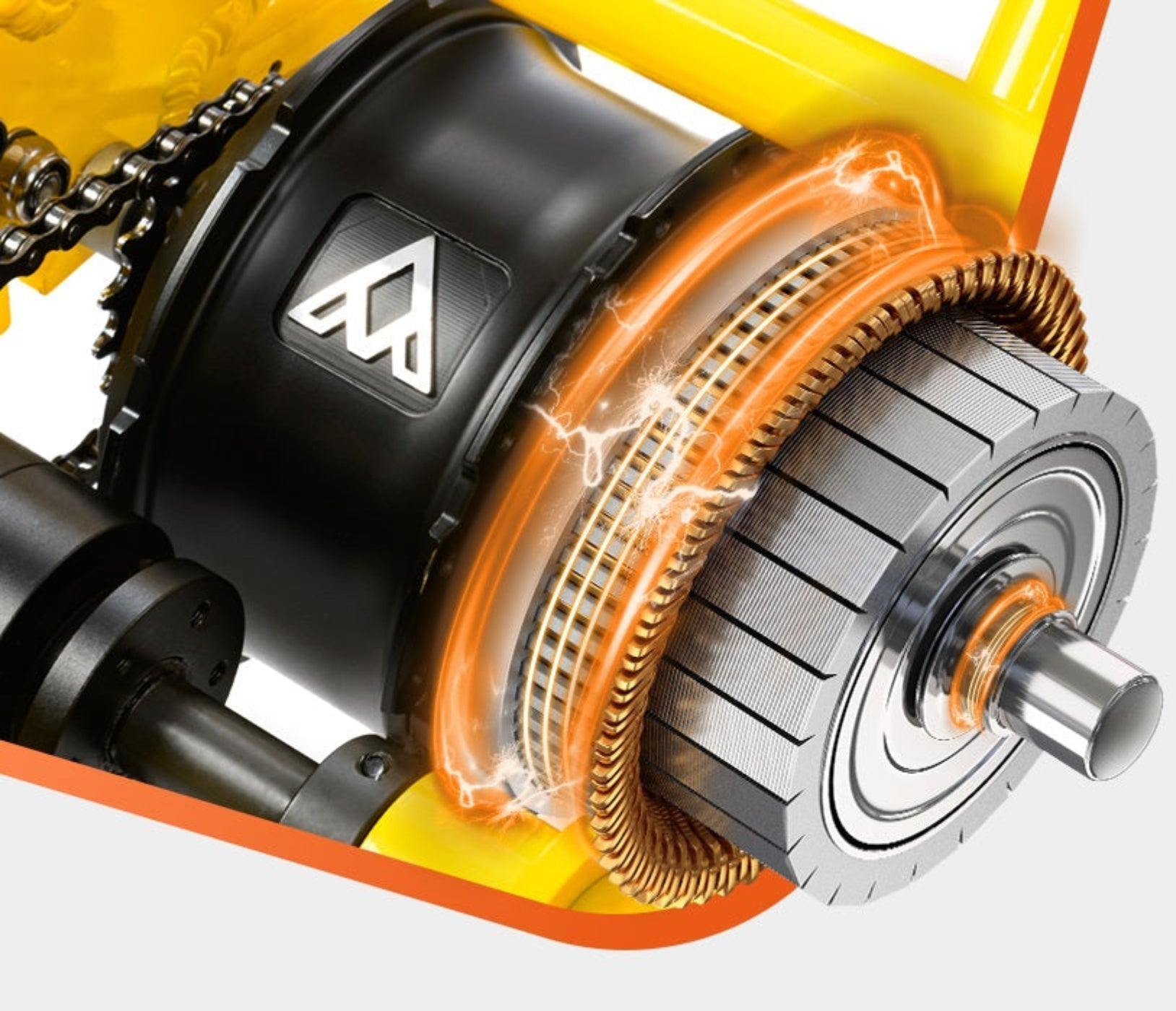

Motor & Performance: Equipped with a 750W rear-mounted brushless hub motor, the Triketan II M-330 Mini delivers 90Nm of torque, providing strong acceleration and hill-climbing capabilities.
-
Battery & Range: Powered by a high-capacity 48V 20Ah Samsung lithium-ion battery, the trike offers an estimated range of up to 85 miles on Pedal Assist System (PAS) level 1.
-
Braking System: Features Tektro mechanical disc brakes with 180mm rotors, ensuring reliable stopping power.
-

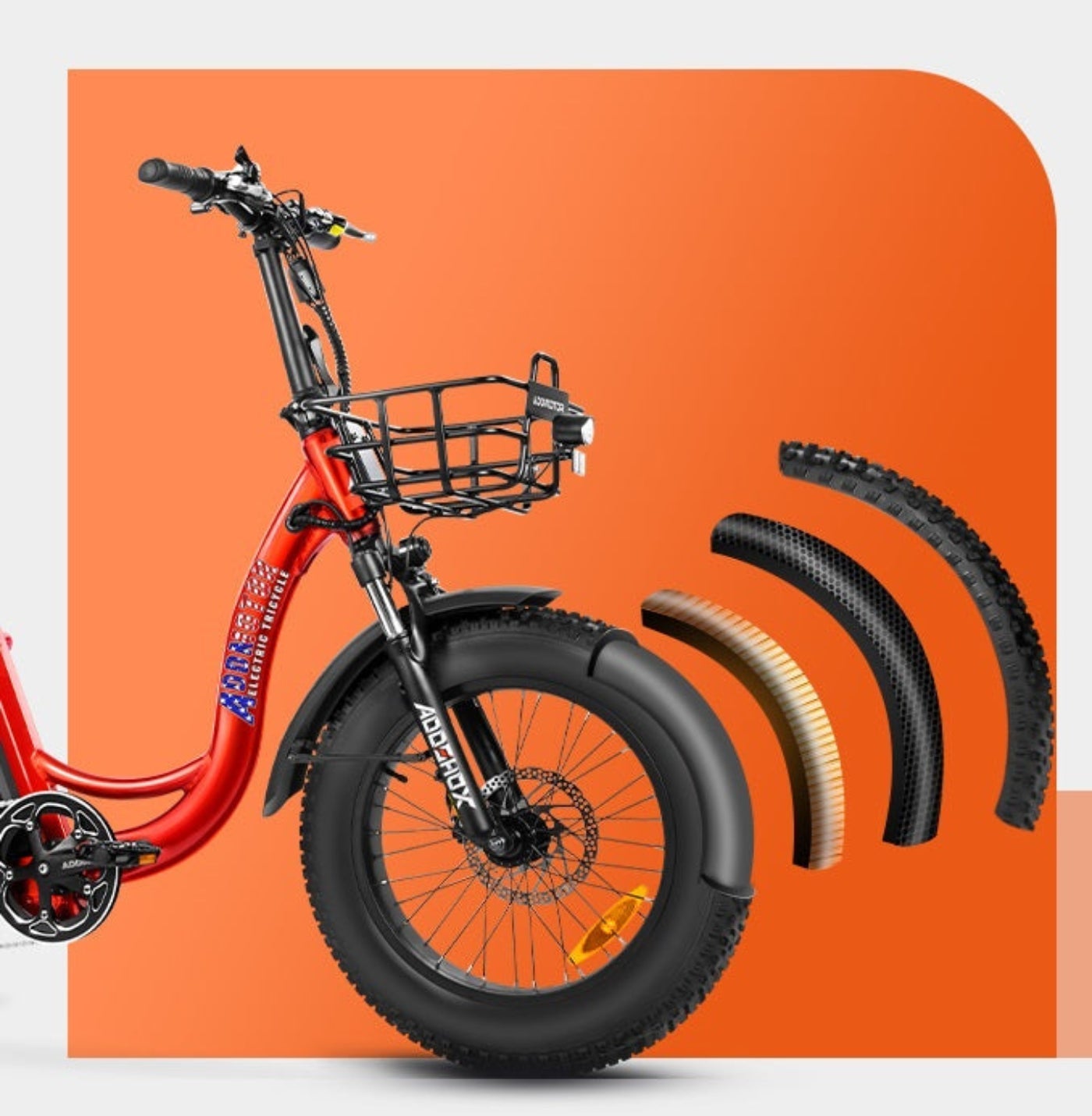

Tires: Equipped with 20" front and 16" rear puncture-resistant fat tires, providing stability and traction on various terrains.
-
Differential System: The rear speed differential allows the rear wheels to turn independently, enhancing stability and maneuverability, especially during cornering.
-
Torque Sensing System: Intelligently detects your pedaling force, providing appropriate assistance to make uphill climbs and long rides effortless.
-
Additional Features: Includes a horn, bell, front and rear lights powered by the main battery, and a quick-release adjustable seat post.
Q&A
Q: What is the Addmotor Triketan II M-330 Mini?
The Triketan II M-330 Mini is a compact, fat-tire electric tricycle designed for enhanced stability and ease of use, featuring a rear-mounted motor and ergonomic design, making it ideal for seniors and casual riders.
Q: What is the top speed of the Triketan II M-330 Mini?
The tricycle can reach speeds up to 20 mph (32 km/h).

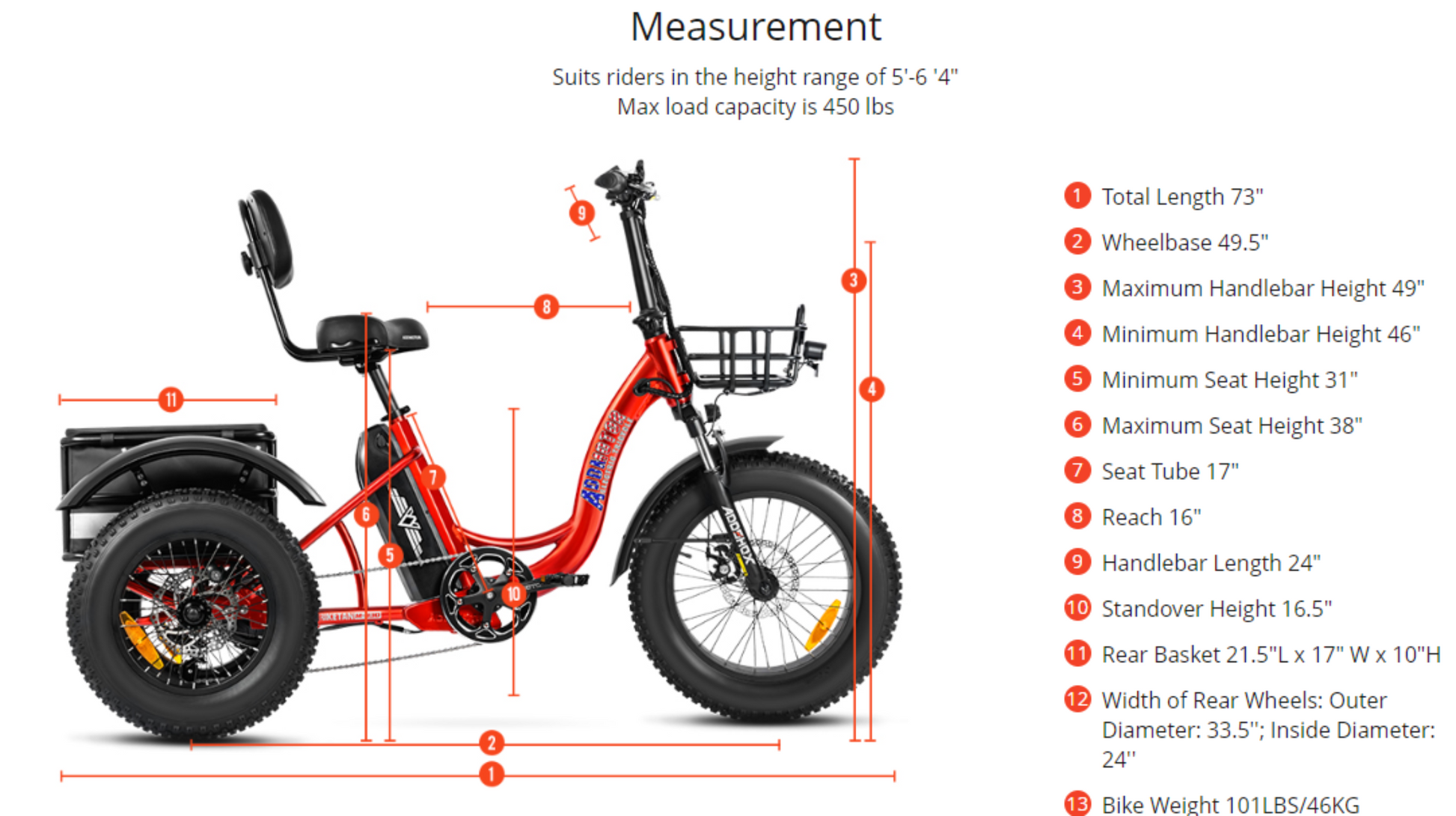

Q: What is the recommended rider height?
Suitable for riders between 5'2" and 6'4".
Q: How long does it take to charge the battery?
A full charge takes approximately 8–10 hours.
Q: Where can I purchase the Triketan II M-330 Mini?
Available through Addmotor's official website and authorized retailers.
Maintenance Tips
-
Battery Care: Charge the battery after each ride to maintain optimal performance. Store the battery in a cool, dry place, and avoid full depletion to extend its lifespan.
-
Tire Maintenance: Regularly check tire pressure and inspect for debris to prevent punctures and ensure a smooth ride.
-
Brake Inspection: Monitor brake pad wear and ensure brake cables are properly tensioned. Regularly check the condition of brake rotors for effective stopping power
-
Chain and Gear Care: Clean and lubricate the chain every 100 miles or after wet rides. Use appropriate bicycle chain lubricant to prevent rust and ensure smooth operation.
-
General Cleaning: Clean the trike after rides, especially in wet or muddy conditions. Use a soft cloth and mild detergent; avoid high-pressure water to prevent damage to electrical components.
-
Component Check: Periodically inspect and tighten bolts and nuts. Check wheels for loose spokes and tighten if necessary. Inspect the frame and components for signs of wear or damage.
