Adam Equipment GCa Counting Indicator - GCa

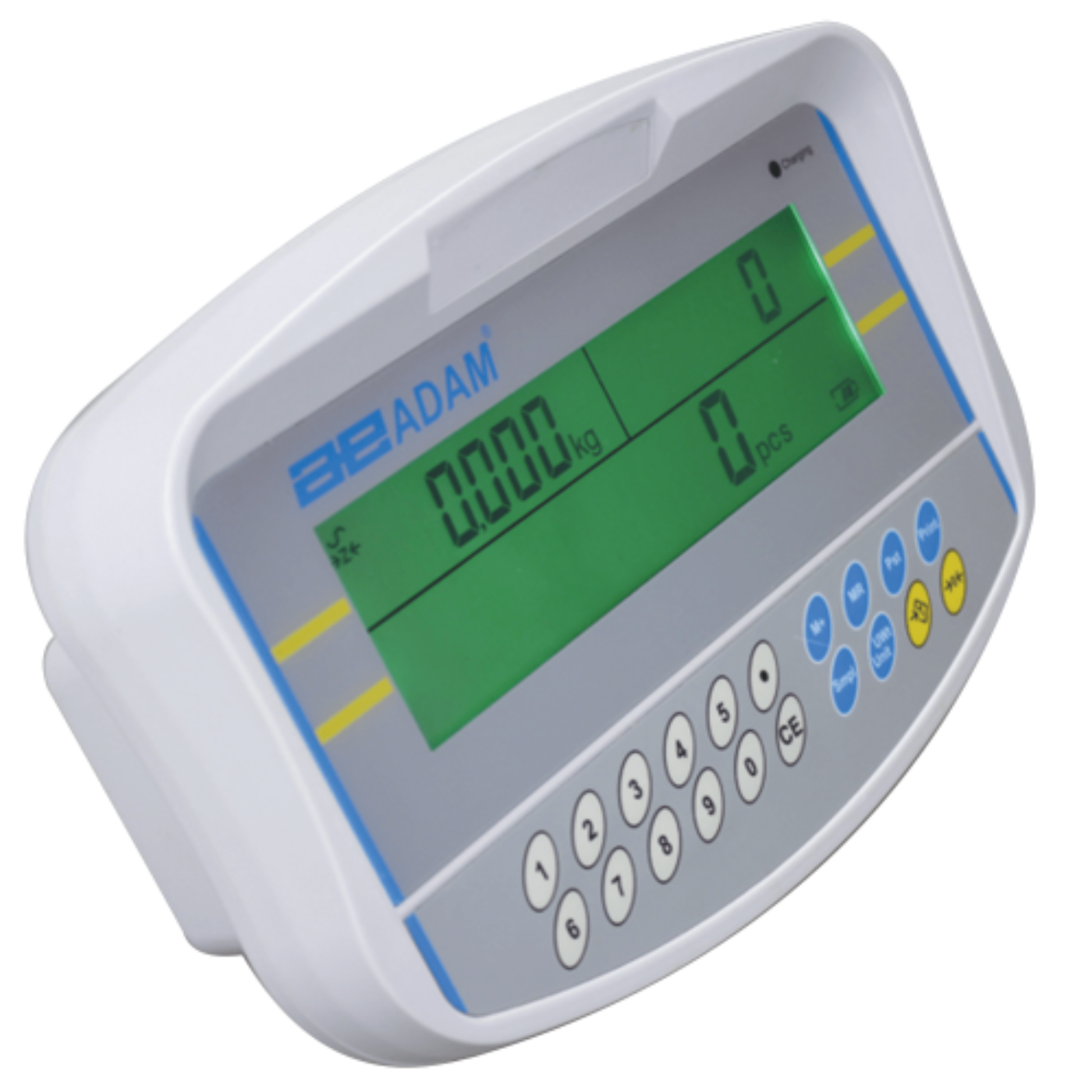

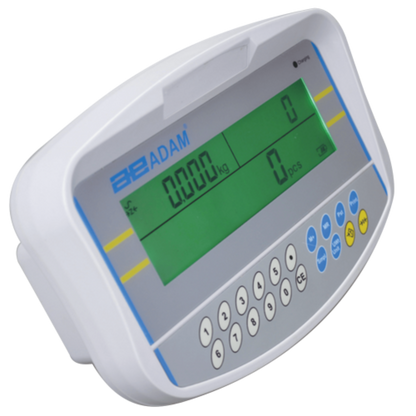

The GCa is a comprehensive counting indicator equipped with a numeric keypad for entering unit weight and sample data. Its large backlit display shows unit weight, total weight, and the number of pieces. For check counting tasks, the GCa can alert the user when a preset count is reached. The durable ABS plastic housing is easy to clean, and the included wall mounting bracket adds flexibility. The GCa can be powered by an adapter or an internal rechargeable battery, making it suitable for use in areas without electricity.
Bi-directional RS-232 to print out weight, average piece weight and number of pieces counted
Selectable multi-language text for printing
Can be linked with 1-4 loadcell
Memory accumulation
Wall mount bracket
What Our Experts Think
-
High Precision Counting: Offers a resolution of 1:600,000, ensuring accurate and reliable counting of small parts or inventory.
-
User-Friendly Interface: Features a large backlit LCD display with easy-to-use numeric keypad for quick input of unit weight and piece counting.
-
Versatile Power Options: Can be powered by a 12VDC adapter or an internal rechargeable battery, providing up to 70 hours of usage.
-
Flexible Connectivity: Includes an RS-232 interface for connecting to computers, printers, or other peripherals for seamless data transfer.
-
Durable Build: Constructed with a robust ABS plastic case, making it suitable for use in demanding industrial environments.
Q&A
Q: What is the Adam Equipment GCa Counting Indicator?
A: The Adam Equipment GCa is a versatile counting indicator that can be used in conjunction with compatible platforms or scales. It is designed for accurate parts counting, as well as weighing and other applications such as checkweighing, dynamic weighing, and percentage weighing. This unit is commonly used in industrial and laboratory environments where accuracy and efficiency are crucial.
Q: What are the key specifications of the GCa Counting Indicator?
-
Weighing Units: The GCa supports multiple weighing units including grams (g), kilograms (kg), and pounds (lb).
-
Capacity Range: The indicator can be paired with different platform scales, allowing a wide range of capacity options based on your needs.
-
Resolution: The internal counting resolution is 1:600,000, which ensures high precision.
-
Display: The GCa features a backlit LCD with easy-to-read 0.8" (20mm) high digits, making it suitable for both well-lit and dim environments.
-
Power Supply: The unit can be powered using an AC adapter (12VDC, 800mA) or by an internal rechargeable battery, offering flexibility. The battery can last up to 120 hours on a full charge.
-
Interface: The GCa is equipped with an RS-232 interface for easy connection to printers or computers for data logging and analysis.
-
Housing: Constructed with durable ABS plastic, the GCa is robust and well-suited for industrial use.
Q: What are the primary functions of the GCa Counting Indicator?
-
Parts Counting: One of the standout features is the ability to count small parts accurately. It offers freely selectable sample sizes, ensuring automatic optimization of piece weight as parts are added.
-
Preset Tare Function: Allows the user to tare (zero out) containers or weigh platforms before counting, saving time during repetitive tasks.
-
Zero-Tracking: Ensures that the scale returns to zero once unloaded, maintaining accuracy.
-
Audible Overload Alarm: Alerts users when the weight exceeds the capacity, helping prevent damage to the equipment.
-
Digital Filtering: The GCa provides selectable digital filtering to minimize the effects of vibrations and external disturbances, which is essential for precise measurements.
-
Programmable Alarm: Users can set alarms to sound when a preset total count or weight is reached, which is ideal for production and inventory management tasks.
-
Date and Time Printouts: It supports printing with date and time stamps, which is useful for compliance with Good Laboratory Practices (GLP) or for traceability in industrial environments.
Q: How does the GCa improve operational efficiency?
A: The GCa significantly improves operational efficiency by providing accurate, reliable, and fast counting and weighing functions. It’s particularly useful for businesses that handle large volumes of parts or materials and need to ensure precision in counting without manually counting every single item. The ability to store tare values, perform batch counts, and use multiple units of measure simplifies workflows.
Q: Is the GCa Counting Indicator portable?
A: Yes, the GCa is compact and portable, with an optional wall-mount bracket for easy installation. It can be used on a workbench, desktop, or mounted on a vertical surface for better visibility and space-saving. It is ideal for environments where mobility or space constraints are a factor.
Q: How is the GCa Counting Indicator calibrated?
A: The GCa is factory calibrated for accurate weighing. However, users can recalibrate the unit when necessary to ensure long-term accuracy. Calibration can typically be done using an external calibration weight or by following the on-screen instructions.
Q: How does the GCa help with data tracking and reporting?
A: The GCa provides data reporting features like date and time stamps, which is essential for businesses that require full traceability of their inventory or processes. It also supports connection to external printers and computers via the RS-232 interface, making it easy to document and report weight or count data.
Maintenance Tips
-
Clean Regularly: Wipe the housing and keypad with a damp cloth. Avoid using harsh chemicals or allowing moisture to enter.
-
Calibrate: Perform regular calibration using appropriate test weights to ensure consistent accuracy.
-
Power Management: Charge the internal battery regularly for up to 70 hours of use.
-
Stable Placement: Position the indicator on a stable surface or mount it on the wall to reduce vibrations.
-
Monitor Connections: Ensure all connections, especially for peripherals, are secure.
-
Correct Units: Choose the appropriate weighing units (lb, kg, g) based on your needs.
-
Avoid Overloading: Never exceed the maximum weight capacity to protect the unit.
-
Software Updates: Keep the firmware up to date for optimal performance.
