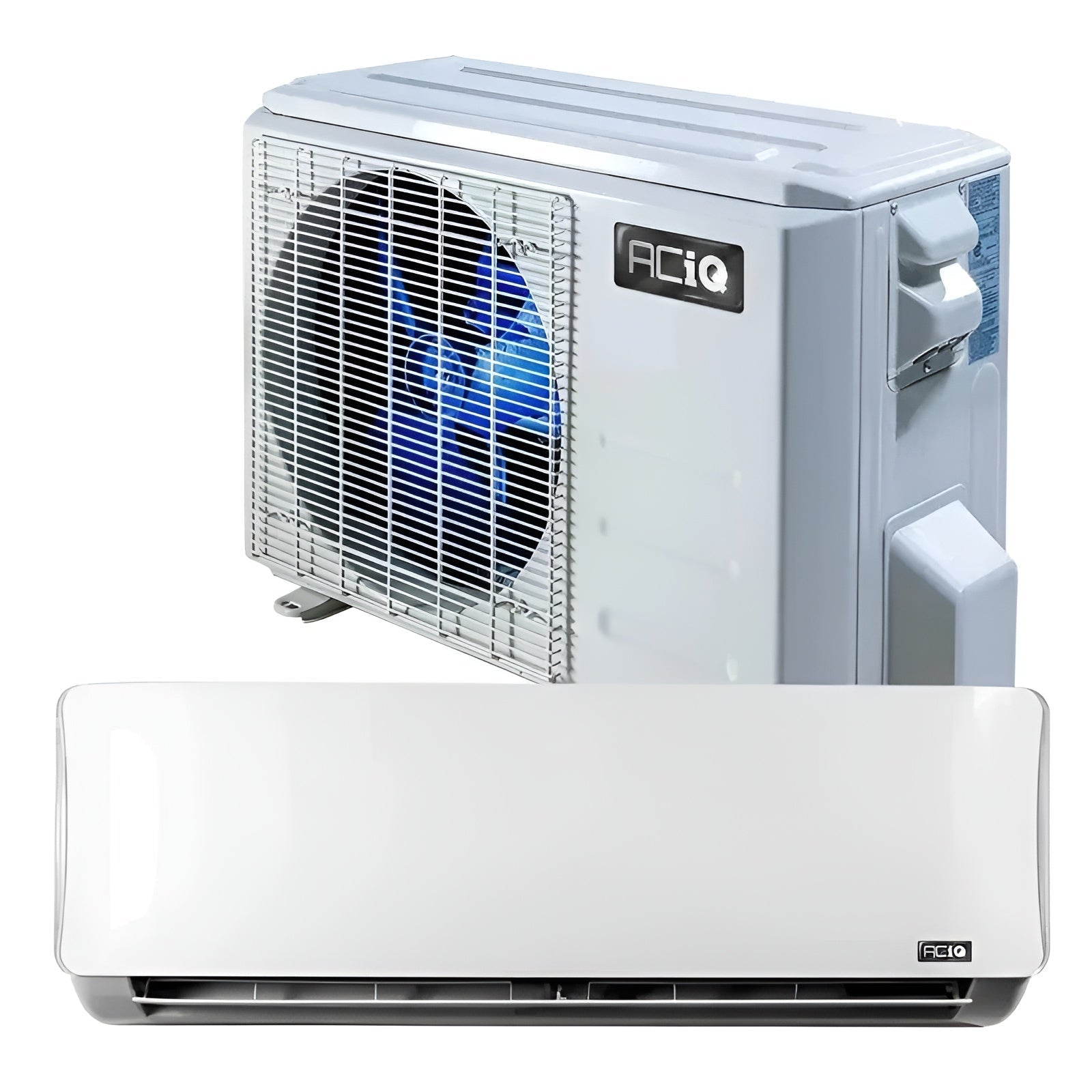

ACiQ's mini split systems offer intelligent technology and exceptional comfort at a reasonable price. Single zone systems are ideal for converting basements or garages, or for heating and cooling individual spaces in your home.

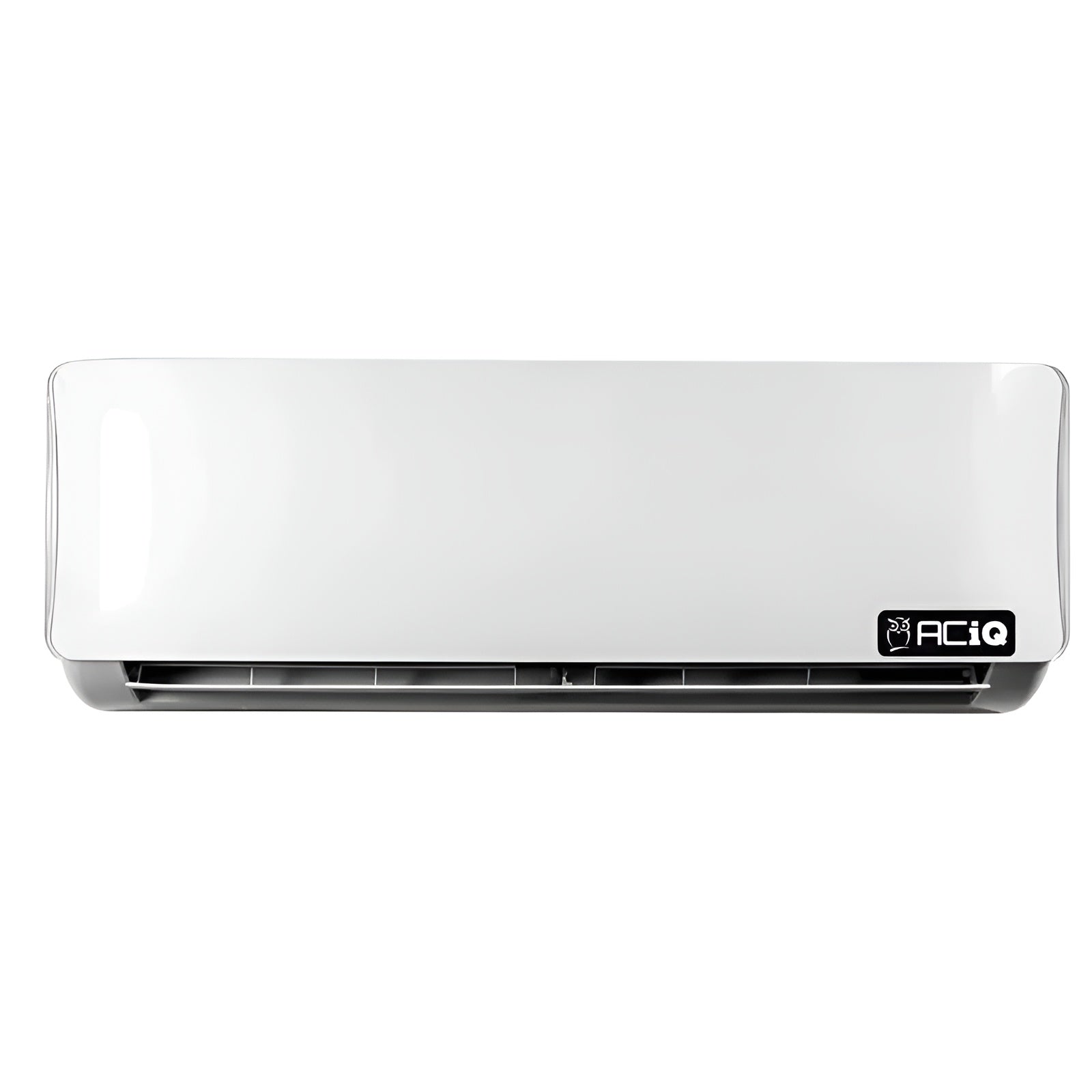

The ACiQ-12W-HP230B air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.
ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant. Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
| SKU | ACiQ-12Z-HP230B |
|---|---|
| Refrigerant Charge | 25' |
| Weight (in lbs) | 64.820000 |
| AHRI Certificate Number | 207825527 |
| Brand/Manufacturer | ACiQ |
| HSPF | 9.5 |
| Cooling BTU | 12000 BTU |
| Heating BTU | 12000 BTU |
| Decibel Level (dBA) | 55.5 |
| Electric Heat | Heat Pump |
| Energy Star | No |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 18-20 |
| SEER2 (Efficiency) | 21.4 |
| EER | 11 |
| Compressor Type | Rotary |

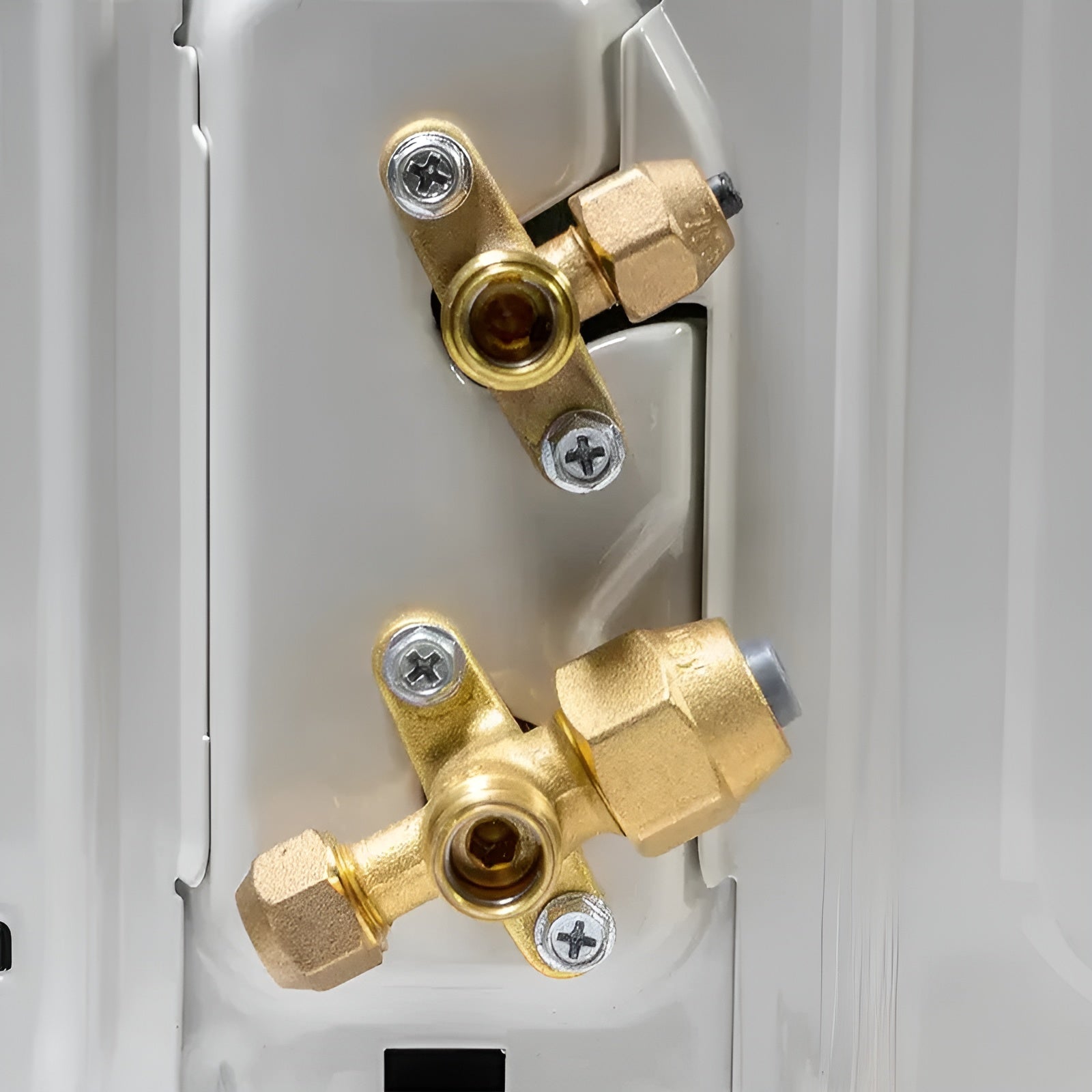

| Liquid Line | 1/4' |
| Suction Line | 1/2' |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 15 |
| Min. Breaker Size | 15 |
| Tonnage | 1.0 Ton |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 21.85' |
| Width | 30.12' |
| Depth | 11.93' |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Safety Information | PROPOSITION 65 WARNING |
| SKU | ACiQ-12W-HP230B |
| Weight (in lbs) | 24.910000 |
| AHRI Certificate Number | 206315632 |
| Brand/Manufacturer | ACiQ |
| Cooling BTU | 12000 BTU |
| Heating BTU | 12000 BTU |
| Maximum CFM | 324 |
| Decibel Level (dBA) | 38 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Liquid Line | 1/4' |
| Suction Line | 1/2' |
| Electrical | 208/230V 1 Phase 60 Hz |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11-7/10' |
| Width | 31-3/5' |
| Depth | 7-1/2' |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Safety Information | PROPOSITION 65 WARNING |
Q: What is the cooling capacity of this system?
A: It offers 12,000 BTUs, perfect for cooling small to medium-sized rooms.
Q: What does the 21.4 SEER2 rating indicate?
A: The 21.4 SEER2 rating ensures excellent energy efficiency, reducing electricity costs while maintaining effective cooling.
Q: Can I control the unit remotely?
A: Yes, it features WiFi connectivity, allowing remote control via a smartphone or tablet.
Q: How quiet is the system?
A: This system operates quietly, providing a comfortable and noise-free environment.
Q: Is this mini split suitable for both home and office use?
A: Yes, its compact design and efficient cooling make it ideal for both residential and light commercial spaces.
