ADVANCE GROW TENT SYSTEM 4' x 4'

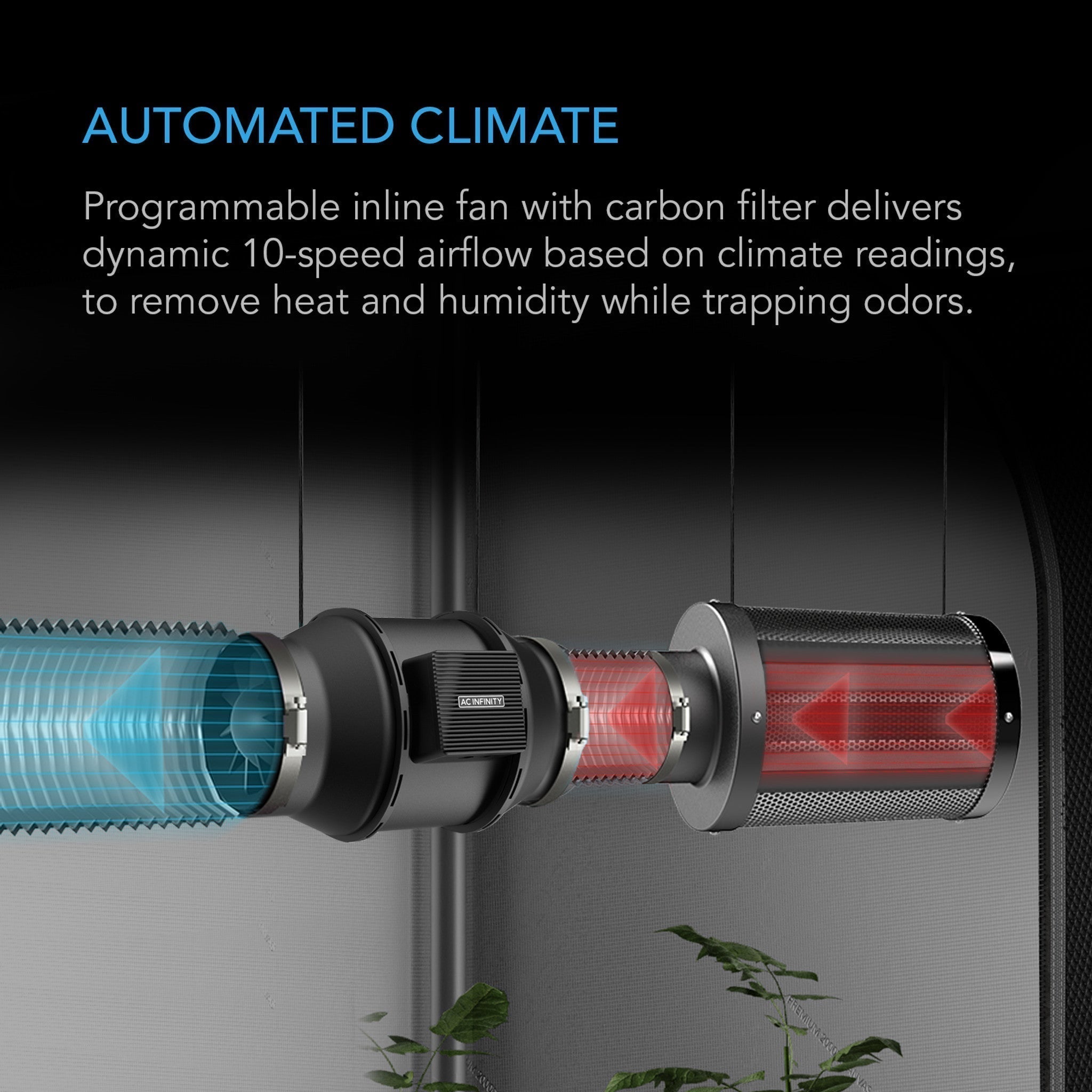

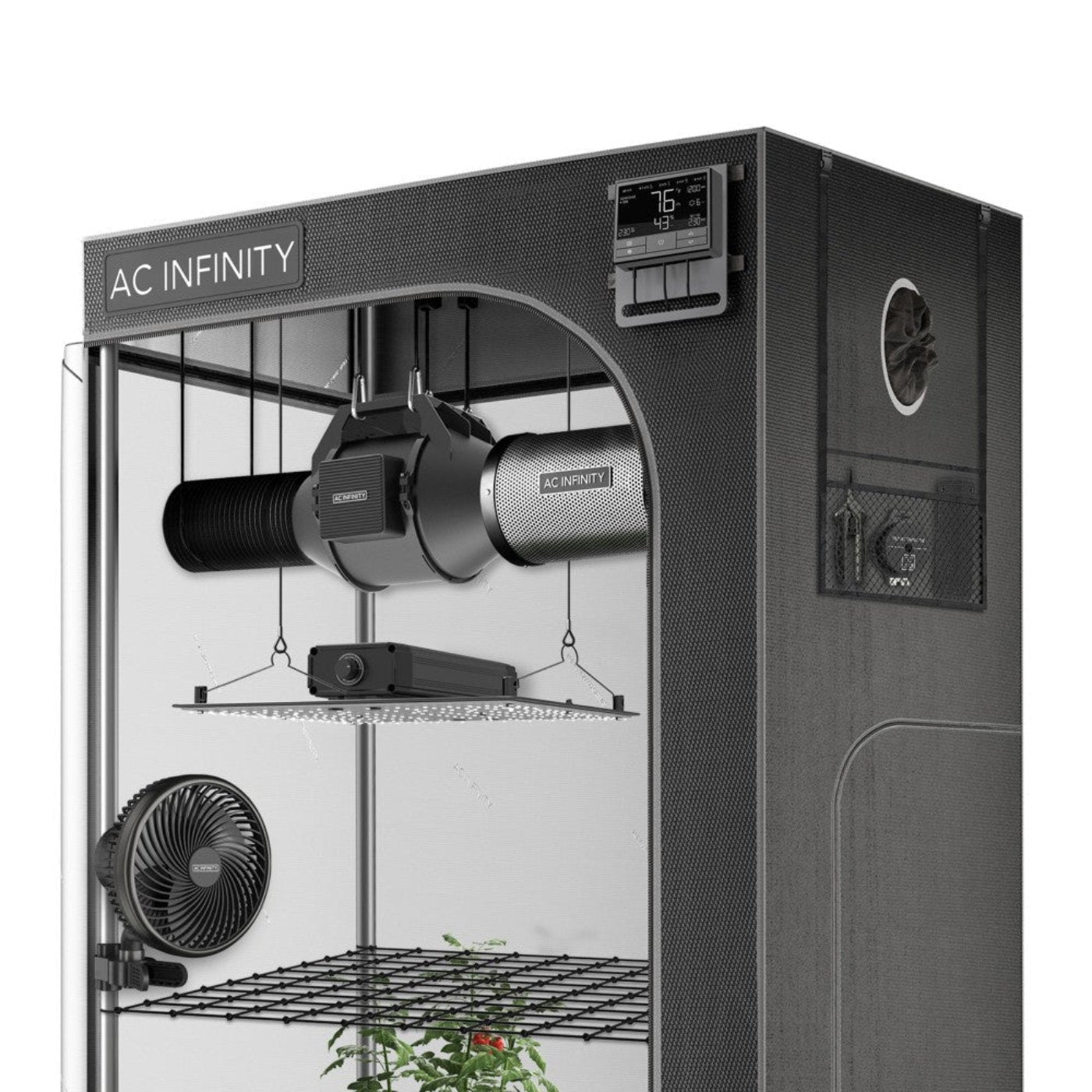

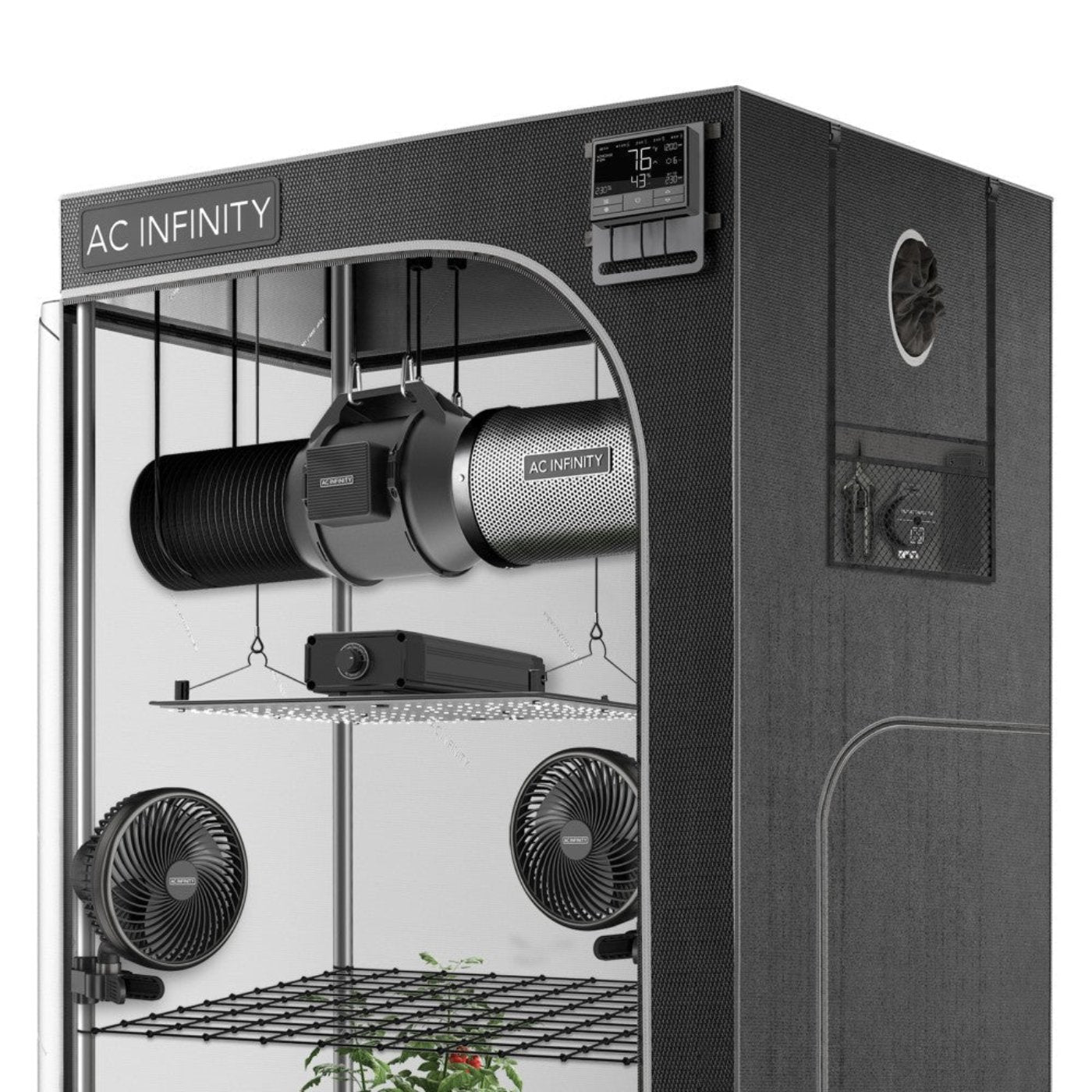

An advance grow tent system with intelligent controls to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, carbon filter, and ducting manage your tent’s climate conditions by routing heat, humidity, and odor away from it. Air is circulated inside with the oscillating clip-on fan to provide light breezes to your plants. Algorithmically selected and arranged LM301B diodes on the grow light board emits powerful LED lighting over wide coverage to simulate natural sunlight and optimize growth. These devices are housed in a high-density oxford grow tent, featuring a sturdy steel frame and Mylar walls to create a climate-controlled grow space.

  • An advance grow tent kit with smart controls and integrated components to start an indoor growing system.

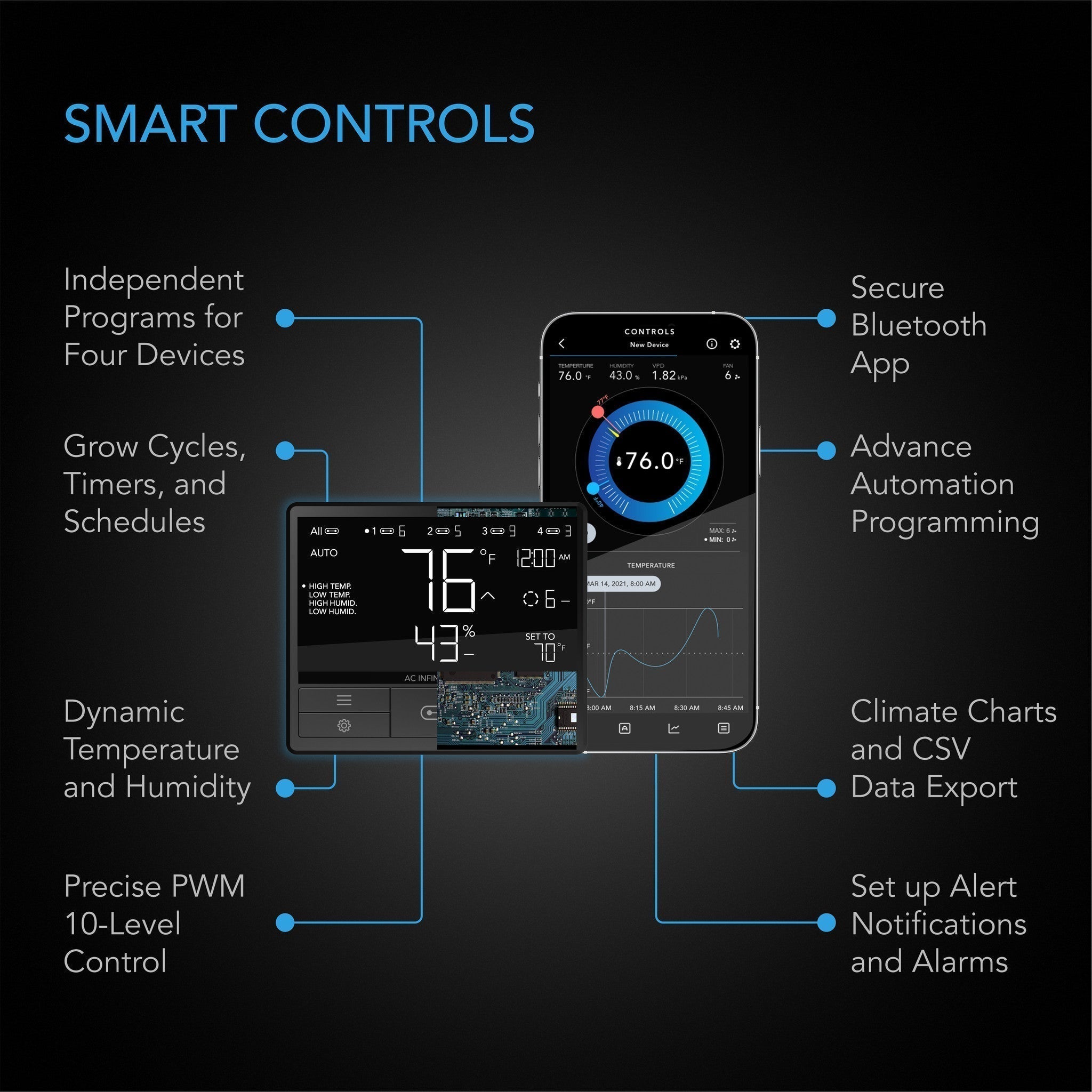

  • Controller automates each fan and light with individual programs to dynamically adjust speed and brightness.

  • Connect your mobile device to our app via WiFi to automate and track your grow tent climate from anywhere.

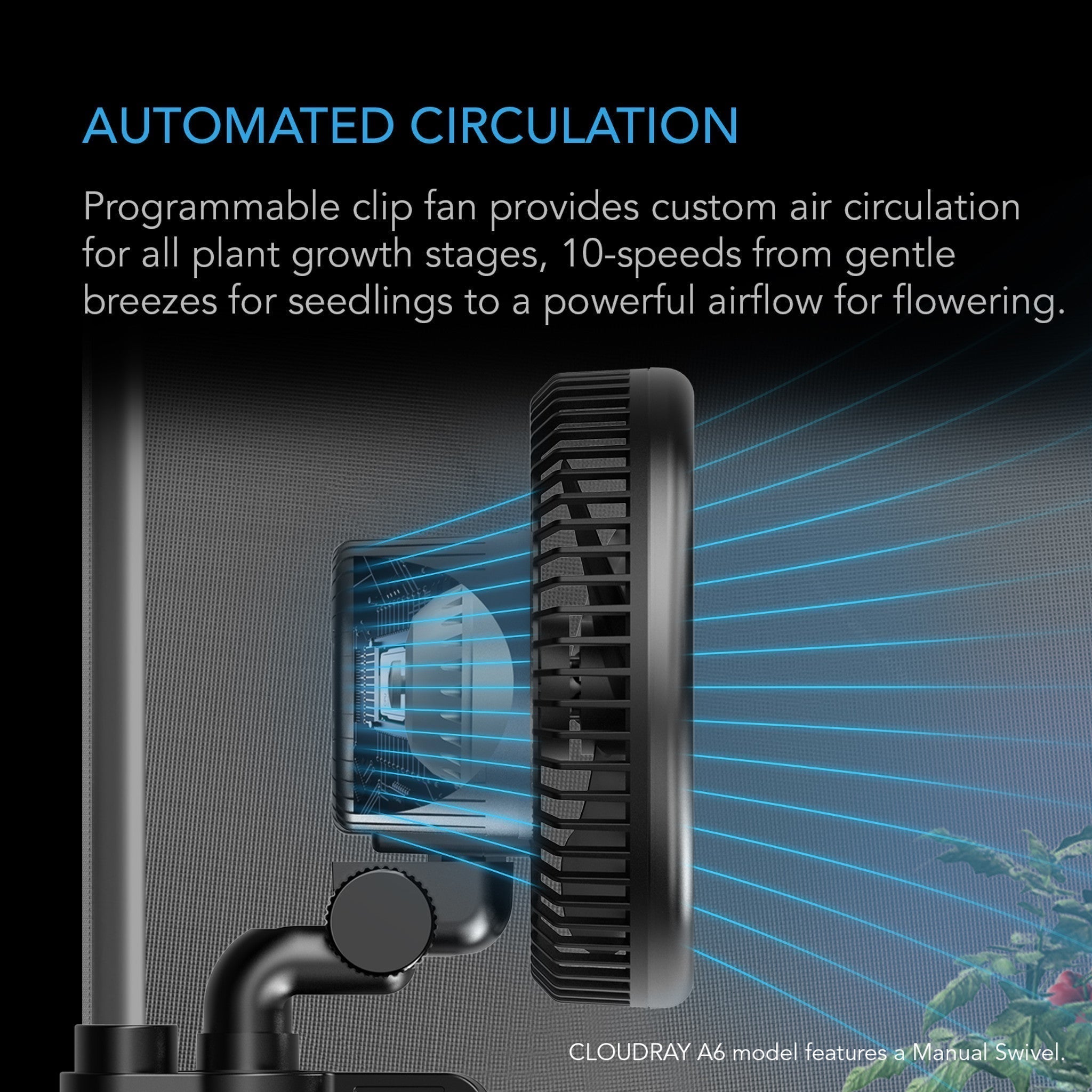

  • Next-gen EC inline fan 6”, oscillating clip fan 6”, and 400W full-spectrum grow light with LM301B LEDs.

  • Premium 2000D Mylar tent 48”x48”x80”, Australian carbon filter, ducting, fabric pots, pruning snips, and more.

Product and Mounting Dimensions - Grow Tent
Tent Dimensions 48" x 48" x 80" (121.9 x 121.9 x 203.2 cm)
Duct Opening Sizes 4", 8"
Viewing Window Size 11.81 x 11.81 in. (30.0 x 30.0 cm)
Rear Intake Hole Size 5.90 x 13.77 in. (15.0 x 35.0 cm)
Side Intake Hole Size 5.90 x 13.77 in. (15.0 x 35.0 cm)
Mounting Strap Length 6.49 in. (16.5 cm)
Product Performance and Technical Specs - Grow Tent
Outer Tent Material Oxford
Inner Tent Material Mylar
Pole Material Steel
Pole Thickness 22 mm
Beam Weight Capacity 150 lbs.
Plant Capacity 8
Product and Mounting Dimensions - Inline Fan
Duct Size 6"
Total Dimensions 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
Mounting Hole-To-Hole Distance 3.15 x 2.36 in. (8.0 x 6.0 cm)
Screw Hole Size Ø 0.236 in. (Ø 0.6 cm)
Cord Length to Controller 72 in. (6 feet)
Cord Length to Plug 72 in. (6 feet)
Performance and Technical Specs - Inline Fan
Total Airflow 352 CFM
Total Noise 34 dBA
Static Pressure 394 Pa
Voltage 100-240V AC
Frequency 50/60Hz
Max Power Draw 61 W
Average Power Usage 35 W
Current 0.85 A
Power Connector Type US Plug (NEMA 1-15 Type-A)
Operating Humidity 35 to 85% RH
Operating Temperature 0 to 140°F
Ingress Protection IP 44
Fan Bearings Dual Ball
Mounting Positions Horizontal or Vertical
L10 Life Expectancy 67,000 Hours
Fan Quality Approvals CE, RoHS
Product and Mounting Dimensions - Clip Fan
Impeller Size 6.5"
Total Dimensions 8.74 x 10.47 in. (22.2 x 26.6 cm)
Cord Length to Plug 96 in. (8 feet)
Product Performance and Technical Specs - Clip Fan
Maximum Airflow 315 CFM
Total Noise 33 dBA
Static Pressure 25 Pa
Operating Voltage 100-240V AC
Power 8 W
Current 0.14 A
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
Waterproof Rating IP-44
Rotation Range 90°
Tilt Angle 55°
Oscillation Manual Adjustable Tilt
Fan Bearings Dual Ball Bearing
Mounting Positions Horizontal or Vertical
Life Expectancy 67,000 Hours
Product and Mounting Dimensions - Controller
Total Dimensions 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Hole to Hole Distance 4.71 x 2.64 in. (12.0 x 6.7 cm)
Screw Hole Size Ø 0.119 in (Ø 0.3 cm)
Display Size 3.5 x 1.4 in. (9 x 3.5 cm)
Sensor Probe Length 144 in. (12 feet)
Product Performance and Technical Specs - Controller
Maximum Devices Controlled 4
Max Power Supported 10 W
Programming Temperatures 32 to 140°F
Operating Voltage 9 to 18V
Power 1 W
Current 0.1 A
Power Input 12V from Device
Operating Humidity 35 to 85% RH
Product and Mounting Dimensions - LED Grow Light
Light Dimensions 23.62 x 23.62 in. (60.0 x 60.0 cm)
LED Board Thickness 0.43 in. (1.1 cm)
Driver Dimensions 10.74 x 1.75 in. (22.5 x 4.5 cm)

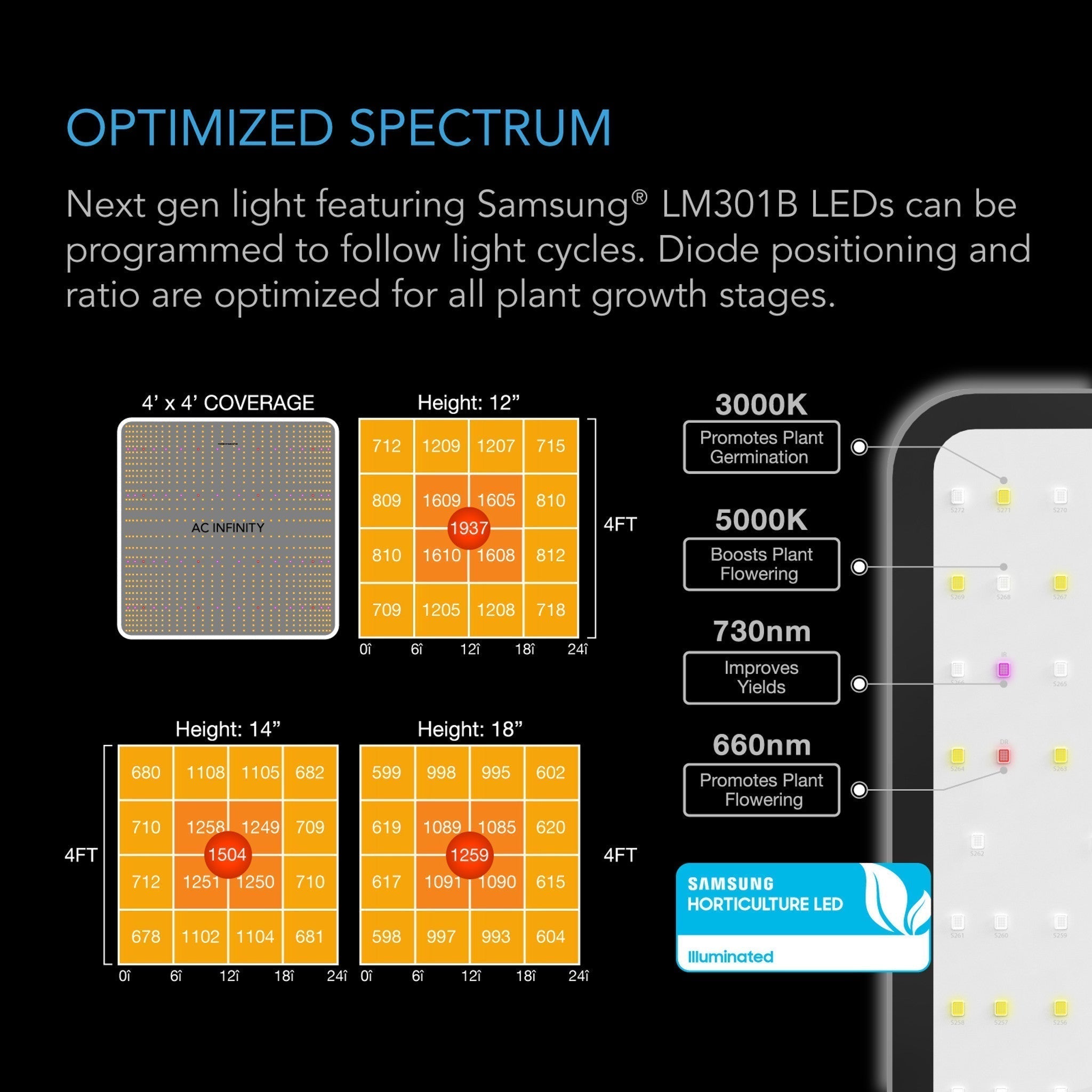

Product Performance and Technical Specs - LED Grow Light
Coverage 4 x 4 ft.
Diodes Samsung LM301B
LED Chip Count 1024
LED Driver AC Infinity Proprietary Driver, Model GTS-100
Efficiency 2.75 µmol/j
PPFD 1937 PPFD
Spectrum 660nm, 730nm, 3000K, 5000K
Wattage 400 W
Voltage 100-277V AC
Frequency 50/60 Hz
Current 2.0 A
Controller Digital Dimming Timer
Power Connector Type US Plug (NEMA 1-15 Type-A)
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
Life Expectancy 50,000 Hours
Product and Mounting Dimensions - Carbon Filter
Duct Opening Size 6"
Total Dimensions 15.94 x 8.93 in. (40.5 x 22.7 cm)
Flange Length 1.57 in. (4.0 cm)
Product Performance and Technical Specs - Carbon Filter
Flange Material Aluminum
Flange Design Reversible
Mesh Material Galvanized Steel
Carbon Type Australian Virgin RC412
Carbon Grade 1200+ IAV
Carbon Thickness 38mm
Maximum Airflow 410 CFM
Product Dimensions - Ducting
Ducting Size 6 in. (15.2 cm)
Length 96 in. (8 ft)
Product Performance and Technical Specs - Ducting
Outer Layer PVC Thermoplastic
Inner Material Aluminum Foil
Internal Structure Spiral Steel-Wire



  • CLOUDLAB 844 – Advance Grow Tent 48”x48”x80” (x1)

  • CONTROLLER 69 PRO – Grow Tent Controller (x1)

  • CLOUDLINE LITE 6 - Inline Fan 6" (x1)

  • IONBOARD S44 – LED Grow Light Board 400W (x1)

  • CLOUDRAY S6 – Oscillating Circulation Clip Fan (x2)

  • Carbon Filter 6” (x1)

  • 6” Flexible Ducting, 8’ Long (x1)

  • Hanging Straps (x2)

  • Rope Clip Hangers (x2)

  • 6” Steel Clamps (x2)

  • 5’ Duct Tape (x1)

  • Hook and Loop Ties (x10)

  • 6’ UIS Male to Male Controller Cord (x1)

  • 6’ L-Shaped UIS Male to Male Controller Cord (x1)

  • 5-gallon Fabric Pots (x8)

  • Elastic Trellis Netting 4x4’ (x1)

  • Black Wire Twist Ties (x1)

  • Micro-tip Pruning Shears (x1)

The AC Infinity ADVANCE Grow Tent System 4' x 4' | 4-Plant Kit is a premium choice for efficient and effective indoor gardening. Key features include:

  • Smart Automation: Integrated controls manage ventilation, air circulation, and lighting seamlessly.
  • Spacious Design: Accommodates up to 4 plants, ideal for hobbyists and serious growers.
  • Advanced LED Grow Lights: Full-spectrum lighting promotes robust plant development and higher yields.
  • Durable Build: Heavy-duty frame and fabric create a stable, controlled environment.
  • Optimized Performance: Maximizes growth potential with minimal effort.

Perfect for growers seeking a reliable, all-in-one solution for larger-scale indoor cultivation.

Q: What comes with this grow tent system?
A: The kit includes a 4' x 4' grow tent, full-spectrum LED grow light, inline fan with smart controls, circulation fans, ducting, and hanging equipment for up to four plants.

Q: How do the integrated smart controls work?
A: Smart controls automate ventilation and circulation, adjusting fan speeds based on temperature, humidity, and VPD for optimal plant growth.

Q: What is the LED light spectrum?
A: The LED grow light delivers a full spectrum, perfect for all growth stages, from seedling to flowering.

Q: Is the grow tent durable?
A: Yes, it features high-density 2000D Oxford fabric with a reflective interior for maximum light efficiency and durability.

Q: Who is this system best suited for?
A: It’s ideal for intermediate to advanced growers seeking efficient, automated growing solutions for up to four plants.

  • Clean Tent Interior: Wipe down walls and floor with mild soap and water to prevent mold and pests.
  • Inspect Fans: Regularly clean and check inline and circulation fans for dust buildup to maintain airflow efficiency.
  • Replace Filters: Monitor and replace carbon filters and clean intake screens as needed for air quality.
  • Maintain LED Lights: Gently dust the LED grow light surface to ensure optimal light output.
  • Monitor Smart Controls: Update firmware and recalibrate sensors periodically for accurate performance.
  • Check Tent Integrity: Ensure zippers, seams, and fabric are intact and repair any damage to maintain lightproof conditions.
