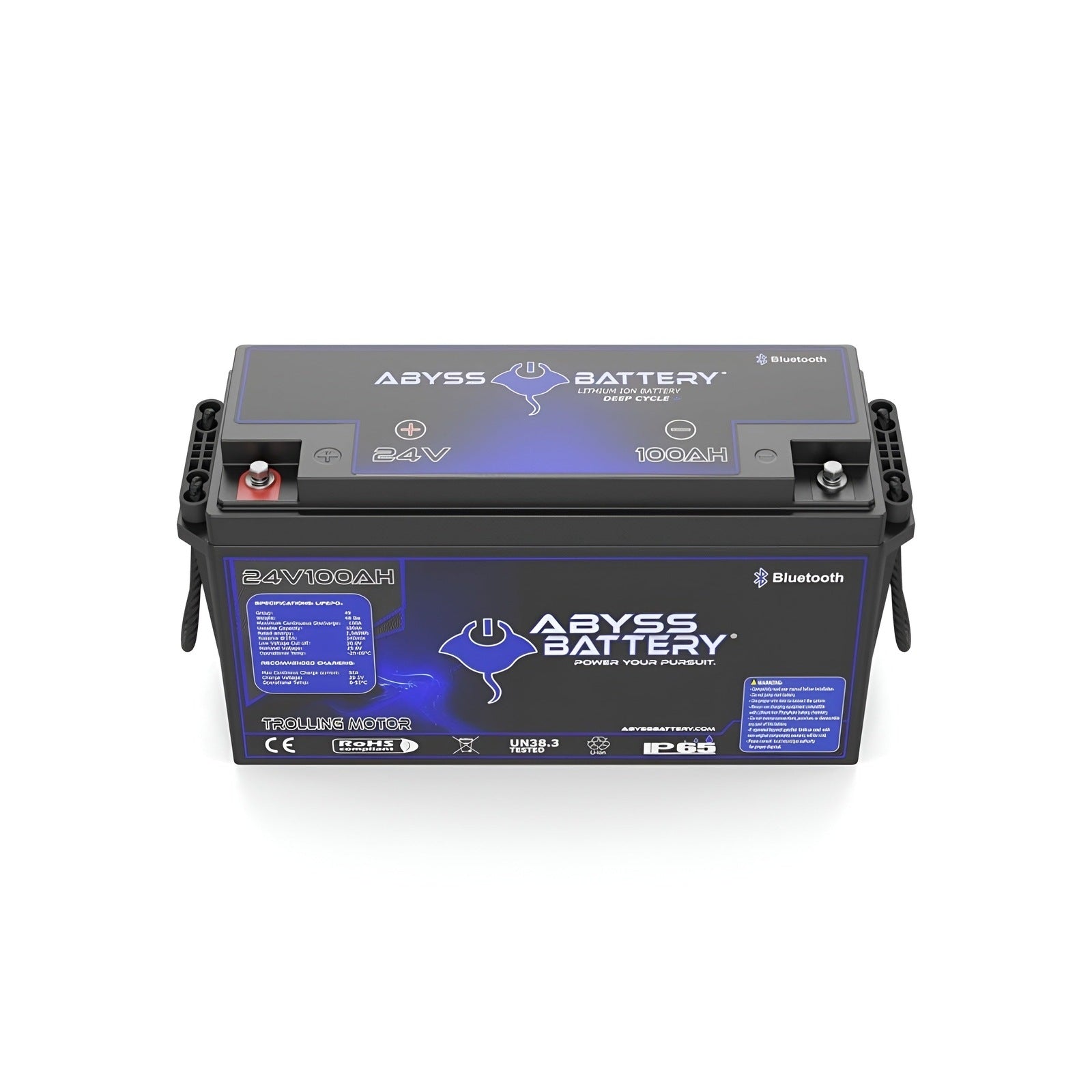

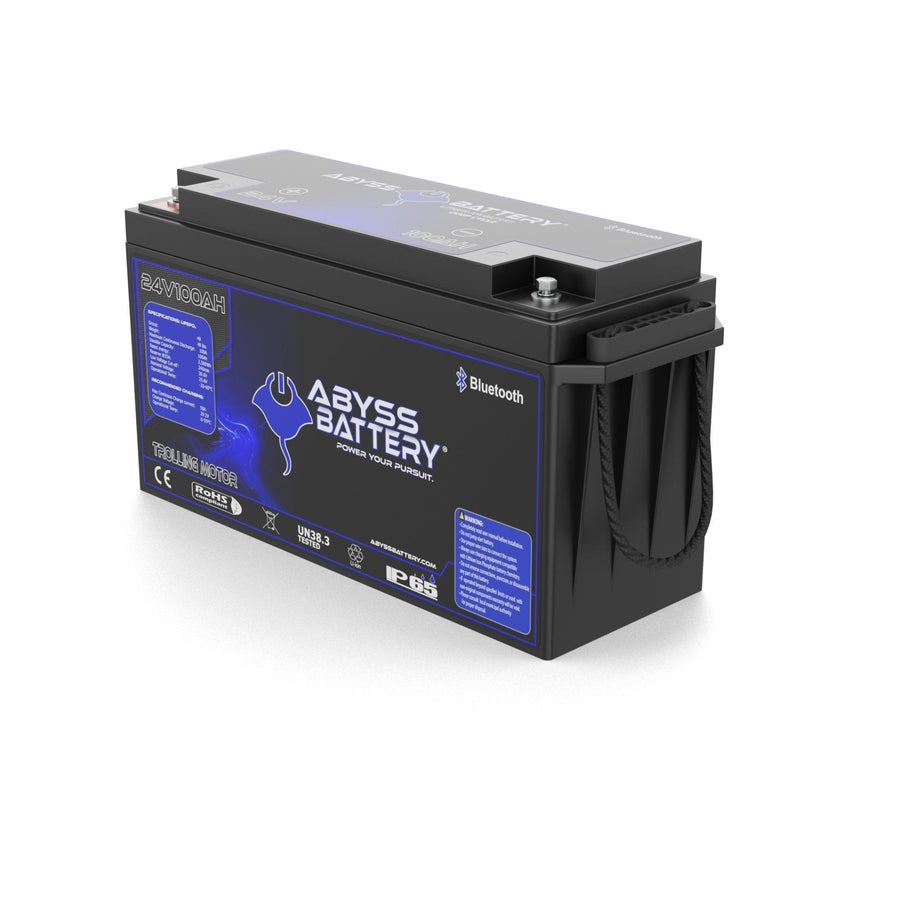

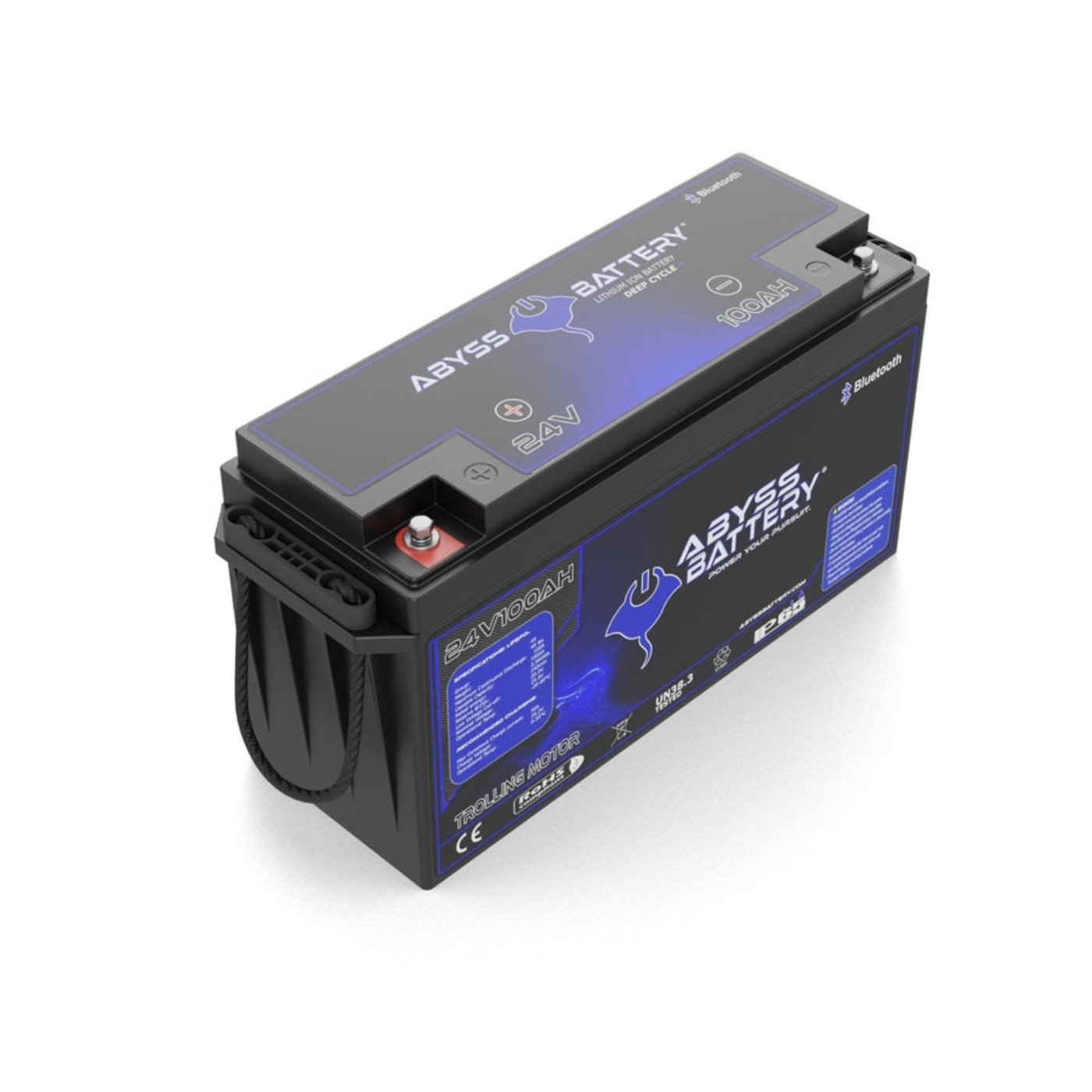

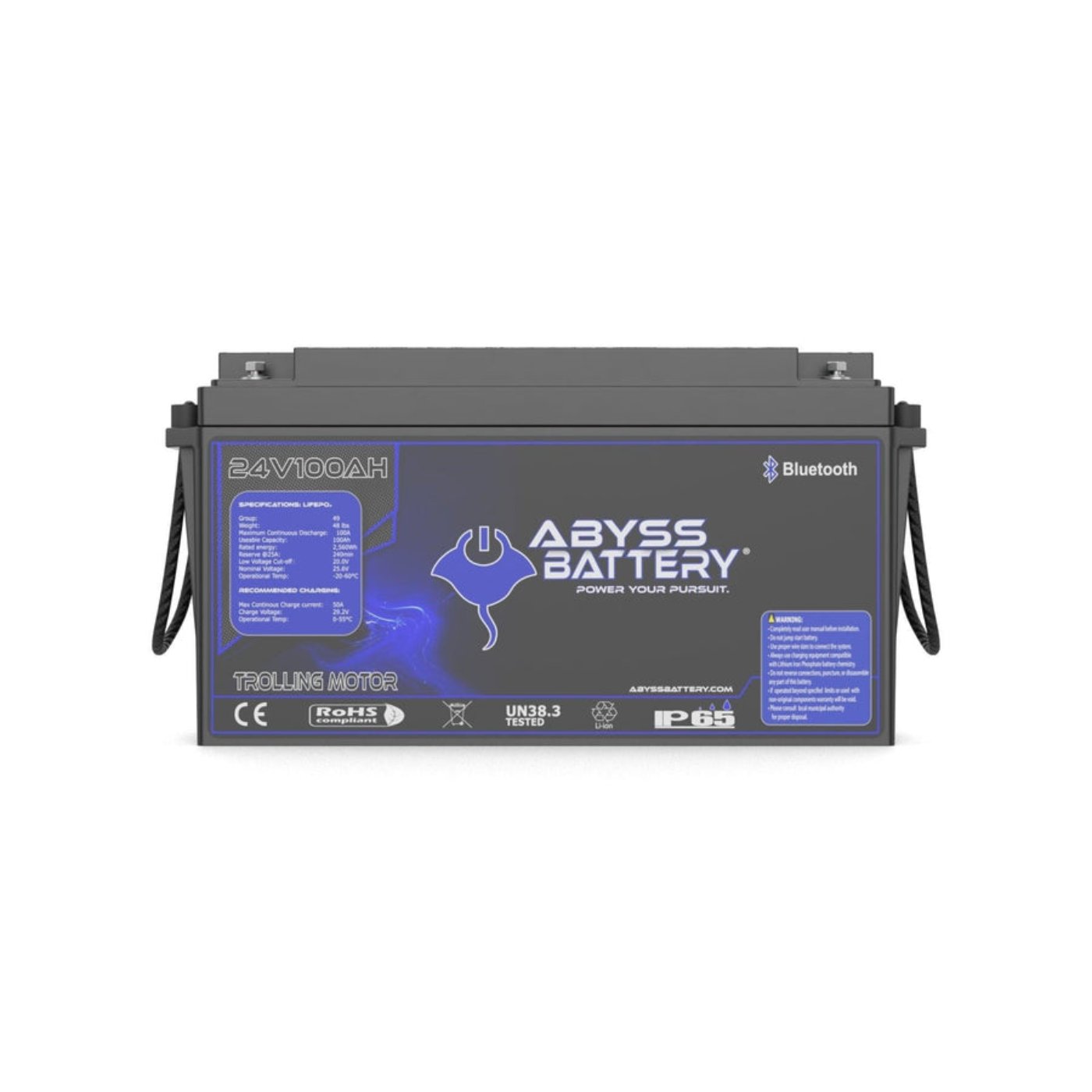

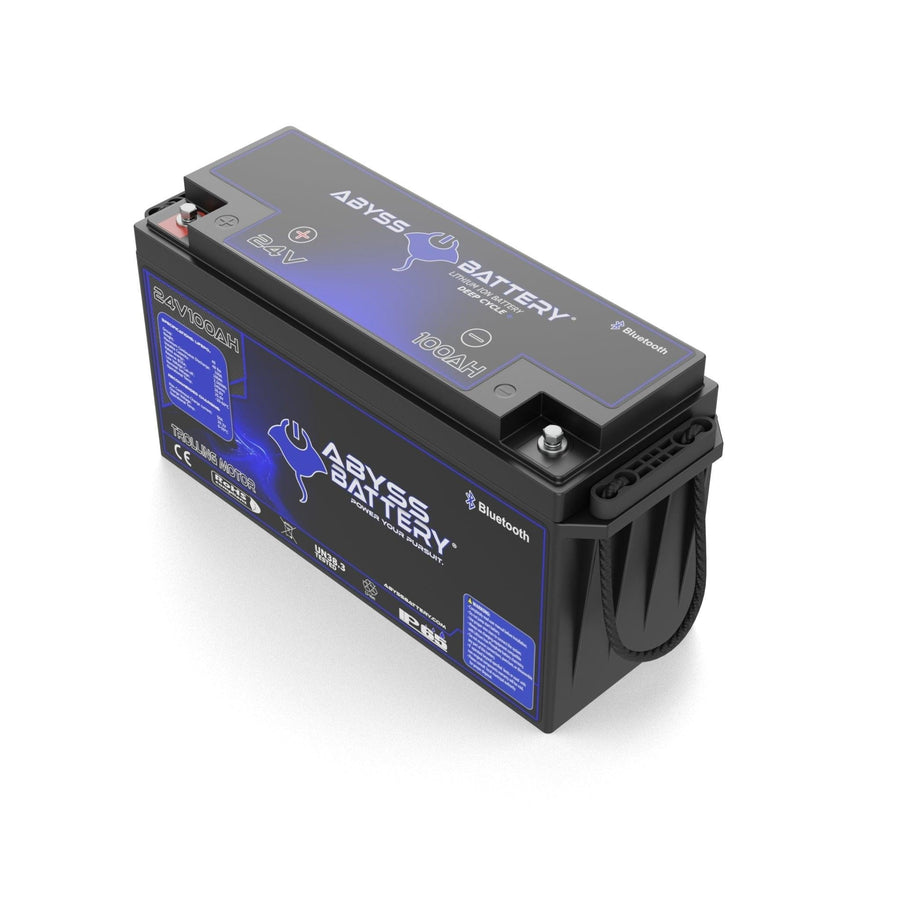

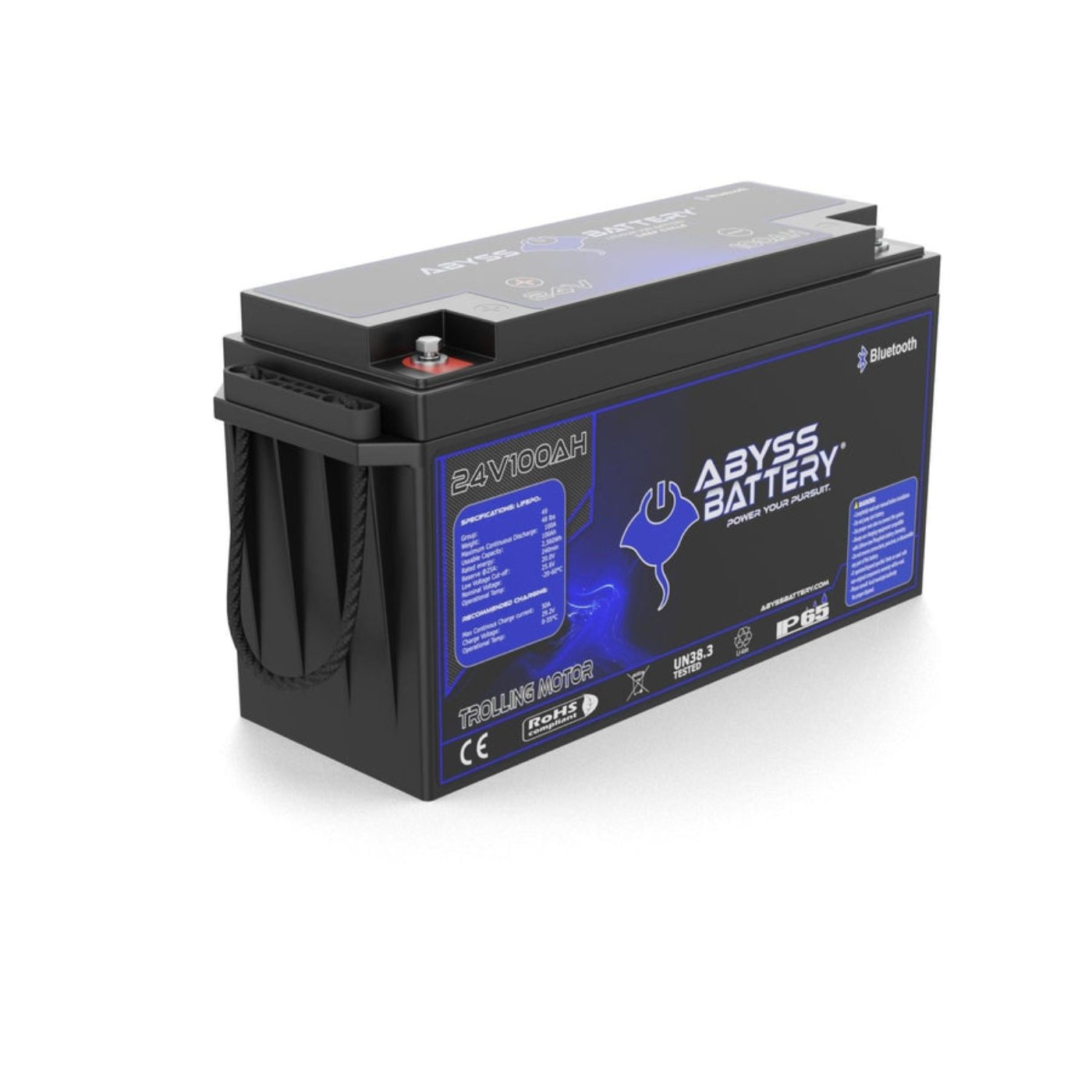

Abyss Battery 24v 100ah Lithium Trolling Motor Battery - AB-24V-100-BT
Tired of having to constantly recharge your trolling motor battery? What about that lingering fear of your battery dying in the middle of your fishing trip?
Swap your unreliable trolling batteries for a powerful ABYSS® 24V 100Ah Group 49 Battery. This single lithium battery is compact, lightweight, and will free up storage space on your boat by replacing two 12 volt Lead-acid or AGM group 31 batteries in series.
Whether you’re trolling in calm weather or fighting the wind, this battery will back you up even with load-heavy consumption. Ideal for deep cycle applications in diverse marine environments, seasons, and temperatures, The ABYSS® 24V 100Ah Lithium Trolling Motor Battery gives you a long and steady draw to last even for multi-day fishing trips.
Features
-
Higher qualified Grade-A cylindrical cells: UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000 times and excellent consistency.
-
Bluetooth Connectivity: Monitor the battery status (charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.
-
Built-in Heating: Uniform internal heating is an important feature of our cold-weather performance batteries, as many external heating blanket options currently available cannot sense the internal temperature of the cells and may not be completely effective at heating the battery throughout. Our system features proprietary technology that draws power from the charger itself, requiring no additional components. The entire process of heating and charging is completely seamless. Simply plug the battery into our lithium charger and the internal heating and monitoring system takes care of the rest.
-
More stable and firm internal structure: The cell holders within our battery protect and separate each cell to avoid any short circuit risks caused by intense vibration or impact. The separation and space created between each cell also improves the overall heat dissipation within the battery pack while charging and discharging.
Specifications
| TECHNICAL SPECIFICATIONS | DETAILS |
|---|---|
| Nominal Voltage | 24V |
| Nominal Capacity | 100Ah |
| Parallel Connection | Maximum 6 units |
| Series Connection | Maximum 2 units |
| Bluetooth Management System (BMS) | 8S100A (Available on Android/iOS) |
| Charge Voltage | 28.8±0.4V |
| Standard Charge Current | 20A |
| Fast Charge Current | 50A |
| Max. Continuous Discharge Current | 100A |
| Peak Discharge Current | 700A (300ms) |
| Discharge Cut-off Voltage | 20V |
| Cycle Life | 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Charge Efficiency | 100% @0.2C |
| Discharge Efficiency | 98-100% @1C |
| Operating Charge Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -5°C to 45°C (23°F to 113°F) |
| Physical Specifications | |
| Dimensions | 19.0" x 6.69" x 9.44" in |
| Approximate Weight | 48 lbs (22 Kg) |
| Terminal Type | M8 |
| Case | Color/Material: Black Plastic case (ABS) |
| IP Rating | IP65 |
| Cell Type | Cylindrical LiFePO4 cell |
| Cell Holder | Yes |
Product Manual
Product Manual - AB-24V-100-BT
What Our Experts Think
- Powerful Performance: The 24V 100Ah Lithium Trolling Motor Battery delivers long-lasting power for extended trips.
- Lightweight Design: Lighter than traditional lead-acid batteries, making installation and handling easier.
- Quick Charging: Recharges efficiently, ensuring minimal downtime and more time on the water.
- Durable & Reliable: Built to withstand the rigors of marine environments, offering consistent performance.
- Long Lifespan: Offers a longer cycle life, reducing the need for frequent replacements.
- Eco-Friendly: A sustainable power solution with fewer toxic materials than lead-acid batteries.
Q&A
Q: How long will the 24V 100Ah Lithium Trolling Motor Battery last?
A: This battery offers a long lifespan, lasting much longer than traditional lead-acid batteries.
Q: Is it compatible with all trolling motors?
A: Yes, it’s compatible with most 24V trolling motors.
Q: Is the battery lightweight?
A: Yes, it is significantly lighter than lead-acid batteries, making it easier to handle and install.
Q: How long does it take to recharge?
A: The 24V 100Ah battery recharges quickly, minimizing downtime.
Q: Does it perform well in marine environments?
A: Yes, it’s designed for durability and reliable performance in tough marine conditions.
Maintenance Tips
- Store in a Cool Place: Keep the battery in a dry, cool environment to maintain its lifespan.
- Charge Regularly: Recharge the battery every 3-6 months if not in use to preserve its health.
- Clean Terminals: Periodically check and clean terminals to prevent corrosion.
- Avoid Deep Discharge: Avoid draining the battery to 0%, as this can shorten its lifespan.
- Use Compatible Charger: Always use a charger specifically designed for lithium batteries for optimal performance.
