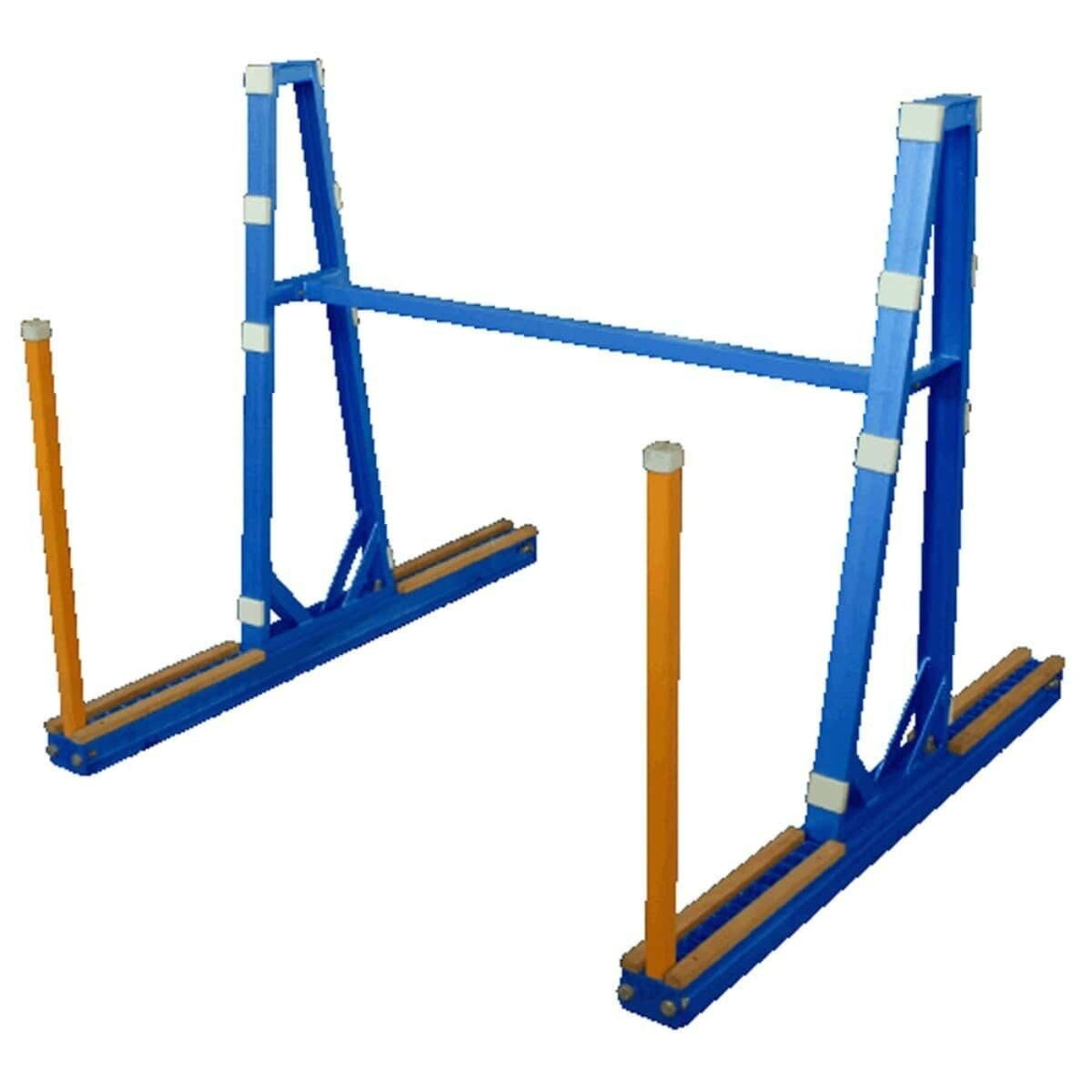

Aardwolf Storage A Frames - SAF01
Aardwolf Storage A Frames
Includes two A frame sections, a cross member and all necessary hardware. Solid frame base with safety post pockets set along the entire length of the base. (Safety posts are sold separately.)
Features
- Rubber pads on the face of the vertical frame
- Middle support bar connects each A-Frame end piece
- Store slabs on both sides
Specifications
| Width of Each Side |
610 mm |
24″ |
| Working Load Limit |
5000 kg |
11,023 lbs |
| Net Weight |
88.5 kg |
195 lbs |
| Gross Weight |
89 kg |
196 lbs |
| Packaging Dimension (A) |
1640 x 580 x 190 mm |
64.2″ x 22.8″ x 7.5″ |
| Packaging Dimension (B) |
1350 x 260 x 150 mm |
53.1″ x 10.2″ x 5.9″ |
What our Experts Think
-
Efficient Horizontal Lifting: Designed for handling glass, metal sheets, and similar flat materials. Its compact build allows easy attachment to hoists for streamlined movement.
-
Lightweight and Durable: Constructed from aluminum, it offers strength while remaining light enough for portable use.
-
Enhanced Safety: Built-in audio and visual alarms alert the operator to any issues, increasing workplace safety during lifts.
-
User-Friendly Controls: Simple button-based operation makes vacuum engagement and release intuitive and efficient.
-
Long Battery Life: Runs on a 12V 6.0Ah battery offering 2.5 hours of continuous use and up to 720 hours on standby.
-
Strong Vacuum Power: Provides a consistent 32.5 liters per minute vacuum flow rate for secure lifting.
-
Compact Storage: Weighs 28 kg and comes in a manageable size for transport and storage.
Q&A
Q: What is the Aardwolf AVLB4 Vacuum Lifter used for?
A: The AVLB4 is designed for horizontal lifting of glass, metal sheets, laser-cut panels, and similar flat materials, offering efficient and safe handling.
Q: What is its lifting capacity?
A: It can lift materials weighing up to 160 kg (approximately 353 lbs), suitable for various industrial applications.
Q: How many suction pads does it have, and what are their dimensions?
A: The lifter features four suction pads, each with a diameter of 150 mm (approximately 5.9 inches), ensuring a secure grip on materials.
Q: What are its battery specifications?
A: The AVLB4 operates on a 12V battery with a capacity of 6.0Ah. It offers a standby time of 720 hours, a charging time of 2 hours, and a continuous working time of approximately 2.5 hours.
Q: What is the vacuum flow rate of the device?
A: The vacuum flow rate is 32.5 liters per minute, ensuring efficient suction and release during operations.
Q: Is the AVLB4 easy to transport and set up?
A: Yes, with a net weight of 28 kg (approximately 62 lbs) and compact packaging dimensions (L1350 x W300 x H510 mm), it is designed for easy transportation and quick setup.
Maintenance Tips
-
Inspect Before Use: Check vacuum pads, seals, and hoses for wear, cracks, or leaks.
-
Clean Suction Pads: Wipe down pads after each use to remove dust, residue, and debris for maximum suction performance.
-
Test Vacuum System: Regularly test the vacuum pump and gauge to ensure proper suction pressure and safety.
-
Lubricate Moving Parts: Apply light lubricant to any mechanical joints or pivot points to keep movement smooth.
-
Store Properly: Keep the lifter in a clean, dry area away from direct sunlight and moisture to protect components.
