Aardwolf Stone Kerb Clamp - ASKC200
General

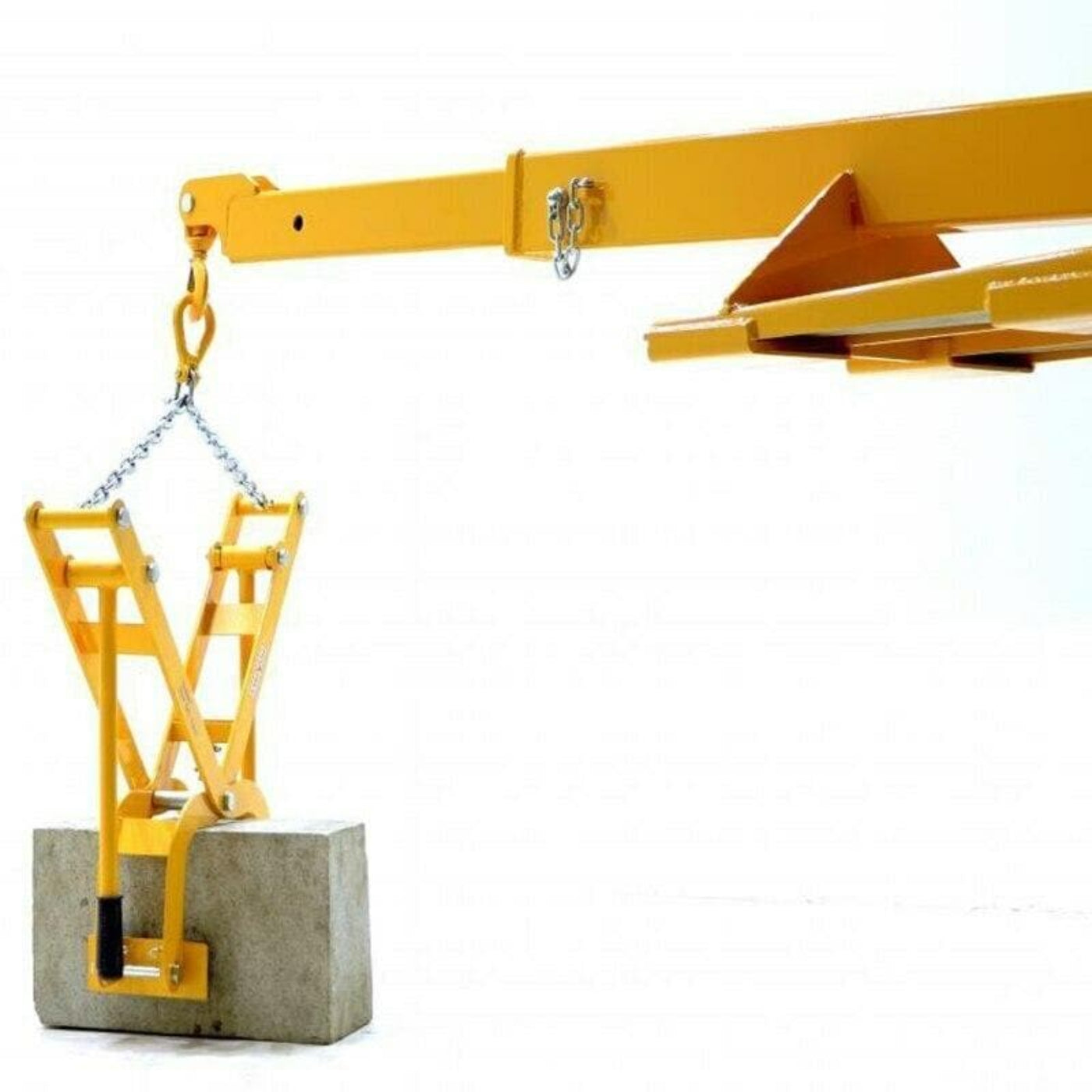

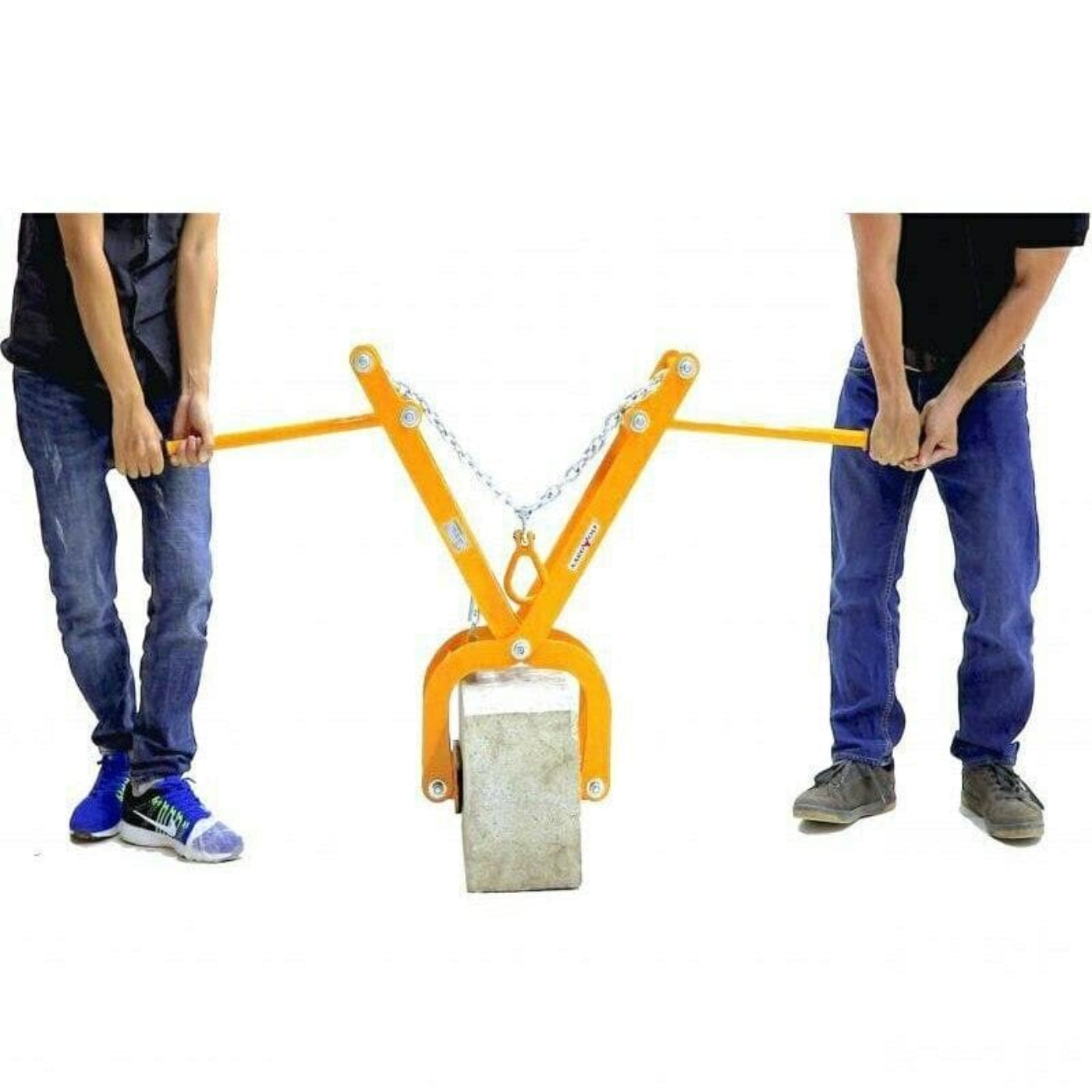

This two-man block clamp is suitable for a large range of handling applications, such as lifting/handling concrete and granite kerb stone as used in road construction or for heavy building blocks. The center chain can be attached to machines for heavy lifting.
Features
- Powder-coated frame to resist corrosion and rust
- Tilting pads ensure maximum grip
Specifications
| Metric |
Imperial |
| Grip Range |
0 - 260 mm (0 - 10 inches) |
| Working Load Limit |
200 kg (441 lbs) |
| Net Weight |
23 kg (51 lbs) |
| Gross Weight |
24 kg (53 lbs) |
| Packaging Dimensions |
860 x 390 x 210 mm |
| 33.9" x 15.4" x 8.3" |
|
What our Experts Think
-
Grip Range: 0 – 260 mm (0 – 10.2 inches), designed to handle a variety of kerb stones and heavy blocks.
-
Load Capacity: Supports up to 200 kg (441 lbs) for lifting substantial materials safely.
-
Durability: Built with a powder-coated steel frame for added strength and corrosion resistance, ideal for outdoor and industrial use.
-
Manual Operation: Easy to operate manually, with options for two-person use or machine-assisted lifting via a center chain.
-
Versatile Use: Perfect for use in construction, landscaping, and roadworks, efficiently handling kerb stones and heavy materials.
Q&A
Q: What is the Aardwolf ASKC200 Stone Kerb Clamp used for?
A: The ASKC200 is designed for lifting and transporting concrete and granite kerb stones, commonly used in road construction and heavy building projects.
Q: What is its grip range?
A: The clamp accommodates a grip range from 0 to 260 mm (0 to 10.2 inches).
Q: What is the working load limit?
A: It has a working load limit of 200 kg (441 lbs).
Q: How is it operated?
A: The clamp is a two-man block clamp suitable for a large range of handling applications. The center chain can be attached to machines for heavy lifting.
Q: What is its weight?
A: The net weight is 23 kg (51 lbs), and the gross weight is 24 kg (53 lbs).
Q: What materials are used in its construction?
A: The clamp features a powder-coated frame to resist corrosion and rust, ensuring durability and longevity.
Maintenance Tips
-
Inspect Regularly: Examine the frame, tilting pads, and chain for signs of wear, cracks, or damage.
-
Clean After Use: Remove dirt, debris, and moisture from all components to prevent buildup and corrosion.
-
Lubricate Moving Parts: Apply appropriate lubricant to the pivot points to ensure smooth operation.
-
Check Grip Pads: Inspect the tilting pads for wear and replace them if they show signs of damage or reduced grip.
-
Test Functionality: Before each use, verify that the clamp opens and closes correctly and that the automatic locking mechanism functions properly.
-
Store Properly: When not in use, store the clamp in a dry, sheltered area to protect it from environmental damage.
