Aardwolf Spreader Bar - 3.5 Tons - ASB35T

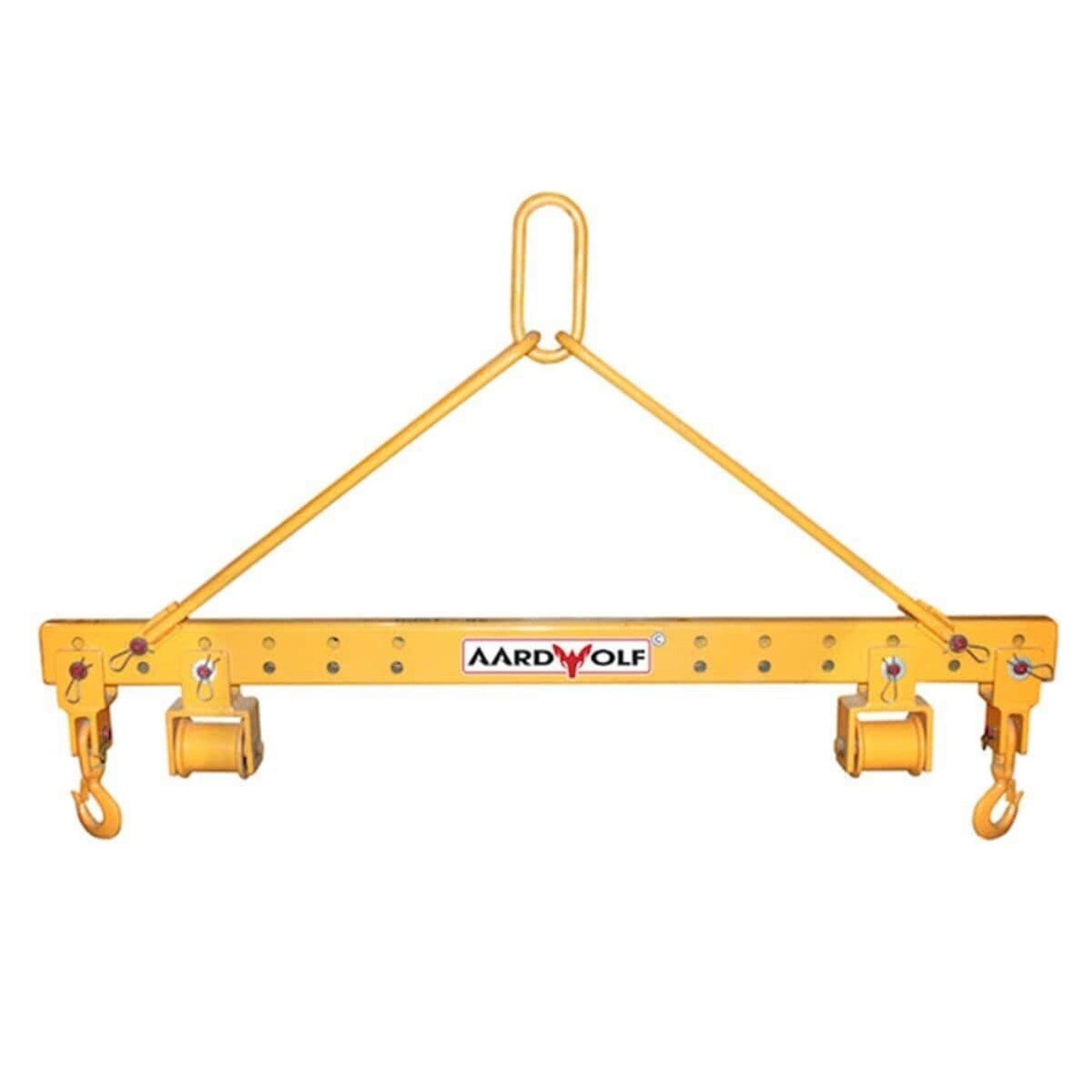

Spreader Bar comes with the rollers and swivel hooks - Can be combined with as well.

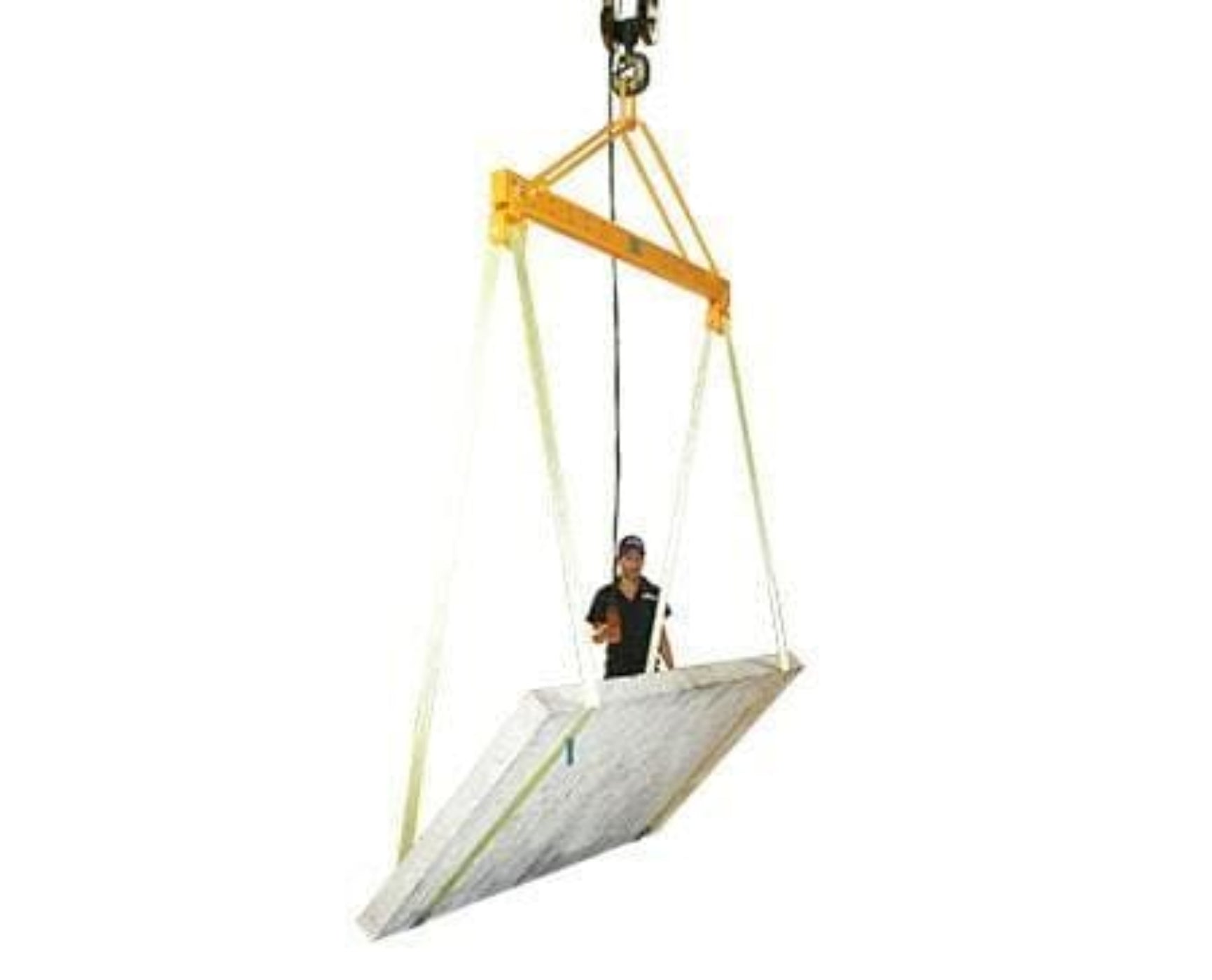

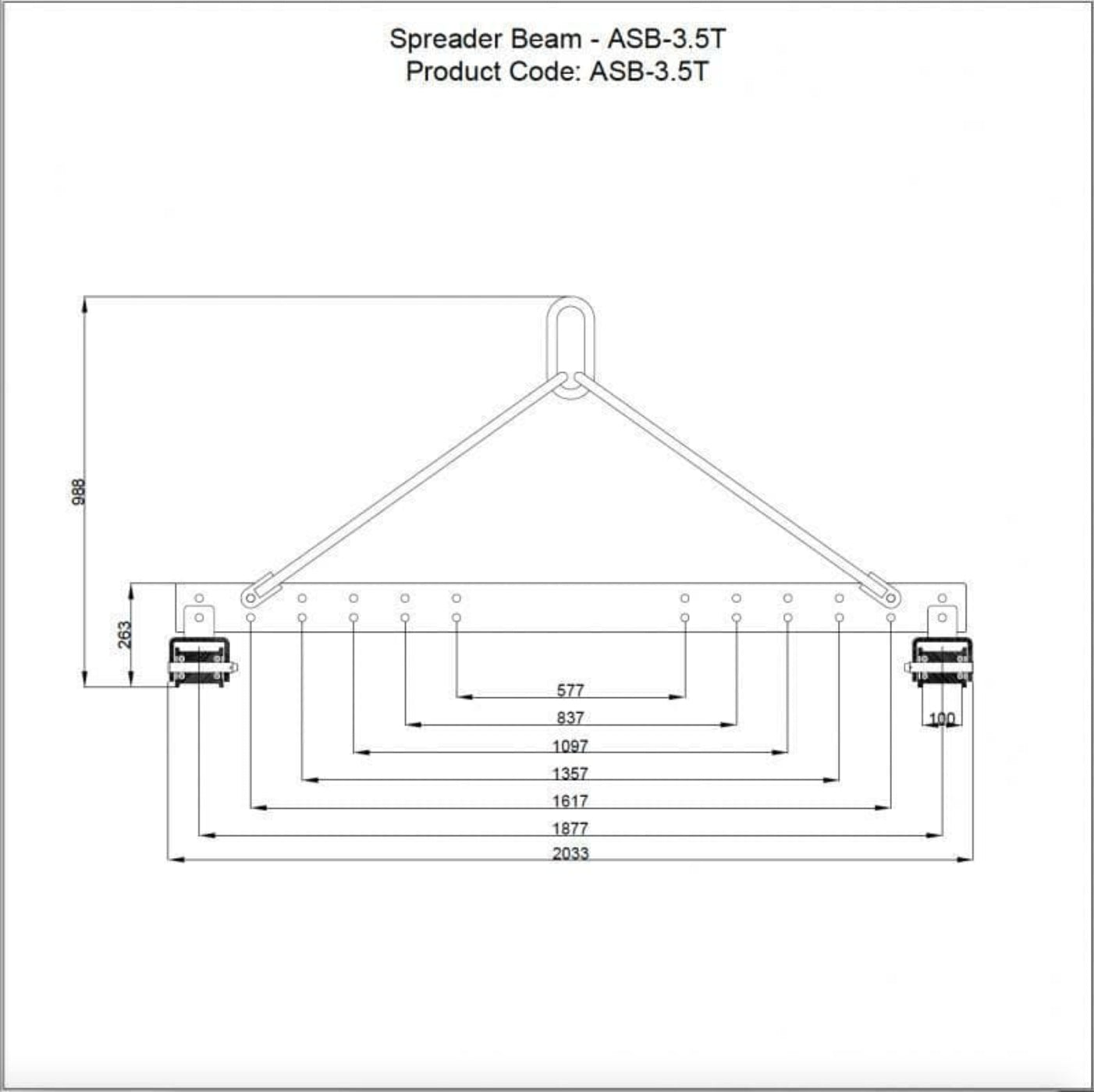

Specifically designed for the stone industry. The Spreader Bar, in combination with endless slings, is an invaluable piece of equipment where stone is required to be rolled over. The slings are suspended on crowned aluminium rollers. This makes turning the load in the sling easier. The rollers will handle up to 90mm wide slings. The swivel hooks can be used in place of rollers. The overall width is 2000mm.
Features
- Adjustable lifting points
- Handle both wide and unbalanced loads
- Optional: Swivel hooks and shackles
Specifications
| ASB-2.5T |
5,511 |
101 |
| ASB-3.5T |
7,716 |
159 |
| ASB-5T |
11,023 |
231 |
What our Experts Think
-
Heavy-Duty Capacity: Can support up to 3.5 tons (7,716 lbs), making it suitable for lifting large and heavy loads.
-
Adjustable Design: Features adjustable lifting points to handle a variety of load sizes and configurations.
-
Versatile Rigging Options: Comes with crowned aluminum rollers and swivel hooks, offering flexibility for different rigging setups.
-
Durable and Reliable: Built for long-lasting use in demanding stone and glass handling environments
Q&A
Q: What is the Aardwolf ASB35T Spreader Bar used for?
A: The ASB35T is designed for lifting and transporting heavy stone slabs, such as granite or marble, in workshops and on construction sites.
Q: What is its weight capacity?
A: It has a working load limit of 3,500 kg (7,716 lbs).
Q: What is its weight?
A: The net weight is 73 kg (161 lbs), and the gross weight is 74 kg (163 lbs).
Q: What materials can it handle?
A: The spreader bar is suitable for lifting stone slabs and other sheet materials, especially when rolling over is required.
Maintenance Tips
-
Regular Inspections: Examine the spreader bar for signs of wear, cracks, or deformation. Pay special attention to the rollers and swivel hooks for any damage or wear.
-
Cleaning: After each use, clean the spreader bar to remove dust, debris, and moisture. This helps prevent corrosion and ensures smooth operation.
-
Lubrication: Apply appropriate lubricant to the rollers and any moving parts to ensure smooth operation and prevent rust.
-
Check Functionality: Before each use, verify that the rollers rotate freely and the swivel hooks function correctly.
-
Storage: When not in use, store the spreader bar in a dry, sheltered area to protect it from environmental damage.
