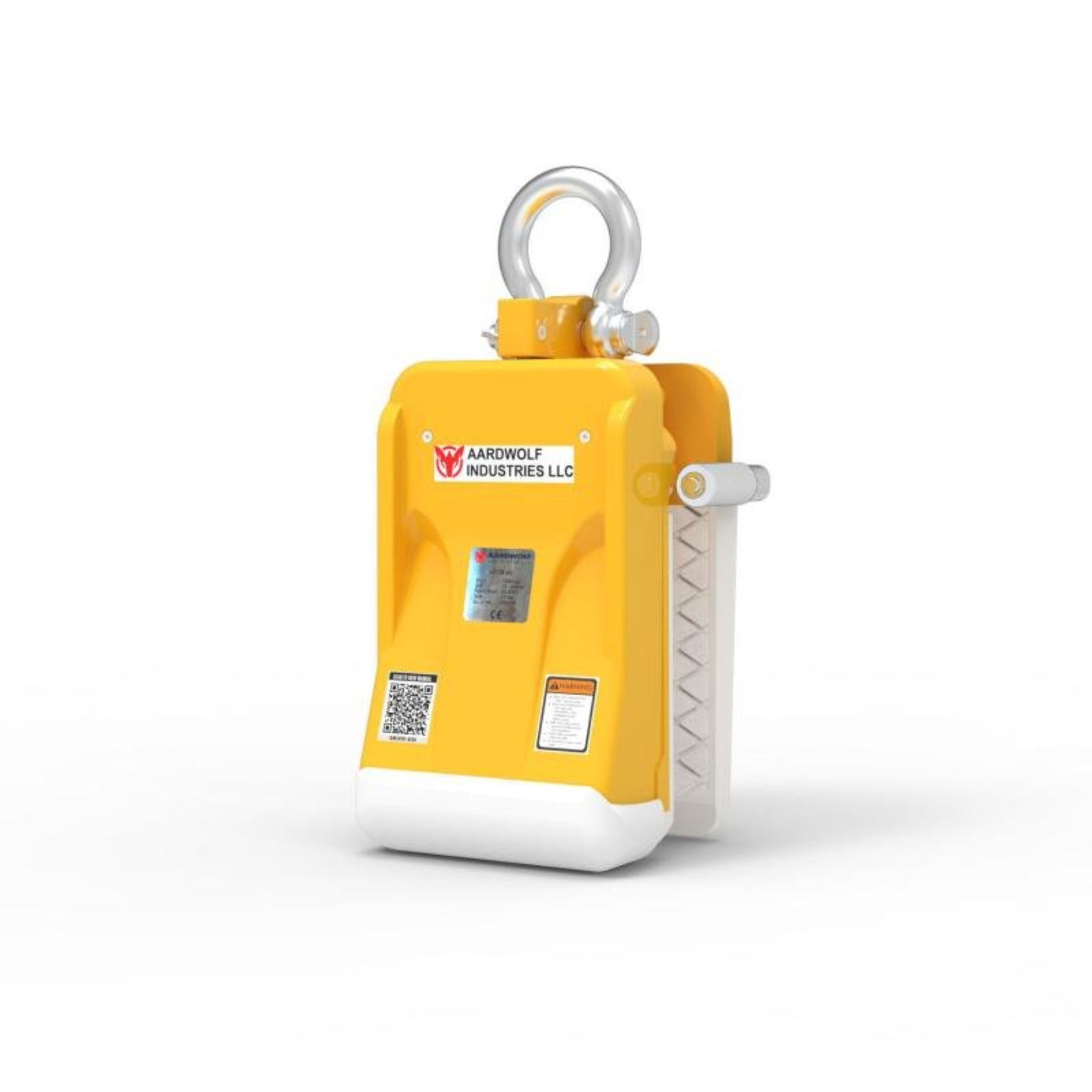

Aardwolf Slab Lifter Automatic AL60A with Rollers - AL60AR
Aardwolf Slab Lifter Automatic AL60A an integrated auto-lock, unlock mechanism (patent pending), which allows the clamp to automatically grip slabs on pick-up and release the slabs on set down.
General
Aardwolf offers a new version of its patented Aardwolf Slab Lifters. The new Aardwolf Slab Lifter Automatic AL60A has an integrated auto-lock, unlock mechanism (patent pending), which allows the clamp to automatically grip slabs on pick-up and release the slabs on set down. In many situations, this makes moving and handling of slabs safer and more convenient.
Features
- Size: Being of compact construction, the Aardwolf Slab Lifter Automatic AL60A allows for close packed stone slabs to be lifted out of racks and containers. Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
- Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
- Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
- Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter Automatic AL60A has a force-multiplying factor of approximately 2.5 to 1.
Specifications
| Lifter 30 Wide |
0.2'' - 1'' |
2646 |
45 |
47 |
17.3 x 6.3 x 14.2 |
| Lifter 50 |
0.4'' - 2'' |
2646 |
42 |
44 |
15 x 8.3 x 9 |
| Lifter 50-B |
0.4'' - 2'' |
2646 |
53 |
55 |
22.8 x 7.3 x 12.2 |
| Lifter 60 |
0.6'' - 2'' |
2646 |
55 |
57 |
16.5 x 9 x 9.8 |
| Lifter 75 |
1'' - 3'' |
2646 |
55 |
57 |
16.5 x 9 x 9.8 |
| Lifter 50 (Auto) |
0.4'' - 2'' |
2646 |
42 |
44 |
15 x 8.3 x 9 |
| Lifter 60 (Auto) |
0.6'' - 2'' |
2646 |
55 |
57 |
16.5 x 9 x 9.8 |
| Lifter 75 (Auto) |
1'' - 3'' |
2646 |
55 |
57 |
16.5 x 9 x 9.8 |
What our Experts Think
-
Automatic Locking: The automatic locking mechanism grips slabs upon pickup and releases them once set down, enhancing efficiency and safety.
-
Versatile Grip Range: Suitable for slabs ranging from 15 mm to 60 mm in thickness, accommodating various sizes.
-
Heavy Duty: Can lift slabs weighing up to 1,200 kg (2,646 lbs), making it perfect for handling large, heavy stone slabs.
-
Rollers for Protection: Features rollers that protect the slab’s upper edge and assist in centering during lifting.
-
Compact and Efficient: Its slim design allows easy handling in tight spaces, ideal for working with closely packed materials.
-
Reliable Safety: Designed with a 2.5:1 safety factor to ensure secure lifting.
Q&A
Q: What is the Aardwolf AL60AR Slab Lifter used for?
A: The AL60AR is designed for lifting and transporting stone slabs, such as granite and marble, in workshops and on job sites.
Q: What is its grip range?
A: The lifter accommodates a grip range of 15–60 mm (0.6"–2.4").
Q: What is the working load limit?
A: It has a working load limit of 1,200 kg (2,646 lbs).
Q: Is it easy to operate?
A: Yes, the clamping mechanism is positioned at the front of the slab, allowing panels to be placed close against walls, and requiring only a small movement to engage and grip the slab.
Q: What materials can it handle?
A: The AL60AR is suitable for both rough and smooth stone surfaces, providing versatility in handling various types of slabs.
Q: What is its weight?
A: The net weight is approximately 38 kg (84 lbs), and the gross weight is 39 kg (86 lbs), making it manageable for operators.
Maintenance Tips
-
Inspect Regularly: Examine the frame, rollers, and rubber pads for wear, cracks, or damage. Ensure the automatic locking mechanism operates smoothly.
-
Clean After Use: Remove dust, debris, and moisture from all components to prevent buildup and corrosion.
-
Lubricate Moving Parts: Apply appropriate lubricant to the rollers and pivot points to ensure smooth operation and reduce friction.
-
Check Grip Pads: Inspect the rubber pads for wear and replace them if they show signs of damage or reduced grip.
-
Test Functionality: Before each use, verify that the automatic locking mechanism engages and releases properly.
-
Store Properly: When not in use, store the lifter in a dry, sheltered area to protect it from environmental damage.
