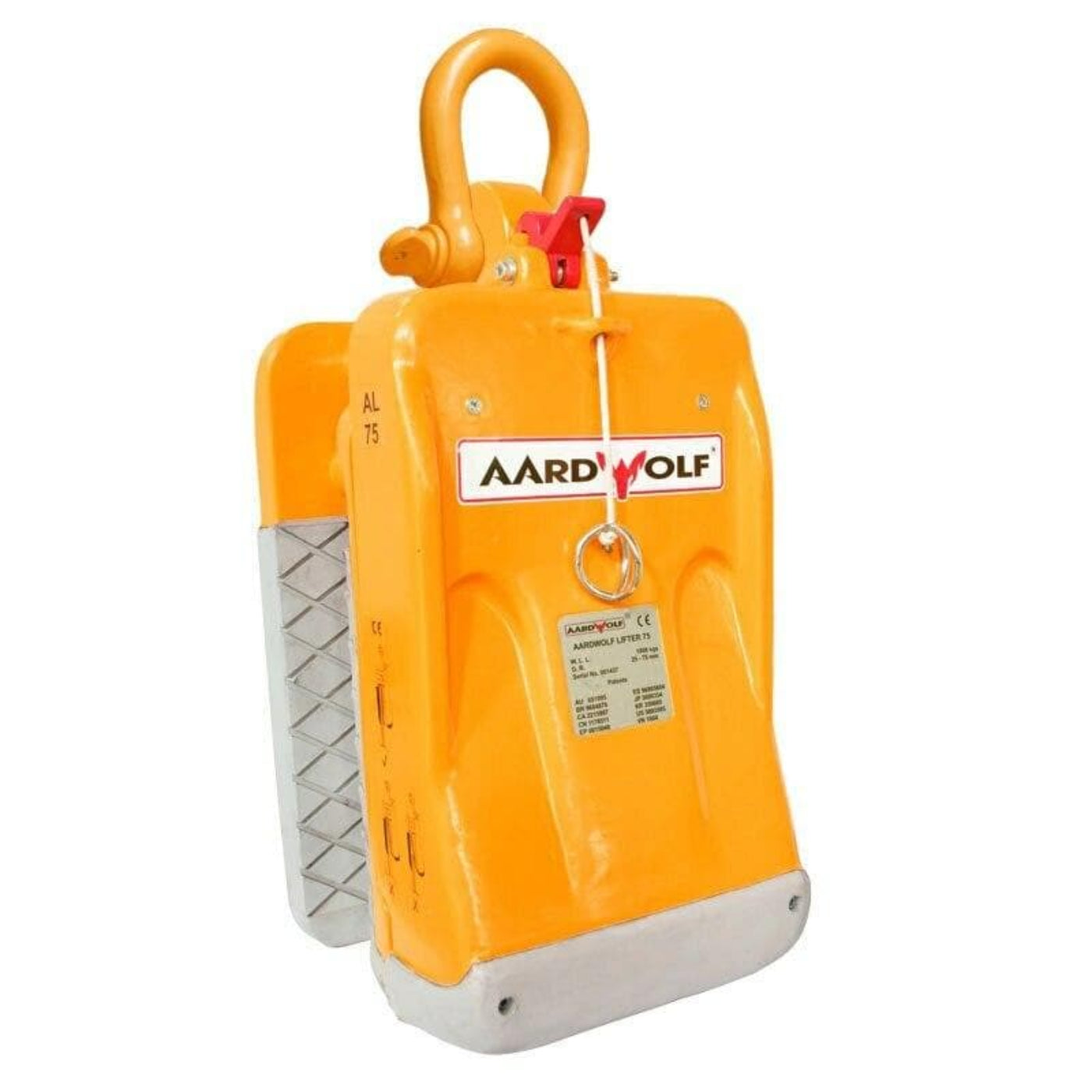

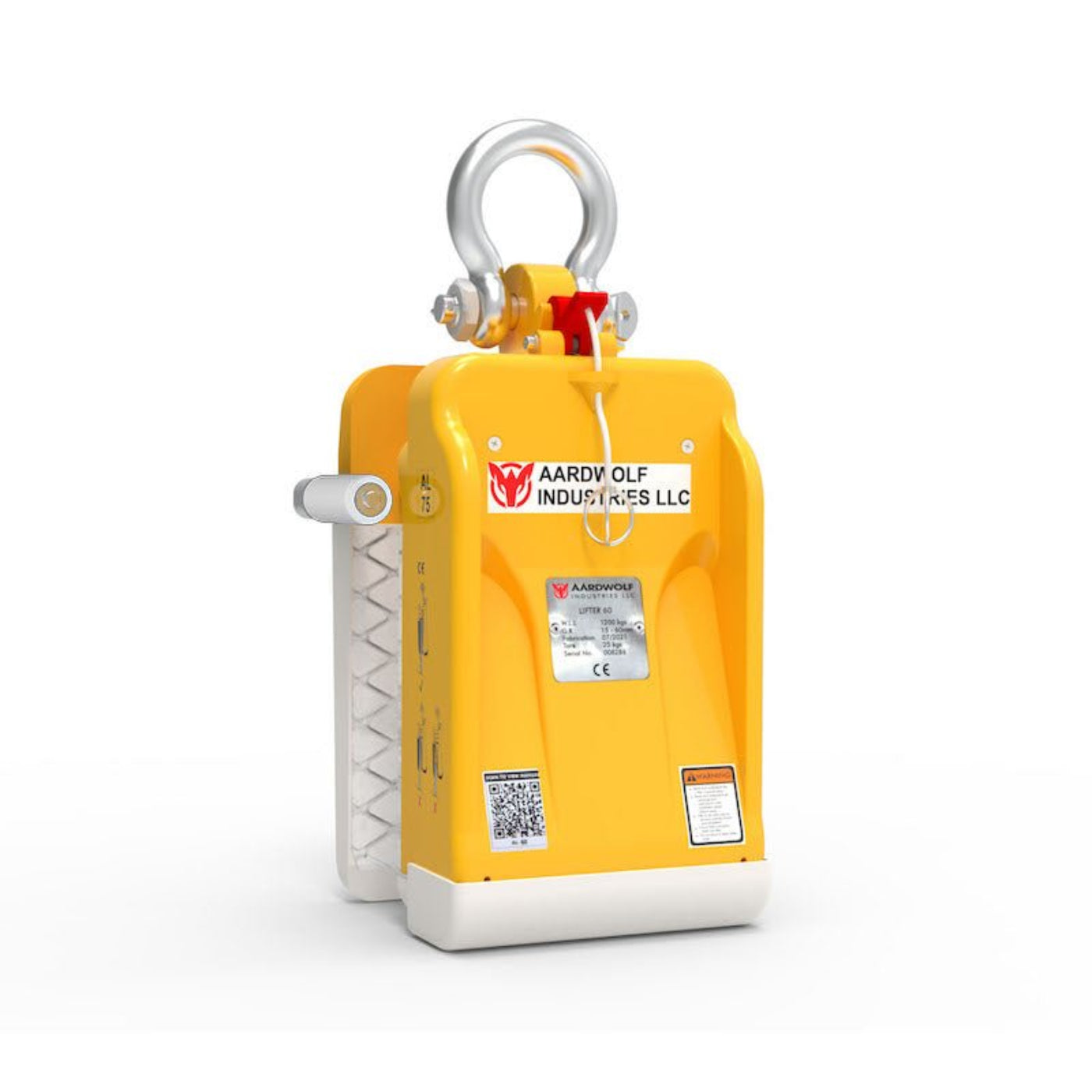

Aardwolf Slab Lifter 75 Rollers - AL75R
Aardwolf Slab Lifter 75 for lifter 3cm slabs

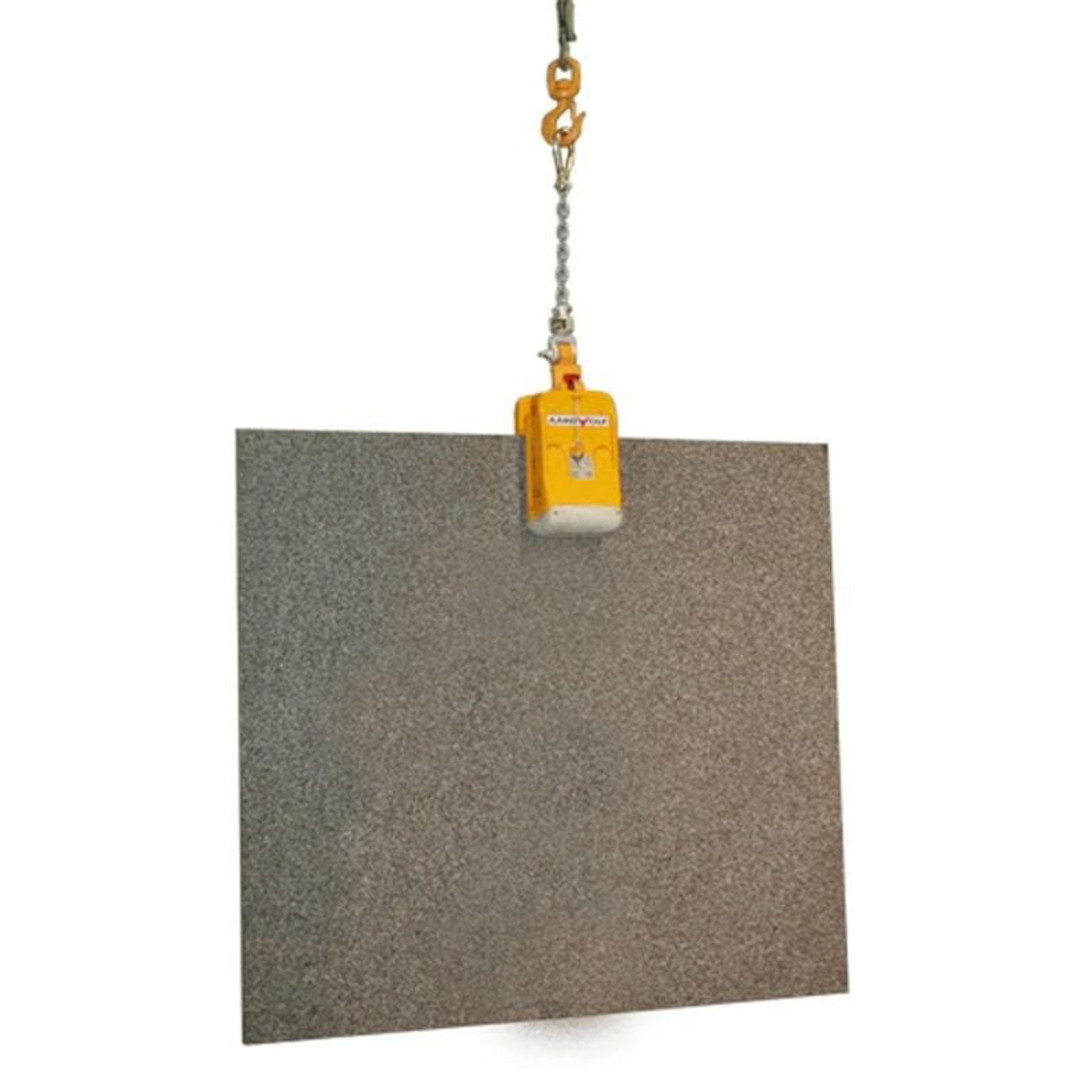

The patented Aardwolf Slab Lifter is an accessory for lifting and moving slab-form loads. The Aardwolf Slab Lifter incorporates a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground. This make the process of lifting and lowering of slabs a one man operation.
Features
- Size: Being of a compact construction, the Aardwolf Slab Lifter AL75 allows for close packed stone slabs to be lifted out of racks and containers. Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
- Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
- Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
- Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter AL75 has a force-multiplying factor of approximately 2.5 to 1.

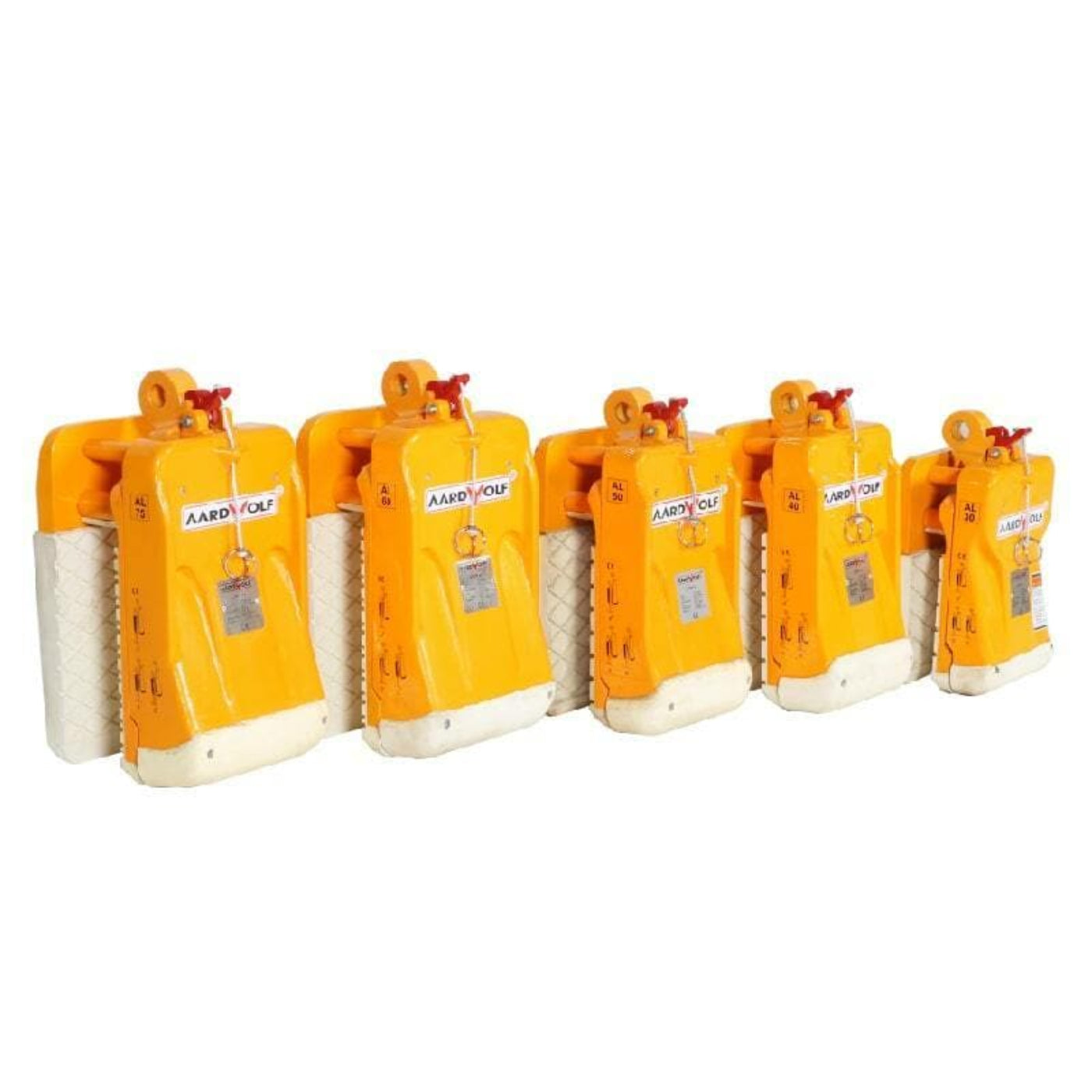

Specifications
| Lifter 30 Wide |
0.2'' - 1'' |
2646 |
45 |
47 |
17.3'' x 6.3'' x 14.2'' |
| Lifter 50 |
0.4'' - 2'' |
2646 |
42 |
44 |
15'' x 8.3'' x 9'' |
| Lifter 50-B |
0.4'' - 2'' |
2646 |
53 |
55 |
22.8'' x 7.3'' x 12.2'' |
| Lifter 60 |
0.6'' - 2'' |
2646 |
55 |
57 |
16.5'' x 9'' x 9.8'' |

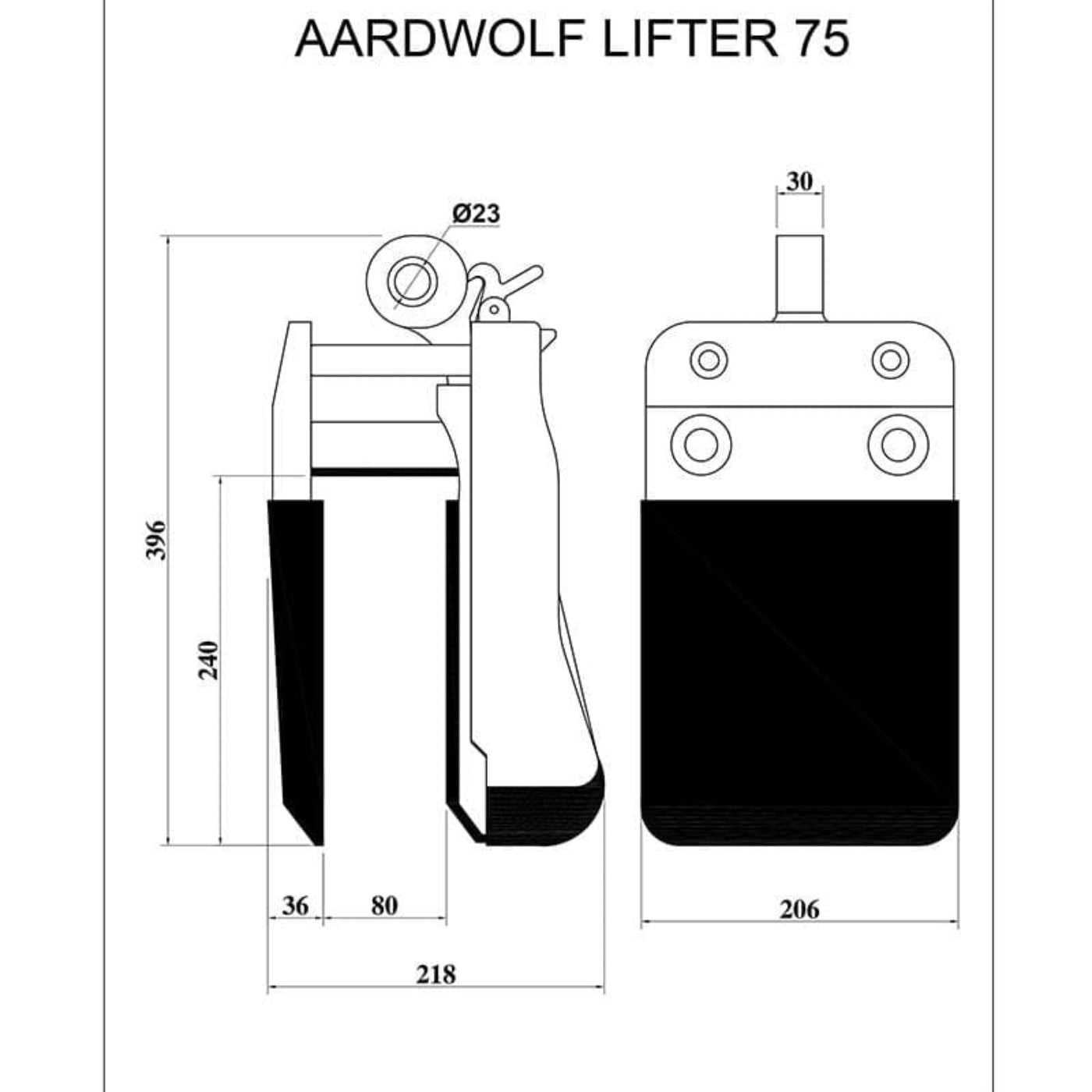

| Lifter 75 |
1'' - 3'' |
2646 |
55 |
57 |
16.5'' x 9'' x 9.8'' |
| Lifter 50 (Auto) |
0.4'' - 2'' |
2646 |
42 |
44 |
15'' x 8.3'' x 9'' |
| Lifter 60 (Auto) |
0.6'' - 2'' |
2646 |
55 |
57 |
16.5'' x 9'' x 9.8'' |
| Lifter 75 (Auto) |
1'' - 3'' |
2646 |
55 |
57 |
16.5'' x 9'' x 9.8'' |
What our Experts Think
-

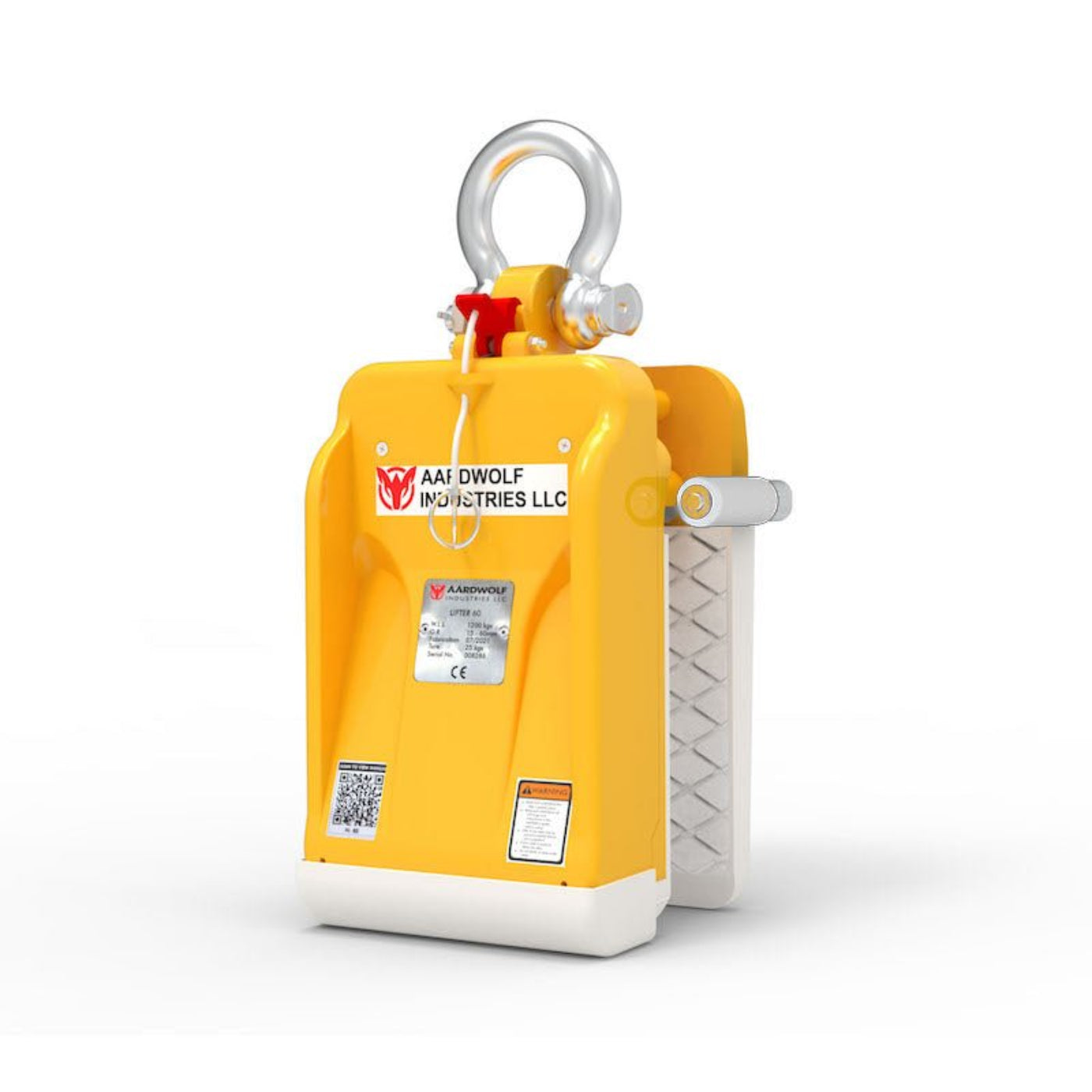

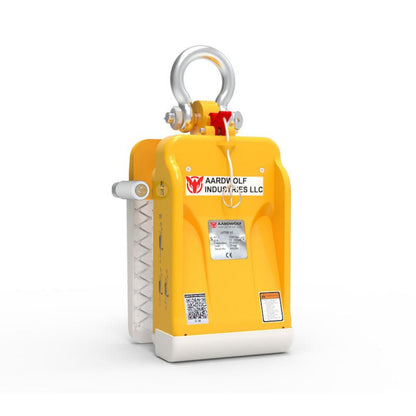

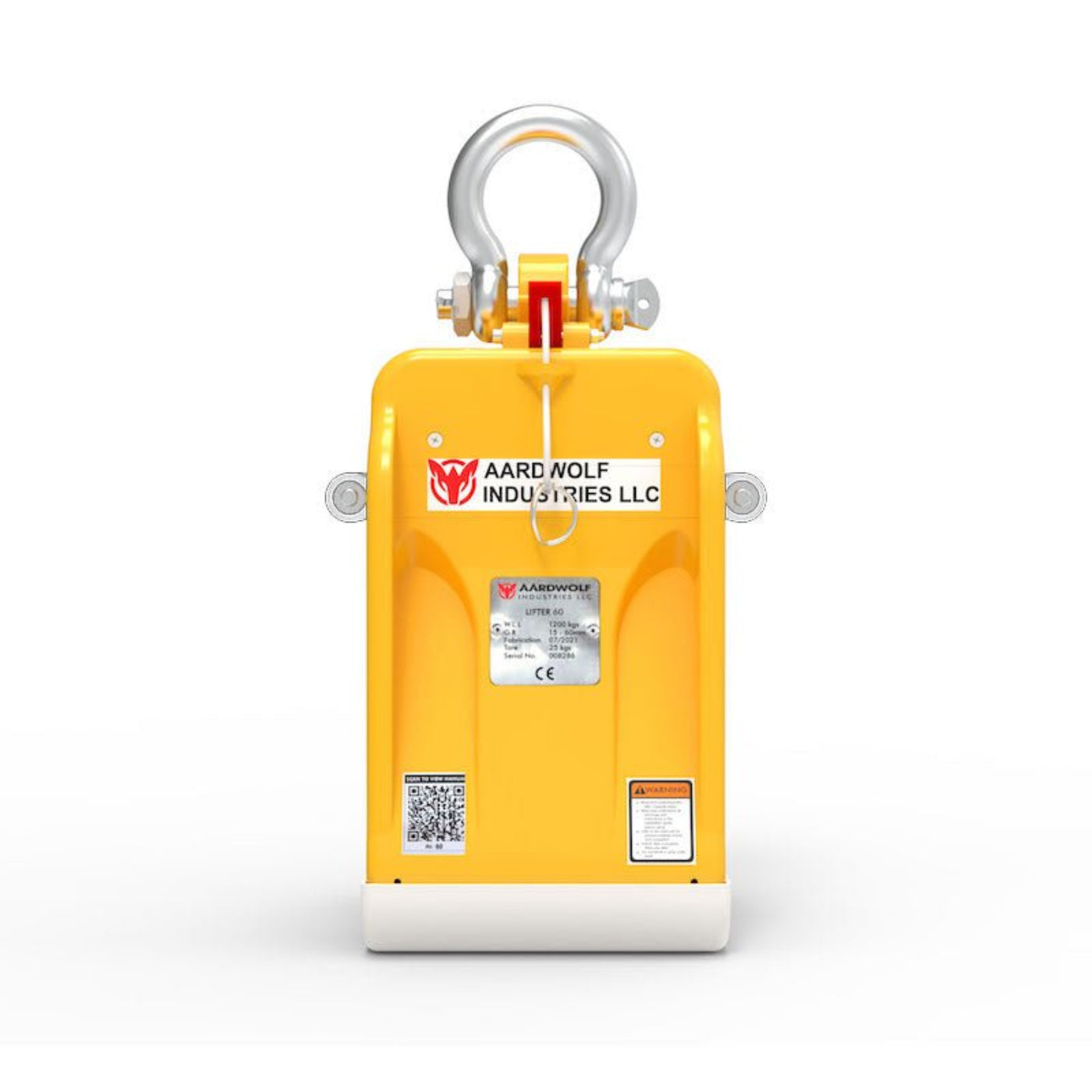

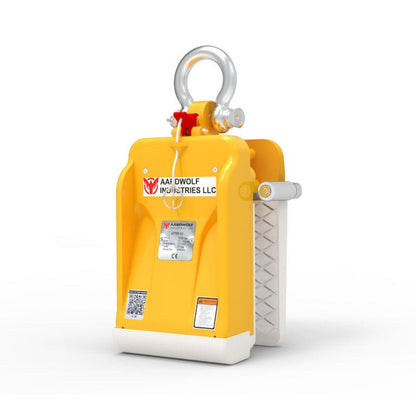

Enhanced Edge Protection: Equipped with two support rollers that safeguard the top edges of slabs during lifting and allow for easy manual centering
-
Compact Design: The AL75R's compact construction enables it to lift closely packed stone slabs from racks and containers, even when lower height slabs are placed alongside taller ones.
-
Efficient Operation: Features a spring-loaded latch that automatically releases the lifter from the slab once it's fully lowered to the ground, facilitating one-man operation
-
Versatile Application: Ideal for construction work, as its clamping mechanism is positioned at the front of the slab, allowing panels to be placed close against walls.
-
Safety Assurance: Requires only a small movement of the slab to engage and grip, minimizing the risk of overbalance and ensuring operator safety
-
Secure Grip: The Aardwolf clamps firmly grip marble and granite slabs, with a force-multiplying factor of approximately 2.5 to 1, ensuring a secure hold during lifting.
Q&A
Q: What is the Aardwolf AL75R Slab Lifter used for?
A: The AL75R is designed for lifting and transporting stone slabs, such as granite and marble, in workshops and on job sites.
Q: What is its weight capacity?
A: It has a working load limit of 1,200 kg (2,646 lbs), making it suitable for heavy-duty lifting tasks.
Q: What is the grip range?
A: The lifter accommodates slabs with a thickness ranging from 30 mm to 75 mm (1" to 3").
Q: How does the roller system benefit its use?
A: The integrated side rollers protect the top edge of slabs during lifting and allow for manual centering, ensuring balanced lifting and preventing damage.
Q: Is it easy to operate?
A: Yes, the clamping mechanism is positioned at the front of the slab, allowing panels to be placed close against walls, and requiring only a small movement to engage and grip the slab.
Q: What materials can it handle?
A: The AL75R is suitable for both rough and smooth stone surfaces, providing versatility in handling various types of slabs.
Q: What is its weight?
A: The net weight is 25 kg (55 lbs), and the gross weight is 26 kg (57 lbs), making it manageable for operators.
Maintenance Tips
-
Inspect Regularly: Check the rollers, lifting arms, and locking mechanisms for any signs of wear, damage, or misalignment.
-
Clean After Use: Remove any debris, dust, and moisture from the rollers and lifting components to prevent buildup and ensure smooth movement.
-
Lubricate Moving Parts: Apply lubricant to the rollers and pivot points to minimize friction and ensure efficient operation.
-
Test Functionality: Verify that the locking and lifting functions are operating smoothly and securely before each use.
-
Proper Storage: Store the lifter in a dry, sheltered location to prevent rust and environmental damage.
