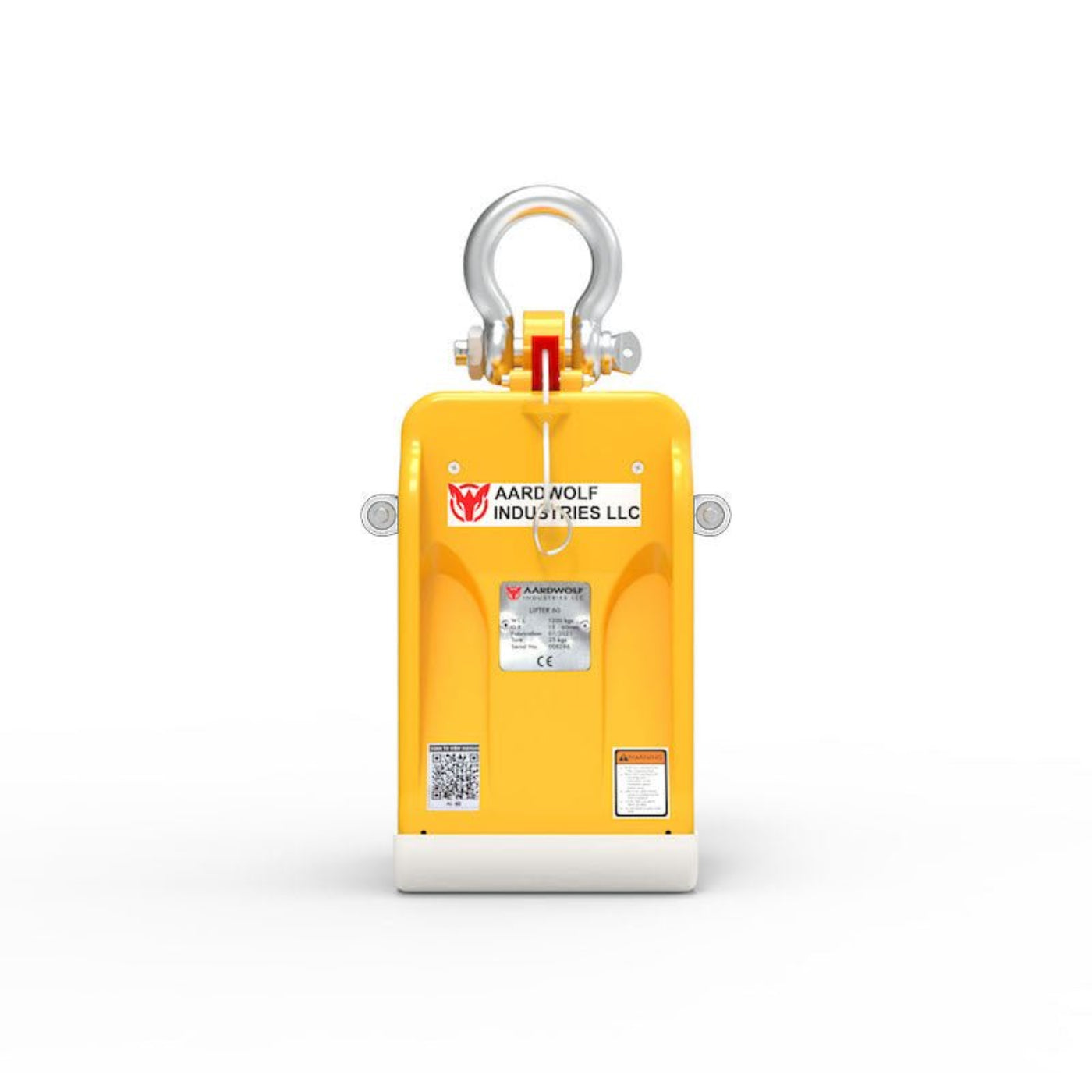

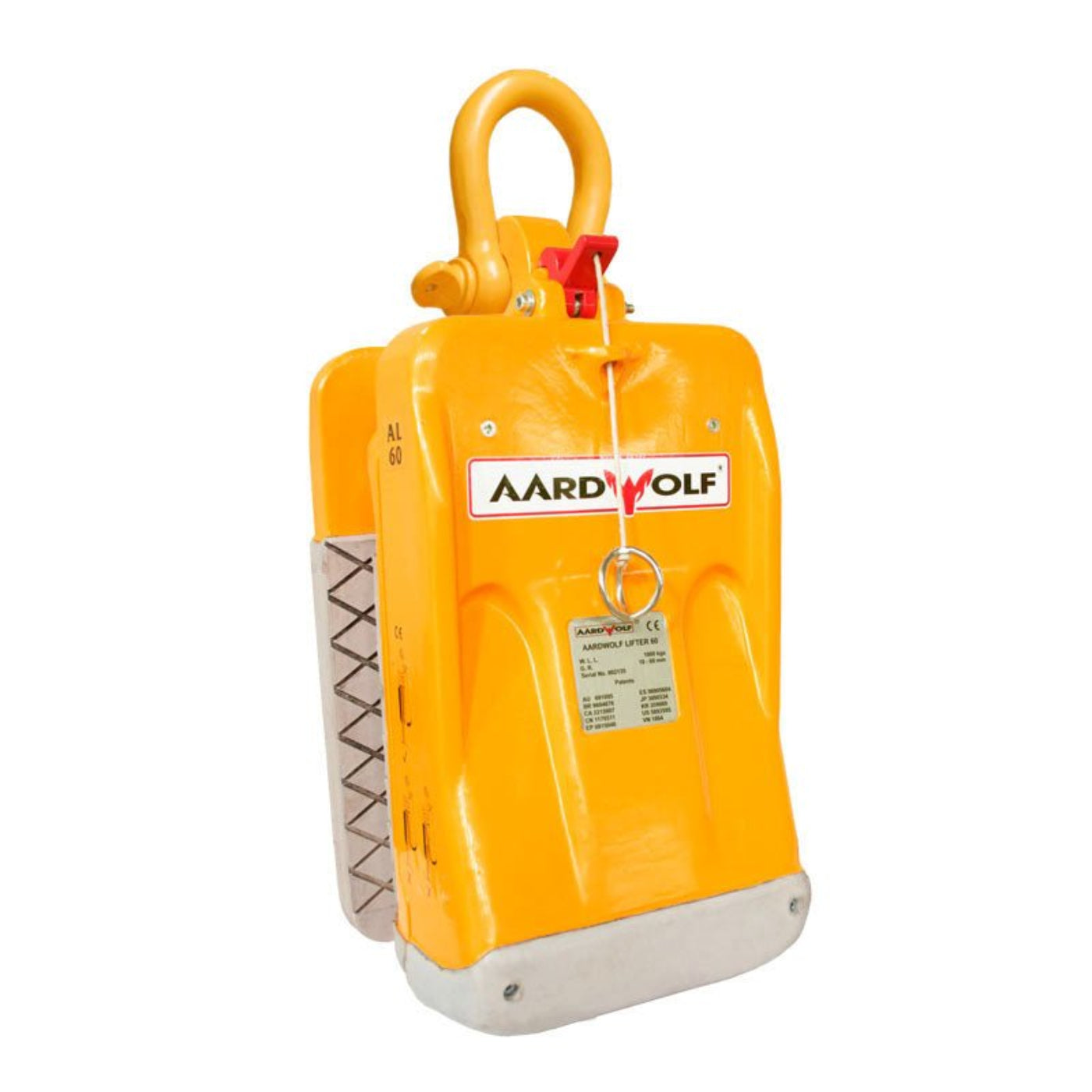

Aardwolf Slab Lifter 60 with Rollers - AL60R
Aardwolf Slab Lifter 60 ideal forklift attachment for moving heavy slabs with a gripping range of 0.6-2.4 inches
The Aardwolf Lifter 60 is used to move heavy slabs of stone. This slab lifter has ability to move two pieces of 3cm stone at one time. The slab lifter attaches to a forklift, it is an accessory for lifting and moving slab. The Aardwolf Lifters incorporate a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground. This makes the process of lifting and lowering of slabs a one-man operation.
Features
- Size: Being of a compact construction, the Aardwolf Lifter 60 allow for close packed stone slabs to be lifted out of racks and containers. Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
- Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
- Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
- Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Lifter 60 has a force multiplying factor of approximately 2.5 to 1.
- Designed to move one slab at a time
Specifications

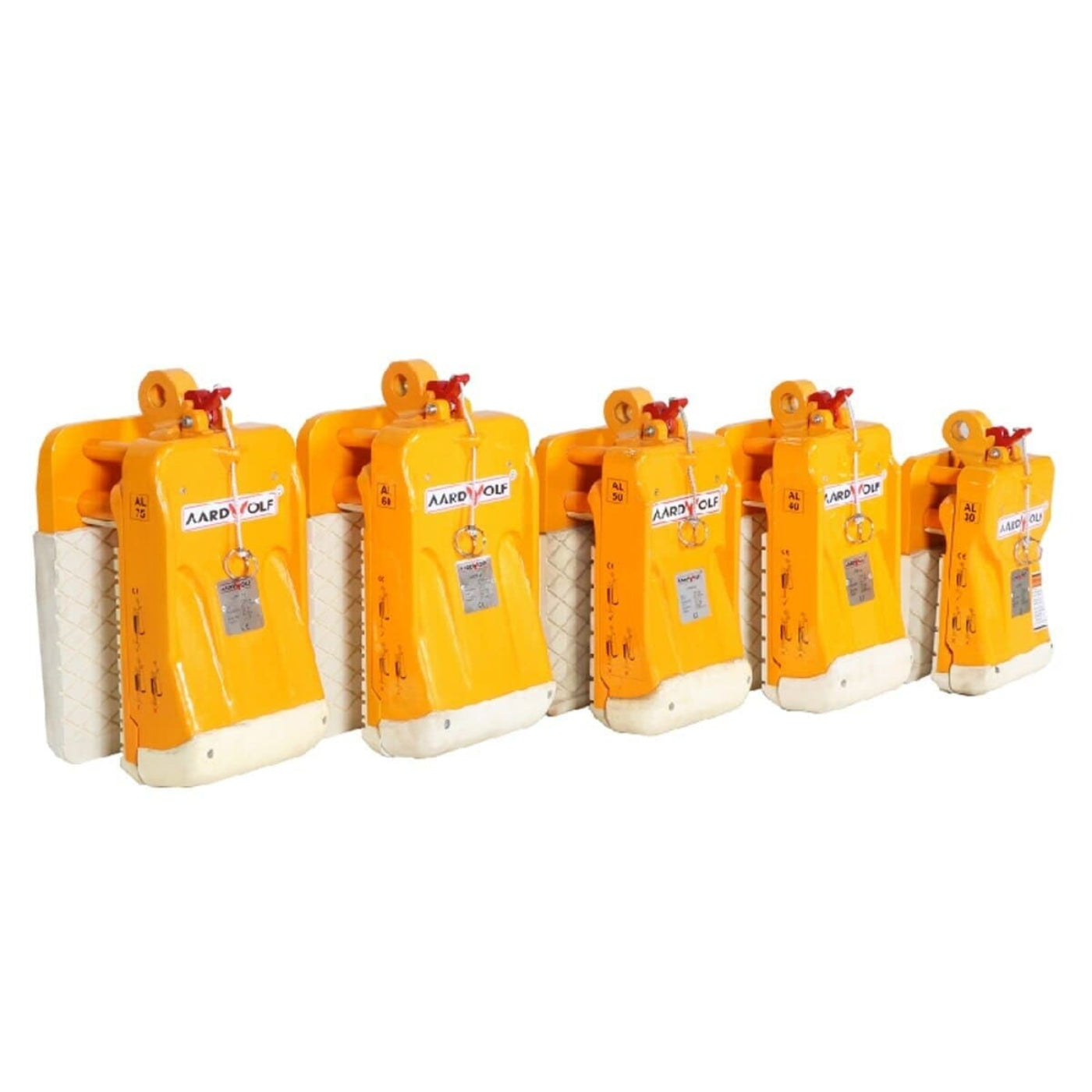

| Lifter 30 Wide |
0.2" - 1" |
2646 |
45 |
47 |
17.3" x 6.3" x 14.2" |
| Lifter 50 |
0.4" - 2" |
2646 |
42 |
44 |
15" x 8.3" x 9" |
| Lifter 50-B |
0.4" - 2" |
2646 |
53 |
55 |
22.8" x 7.3" x 12.2" |
| Lifter 60 |
0.6" - 2" |
2646 |
55 |
57 |
16.5" x 9" x 9.8" |
| Lifter 75 |
1" - 3" |
2646 |
55 |
57 |
16.5" x 9" x 9.8" |
| Lifter 50 (Auto) |
0.4" - 2" |
2646 |
42 |
44 |
15" x 8.3" x 9" |
| Lifter 60 (Auto) |
0.6" - 2" |
2646 |
55 |
57 |
16.5" x 9" x 9.8" |
| Lifter 75 (Auto) |
1" - 3" |
2646 |
55 |
57 |
16.5" x 9" x 9.8" |
What our Experts Think
-
Compact Design: Its compact construction allows for lifting slabs in tight spaces, ideal for handling stone slabs in racks and containers.
-
Efficient Operation: Equipped with a spring-loaded latch that automatically releases the lifter once the slab is fully lowered, enabling single-person operation.
-
Enhanced Safety: Designed for minimal movement during operation to reduce the risk of overbalance, ensuring operator safety.
-
Secure Grip: Provides a strong grip on marble and granite slabs, with a 2.5:1 force multiplication ratio for a secure hold during lifting.
-

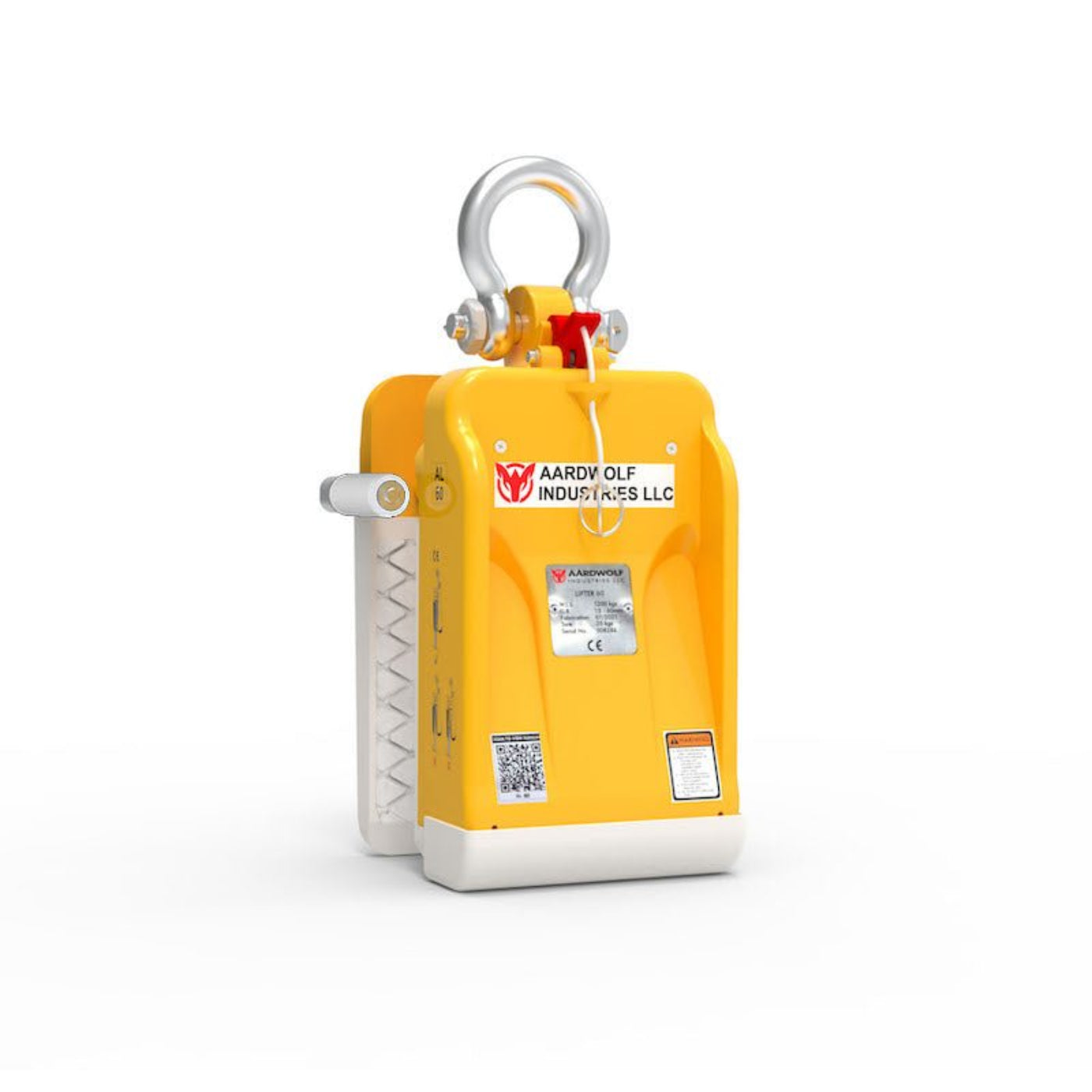

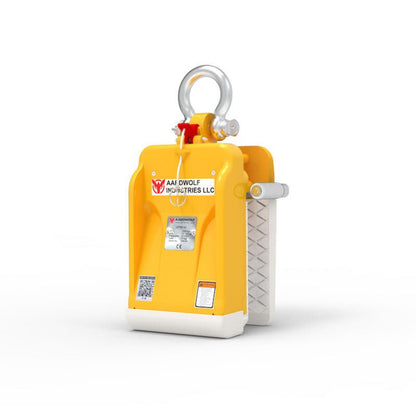

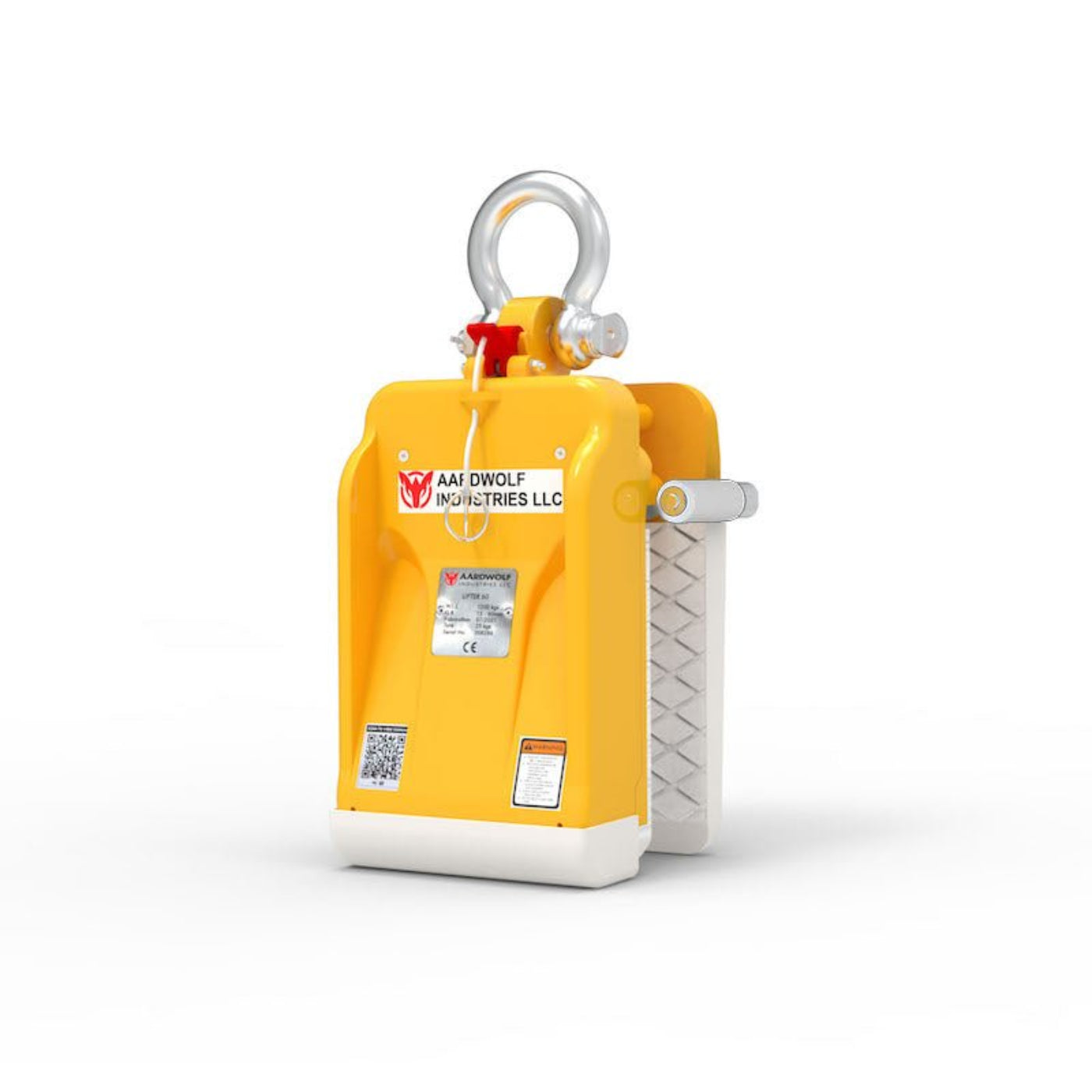

Roller Protection: Features side rollers that protect the upper edge of slabs from damage while facilitating easy centering for balanced lifting.
-
Versatile Use: Perfect for construction work, as the front clamping mechanism allows slabs to be placed close to walls, optimizing space.
Q&A
Q: What is the Aardwolf AL60R Slab Lifter used for?
A: The AL60R is designed for lifting and transporting stone slabs, such as granite and marble, in workshops and on job sites.
Q: What is its grip range?
A: The lifter accommodates a grip range of 15–60 mm (0.6"–2.4").
Q: What is the working load limit?
A: It has a working load limit of 1,200 kg (2,646 lbs).
Q: How do the rollers benefit its use?
A: The integrated side rollers protect the top edge of slabs during lifting and allow for manual centering, ensuring balanced lifting and preventing damage.
Q: Is it easy to operate?
A: Yes, the clamping mechanism is positioned at the front of the slab, allowing panels to be placed close against walls, and requiring only a small movement to engage and grip the slab.
Q: What materials can it handle?
A: The AL60R is suitable for both rough and smooth stone surfaces, providing versatility in handling various types of slabs.
Q: What is its weight?
A: The net weight is approximately 25 kg (55 lbs), and the gross weight is 26 kg (57 lbs), making it manageable for operators.
Maintenance Tips
-
Inspect Regularly: Examine the lifting arms, rollers, and locking mechanism for signs of wear, cracks, or misalignment.
-
Clean After Use: Remove dust, debris, and moisture from all components to prevent buildup and corrosion.
-
Lubricate Moving Parts: Apply appropriate lubricant to the rollers and pivot points to ensure smooth operation and reduce friction.
-
Check Functionality: Verify that the locking mechanism engages and releases properly before each use.
-
Store Properly: When not in use, store the lifter in a dry, sheltered area to protect it from environmental damage.
