Aardwolf Powered Counterbalance Crane with Lateral Movement - APCCL

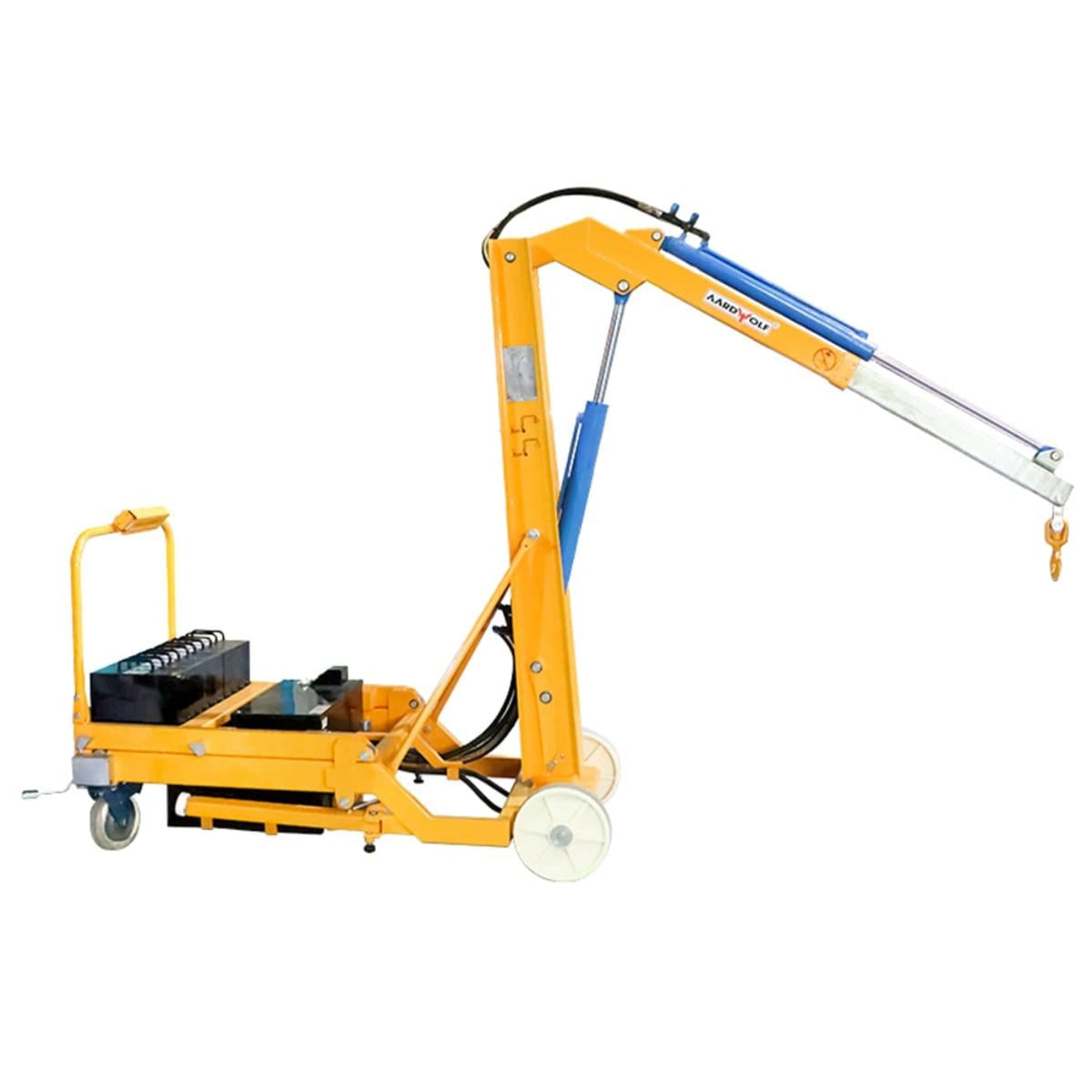

Aardwolf Powered Counterbalance Crane with Lateral Movement
The Powered Counterbalance Crane with Lateral Movement has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. The boom is raised via a 12V battery-powered hydraulic pump. The boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs. This makes the unit easier to maneuver and allows the crane to reach tight, hard to reach areas.
Fitted with hard wearing, high-capacity nylon front wheels, this device can pick and carry loads and be pushed on a flat surface to transport materials on solid paved surfaces.
Features
- Extra hydraulic cylinder for lateral movement of the front axil. An integral counterweight
- An easy to operate hydraulically lifted extending boom
- Folds down for easy transportation
Specifications
| Extended Length |
1700 mm |
66.9" |
| Extended Height |
2760 mm |
108.6" |
| Working Load Limit |
540 kg |
1190 lbs |
| Net Weight |
830 kg |
1830 lbs |
| Packaging Dimensions |
1860 x 970 x 1180 mm |
73.2" x 38.2" x 46.5" |
What our Experts Think
-
Dual-Pad Design: Equipped with two 520 x 320 mm (20.5" x 12.6") vacuum pads, suitable for lifting smooth or rough marble and granite slabs.
-
High Load Capacity: Offers a vertical lifting capacity of up to 250 kg (551 lbs) and a horizontal lifting capacity of up to 500 kg (1,102 lbs), depending on the application.
-
Pneumatic Tilting: Features pneumatic vertical-horizontal tilting from 0 to 90° via pneumatic pistons, making precise positioning of slabs easy.
-
Safety: Includes a vacuum tank that ensures safe pickup if there is a sudden power break to the pump, along with an acoustic and visual alarm system powered by a rechargeable 12V Li-ion battery.
-
User-Friendly Operation: Equipped with a slide valve with an ON/OFF position for attaching and releasing materials, ensuring easy handling.
Q&A
Q: What is the Aardwolf AVLP2-500 Vacuum Lifter used for?
A: The AVLP2-500 is designed to lift and transport smooth or rough marble and granite slabs, enhancing material handling efficiency in workshops and construction sites.
Q: What is its lifting capacity?
A: It has a vertical lifting capacity of 250 kg (551 lbs) and a horizontal lifting capacity of 500 kg (1,102 lbs), providing robust support for heavy stone materials.
Q: How does it operate?
A: Powered by compressed air, the lifter includes a pneumatic vertical-horizontal tilting mechanism from 0 to 90° via pneumatic pistons, allowing precise positioning of slabs.
Q: What is its weight?
A: The net weight of the AVLP2-500 is approximately 80 kg (176 lbs), facilitating ease of use and maneuverability.
Maintenance Tips
-
Inspect Regularly: Check the vacuum pads, seals, hoses, and lifting arms for wear, cracks, or damage before each use.
-
Clean After Use: Remove dust, debris, and moisture from the vacuum pads and lifting components to prevent buildup and maintain suction efficiency.
-
Test Vacuum Function: Ensure the vacuum system is operating correctly by checking the vacuum gauge and listening for any unusual noises.
-
Lubricate Moving Parts: Apply appropriate lubricant to any moving parts, such as pivot points and joints, to ensure smooth operation.
-
Check Air Supply: Ensure the compressed air supply is clean and dry to prevent contamination of the vacuum system.
-
Store Properly: When not in use, store the vacuum lifter in a dry, sheltered area to protect it from environmental damage.
