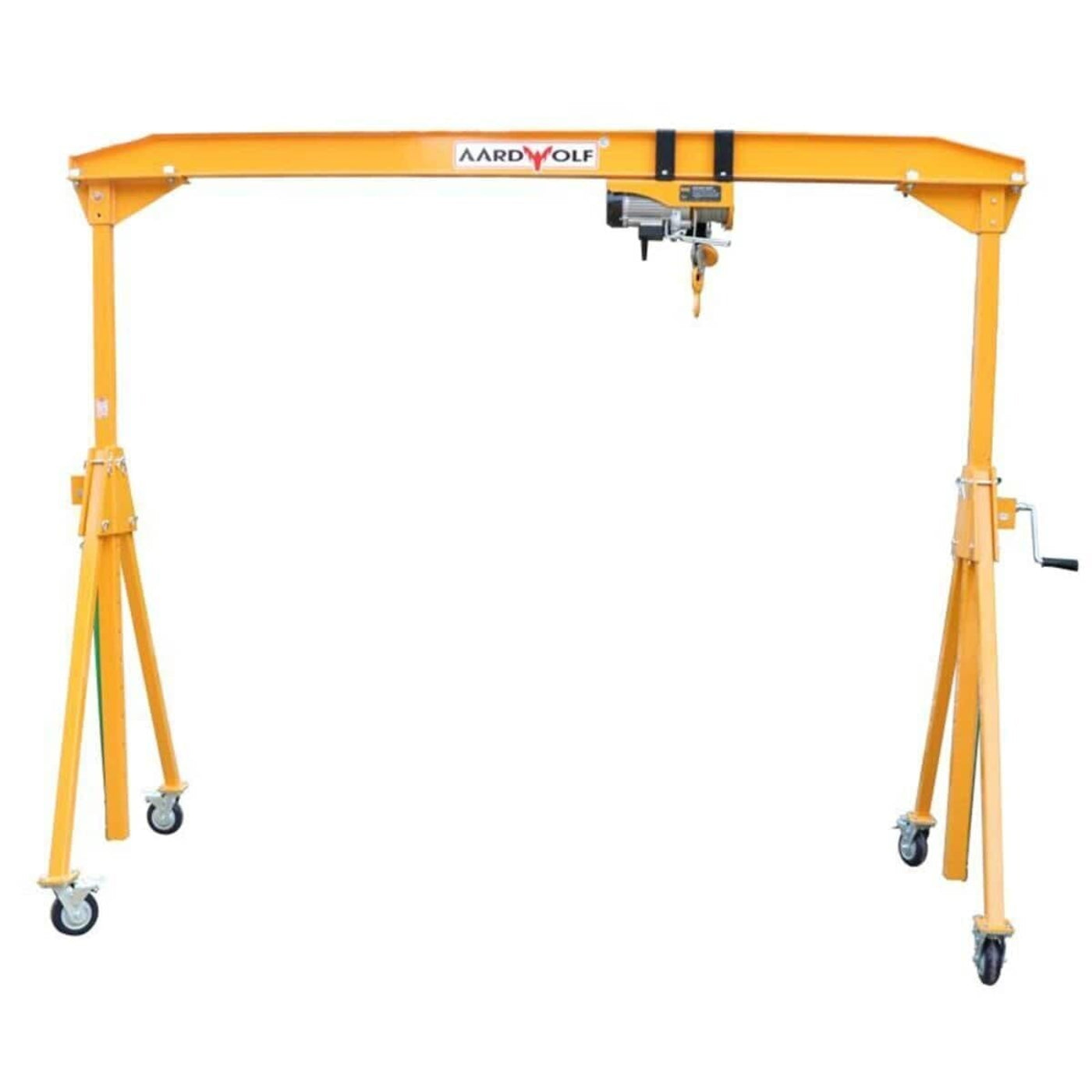

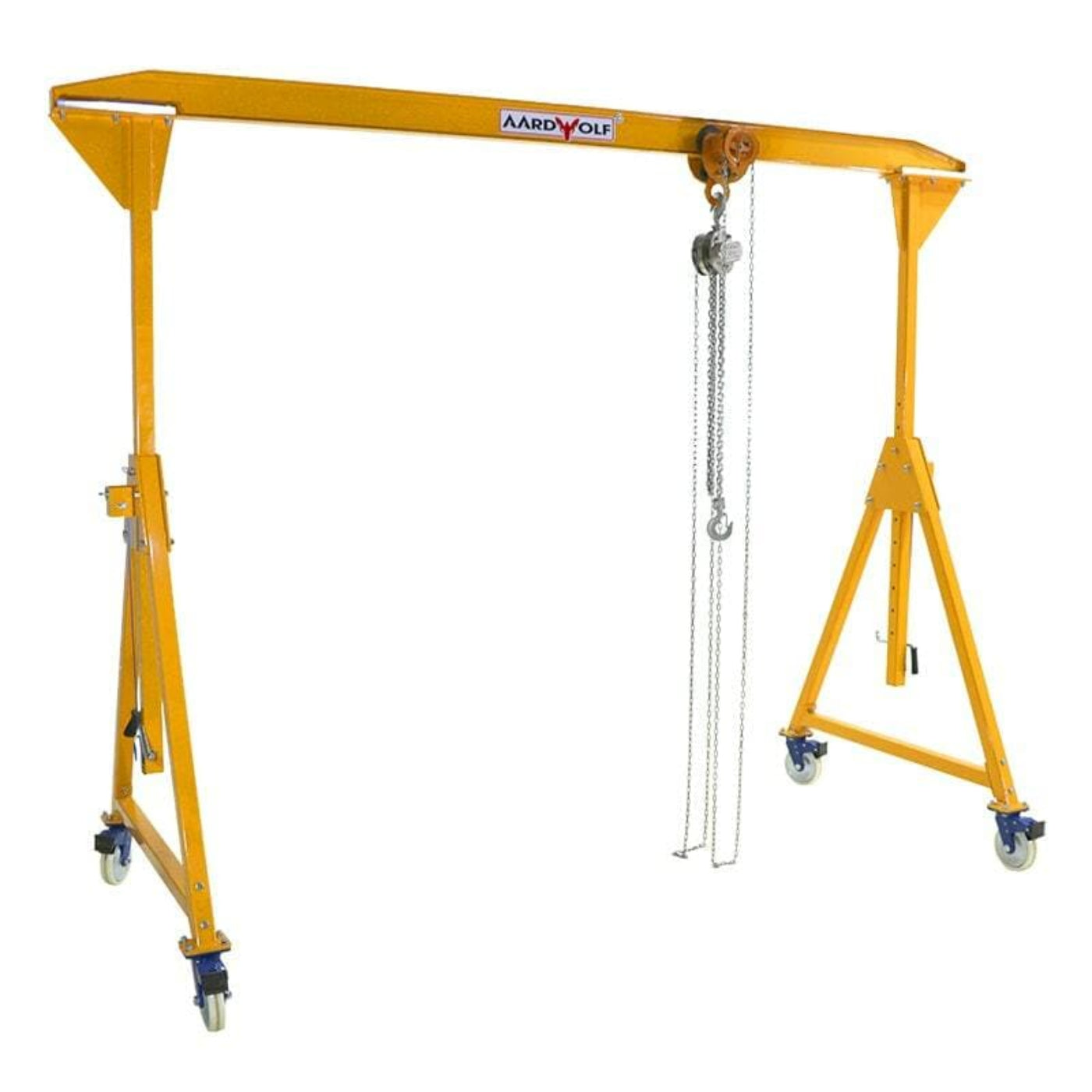

Aardwolf Portable Gantry Crane - AGC-1000
Aardwolf Portable Gantry Crane with adjustable height and span
Hoists are not included
Made of aluminum, the Aardwolf Portable Gantry Crane is lightweight, portable and stable under load. No permanent installation is required. This device provides an economical lifting solution to lift materials inside the Portable Gantry Crane. This equipment can be used on construction sites as well as in factories. The Portable Gantry Crane has the ability to be adjusted in height, allowing users to use it for various purposes, such as transporting, lifting, lowering slab materials in different heavy-duty conditions. The height adjustment of the crane can be attained by using hand-wind handles supplied with the crane or by the use of a battery-powered drill.
Features
-
Portable: The Gantry Crane is able to reach all corners of the plant. Attached to lifting equipment, the crane is easy to lift heavy loads.
-
Adjustable: The height of the Gantry Crane is adjustable up to 3.1m. This gives operators flexibility in operation.
-
Versatile: Thanks to its ability to be easily and quickly assembled and disassembled, the Gantry Crane is easily transported or relocated, making it ideal for workflow changes.

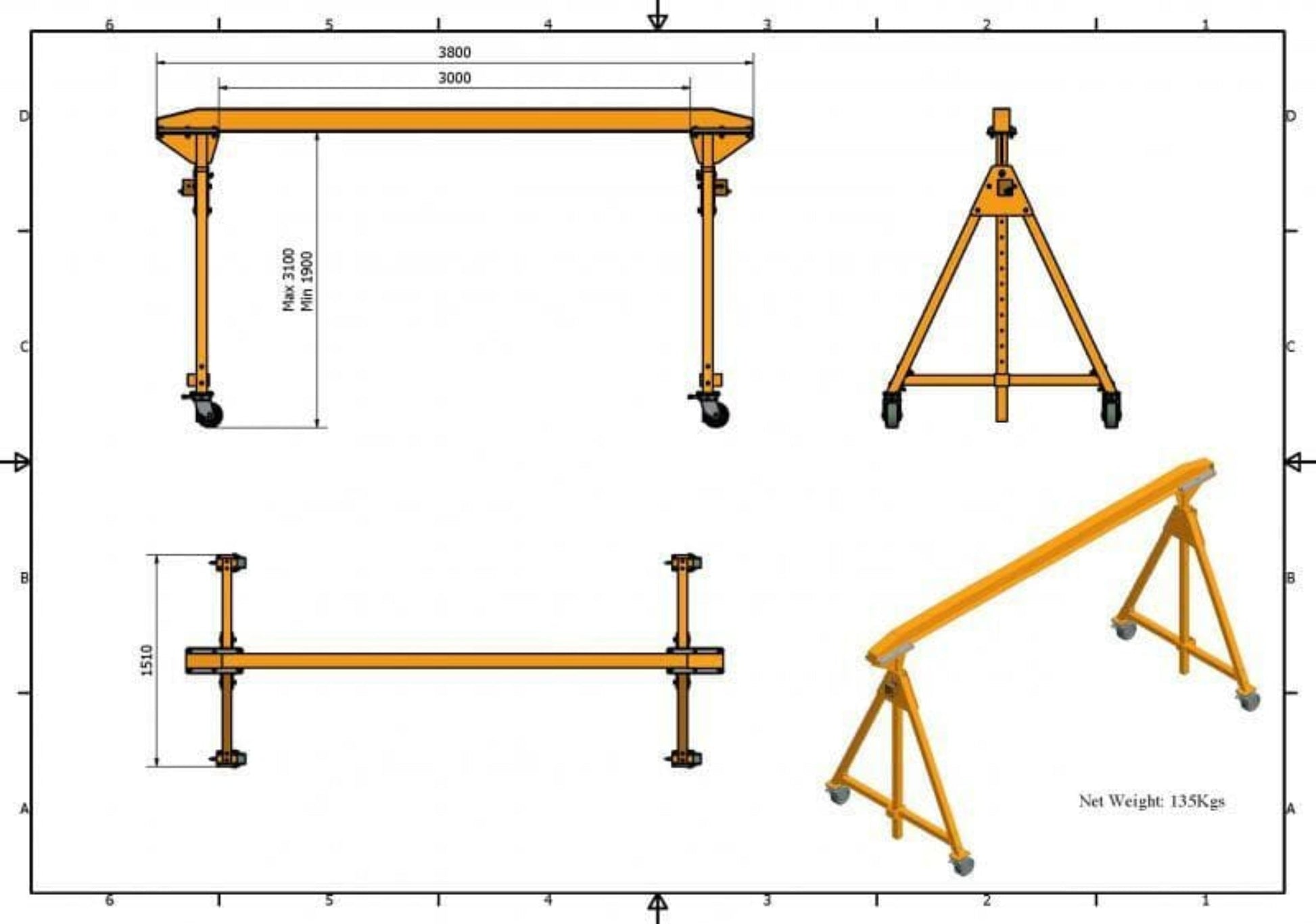

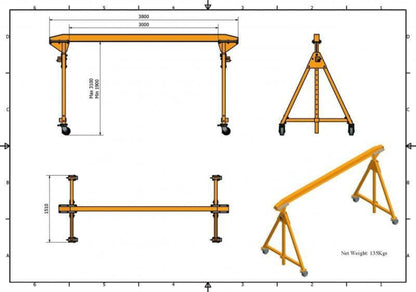

Specifications
| Maximum Span |
3100 mm |
122″ |
| Working Load Limit |
1000 kg |
2204 lbs |
| Net Weight |
190 kg |
419 lbs |
| Packaging Dimensions |
One pallet: 3820×460×150 |
One pallet: 150.4″×18″×5.9″ |
| Two pallets: 2560×390×90 |
Two pallets: 100.8″×15.4″×3.5″″ |
|
What our Experts Think
-
Robust Lifting Capacity: Engineered to handle loads up to 2,204 lbs (1,000 kg), making it suitable for heavy-duty lifting tasks in various industrial settings.
-
Adjustable Height: Features a height range from 6'2" to 10'2", adjustable in 4" increments using a manual hand crank or a battery-powered drill, providing flexibility for different lifting requirements.
-
Durable Aluminum Construction: Constructed from high-grade aluminum, offering a lightweight design without compromising strength, and ensuring resistance to corrosion for longevity.
-
Portability and Ease of Assembly: Designed for quick assembly and disassembly by two individuals, facilitating easy relocation within the workspace and adaptability to changing job site needs.
-
Integrated Mobility: Equipped with four 6-inch diameter nylon swivel casters, allowing smooth movement of the crane while loaded, enhancing operational efficiency.
-
Compact Storage Dimensions: When disassembled, the crane's components fit into packaging dimensions of 150.4" x 18" x 5.9" and 100.8" x 15.4" x 3.5", optimizing storage space and transportation convenience.
Q&A
Q: What is the Aardwolf AGC-1000 Portable Gantry Crane used for?

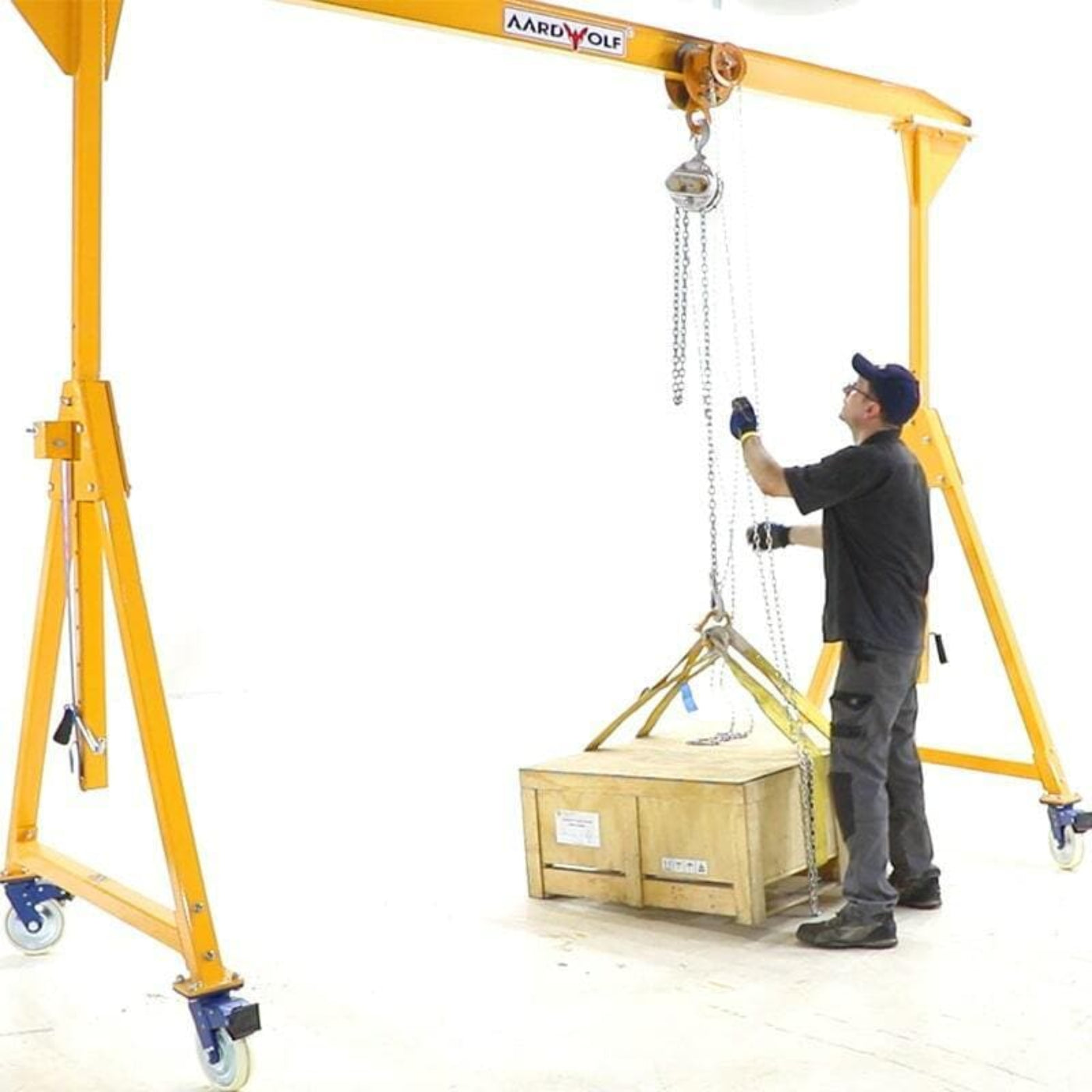

A: The AGC-1000 is designed for lifting and moving heavy materials like stone slabs, machinery, and construction components in workshops, factories, and job sites.
Q: What is its lifting capacity?
A: It has a working load limit of 1,000 kg (2,204 lbs), making it suitable for various heavy-duty lifting tasks.
Q: Is the crane height adjustable?
A: Yes, the height is adjustable up to 3.1 meters (10'2") in 4" increments, allowing flexibility for different lifting requirements.
Q: Is the AGC-1000 portable?
A: Absolutely. Made of lightweight aluminum and equipped with four 6" nylon swivel casters, it can be easily moved around the workspace.
Q: What are the beam span and base width?
A: The I-beam has a usable span of 3,100 mm (122"), and the base width is approximately 4.95 feet, providing stability during operations.
Q: Does it require permanent installation?
A: No, the AGC-1000 is designed for quick assembly and disassembly without permanent installation, making it ideal for temporary setups.
Q: Is it compatible with hoists and trolleys?
A: Yes, it can be used with various hoists and trolleys, though these are typically sold separately.
Maintenance Tips
-
Inspect Frequently: Check beams, joints, bolts, and wheels for any signs of wear, stress, or damage before each use.
-
Lubricate Moving Parts: Apply grease or oil to wheels, pulleys, and pivot points to ensure smooth movement and reduce friction.
-
Clean After Use: Remove dirt, dust, and debris from structural components and moving parts to prevent buildup.
-
Check for Stability: Ensure all fasteners are secure and locking mechanisms are functioning correctly.
-
Store Safely: Keep in a dry, covered area to prevent rust and extend the life of the crane.
