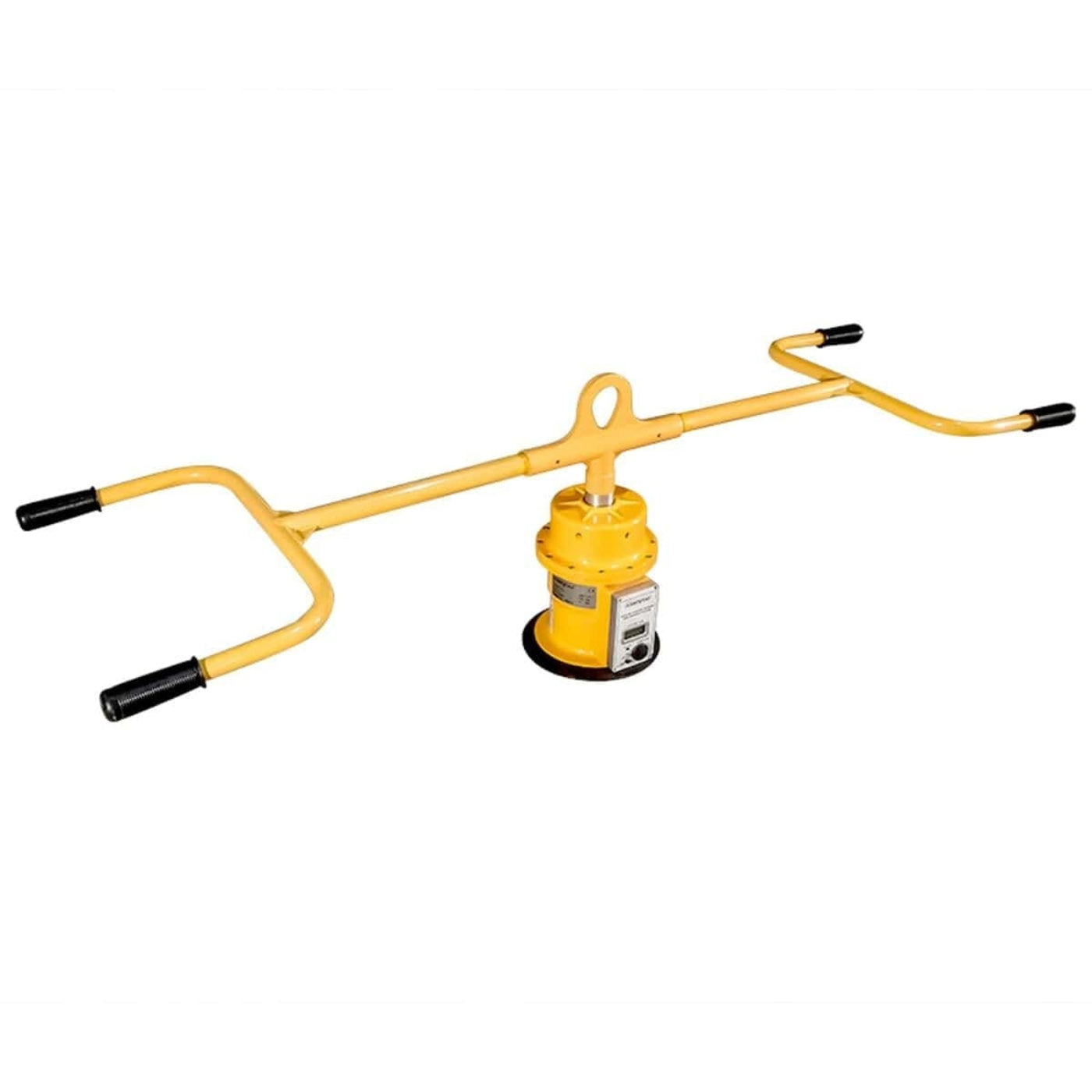

Aardwolf Mono Mechanical Vacuum Lifter 150 With Handle - AMMVL150H
No power source required. Ideal for the horizontal handling of non-porous sheet and plate materials such as diamond sawn or polished granite, engineered stone, all types of metals, plastics and fibreglass. An automatic self-cycling valve located in the bottom of the piston controls the vacuum grip-and-release cycle.
A handle (sold separately) is manually employed by two persons for easy transportation.
Features
- Self-powered and self-cycling
- Audio alarm system powered by a non-rechargeable 9V battery
- Immediately ready for operation
- Low maintenance
- Aluminium construction
- Lightweight
Specifications
|
With swivel hook |
With handle hook |
| Working load limit |
331 |
331 |
| Net weight |
24.2 |
31 |
| Gross weight |
34 |
50 |
| Packaging dimension |
12.6x12.6x15.3 |
32.7x11x22.4 |
What our Experts Think
-
Self-Powered Operation: The lifter operates without the need for electricity or compressed air, making it ideal for on-site use where power sources may be limited.
-
Automatic Self-Cycling Valve: An integrated self-cycling valve controls the vacuum grip and release cycle, ensuring efficient operation without manual intervention.
-
Audio Alarm System: Equipped with a non-rechargeable 9V battery-powered audio alarm that alerts users to any loss of vacuum, enhancing safety during operation.
-
Lightweight and Durable Construction: Constructed from aluminum, the lifter is both lightweight and durable, facilitating easy handling and long-term use.
-
Handle for Two-Person Operation: The included handle allows for manual operation by two individuals, providing better control and stability when lifting large or heavy materials.
-
Working Load Limit (WLL): The lifter has a WLL of 150 kg (approximately 331 lbs), suitable for handling medium-weight materials.
Q&A
Q: What is the Aardwolf AMMVL150H used for?
A: It's designed for lifting and transporting non-porous sheet and plate materials, such as polished granite, engineered stone, metals, plastics, and fiberglass, in horizontal orientations.
Q: What is the lifting capacity of the AMMVL150H?
A: It has a working load limit of 150 kg (331 lbs)
Q: Does it require a power source?
A: No, the lifter operates without electricity or compressed air.
Q: What are the key features of the AMMVL150H?
A: It features an automatic self-cycling valve for grip and release, a non-rechargeable 9V battery-powered audio alarm system, and a handle for manual operation by two persons.
Q: What are the dimensions and weight of the AMMVL150H?
A: The net weight is 14 kg (31 lbs), with packaging dimensions of 830 mm x 280 mm x 570 mm (32.7" x 11" x 22.4")
Q: Why choose the Aardwolf AMMVL150H?
A: It offers a combination of high lifting capacity, ease of use, and safety features, making it ideal for professionals handling delicate materials.
Maintenance Tips
-
Regular Inspection: Before each use, inspect the vacuum pad, handle, and lifting mechanism for wear or damage.
-
Clean After Use: Wipe the vacuum pad and handle to remove dirt, dust, and moisture, preventing rust and ensuring optimal performance.
-
Lubricate Moving Parts: Apply appropriate lubricant to the handle and moving components to maintain smooth operation.
-
Check Battery: Ensure the 9V battery powering the audio alarm system is functional and replace it as needed.
-
Proper Storage: Store the lifter in a dry, sheltered place to avoid exposure to harsh environmental conditions.
