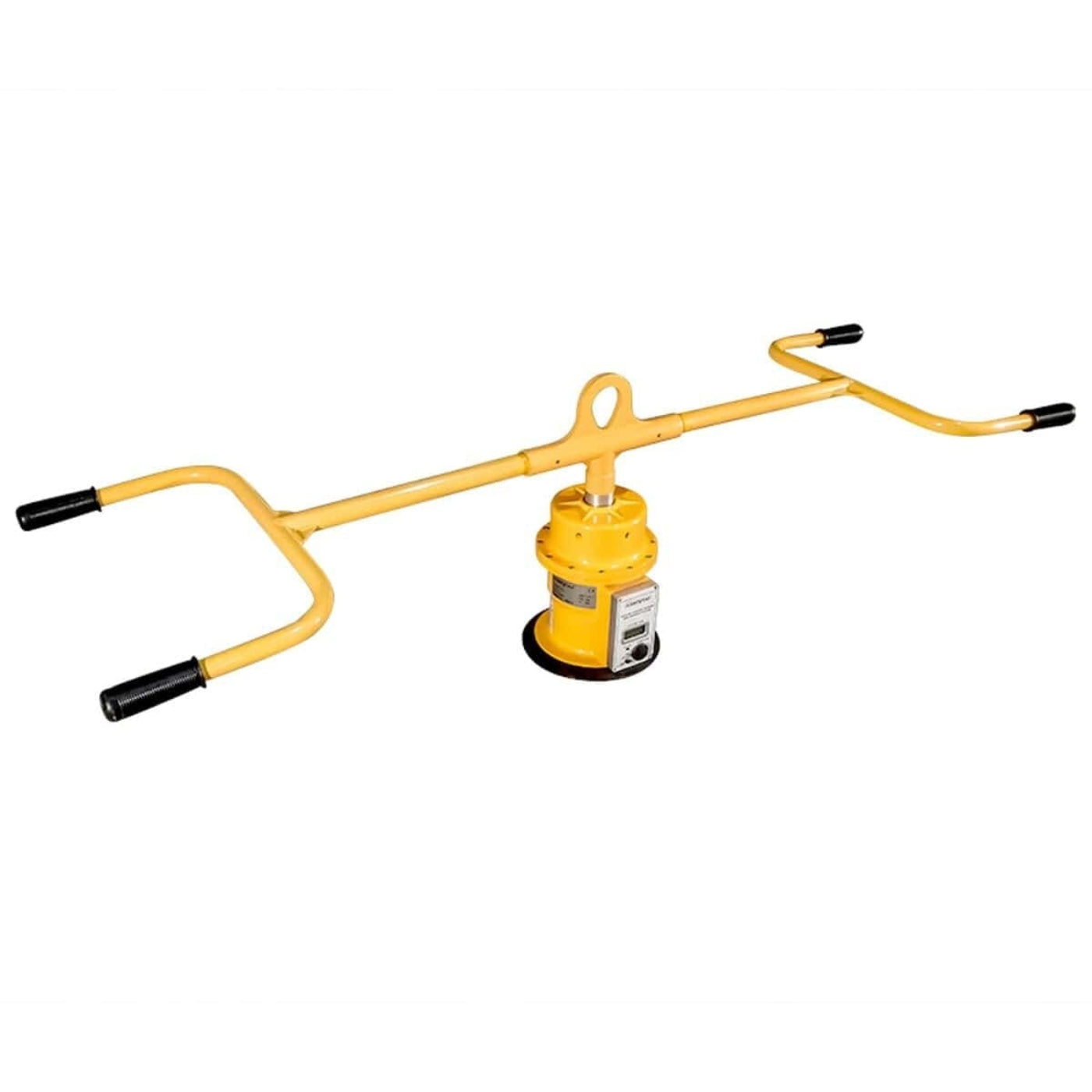

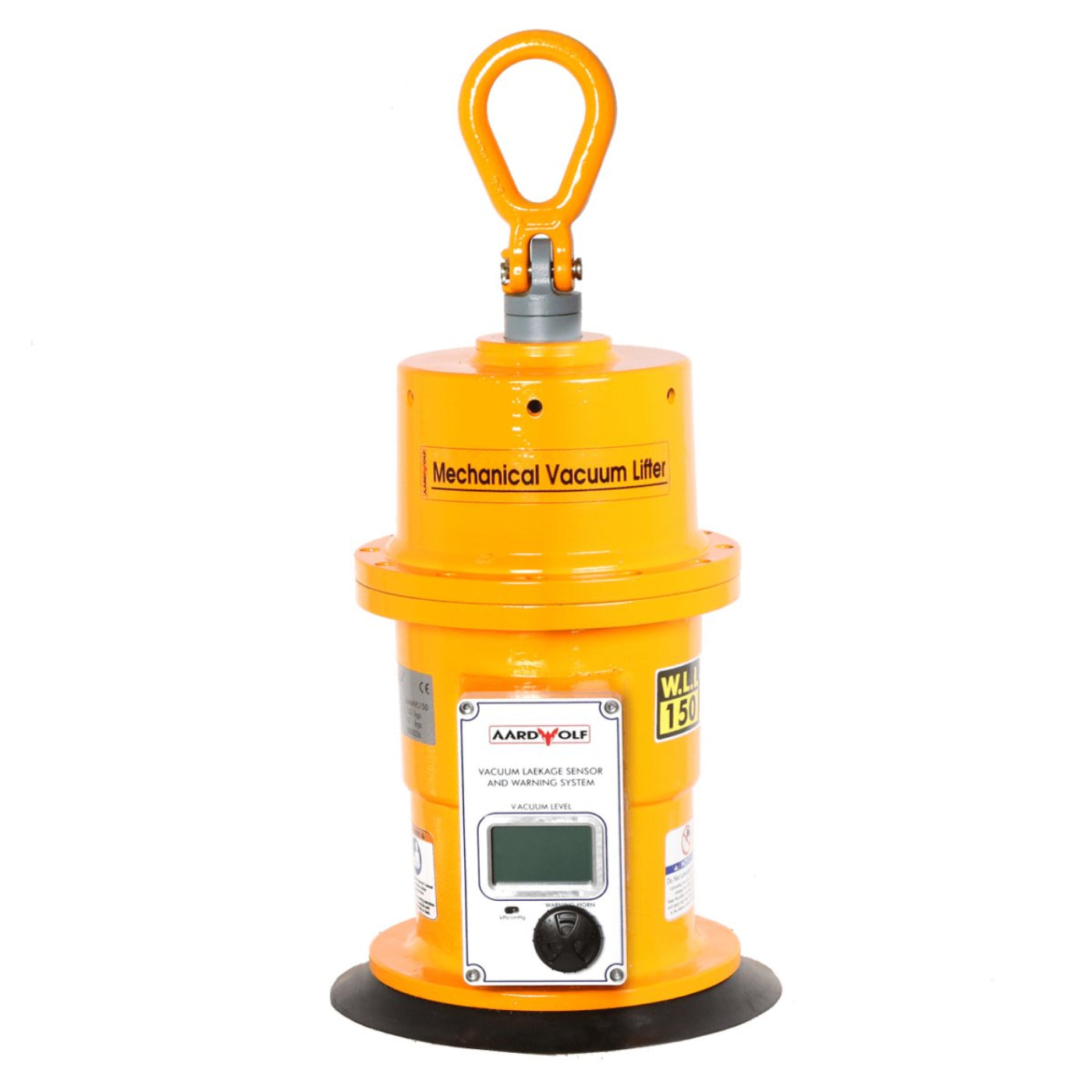

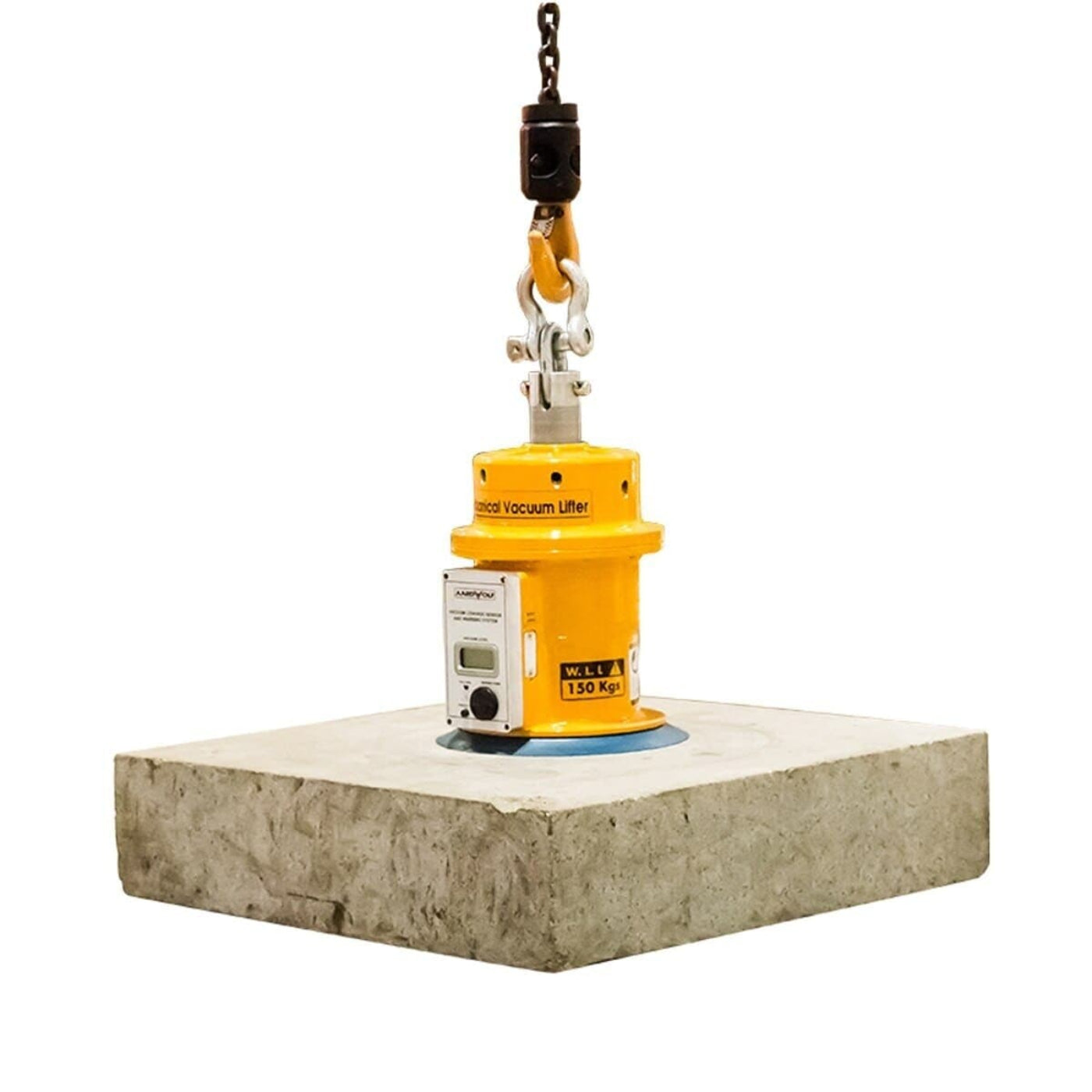

Aardwolf Mono Mechanical Vacuum Lifter 150 - AMMVL150

Aardwolf Mono Mechanical Vacuum Lifter 150 - AMMVL150

No power source required. Ideal for the horizontal handling of non-porous sheet and plate materials such as diamond sawn or polished granite, engineered stone, all types of metals, plastics and fiberglass. An automatic self-cycling valve located in the bottom of the piston controls the vacuum grip-and-release cycle.
A handle (sold separately) is manually employed by two persons for easy transportation.

Features

• Self-powered and self-cycling
• Audio alarm system powered by a non-rechargeable 9V battery
• Immediately ready for operation
• Low maintenance
• Aluminum construction
• Lightweight

Specifications

What our Experts Think

• Compact Lifting Power: Safely lifts non-porous materials like glass, metal, and polished stone up to 150 kg (330 lbs.), ideal for lighter-duty applications.

• Self-Contained Mechanical System: Requires no electricity or air supply—automatically creates vacuum upon lifting and releases with a simple cable pull for hassle-free use.

• Highly Portable: Lightweight and compact, making it easy to transport and operate in tight or remote job sites.

• Safety Built-In: Equipped with a reliable vacuum gauge and check valve to ensure safe, secure lifting without risk of slippage.

• Minimal Maintenance: Mechanical design eliminates complex parts, reducing service needs and boosting long-term durability.

Q&A

Q: What is the Aardwolf Mono Mechanical Vacuum Lifter 150 (AMMVL150) used for?
A: The AMMVL150 is designed for lifting and handling flat, non-porous materials like glass, polished stone, and metal sheets without the need for power or air supply—ideal for workshops and job sites.

Q: How does the Aardwolf AMMVL150 work?
A: It operates using a self-powered mechanical vacuum pump that creates suction through movement, eliminating the need for electricity or compressed air.

Q: What is the lifting capacity of the AMMVL150?
A: It can safely lift up to 150 kg (330 lbs), making it suitable for lighter to mid-weight material handling tasks.

Q: What are the key features of the Aardwolf AMMVL150?
A: Compact and durable steel frame, mechanical vacuum system, safety vacuum gauge, quick-release function, and strong suction pad for secure grip on smooth surfaces.

Q: What types of materials can the AMMVL150 lift?
A: It is ideal for non-porous, smooth materials such as glass panels, polished granite, engineered stone, and metal sheets.

Maintenance Tips

• Inspect Vacuum Pads Daily:
  Check for cracks, hardening, or embedded debris on the suction pads. Clean with a mild, non-abrasive cleaner to maintain airtight contact and safe lifting.

• Check Vacuum Seals and Connections:
  Examine seals, hoses, and connections for any signs of wear, leaks, or damage. Replace immediately if compromised to ensure consistent suction performance.

• Test Suction Before Each Use:
  Engage the vacuum system and confirm it reaches and holds proper pressure. Monitor for any leaks or drop in suction during operation.

• Examine Frame and Lifting Eye:
  Inspect the structural frame, lifting eye, and handle components for cracks, rust, or fatigue. Tighten bolts and hardware as needed to maintain stability and safety.

• Lubricate Moving Parts:
  Apply a suitable lubricant to mechanical joints and rotating elements as per the manufacturer's guidelines to reduce wear and ensure smooth operation.

• Follow Load Limit (150 kg):
  Do not exceed the 150 kg rated capacity. Overloading can damage the unit and pose serious safety risks.

• Clean After Use:
  Wipe down the entire unit, especially vacuum pads and joints, after each use to prevent material buildup and maintain hygiene.

• Store Properly:
  Keep the lifter in a dry, clean area when not in use. Protect it from moisture, dust, and direct sunlight to extend its service life.
