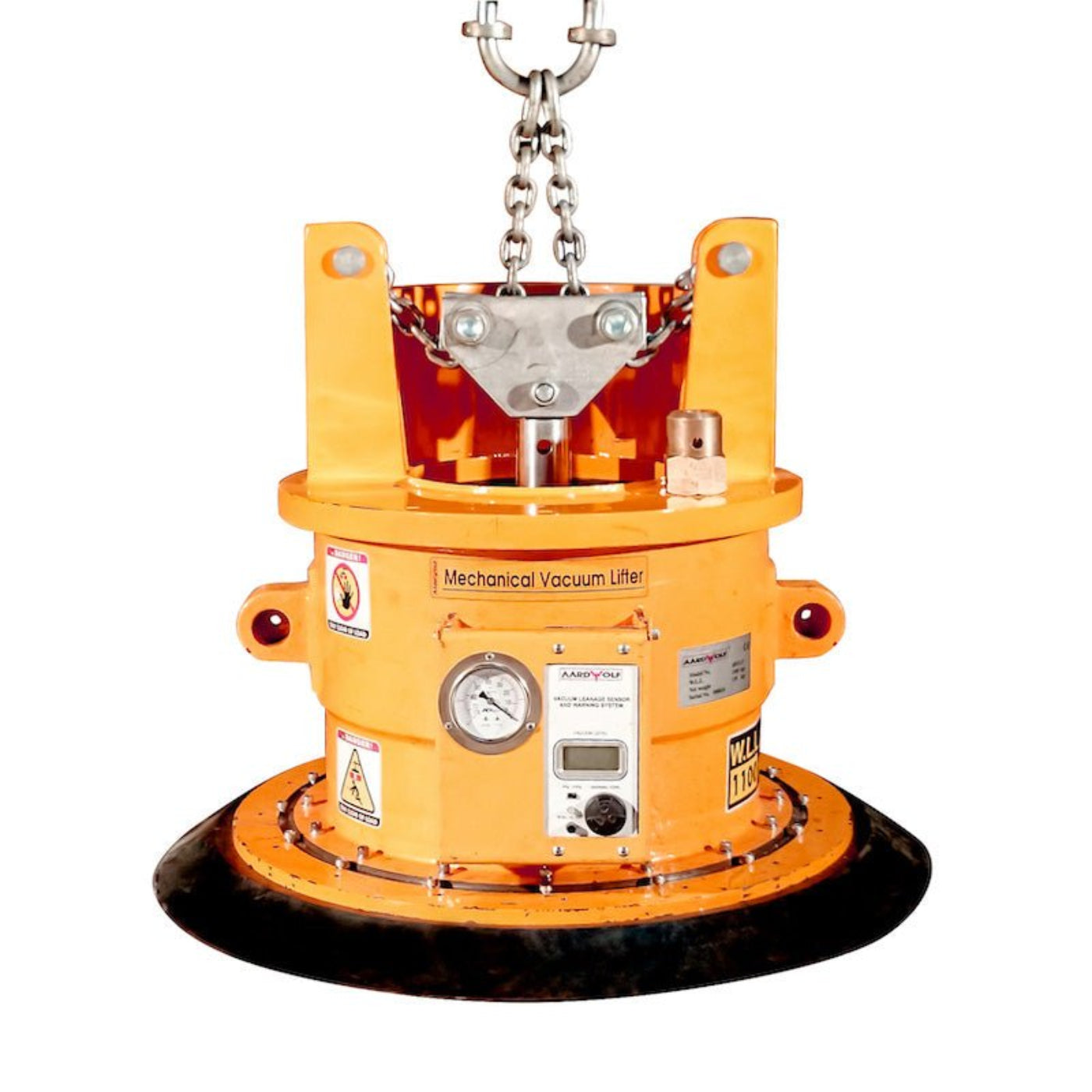

Aardwolf Mono Mechanical Vacuum Lifter 1000 - AMMVL1000
(CALL FOR DETAILS ON LEAD TIME)
Easy to maintain vacuum lifter for engineered stone, metal, plastic, and more. Special order call for details

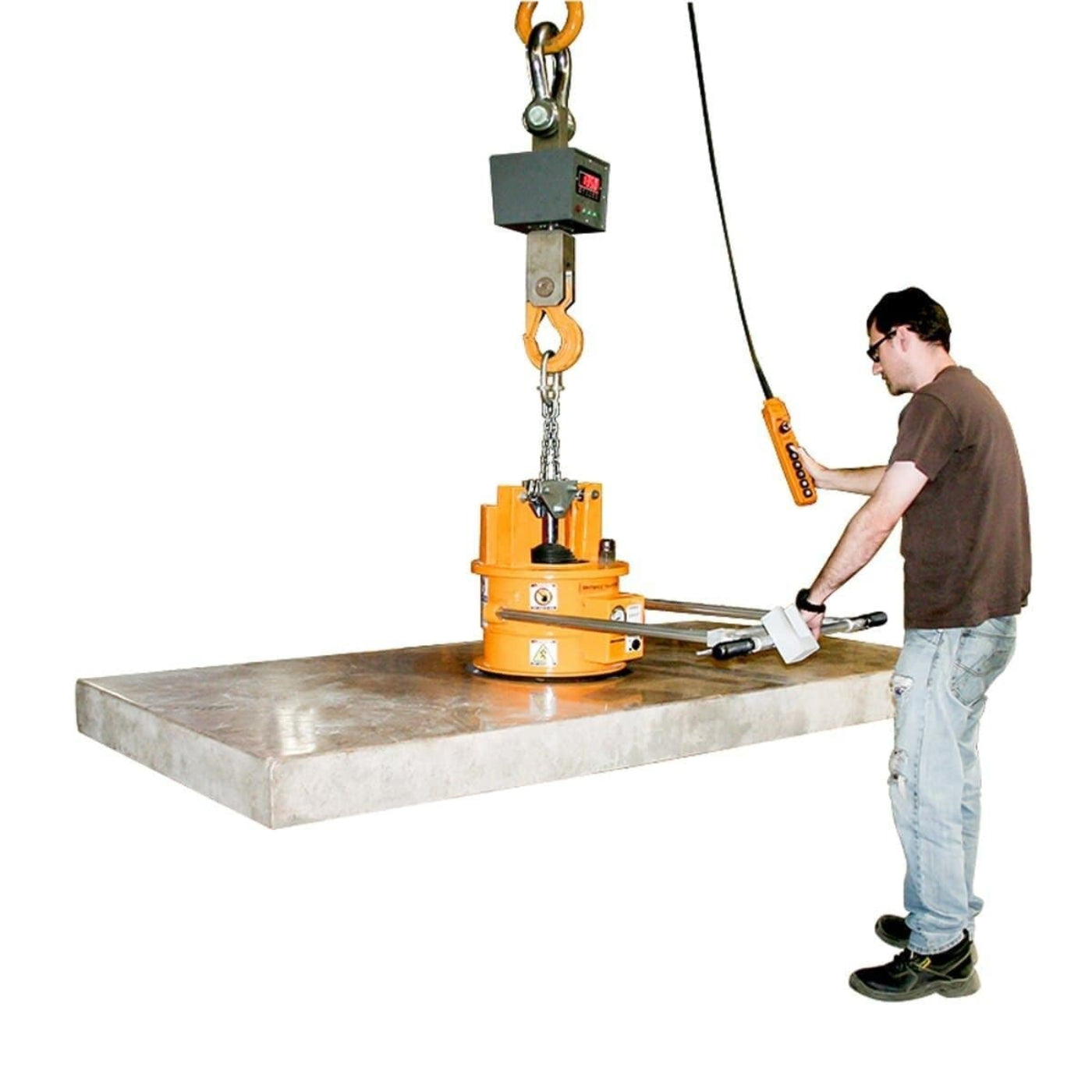

No power source required. Ideal for the horizontal handling of non-porous sheet and plate materials such as diamond sawn, polished granite, engineered stone, all types of metals, plastics and fiberglass. It has a telescopic front handlebar and adjustable vacuum pads.
Features
- Self-powered and self-cycling
- Simple to operate
- Easy to maintain
- Able to handle a variety of sheet sizes
- Extremely safe. The load cannot be released until it is set down on the surface
- Capable of 100% duty cycle, 24 hour/day operation
- Audio alarm system powered by a non-rechargeable 9V battery
- Vacuum gauge for a visual warning of low vacuum

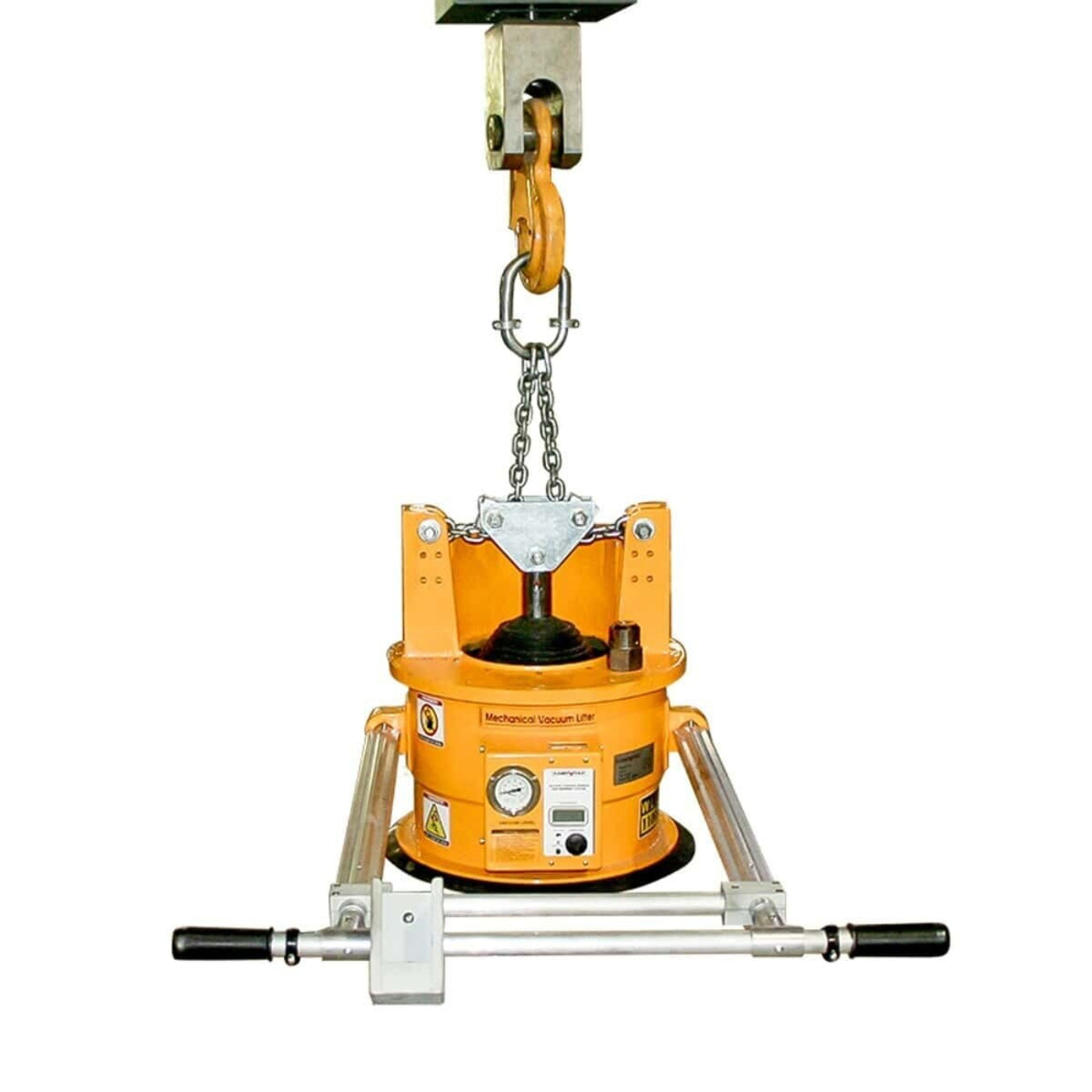

- Telescopic front handle
Specifications
|
Metric
(mm-kg) |
Imperial
(inch-lbs) |
| Number of pads |
1 |
- |
| Pad diameter |
Seal to seal: 530 |
20.9 |
| Working load limit |
1000 |
2205 |
| Net weight |
55 |
121.3 |
| Gross weight |
67 |
148 |
| Packaging dimension |
730x385x760 |
28.7x15.1x30 |
What our Experts Think
-
High-Capacity Lifting: Designed to handle up to 1000 kg (2204 lbs.), this lifter is perfect for heavy-duty lifting tasks, such as handling large stone slabs, glass panels, and other industrial materials.
-
Mechanical Operation: No need for electricity or compressed air—this vacuum lifter operates with a mechanical vacuum system that’s both efficient and reliable, ensuring secure lifting and positioning.
-
User-Friendly Design: Features simple operation with a manual vacuum release, making it quick and easy to use, even in challenging environments.
-
Built-In Safety: Includes a vacuum gauge and safety check valve to ensure the vacuum remains intact, even in the event of mechanical failure, enhancing operator confidence.
-
Durable & Low Maintenance: Engineered for long-lasting durability, the mechanical system requires minimal maintenance, making it a cost-effective solution for heavy lifting.
Q&A
Q: What is the Aardwolf Mono Mechanical Vacuum Lifter 1000 (AMMVL1000) used for?
A: The AMMVL1000 is a heavy-duty mechanical vacuum lifter designed for lifting and handling large, non-porous materials like glass, metal, and stone, making it ideal for industrial and construction applications.
Q: What is the lifting capacity of the AMMVL1000?
A: It has a maximum lifting capacity of 1000 kg (2205 lbs), allowing it to handle large, heavy materials with ease.
Q: How does the Aardwolf AMMVL1000 work?
A: The AMMVL1000 uses a mechanical vacuum system, powered by the user’s movement, to generate strong suction on smooth, non-porous surfaces, eliminating the need for external power or air sources.
Q: What are the key features of the Aardwolf AMMVL1000?
A: It features a robust steel frame, large suction pads, a mechanical vacuum pump, safety vacuum gauge, and quick-release system, ensuring efficient and safe handling of heavy materials.
Q: What types of materials can the AMMVL1000 lift?
A: It is designed to lift large, non-porous materials like glass, metal, polished stone, and granite slabs, making it ideal for use in glass, stone, and construction industries.
Maintenance Tips
-
Inspect Vacuum Pads Daily:
Check the vacuum pads for any damage such as cracks, tears, or debris. Clean them regularly with a mild cleaner to ensure proper suction and safe lifting.
-
Check for Air Leaks:
Regularly inspect vacuum seals, hoses, and connectors for any air leaks. Ensure all connections are secure to maintain the required vacuum pressure for effective lifting.
-
Lubricate Moving Parts:
Apply appropriate lubricant to the mechanical joints, pivot points, and moving components as specified by the manufacturer to ensure smooth operation and prevent rust.
-
Test Suction Performance:
Before use, verify that the vacuum lifter is building and holding vacuum pressure. Listen for any unusual sounds that could indicate a leak or mechanical issue.
-
Check the Frame for Damage:
Regularly inspect the frame, lifting arm, and mounting hardware for cracks, rust, or signs of wear. Tighten any loose bolts or fasteners to maintain stability.
-
Monitor Load Capacity (1000 kg):
Always adhere to the lifter's weight capacity of 1000 kg. Overloading can strain the system and result in damage or safety hazards.
-
Clean After Each Use:
Wipe down the unit, particularly the vacuum pads and frame, to remove dust, dirt, and debris. This prevents material buildup that could affect performance.
-
Store in a Safe Location:
When not in use, store the vacuum lifter in a dry, clean, and cool area. Protect it from moisture, direct sunlight, and extreme temperatures to prevent damage.
