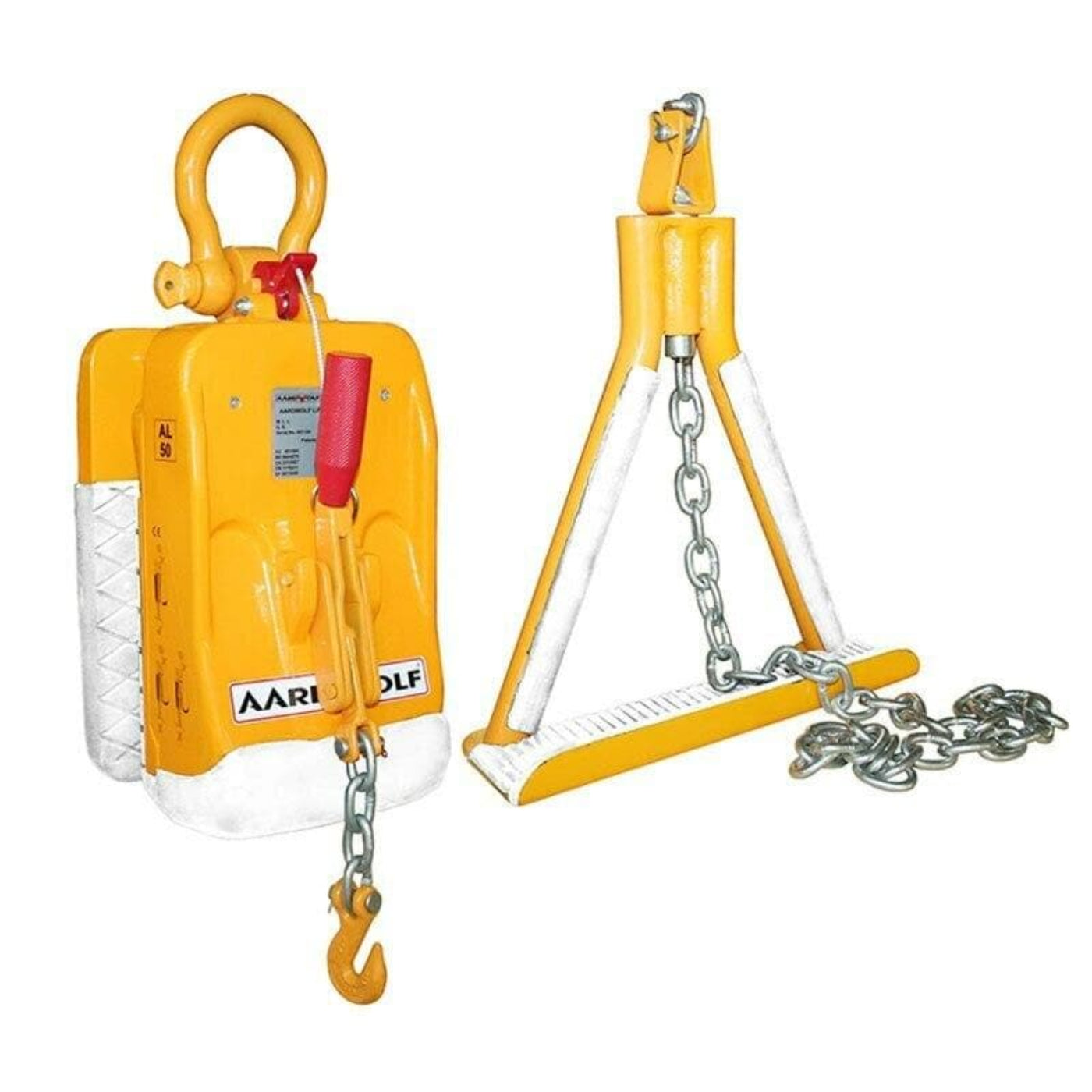

Aardwolf Lifter 50 Type B - AL50B
The Aardwolf Slab Lifter 50 Type B is modified from the Aardwolf Slab Lifter 50. The danger of using any lifter for lowering panels into place on multi-storey buildings is that the load could be lowered onto scaffolding or become fouled by obstructions, which could cause the lifter to lose its load. The over-centre leaver and support bracket are designed to be used with the Slab Lifter 50 Type B, which prevents the lifter from dropping its load in such an event.
Features
- Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, it allows panels to be placed close against walls
- Secure: The Aardwolf clamps grip slabs firmly
- The Aardwolf Slab Lifter 50 Type B has a force-multiplying factor of approximately 2.5:1
Specifications
| Model |
Grip Range |
Working Load Limit |
Net Weight |
Gross Weight |
Packing Dimensions |
| Lifter 30 Wide |
0.2'' - 1'' |
2646 |
45 |
47 |
17.3''x6.3x14.2'' |
| Lifter 50 |
0.4'' - 2'' |
2646 |
42 |
44 |
15''x8.3''x9'' |
| Lifter 50-B |
0.4'' - 2'' |
2646 |
53 |
55 |
22.8''x7.3''x12.2'' |
| Lifter 60 |
0.6'' - 2'' |
2646 |
55 |
57 |
16.5''x9''x9.8'' |
| Lifter 75 |
1'' - 3'' |
2646 |
55 |
57 |
16.5''x9''x9.8'' |
| Lifter 50 (Auto) |
0.4'' - 2'' |
2646 |
42 |
44' |
15''x8.3''x9'' |
| Lifter 60 (Auto) |
0.6'' - 2'' |
2646 |
55 |
57 |
16.5''x9''x9.8'' |
| Lifter 75(Auto) |
1'' - 3'' |
2646 |
55 |
57 |
16.5''x9''x9.8''
|
What Our Experts Think
-
Enhanced Safety: Features a reliable over-center lever and support bracket, preventing accidental load release during operation.
-
Versatile Clamping: The clamping mechanism allows slabs to be positioned close to walls, maximizing storage space.
-
Strong Grip: Achieves a force-multiplying factor of approximately 2.5:1 for a secure and efficient hold on slabs.
-
Compact Design: Weighs just 24 kg and is compact, making it easy to transport and store.
-
Ideal for Construction: Specifically designed to handle slabs safely, making it a great choice for construction and heavy-duty tasks.
Q&A
Q: What is the Aardwolf Lifter 50 Type B (AL50B)?
A: The Aardwolf Lifter 50 Type B (AL50B) is a mechanical lifting device designed to safely handle and transport heavy materials like marble and granite slabs. It features a clamping mechanism that allows panels to be positioned close to walls.
Q: How does the AL50B improve safety?
A: The AL50B features an over-center lever and support bracket that prevents the lifter from accidentally dropping its load, enhancing safety when lowering panels, particularly in multi-story settings.
Q: Is the AL50B adjustable or customizable?
A: The AL50B has a fixed grip range and load capacity. Customization may be available, but it’s best to consult with the manufacturer for specific needs.
Q: What is the price of the AL50B?
A: The Aardwolf Lifter 50 Type B (AL50B) is priced around $1,190.00, though prices may vary based on location and retailer.
Maintenance Tips
-
Regular Cleaning: Wipe the lifter with a damp cloth to remove dust and debris. For stubborn residues, use mild soap and water. Avoid abrasive cleaners to preserve the finish.
-
Inspect Gripping Pads: Check the replaceable polyurethane gripping pads for wear. Replace them if they show signs of excessive wear to maintain a secure grip on materials.
-
Check Locking Mechanism: Ensure the gravity-controlled locking latch functions properly, automatically gripping and releasing materials as intended.
-
Examine Rubber-Lined Bar: Inspect the protective rubber-lined bar for any damage. This component prevents material chipping during handling.
-
Monitor Load Capacity: Adhere to the specified working load limit of 1,200 kg (2,646 lbs) to prevent overloading and potential damage.
-
Proper Storage: Store the lifter in a dry, sheltered area to protect it from environmental elements that could cause corrosion or damage.
