Aardwolf Horizontal Stone Lifting Clamp - 2010 - AHLC2010

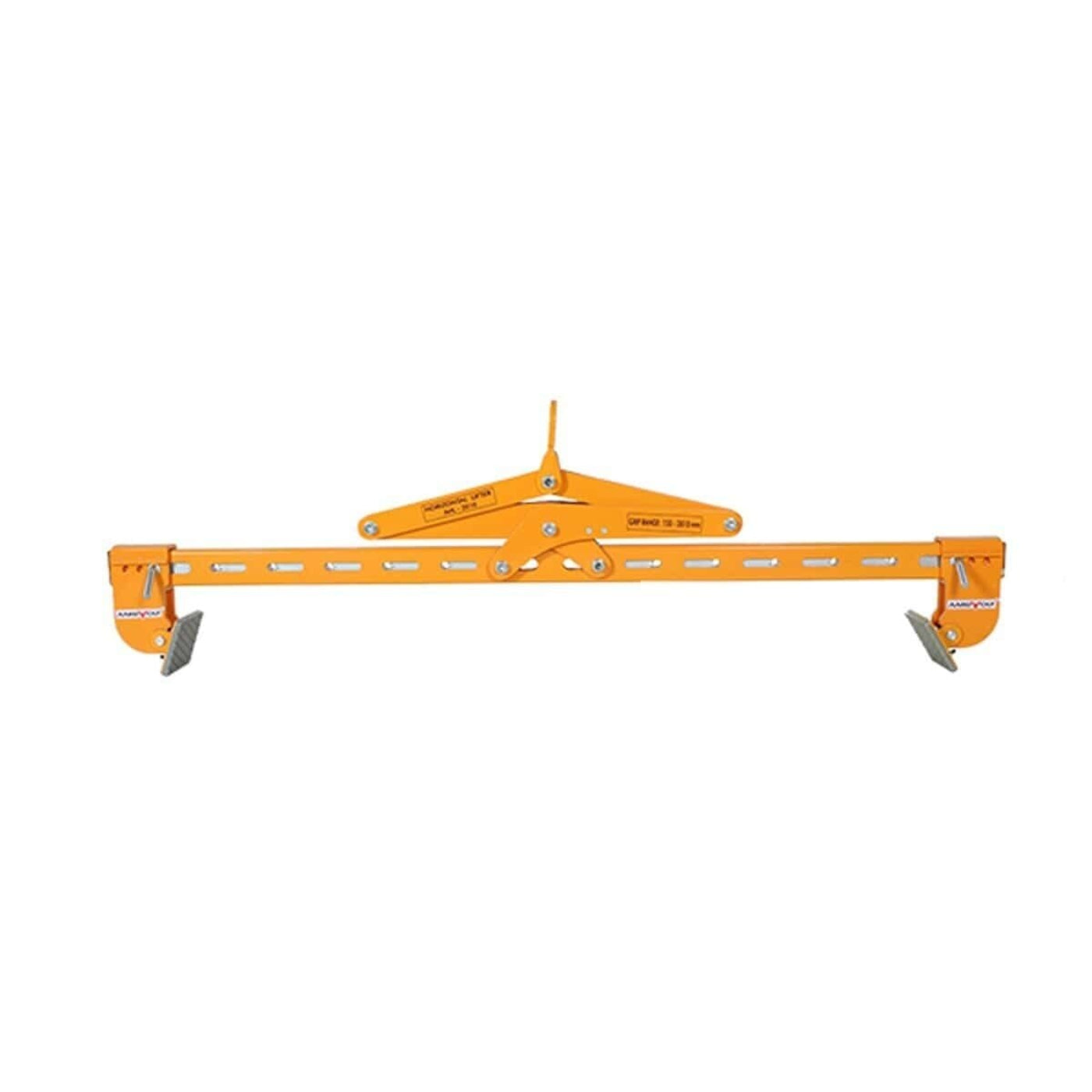

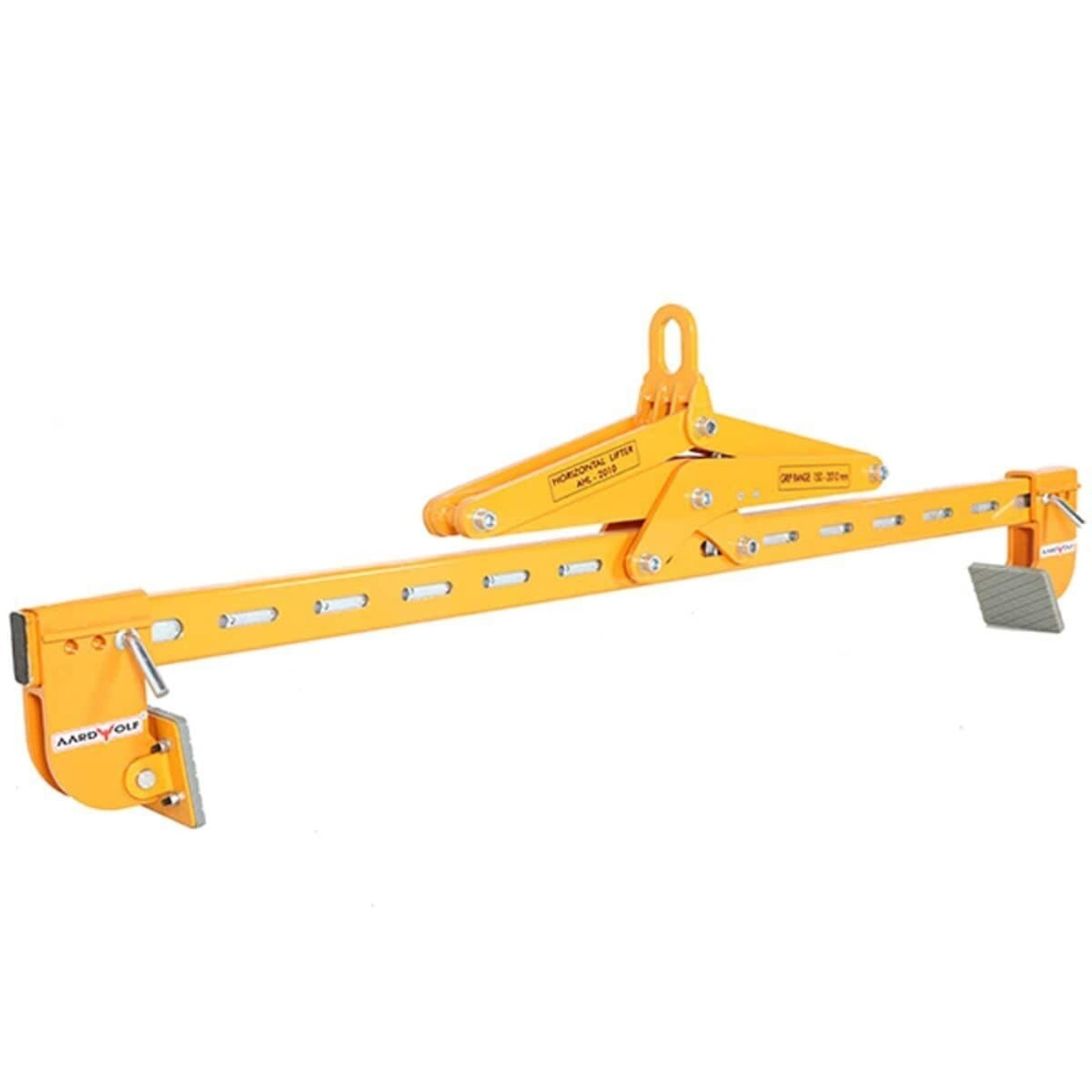

Aardwolf Horizontal Stone Lifting Clamp - 2010

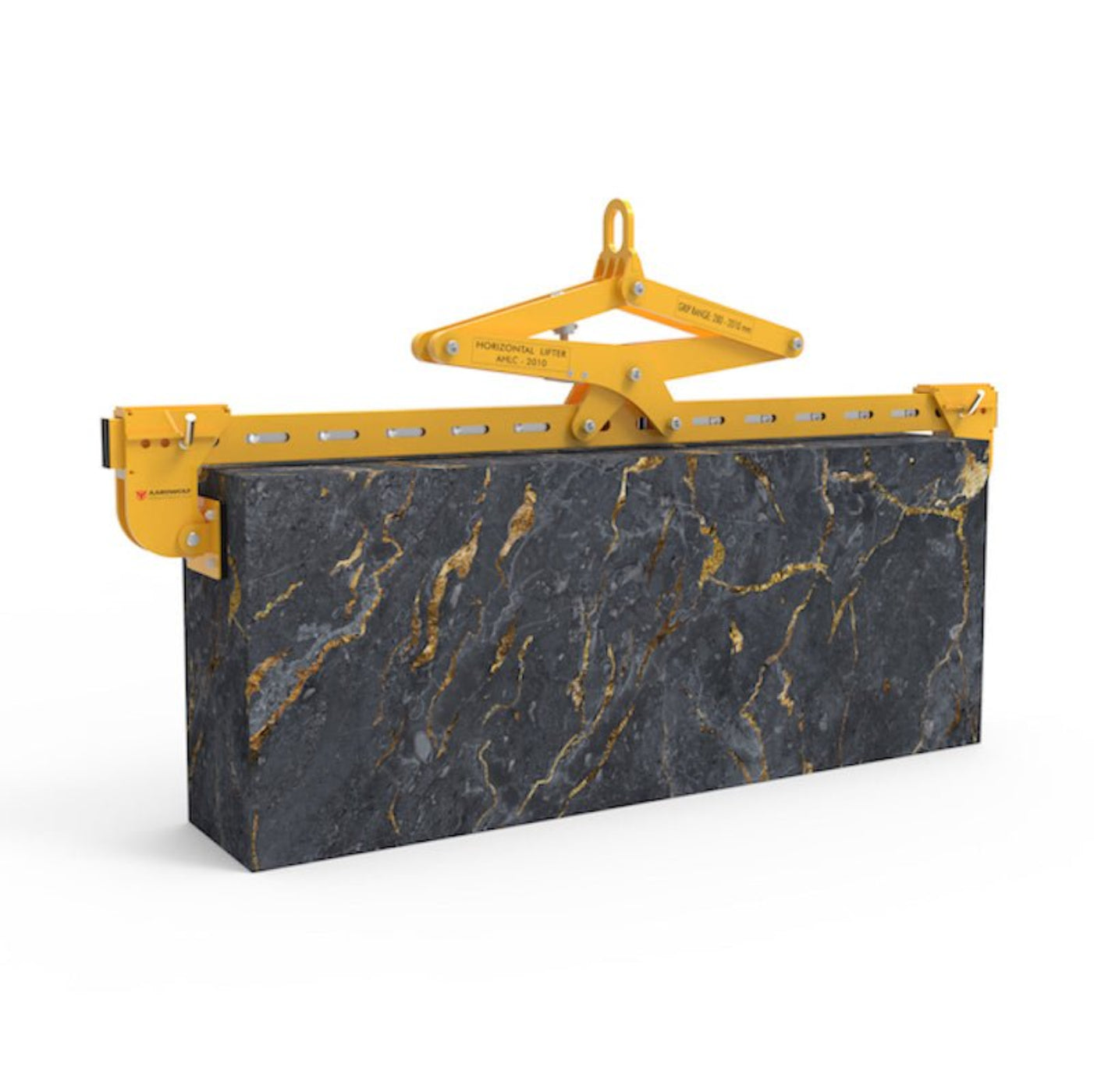

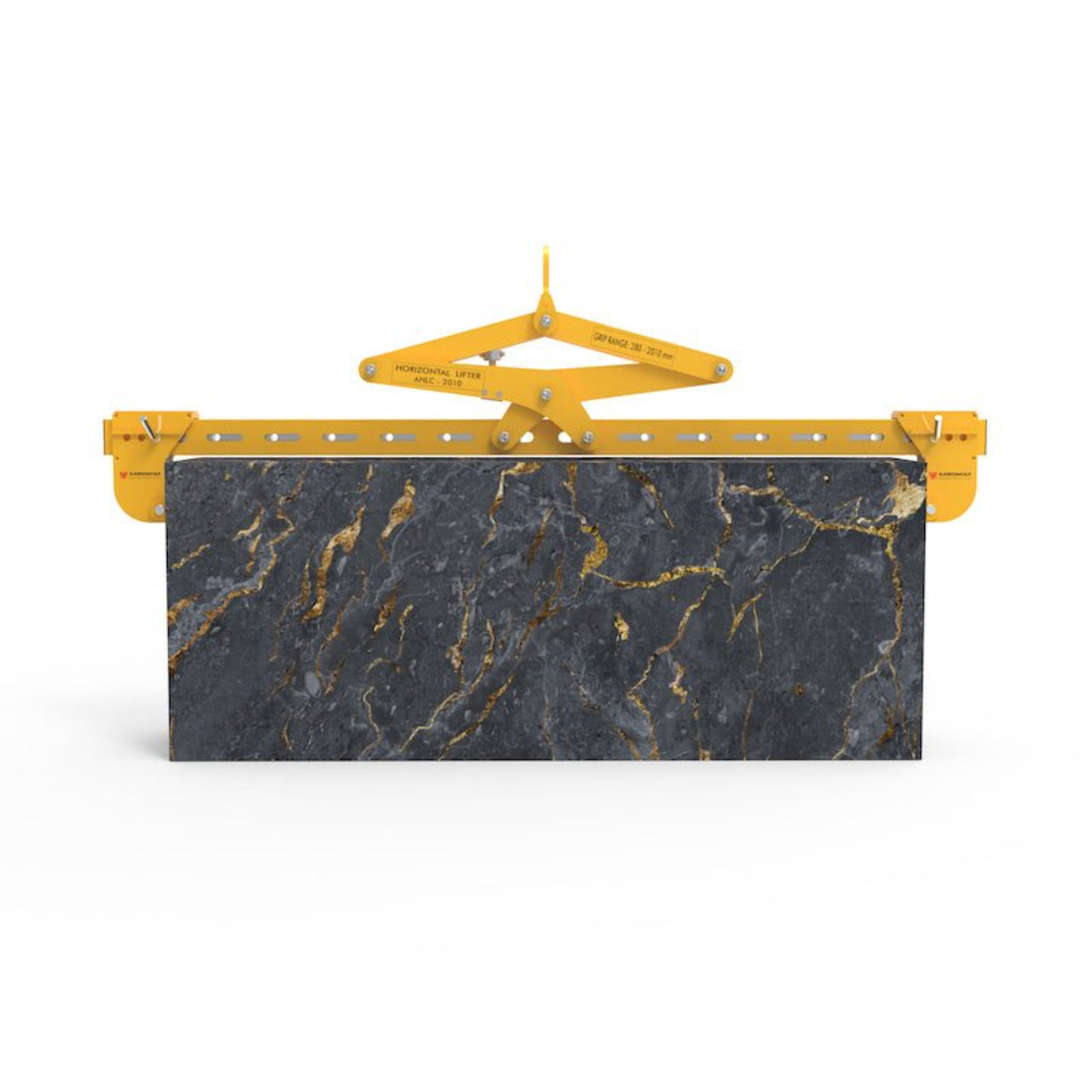

For the horizontal lifting of concrete and natural stone. The Horizontal Stone Lifting Clamp - 2010 incorporates a latch that automatically releases the lifter from the load once the load has been fully lowered to the ground.
Features
- Adjustable opening width
- A large gripping range, making it suitable for a wide range of applications
- Long lasting, high friction replaceable polyurethane gripping pads
- Lifting eye for attaching to crane hook
- Auto locks and unlocks the load
- Vulcanized rubber pads

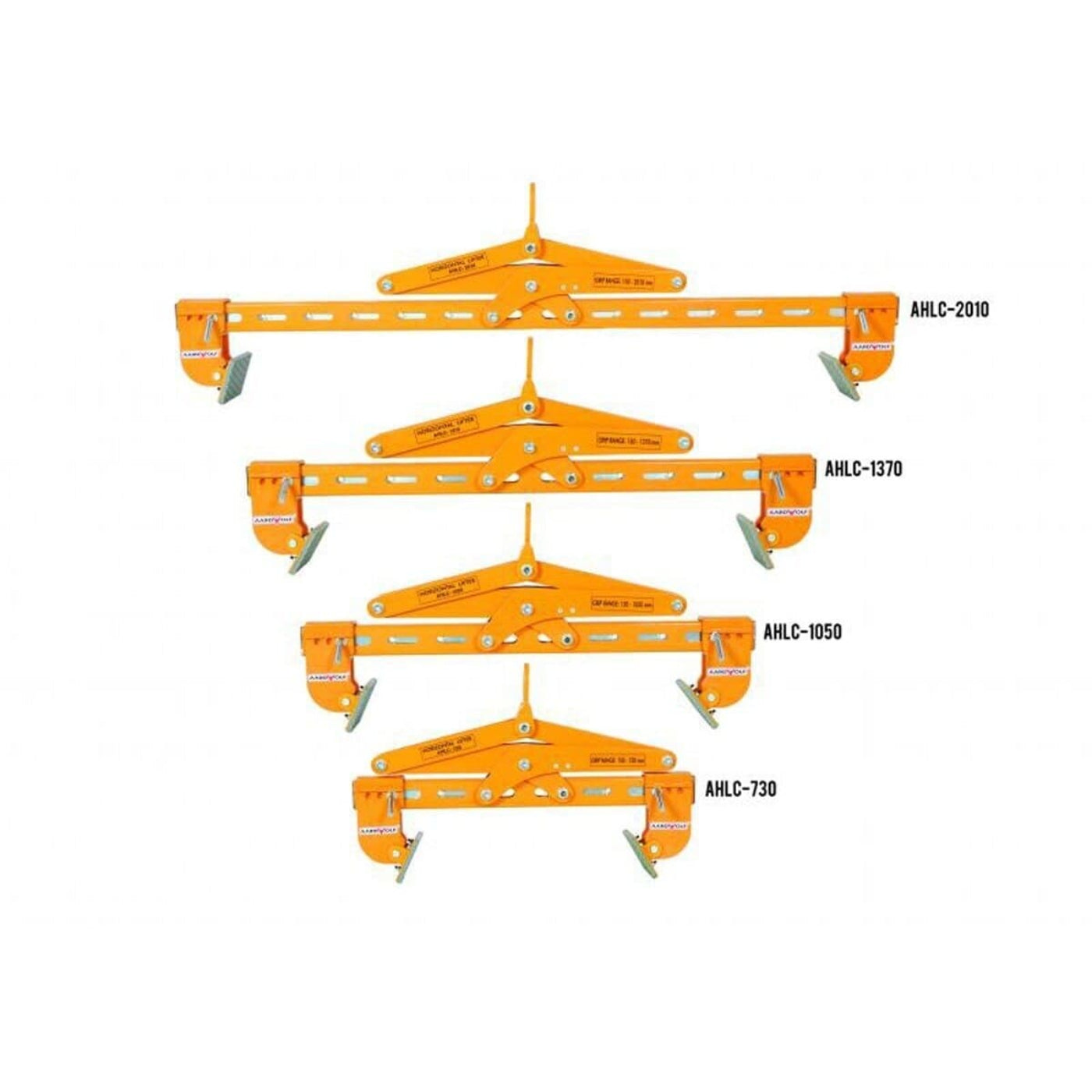

Specifications
| AHLC-730 |
11" – 28" |
3,307 |
247 |
| AHLC-1050 |
11" – 41" |
3,307 |
267 |
| AHLC-1370 |
11" – 54" |
3,307 |
273 |
| AHLC-2010 |
11" – 79" |
3,307 |
302 |
| AHLC-2010-4 |
12" – 79" |
8,818 |
503 |
What our Experts Think
-
Grip Range: 280 – 1370 mm (11" – 54")
-
Working Load Limit: 1500 kg (3307 lbs)
-
Net Weight: 124 kg (273 lbs)
-
Grip Pads: Replaceable polyurethane pads with high friction to protect load surfaces
-
Operation Mechanism: Gravity-controlled jaws that open on every second lift and close on every second lift
-
Mounting: Equipped with a lifting eye for crane attachment
Q&A
Q: What is the Aardwolf AHLC2010 Horizontal Stone Lifting Clamp used for?
A: It's designed for lifting and transporting concrete blocks and natural stone slabs horizontally, typically used with cranes or forklift booms.
Q: What is its grip range?
A: The AHLC2010 accommodates a grip range from 280 mm to 1370 mm (11" to 54").
Q: What is the working load limit?
A: The clamp has a working load limit of 1500 kg (3307 lbs).
Q: What materials are the gripping pads made of?
A: The clamp features long-lasting, high-friction replaceable polyurethane gripping pads that protect load surfaces against damage.
Q: How does the clamp operate?
A: The clamp jaws are gravity-controlled, opening automatically on every second lift and closing on every second lift, ensuring secure handling of the load.
Q: Is it suitable for use with lifting equipment?
A: Yes, the AHLC2010 is suitable for use on cranes or forklift booms, providing versatile material handling solutions.
Maintenance Tips
-
Inspect Regularly: Examine the clamp's frame, jaws, and lifting eye for any signs of wear, cracks, or deformation.
-
Clean After Use: Remove dust, debris, and moisture from all components to prevent corrosion and maintain optimal performance.
-
Check Gripping Pads: Inspect the high-friction, replaceable rubber pads for wear. Replace them if they show signs of damage or reduced grip.
-
Lubricate Moving Parts: Apply appropriate lubricant to the moving parts, such as the pivot points, to ensure smooth operation.
-
Test Functionality: Before each use, verify that the clamp jaws open and close correctly and that the automatic locking mechanism functions properly.
-
Store Properly: When not in use, store the clamp in a dry, sheltered area to protect it from environmental damage.
