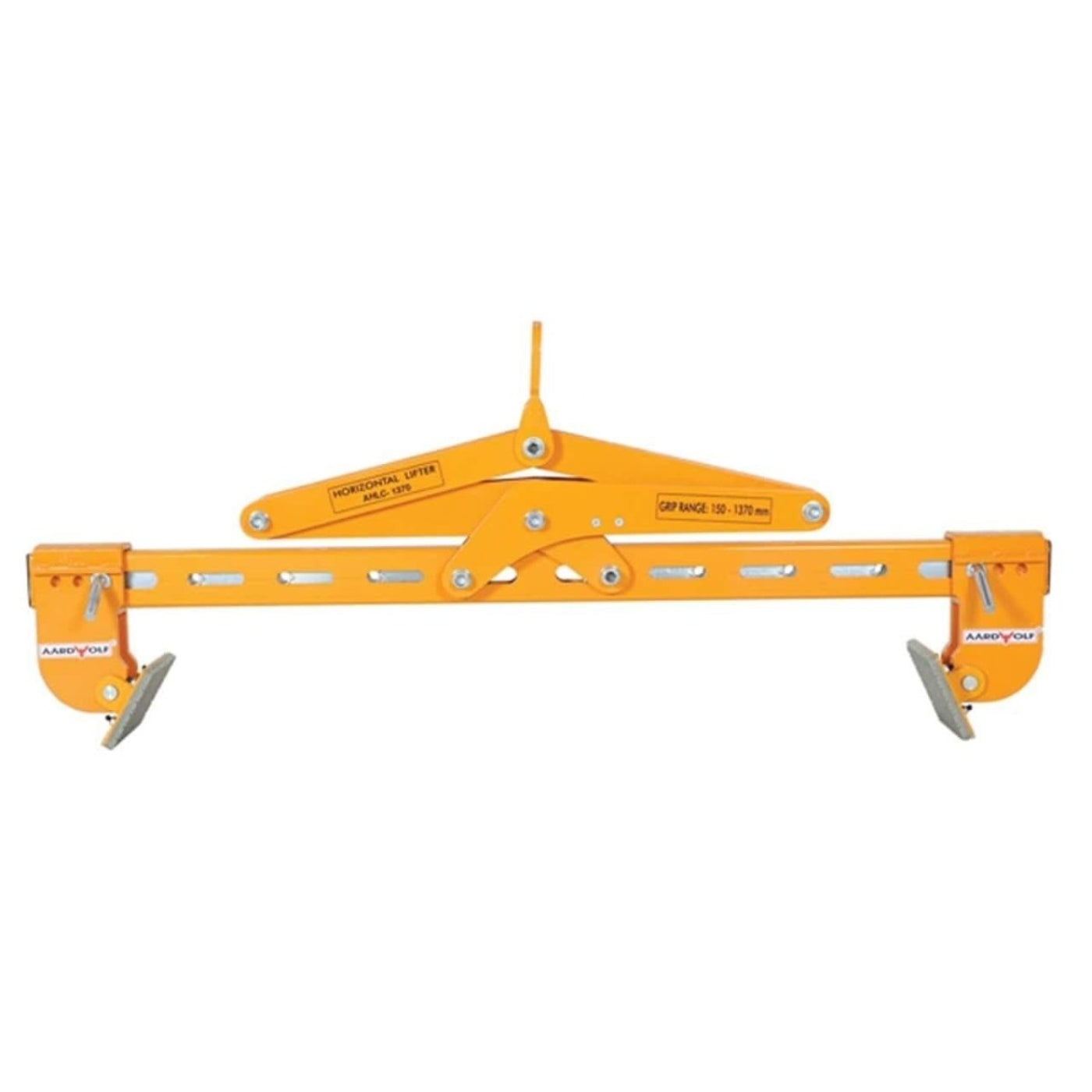

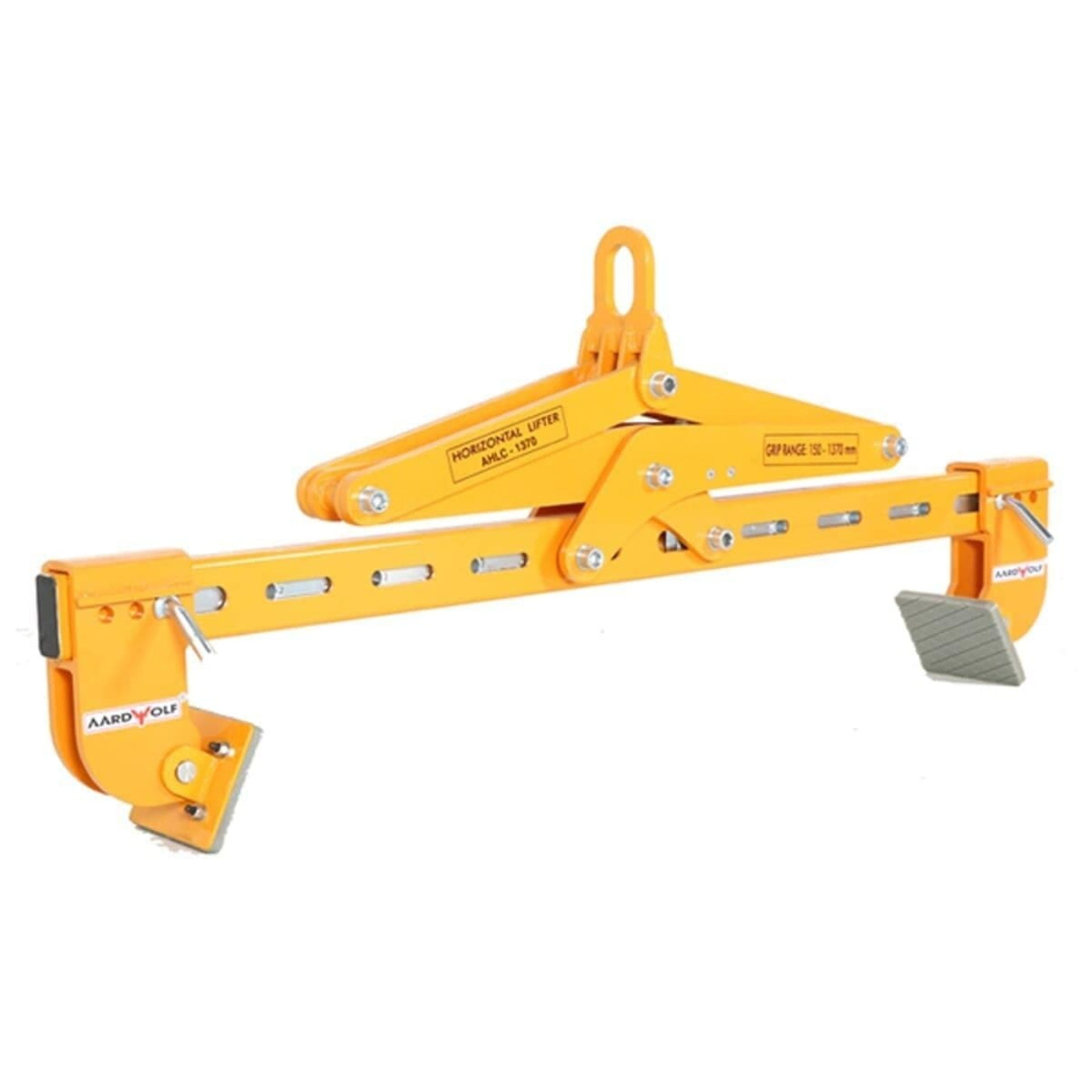

Aardwolf Horizontal Stone Lifting Clamp - 1370 - AHLC1370

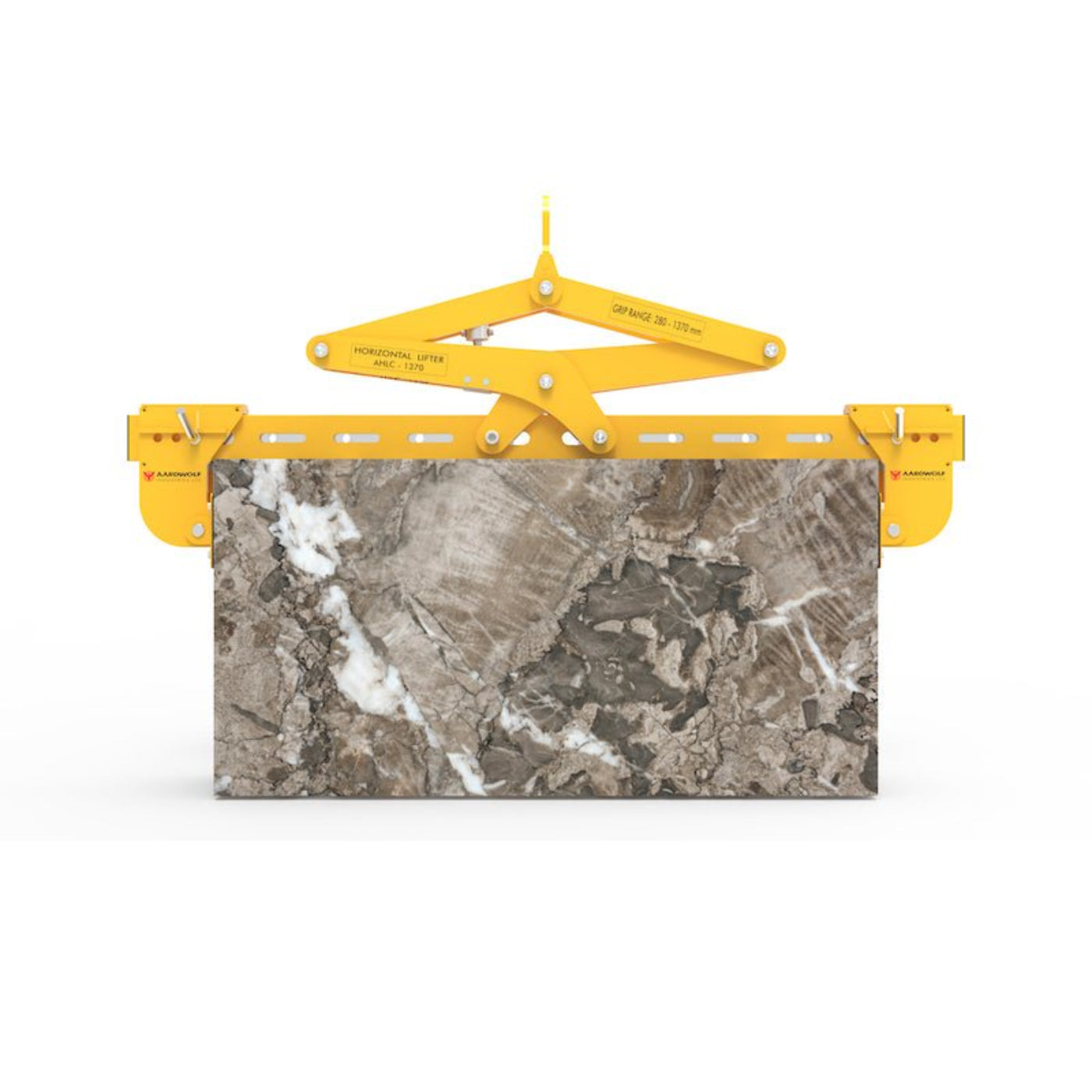

For the horizontal lifting of concrete and natural stone. The Horizontal Stone Lifting Clamp -1370 incorporates a latch that automatically releases the lifter from the load once the load has been fully lowered to the ground.
Features
- Adjustable opening width
- A large gripping range, making it suitable for a wide range of applications
- Long lasting, high friction replaceable polyurethane gripping pads
- Lifting eye for attaching to crane hook
- Auto locks and unlocks the load
- Vulcanized rubber pads
Specifications
What our Experts Think
-
Wide Grip Range: Adjustable jaw accommodates materials from 11" to 54", making it perfect for handling a variety of stone slabs and concrete panels.
-
Heavy Lifting Capability: With a load capacity of up to 3,307 lbs (1,500 kg), it’s built for serious industrial and construction applications.
-
Automatic Locking: Gravity-controlled latch locks and unlocks automatically during lifting and releasing—streamlining workflow and improving safety.
-
Surface Protection: Features high-friction, durable polyurethane gripping pads to securely hold material without causing surface damage.
-
Rugged Build: Strong lifting eye and robust frame ensure dependable performance in harsh job site conditions.
-
Optional Enhancements: Can be equipped with rotating pads or a limit stop for added flexibility and better control when positioning loads.
Q&A
Q: What is the Aardwolf AHLC1370 used for?
A: It's designed for the horizontal lifting and transportation of heavy stone and concrete slabs in construction and fabrication settings.
Q: What is the lifting capacity of the AHLC1370?
A: It has a working load limit of 1,500 kg (3,307 lbs).
Q: What is the grip range of this clamp?
A: The clamp can securely grip materials ranging from 280 mm to 1,370 mm (11" to 54") in width.
Q: What are the key features of the AHLC1370?
A: It features an adjustable opening width, gravity-controlled jaws that automatically grip and release, and high-friction polyurethane gripping pads for a secure hold.

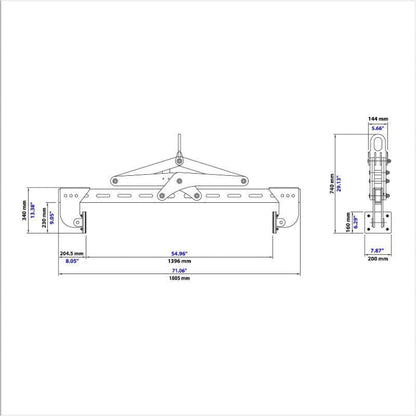

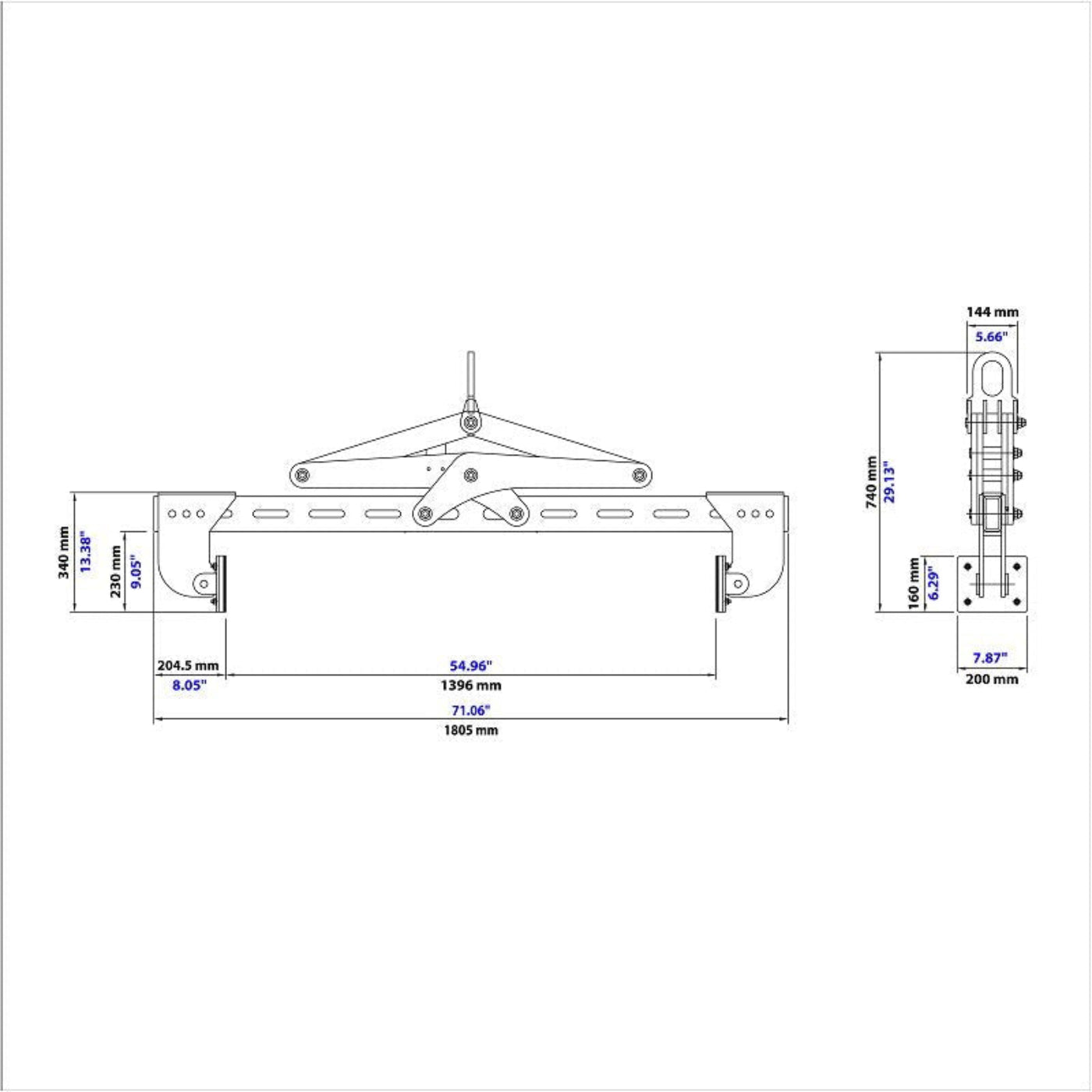

Q: What are the dimensions and weight of the clamp?
A: The net weight is 124 kg (273 lbs), with packaging dimensions of 1,840 mm x 530 mm x 390 mm (72.4" x 20.9" x 15.4").
Q: Why choose the Aardwolf AHLC1370?
A: It offers a combination of high lifting capacity, adjustable grip range, and safety features, making it a reliable choice for professionals handling heavy stone materials.
Maintenance Tips
-
Regular Inspection: Check the clamp’s lifting mechanism and safety features for wear or damage before each use.
-
Clean After Use: Remove debris, dirt, and moisture from the clamp to prevent rust and maintain optimal performance.
-
Lubricate Moving Parts: Apply a light lubricant to the pivot points and moving components to ensure smooth operation.
-
Inspect for Damage: Regularly check for cracks or deformation, especially after heavy lifting, to maintain safety and reliability.
-
Store Properly: Keep the clamp in a dry, clean area to prevent exposure to corrosive environments.
