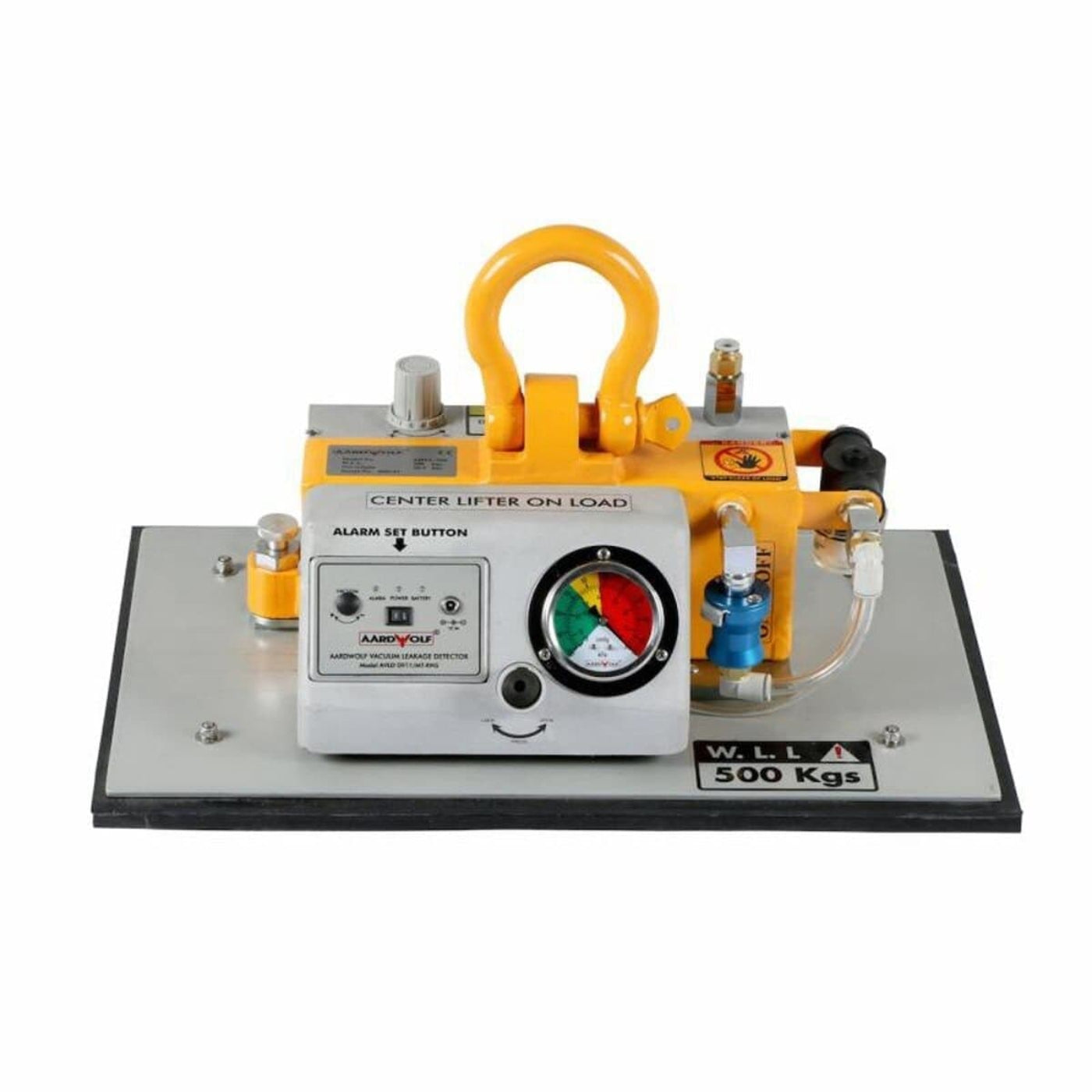

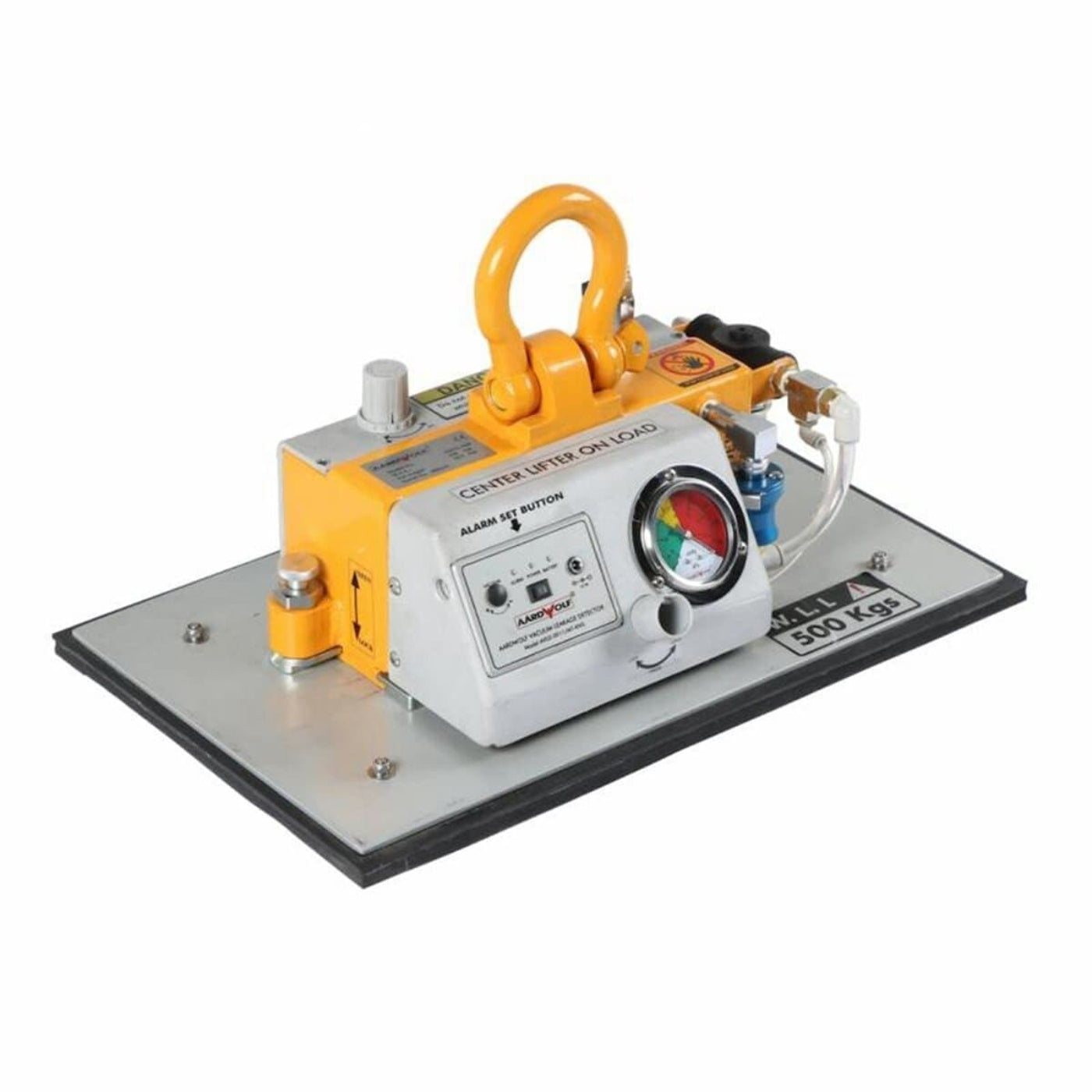

Aardwolf Handy Vacuum Lifter - AHVL500
Single Pad Vacuum Lifter designed to used compressed air for lifting porous and non porous objects
Vacuum lifter, model AHVL 500 is powered by venturi vacuum generator, which requires a source of compressed air in order to function but require no electricity. The vacuum generator has no moving parts and therefore no lubrication is required.
Features
- Quick change vacuum pad system.
- Slider valve with on & off position for the attachment of material to vacuum pads and release of material from vacuum pads.
- Acoustic alarm system. Independently powered by small a 9 V rechargeable battery.
Specifications
| Model |
Working load limit |
Net weight |
Gross Weight |
Package Dimension  |
| AHVL500 |
20.5 x 5.5: 265 lbs
20.5 x 6.3: 397 lbs
20.5 x 8.7: 639 lbs
20.5 x 12.6: 1058 lbs |
63 lbs |
75 lbs |
22 x 13.7 x 11.4 |
Manual
AVLP 2 - 2 Pad Vacuum Lifter
AVLP 4 - 4 Pad Vacuum Lifter
ABL380 - Block Lifter
ABL1000 - Block Lifter
ARGL0500DC - Vacuum Glass Lifter
AHVL500 - Handy Vacuum Lifter
What Our Experts Think
-
Efficient and Powerful: Designed for handling heavy materials, the AHVL500 excels in lifting and moving glass, metal, and stone with ease.
-
Ease of Use: User-friendly controls and quick setup make it perfect for professionals needing reliable and safe lifting solutions.
-
Durable Construction: Built to last, the AHVL500 features high-quality materials and a robust design, ensuring long-term performance.
-
Increased Productivity: The vacuum lifter reduces manual labor and enhances workflow efficiency, making it ideal for construction and manufacturing.
-
Safety First: With a strong suction system and safety valve, it provides peace of mind while lifting heavy objects.
-
Popular Choice in the Industry: Frequently recommended by experts for its versatility and reliability across various sectors.
Q&A
Q: What is the Aardwolf Handy Vacuum Lifter AHVL500?
A: The AHVL500 is a pneumatic vacuum lifter designed for safely lifting stone, concrete, and foam materials. It operates with compressed air, using a Venturi vacuum generator—no electricity needed.
Q: What are the lifting capacities and pad sizes?
A: The AHVL500 includes four interchangeable vacuum pads, with capacities ranging from:
-
265 lbs (120 kg) for a 20.5" x 5" pad
-
397 lbs (180 kg) for a 20.5" x 6.3" pad
-
617 lbs (280 kg) for a 20.5" x 8.7" pad
-
1,102 lbs (500 kg) for a 20.5" x 12.6" pad
Q: What are its air requirements?
A: The lifter requires 180 liters per minute of compressed air at a pressure of 5 bars (72 psi).
Q: What materials can it handle?
A: The AHVL500 is ideal for lifting stone, concrete, foam, and other materials with smooth or rough surfaces.
Maintenance Tips
-
Regular Inspection: Check for wear and tear, especially on the vacuum pad and hoses. Replace if damaged.
-
Clean the Vacuum Pad: Ensure it’s free from debris for optimal suction. Wipe with a soft cloth after each use.
-
Check the Vacuum System: Ensure the vacuum pump and hoses are functioning properly. Clean filters regularly.
-
Lubricate Moving Parts: Apply lubricant to moving components to prevent rust and ensure smooth operation.
-
Storage: Store in a dry, clean place to avoid exposure to harsh elements that could damage the lifter.
-
Battery Care: If using a battery-powered model, charge the battery fully after each use and store it in a cool, dry place.
