Aardwolf Folding A Frame

Aardwolf Folding a Frames designed as a granite transporting frame that folds down for the safety

Hauling granite and marble isn't easy, and it certainly isn't safe if you don't have the right equipment. This well-made foldable a frame is needed for both the safety of the driver and other workers, as well as for the protection of the granite and marble.

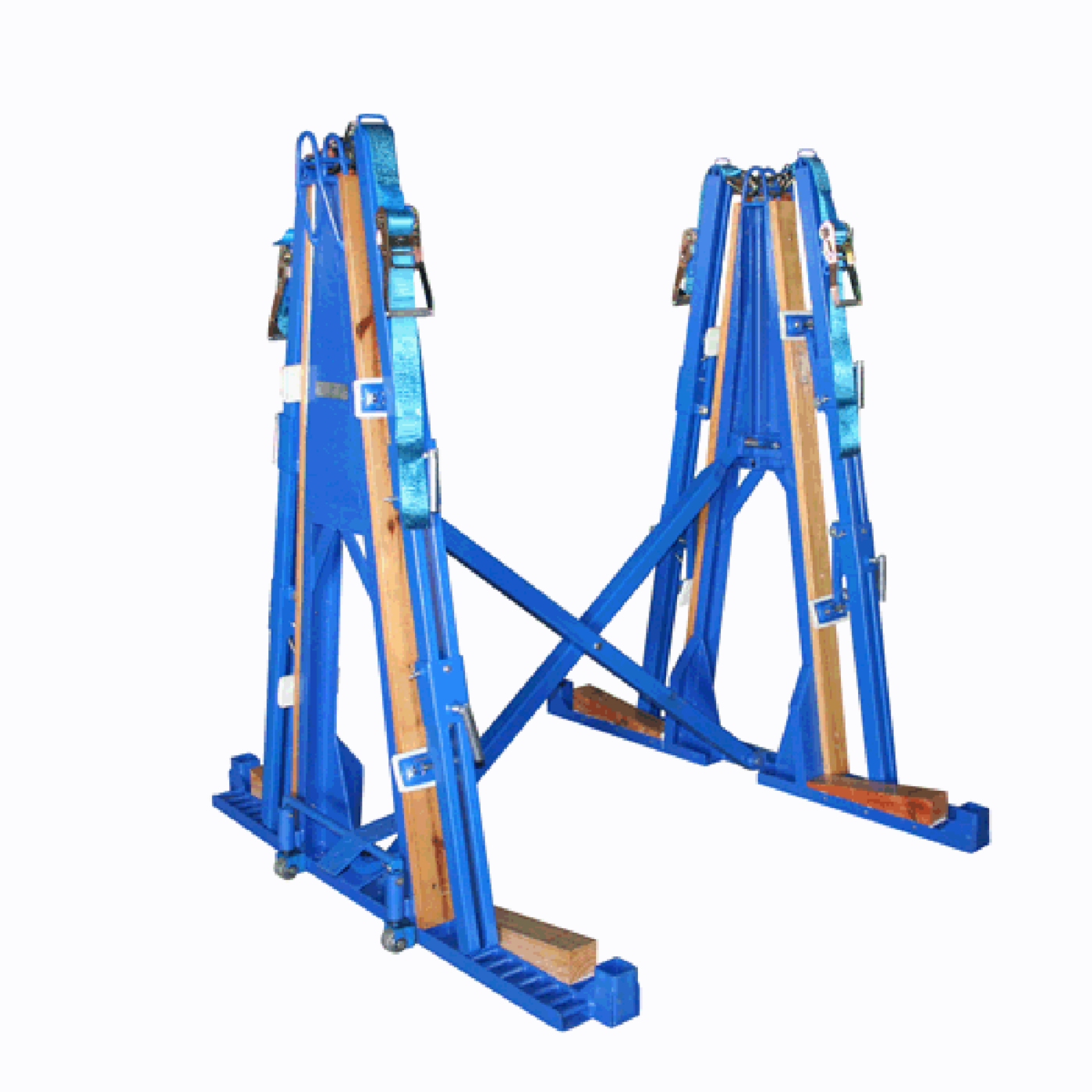

The sturdy Aardwolf Folding 'A' Frame granite transporting frames with its unique integrated vertical locking bars and ratchet locking straps is designed so as to holds all material safely and securely, which eliminate risk to the operator and prevent damage to material. The load is secured independently on each side by two vertical locking bars, which are inserted into brackets at the base of the frame and held by ratchet locking straps at the top.
The unloaded frame can be folded up by the simple withdrawing of two spring loaded pins from the cross braces and the lowering of the three wheels at one end by means of a cam lever. The lowered wheels also allow the frame to be positioned on the tray of a truck or manually moved around the factory.

Features

Bolts holes in base of frame for optional securing of the Folding 'A' Frame to the vehicle.

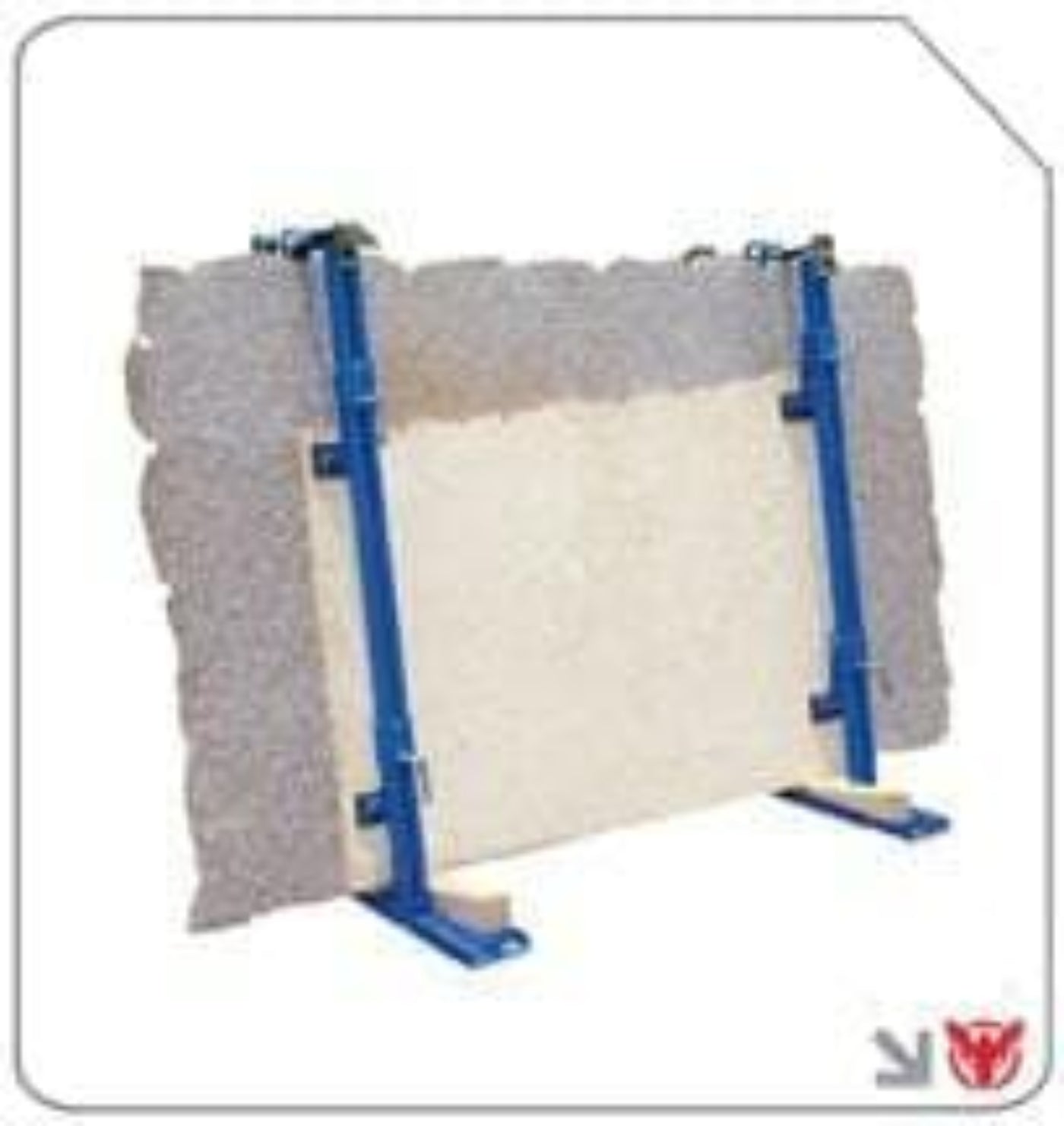

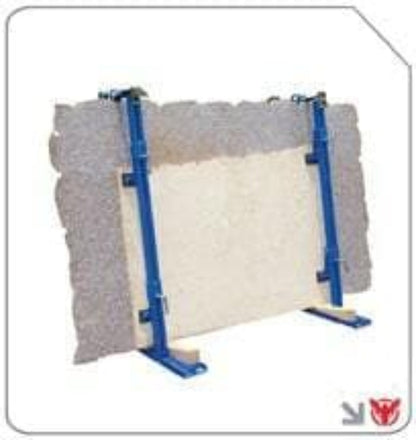

Granite is secured by rubber pads mounted on cleats, which are in turn adjustable in height along the vertical locking bars.
Large hand-tightened wing nuts are used to tighten the cleats to the vertical locking bars.
Powered coat paint finish.

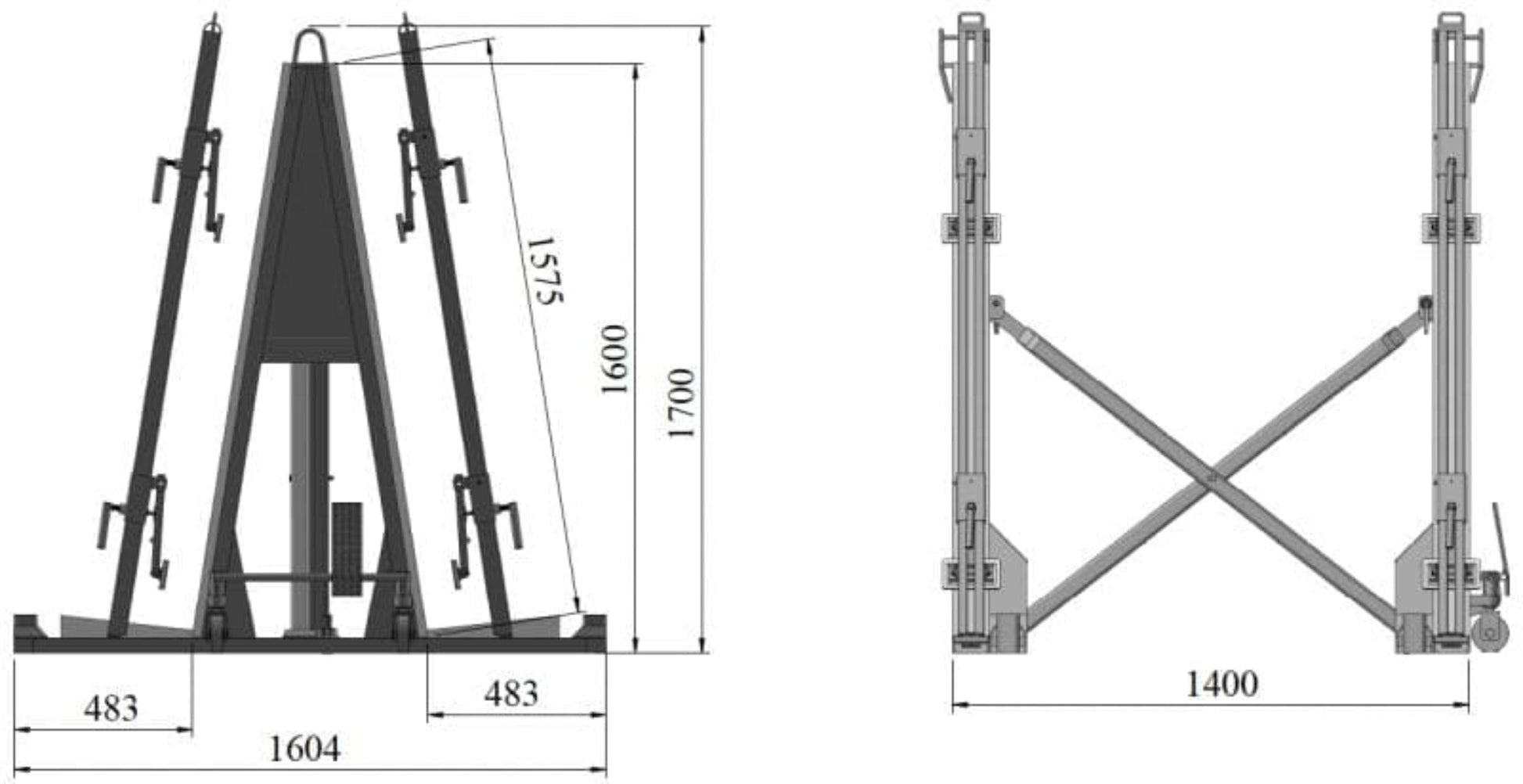

Specifications

What our Experts Think

• Efficient Horizontal Lifting: Designed for handling glass, metal sheets, and similar flat materials. Its compact build allows easy attachment to hoists for streamlined movement.

• Lightweight and Durable: Constructed from aluminum, it offers strength while remaining light enough for portable use.

• Enhanced Safety: Built-in audio and visual alarms alert the operator to any issues, increasing workplace safety during lifts.

• User-Friendly Controls: Simple button-based operation makes vacuum engagement and release intuitive and efficient.

• Long Battery Life: Runs on a 12V 6.0Ah battery offering 2.5 hours of continuous use and up to 720 hours on standby.

• Strong Vacuum Power: Provides a consistent 32.5 liters per minute vacuum flow rate for secure lifting.

• Compact Storage: Weighs 28 kg and comes in a manageable size for transport and storage.

Q&A

Q: What is the Aardwolf AVLB4 Vacuum Lifter used for?
A: The AVLB4 is designed for horizontal lifting of glass, metal sheets, laser-cut panels, and similar flat materials, offering efficient and safe handling.

Q: What is its lifting capacity?
A: It can lift materials weighing up to 160 kg (approximately 353 lbs), suitable for various industrial applications.

Q: How many suction pads does it have, and what are their dimensions?
A: The lifter features four suction pads, each with a diameter of 150 mm (approximately 5.9 inches), ensuring a secure grip on materials.

Q: What are its battery specifications?
A: The AVLB4 operates on a 12V battery with a capacity of 6.0Ah. It offers a standby time of 720 hours, a charging time of 2 hours, and a continuous working time of approximately 2.5 hours.

Q: What is the vacuum flow rate of the device?
A: The vacuum flow rate is 32.5 liters per minute, ensuring efficient suction and release during operations.

Q: Is the AVLB4 easy to transport and set up?
A: Yes, with a net weight of 28 kg (approximately 62 lbs) and compact packaging dimensions (L1350 x W300 x H510 mm), it is designed for easy transportation and quick setup.

Maintenance Tips

• Inspect Before Use: Check vacuum pads, seals, and hoses for wear, cracks, or leaks.

• Clean Suction Pads: Wipe down pads after each use to remove dust, residue, and debris for maximum suction performance.

• Test Vacuum System: Regularly test the vacuum pump and gauge to ensure proper suction pressure and safety.

• Lubricate Moving Parts: Apply light lubricant to any mechanical joints or pivot points to keep movement smooth.

• Store Properly: Keep the lifter in a clean, dry area away from direct sunlight and moisture to protect components.
